NIL
Ribbed tube end plugs
Polyethylene

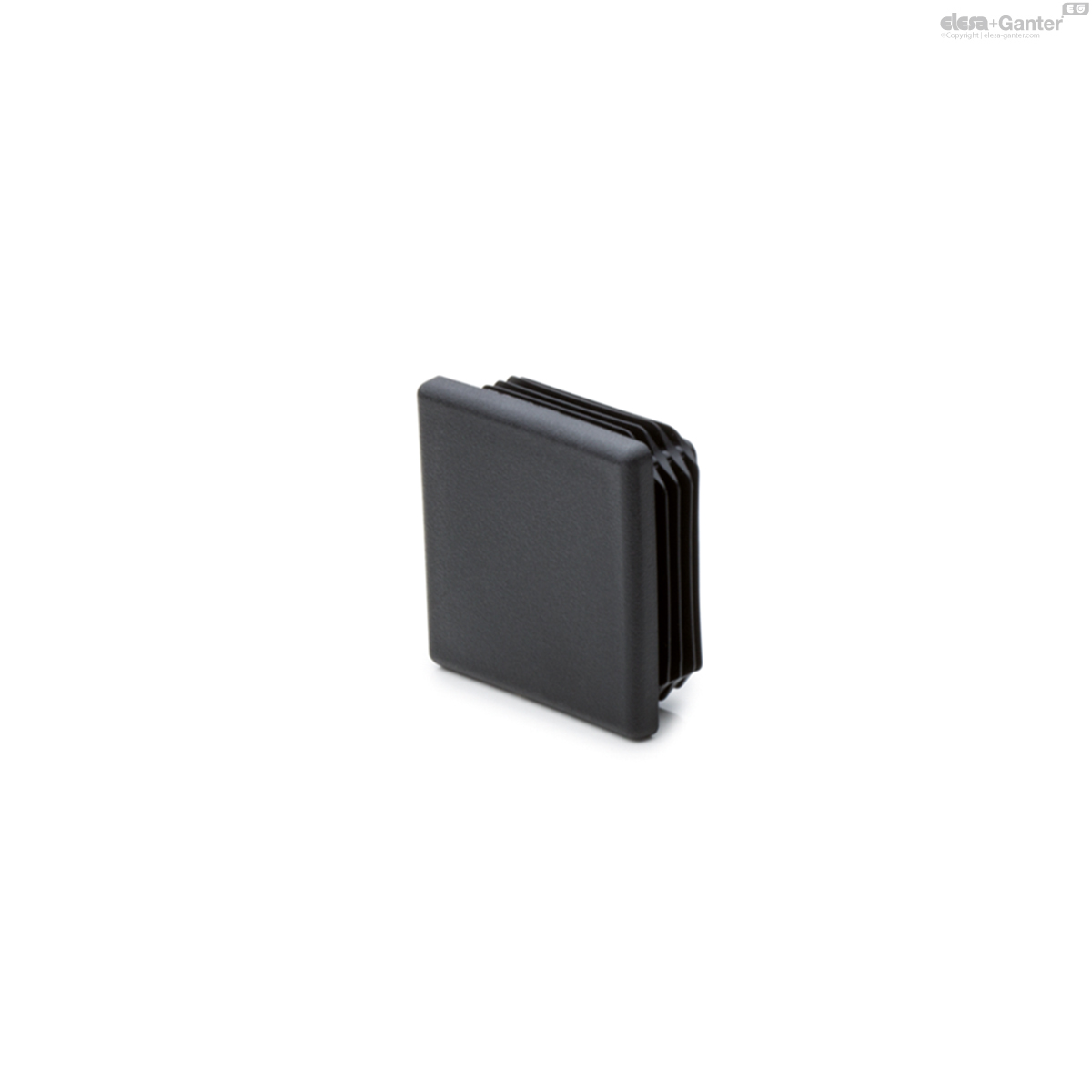

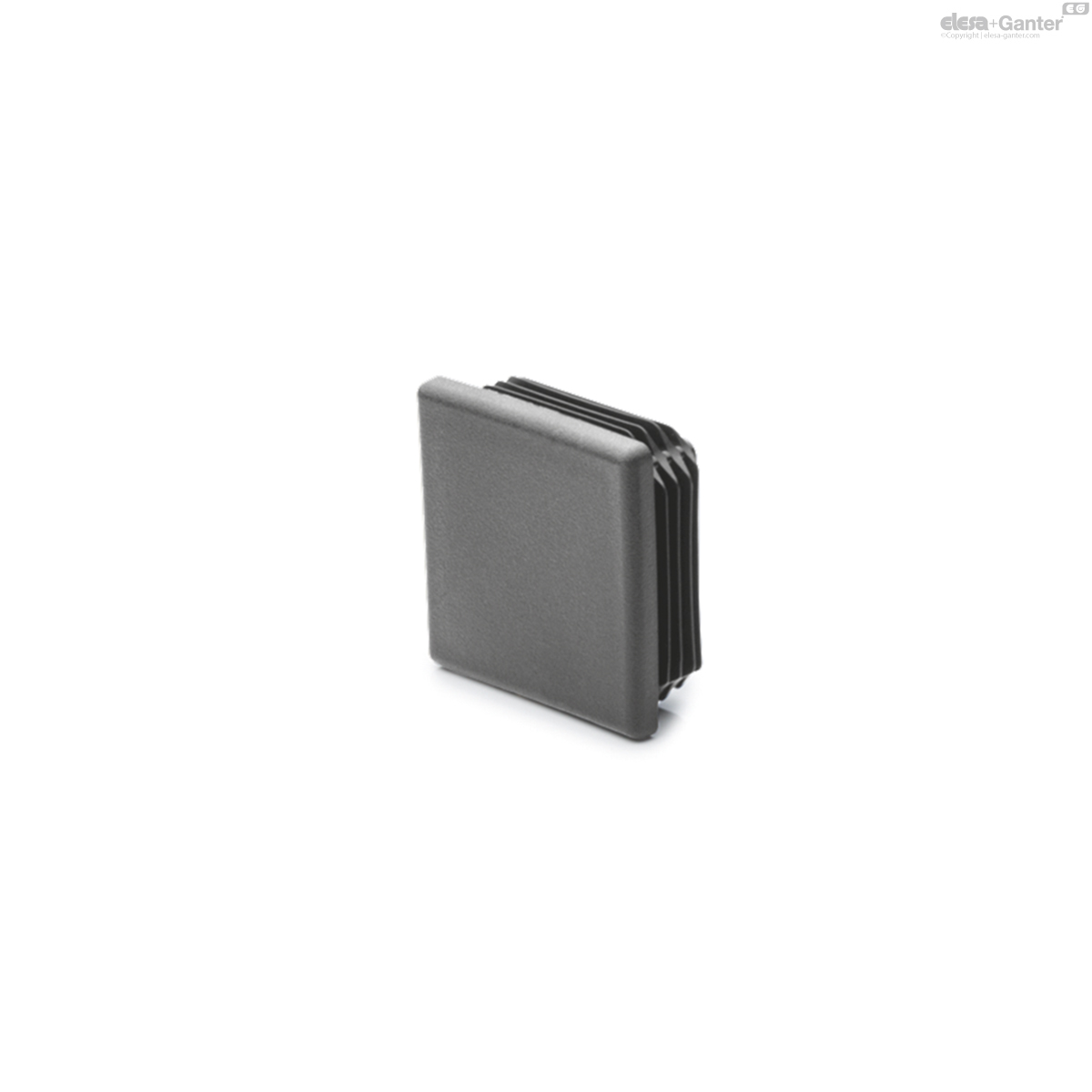

NIL.Q
Ribbed tube end plugs
For square tubes

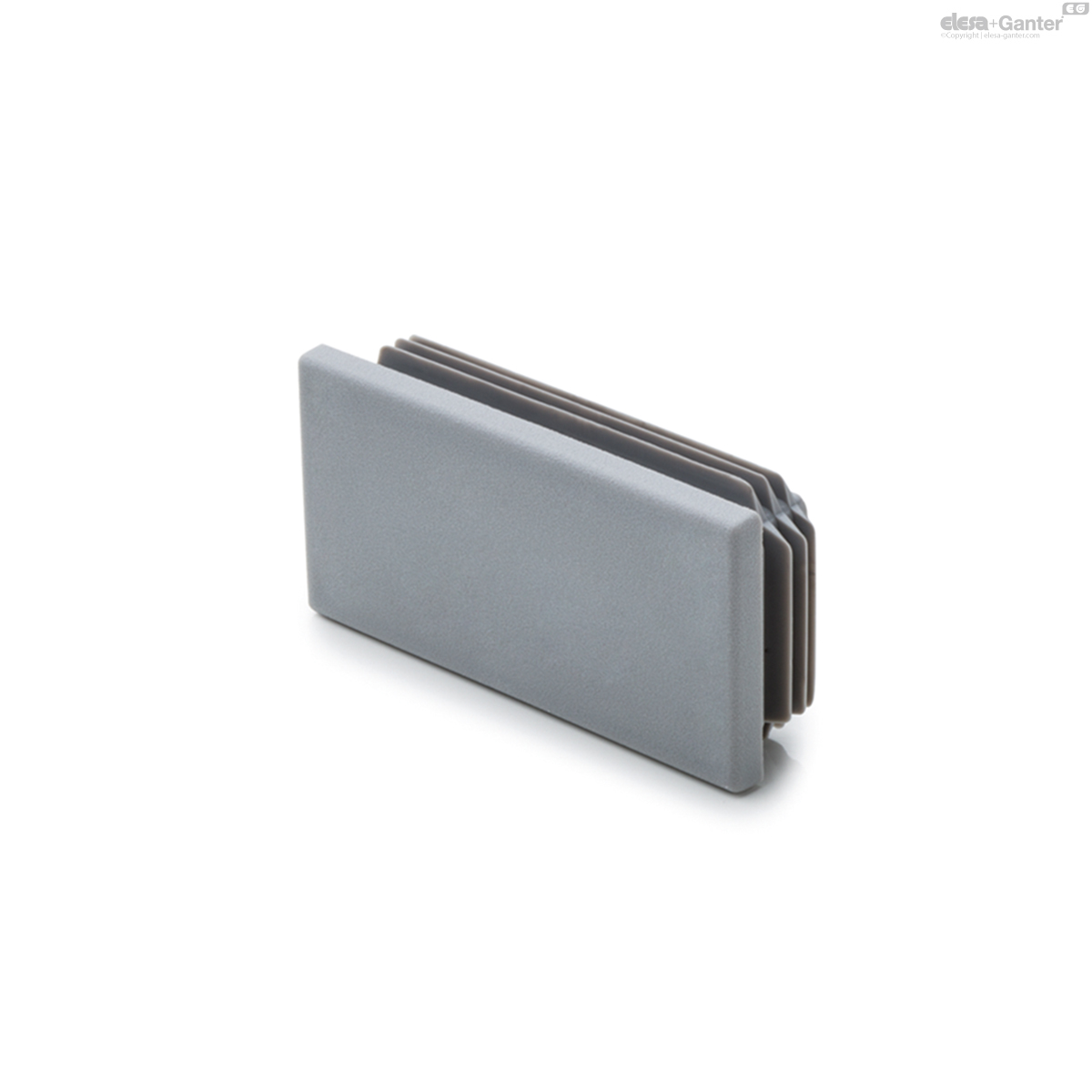

NIL.R
Ribbed tube end plugs
For rectangular tubes

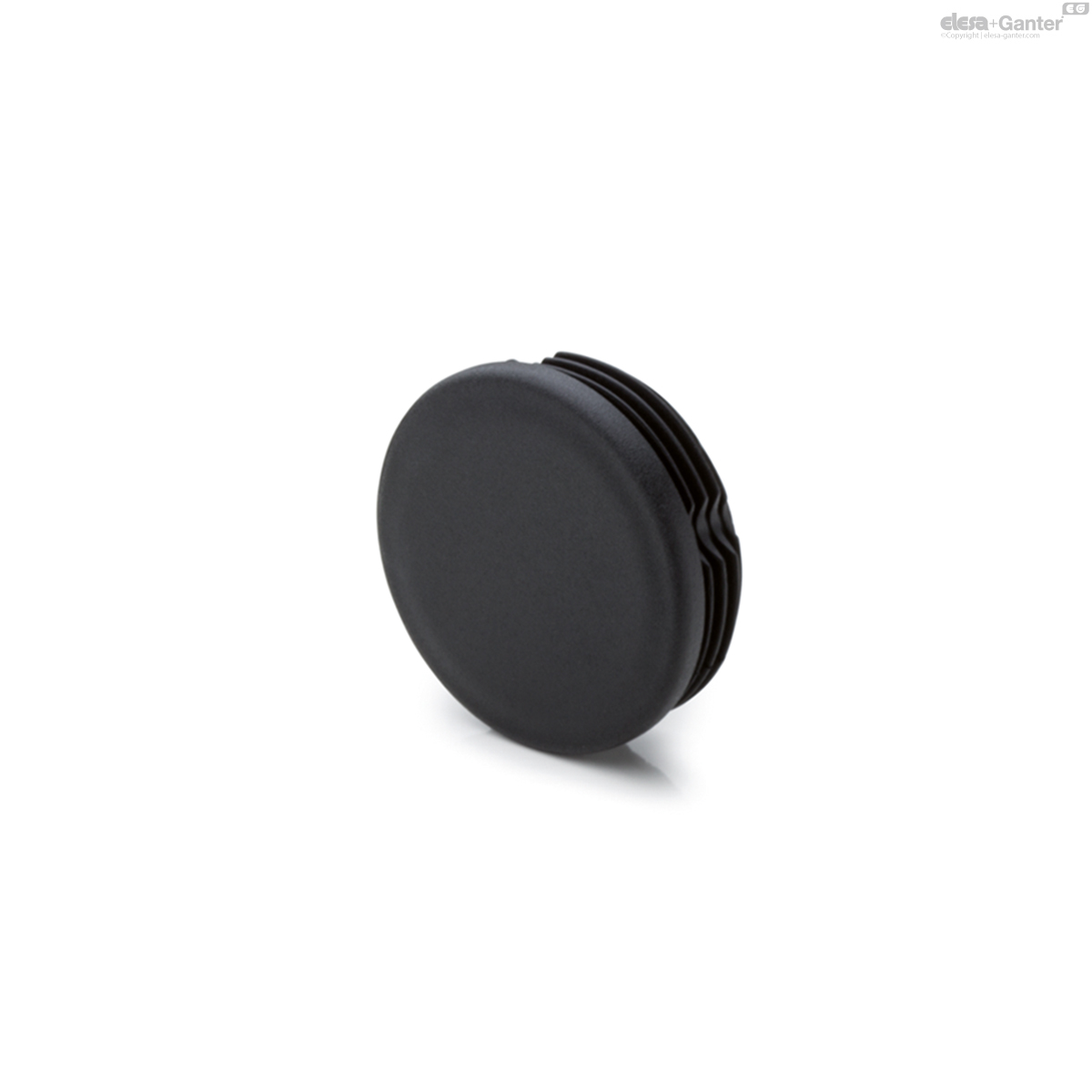

NIL.T
Ribbed tube end plugs
For round tubes
Description
Main specifications
Material
Polyethylene (PE), RAL 9005 (C9) black colour or RAL 7042 (C34) grey colour, satin finish.
Standard executions
- NIL.Q:Â for square tubes.
- NIL.R:Â for rectangular tubes.
- NIL.T:Â for round tubes.
General information
Fitting
Their fitting to the round, square or rectangular section tube or profile ends can be made either by hand or by a mallet.
Other executions
Special executions on request
RAL 9003 white coloured inserts.
NIL.Q
| Color | B | h | h1 | External tube diameter | Thickness | |||
|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||
| 435210-C9 | NIL.Q-10-C9 | C9 - RAL 9005 | 10 | 12 | 4 | 10 | 0,8÷2,5 |
|
| 435210-C34 | NIL.Q-10-C34 | C34 - RAL 7042 | 10 | 12 | 4 | 10 | 0,8÷2,5 |
|
| 435212-C9 | NIL.Q-12-C9 | C9 - RAL 9005 | 12 | 12 | 4 | 12 | 1÷2 |
|
| 435212-C34 | NIL.Q-12-C34 | C34 - RAL 7042 | 12 | 12 | 4 | 12 | 1÷2 |
|
| 435213-C9 | NIL.Q-13-C9 | C9 - RAL 9005 | 13 | 12 | 4 | 13 | 0,5÷2 |
|
| 435213-C34 | NIL.Q-13-C34 | C34 - RAL 7042 | 13 | 12 | 4 | 13 | 0,5÷2 |
|
| 435215-C9 | NIL.Q-15-C9 | C9 - RAL 9005 | 15 | 11.5 | 3 | 15 | 1÷2 |
|
| 435215-C34 | NIL.Q-15-C34 | C34 - RAL 7042 | 15 | 11.5 | 3 | 15 | 1÷2 |
|
| 435216-C9 | NIL.Q-16-C9 | C9 - RAL 9005 | 16 | 11.5 | 5 | 16 | 1÷2,5 |
|
| 435216-C34 | NIL.Q-16-C34 | C34 - RAL 7042 | 16 | 11.5 | 5 | 16 | 1÷2,5 |
|
| 435218-C9 | NIL.Q-18-C9 | C9 - RAL 9005 | 18 | 11.5 | 5 | 18 | 1,5÷3 |
|
| 435218-C34 | NIL.Q-18-C34 | C34 - RAL 7042 | 18 | 11.5 | 5 | 18 | 1,5÷3 |
|
| 435220-C9 | NIL.Q-20-C9 | C9 - RAL 9005 | 20 | 11.5 | 5 | 20 | 1÷3 |
|
| 435220-C34 | NIL.Q-20-C34 | C34 - RAL 7042 | 20 | 11.5 | 5 | 20 | 1÷3 |
|
| 435222-C9 | NIL.Q-22-C9 | C9 - RAL 9005 | 22 | 12 | 5 | 22 | 1÷3,5 |
|
| 435222-C34 | NIL.Q-22-C34 | C34 - RAL 7042 | 22 | 12 | 5 | 22 | 1÷3,5 |
|
| 435225-C9 | NIL.Q-25-C9 | C9 - RAL 9005 | 25 | 11.5 | 5 | 25 | 1÷3 |
|
| 435225-C34 | NIL.Q-25-C34 | C34 - RAL 7042 | 25 | 11.5 | 5 | 25 | 1÷3 |
|
| 435228-C9 | NIL.Q-28-C9 | C9 - RAL 9005 | 28 | 11.5 | 5 | 28 | 1÷3 |
|
| 435228-C34 | NIL.Q-28-C34 | C34 - RAL 7042 | 28 | 11.5 | 5 | 28 | 1÷3 |
|
| 435230-C9 | NIL.Q-30-C9 | C9 - RAL 9005 | 30 | 11.5 | 5 | 30 | 1÷3 |
|
| 435230-C34 | NIL.Q-30-C34 | C34 - RAL 7042 | 30 | 11.5 | 5 | 30 | 1÷3 |
|
| 435232-C9 | NIL.Q-32-C9 | C9 - RAL 9005 | 32 | 11.5 | 5 | 32 | 1÷3,5 |
|
| 435232-C34 | NIL.Q-32-C34 | C34 - RAL 7042 | 32 | 11.5 | 5 | 32 | 1÷3,5 |
|
| 435234-C9 | NIL.Q-34-C9 | C9 - RAL 9005 | 34 | 14.5 | 5 | 34 | 1÷3 |
|
| 435234-C34 | NIL.Q-34-C34 | C34 - RAL 7042 | 34 | 14.5 | 5 | 34 | 1÷3 |
|
| 435235-C9 | NIL.Q-35-C9 | C9 - RAL 9005 | 35 | 11.5 | 5 | 35 | 1÷3 |
|
| 435235-C34 | NIL.Q-35-C34 | C34 - RAL 7042 | 35 | 11.5 | 5 | 35 | 1÷3 |
|
| 435238-C9 | NIL.Q-38-C9 | C9 - RAL 9005 | 38 | 14.5 | 5 | 38 | 1÷3,5 |
|
| 435238-C34 | NIL.Q-38-C34 | C34 - RAL 7042 | 38 | 14.5 | 5 | 38 | 1÷3,5 |
|
| 435240-C9 | NIL.Q-40-C9 | C9 - RAL 9005 | 40 | 14.5 | 5 | 40 | 1÷3 |
|
| 435240-C34 | NIL.Q-40-C34 | C34 - RAL 7042 | 40 | 14.5 | 5 | 40 | 1÷3 |
|
| 435245-C9 | NIL.Q-45-C9 | C9 - RAL 9005 | 45 | 14.5 | 5 | 45 | 1÷3 |
|
| 435245-C34 | NIL.Q-45-C34 | C34 - RAL 7042 | 45 | 14.5 | 5 | 45 | 1÷3 |
|
| 435250-C9 | NIL.Q-50-C9 | C9 - RAL 9005 | 50 | 14.5 | 5 | 50 | 1÷2,5 |
|
| 435250-C34 | NIL.Q-50-C34 | C34 - RAL 7042 | 50 | 14.5 | 5 | 50 | 1÷2,5 |
|
| 435255-C9 | NIL.Q-55-C9 | C9 - RAL 9005 | 55 | 14.5 | 5 | 55 | 2÷4,5 |
|
| 435255-C34 | NIL.Q-55-C34 | C34 - RAL 7042 | 55 | 14.5 | 5 | 55 | 2÷4,5 |
|
| 435260-C9 | NIL.Q-60-C9 | C9 - RAL 9005 | 60 | 15 | 5 | 60 | 1,5÷3,5 |
|
| 435260-C34 | NIL.Q-60-C34 | C34 - RAL 7042 | 60 | 15 | 5 | 60 | 1,5÷3,5 |
|
| 435265-C9 | NIL.Q-65-C9 | C9 - RAL 9005 | 65 | 21 | 5 | 65 | 1÷3 |
|
| 435265-C34 | NIL.Q-65-C34 | C34 - RAL 7042 | 65 | 21 | 5 | 65 | 1÷3 |
|
| 435270-C9 | NIL.Q-70-C9 | C9 - RAL 9005 | 70 | 22 | 5 | 70 | 2÷5 |
|
| 435270-C34 | NIL.Q-70-C34 | C34 - RAL 7042 | 70 | 22 | 5 | 70 | 2÷5 |
|
| 435275-C9 | NIL.Q-75-C9 | C9 - RAL 9005 | 75 | 21 | 6 | 75 | 2÷4,5 |
|
| 435275-C34 | NIL.Q-75-C34 | C34 - RAL 7042 | 75 | 21 | 6 | 75 | 2÷4,5 |
|
| 435276-C9 | NIL.Q-76,2-C9 | C9 - RAL 9005 | 76.2 | 21 | 6 | 76.2 | 2,5÷5 |
|
| 435276-C34 | NIL.Q-76,2-C34 | C34 - RAL 7042 | 76.2 | 21 | 6 | 76.2 | 2,5÷5 |
|
| 435280-C9 | NIL.Q-80-C9 | C9 - RAL 9005 | 80 | 21 | 6 | 80 | 1,5÷4 |
|
| 435280-C34 | NIL.Q-80-C34 | C34 - RAL 7042 | 80 | 21 | 6 | 80 | 1,5÷4 |
|
| 435290-C9 | NIL.Q-90-C9 | C9 - RAL 9005 | 90 | 21 | 6 | 90 | 3÷5 |
|
| 435290-C34 | NIL.Q-90-C34 | C34 - RAL 7042 | 90 | 21 | 6 | 90 | 3÷5 |
|
| 435295-C9 | NIL.Q-95-C9 | C9 - RAL 9005 | 95 | 21.5 | 6 | 95 | 3,5÷5,5 |
|
| 435295-C34 | NIL.Q-95-C34 | C34 - RAL 7042 | 95 | 21.5 | 6 | 95 | 3,5÷5,5 |
|
| 435300-C9 | NIL.Q-100-C9 | C9 - RAL 9005 | 100 | 21 | 7 | 100 | 1÷4 |
|
| 435300-C34 | NIL.Q-100-C34 | C34 - RAL 7042 | 100 | 21 | 7 | 100 | 1÷4 |
|
| 435310-C9 | NIL.Q-110-C9 | C9 - RAL 9005 | 110 | 24 | 6 | 110 | 3÷5 |
|
| 435310-C34 | NIL.Q-110-C34 | C34 - RAL 7042 | 110 | 24 | 6 | 110 | 3÷5 |
|
| 435320-C9 | NIL.Q-120-C9 | C9 - RAL 9005 | 120 | 30 | 5 | 120 | 2,5÷6 |
|
| 435320-C34 | NIL.Q-120-C34 | C34 - RAL 7042 | 120 | 30 | 5 | 120 | 2,5÷6 |
|
| 435340-C9 | NIL.Q-140-C9 | C9 - RAL 9005 | 140 | 34 | 3 | 140 | 4÷7 |
|
| 435340-C34 | NIL.Q-140-C34 | C34 - RAL 7042 | 140 | 34 | 3 | 140 | 4÷7 |
|
| 435350-C9 | NIL.Q-150-C9 | C9 - RAL 9005 | 150 | 28 | 7 | 150 | 5÷8 |
|
| 435350-C34 | NIL.Q-150-C34 | C34 - RAL 7042 | 150 | 28 | 7 | 150 | 5÷8 |
|
| 435370-C9 | NIL.Q-50-2.6-C9 | C9 - RAL 9005 | 50 | 24 | 5.5 | 50 | 2.6÷4 |
|
| 435370-C34 | NIL.Q-50-2.6-C34 | C34 - RAL 7042 | 50 | 24 | 5.5 | 50 | 2.6÷4 |
|
