End-caps for square tubes

Technopolymer

Enquire Now

Description

Main specifications

Material

Polyamide based (PA) technopolymer, black colour, matte finish.

Standard execution

DIN 934 zinc-plated steel nut (included in the supply).

General information

Features and applications

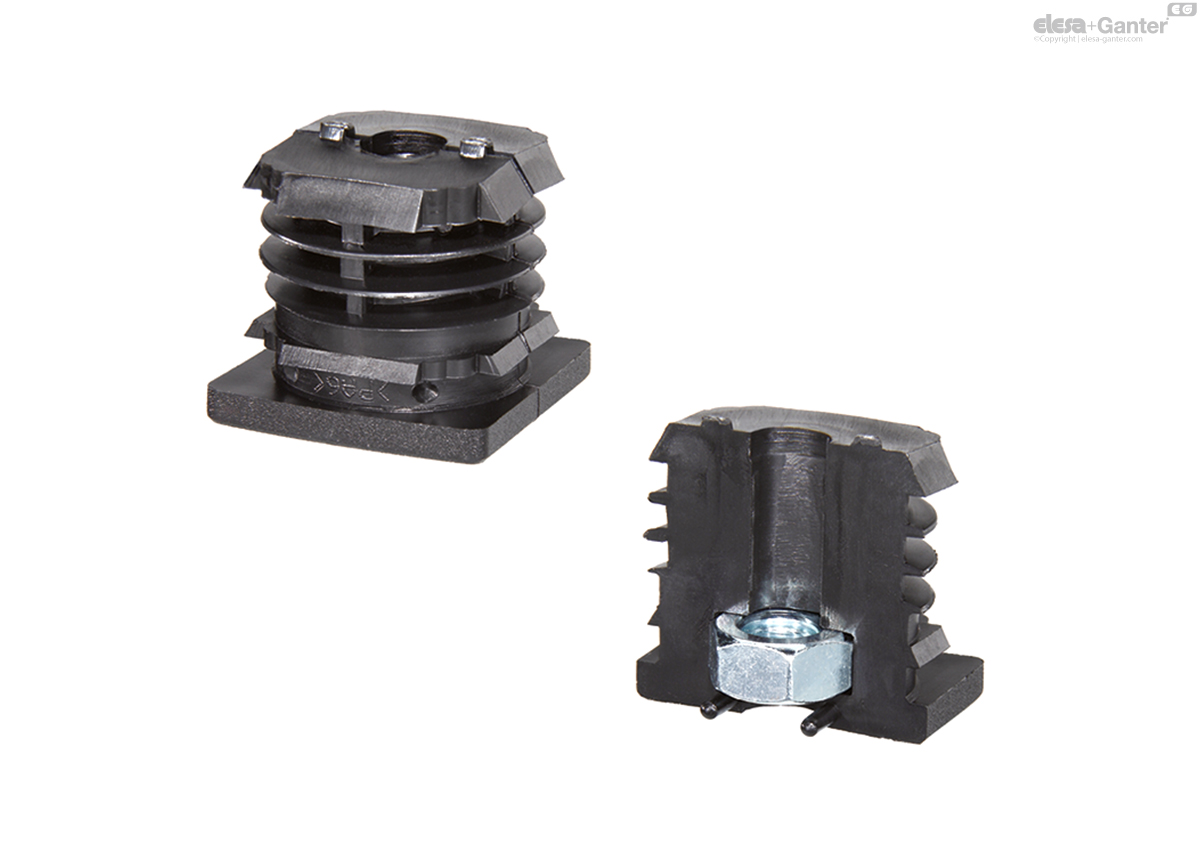

The two end-cap parts are connected together by means of two pins which are housed in special counter-seats. A cavity inside the end-cap is provided for housing an hexagonal nut DIN 934.

The assembly can be performed simply by positioning the end-cap inside the tube, with no need of screws or other fasteners.

Special executions on request

End-cap without nut.

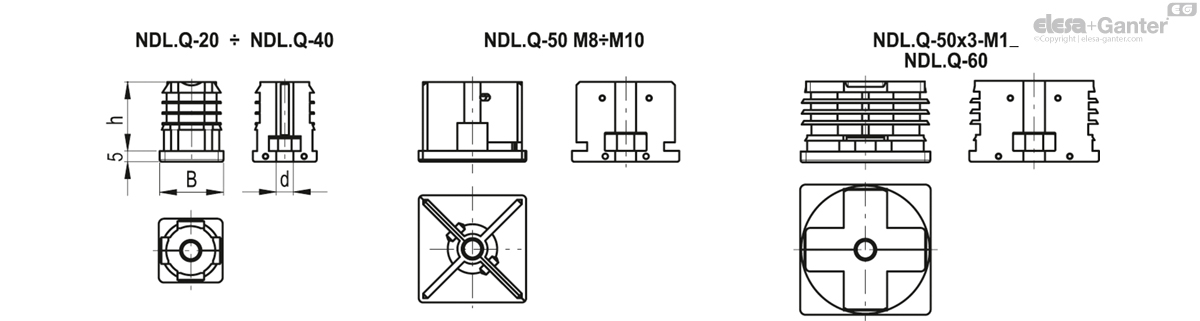

		B	d	h	External tube diameter	Internal tube diameter _min-max	Thickness _min-max	Max. static load* [N]
Code	Description									Actions
430551	NDL.Q-20x1.5-2-M6	20	M6	34	20	17-16	1.5-2	3000	10
430553	NDL.Q-20x1.5-2-M8	20	M8	34	20	17-16	1.5-2	3000	12
430555	NDL.Q-20x1.5-2-M10	20	M10	33	20	17-16	1.5-2	3000	17
430557	NDL.Q-20x2-M8	20	M8	34	20	16	2	3000	12
430561	NDL.Q-25x1-1.5-M8	25	M8	34	25	23-22	1-1.5	3000	18
430563	NDL.Q-25x1.5-M10	25	M10	33	25	22	1.5	3000	21
430565	NDL.Q-25x2-M8	25	M8	34	25	21	2	3000	17
430567	NDL.Q-25x2-M10	25	M10	34	25	21	2	3000	21
430571	NDL.Q-30x1.5-2-M8	30	M8	34	30	27-26	1.5-2	3000	22
430573	NDL.Q-30x1.5-2-M10	30	M10	34	30	27-26	1.5-2	3000	25
430575	NDL.Q-30x2.5-M10	30	M10	33	30	25	2.5	3000	25
430581	NDL.Q-35x1-2-M10	35	M10	34	35	33-31	1-2	3000	30
430583	NDL.Q-35x1.5-M12	35	M12	34	35	32	1.5	3000	37
430585	NDL.Q-35x1.5-2-M8	35	M8	34	35	32-31	1.5-2	3000	26
430587	NDL.Q-35x1.5-2-M12	35	M12	34	35	32-31	1.5-2	3000	36
430591	NDL.Q-40x1.5-2-M8	40	M8	33	40	37-36	1.5-2	3000	35
430593	NDL.Q-40x1.2-1.5-M10	40	M10	33	40	37.6-37	1.2-1.5	3000	43
430595	NDL.Q-40x1.5-2-M10	40	M10	33	40	37-36	1.5-2	3000	43
430597	NDL.Q-40x1.5-2-M12	40	M12	33	40	37-36	1.5-2	3000	44
430599	NDL.Q-40x1.5-2-M16	40	M16	33	40	37-36	1.5-2	3000	55
430601	NDL.Q-40x2-M8	40	M8	34	40	36	2	3000	27
430603	NDL.Q-40x3-M10	40	M10	33	40	34	3	3000	41
430611	NDL.Q-50x1.5-M10	50	M10	34	50	47	1.5	3000	42
430613	NDL.Q-50x2-M8	50	M8	34	50	46	2	3000	37
430615	NDL.Q-50x2-M10	50	M10	32	50	46	2	3000	44
430617	NDL.Q-50x2.5-M10	50	M10	33	50	45	2.5	3000	41
430619	NDL.Q-50x3-M12	50	M12	34	50	44	3	3000	51
430621	NDL.Q-60x1.5-2-M10	60	M10	34	60	57-56	1.5-2	3000	72
430623	NDL.Q-60x1.5-2-M12	60	M12	34	60	57-56	1.5-2	3000	74
