NCD

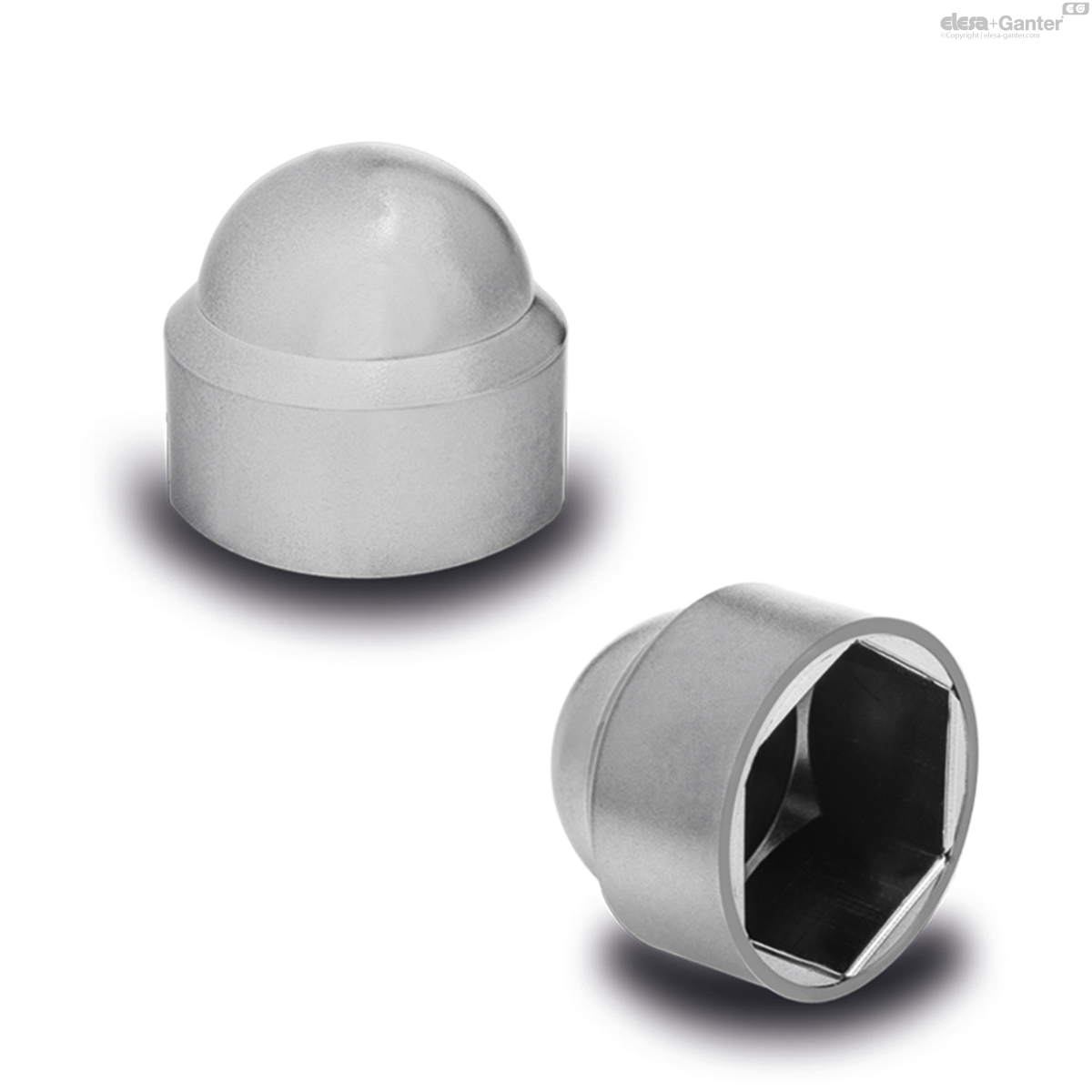

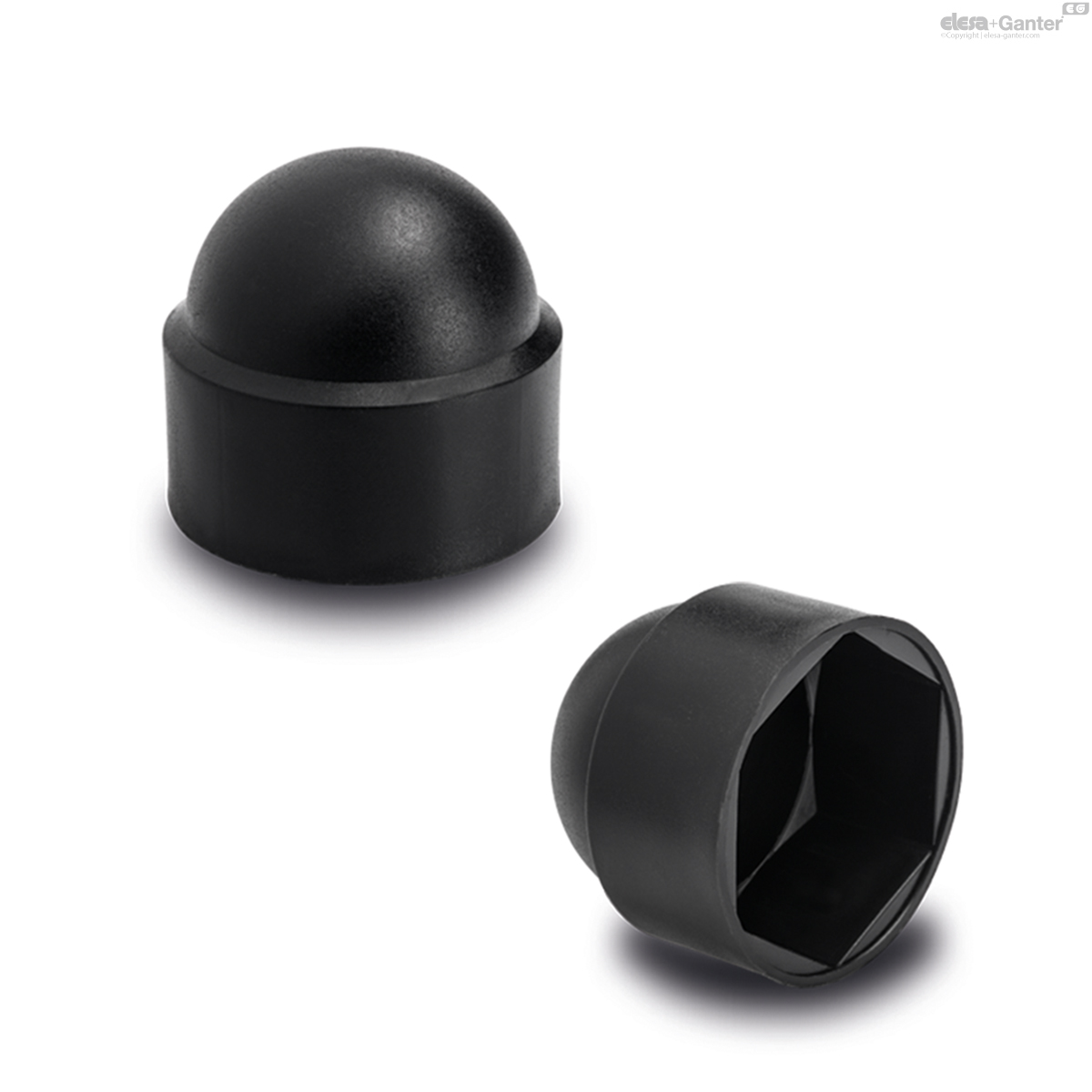

Protection covers for nuts and bolts

Polyethylene

Enquire Now

Description

Main specifications

Polyethylene (PE).

General information

The coupling on nuts or bolts can be made either by hand or by a mallet.

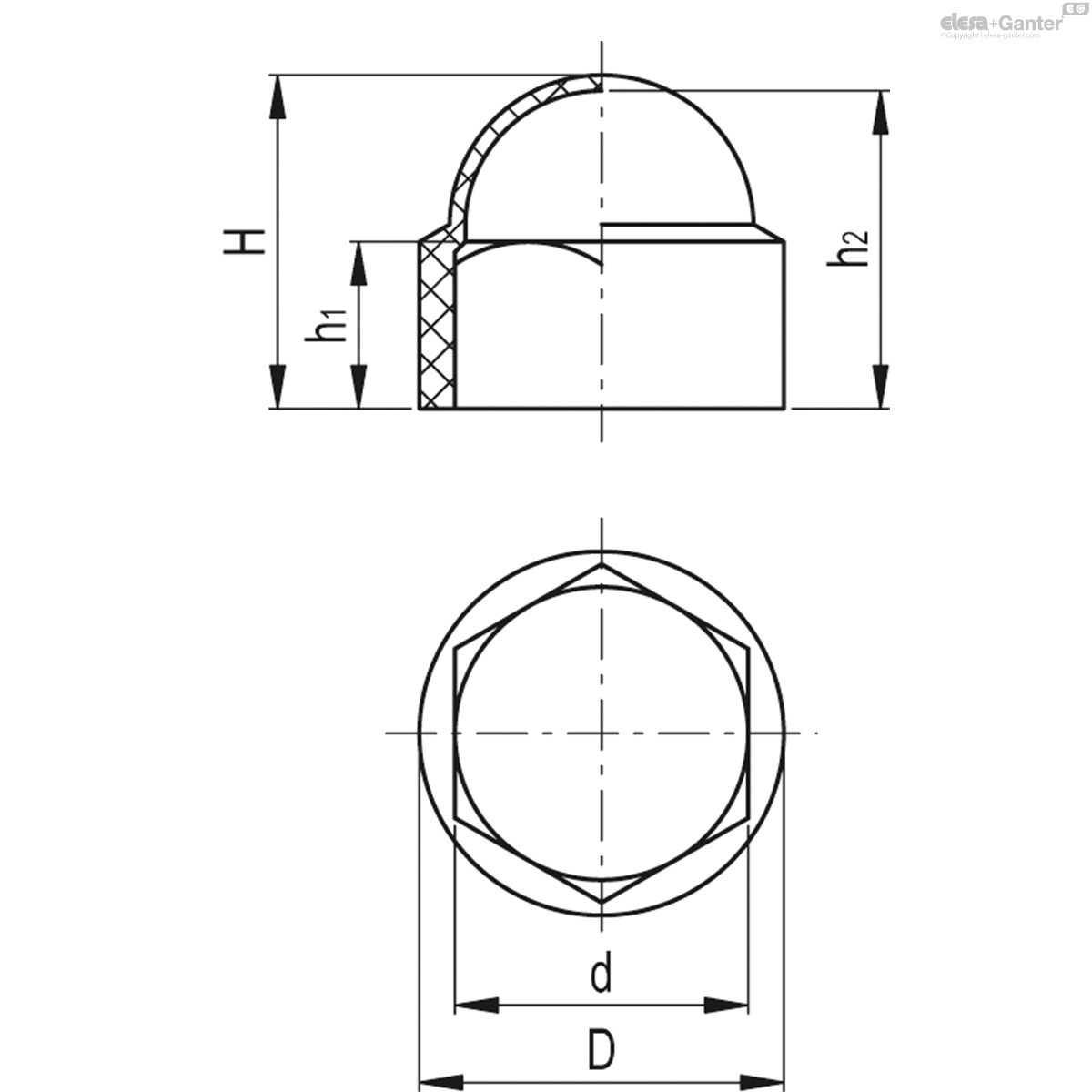

		D	d	H	h₁	h₂	Nut or bolt thread	Hexagonal spanner*
Code	Description									Actions
435804	NCD.4	9	6.9	7.8	3.5	6.5	M4	7	1
435805	NCD.5	10.9	7.9	10.4	6	9.3	M5	8	1
435806	NCD.6	12.9	9.8	12.4	7	11.4	M6	10	1
435808	NCD.8	16.3	12.8	15	7	14	M8	13	1
435810	NCD.10	20.3	16.7	19.1	9	17.2	M10	17	2
435812	NCD.12	22.6	18.7	20	10.1	17.9	M12	19	3
435814	NCD.14	27	21.7	23.5	11.5	22	M14	22	4
435816	NCD.16	29.2	23.7	26	14.6	24	M16	24	4
435818	NCD.18	33.1	26.8	29.1	15.3	26.9	M18	27	6
435820	NCD.20	35.7	29.8	32.8	17.9	30.2	M20	30	8
435822	NCD.22	39.3	31.8	35.5	19	33.2	M22	32	10
435824	NCD.24	44	35.8	40	20	37.6	M24	36	895
435827	NCD.27	49.5	40.8	46.5	23	44.5	M27	41	16
435830	NCD.30	55.1	45.8	50.2	24.5	47.7	M30	46	22
