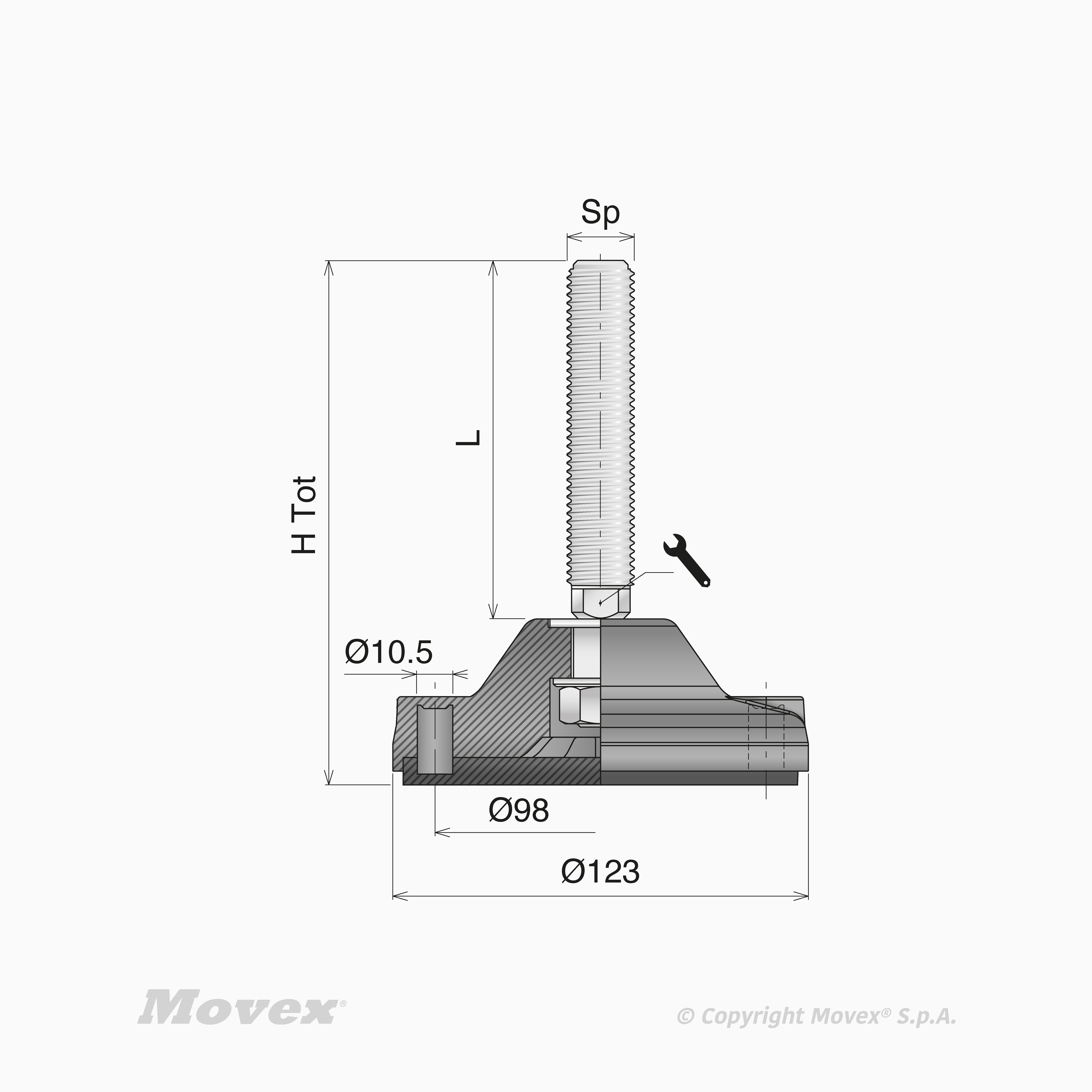

Muscle Ø123 Type B 2 Fixing point Anti-Slip
Muscle
Description
Description
The MUSCLE series, with plastic baseplate, fully threaded spindle and stainless steel washer is the standard choice for the industrial environments.
The spindle can be made with flat or hexagonal key wrench and is available in two different materials, zinc plated steel or stainless steel and the baseplate is available with or without rubber pad.
The spindle is fixed by using a circlip or with a self-locking nut.
Maximum compressive strength (static load) as in the table, maximum tensile strength (static load) 1.000 N
Basic features
| Design: | Standard |
|---|---|
| Base material: | Plastic |
| Diameter: | 123 mm |
| Max Load: | 19999÷49999 N |
| Fixing point: | 2 |
| Anti-slip: | Yes |
| Unit of measure: | Ea |
| Box: | - |
Muscle Ø123 Type B 2 Fixing point Anti-Slip
| L | Key slot | Spindle material | Thread size | H tot | Design | Key 1 | Temperature range dry | Temperature range wet | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Code | Actions | |||||||||
| P93152 | 148 mm | Hexagonal | Stainless steel | M20 | 200 | Standard | 16 mm | -20÷120 °C | -20÷120 °C |
|
| P93152Z | 148 mm | Hexagonal | Zinc Plated Steel | M20 | 200 | Standard | 16 mm | -20÷120 °C | -20÷120 °C |
|
| P93153 | 198 mm | Hexagonal | Stainless steel | M20 | 250 | Standard | 16 mm | -20÷120 °C | -20÷120 °C |
|
| P93253 | 198 mm | Hexagonal | Stainless steel | M24 | 250 | Standard | 19 mm | -20÷120 °C | -20÷120 °C |
|
| P93352 | 148 mm | Hexagonal | Stainless steel | M30 | 200 | Standard | 24 mm | -20÷120 °C | -20÷120 °C |
|
| P93353 | 198 mm | Hexagonal | Stainless steel | M30 | 250 | Standard | 24 mm | -20÷120 °C | -20÷120 °C |
|
| P93353Z | 198 mm | Hexagonal | Zinc Plated Steel | M30 | 250 | Standard | 24 mm | -20÷120 °C | -20÷120 °C |
|
