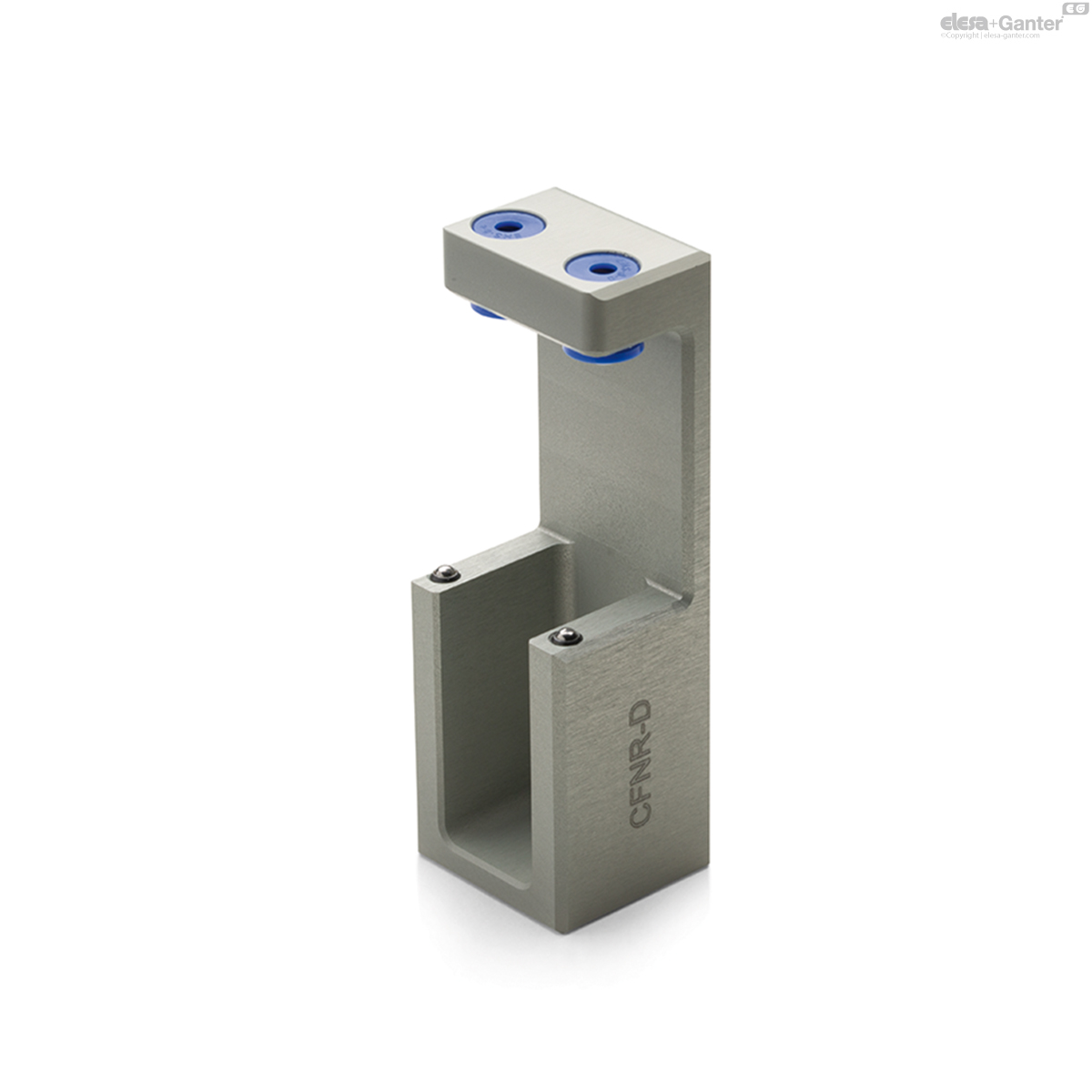

MT-CFNR
Tool for mounting CFNR spring hinges
Aluminium
Description
Main specifications
Material
Anodised aluminium, natural colour.
Ball spring plungers
In stainless steel or acetal-based technopolymer.
Instructions of use

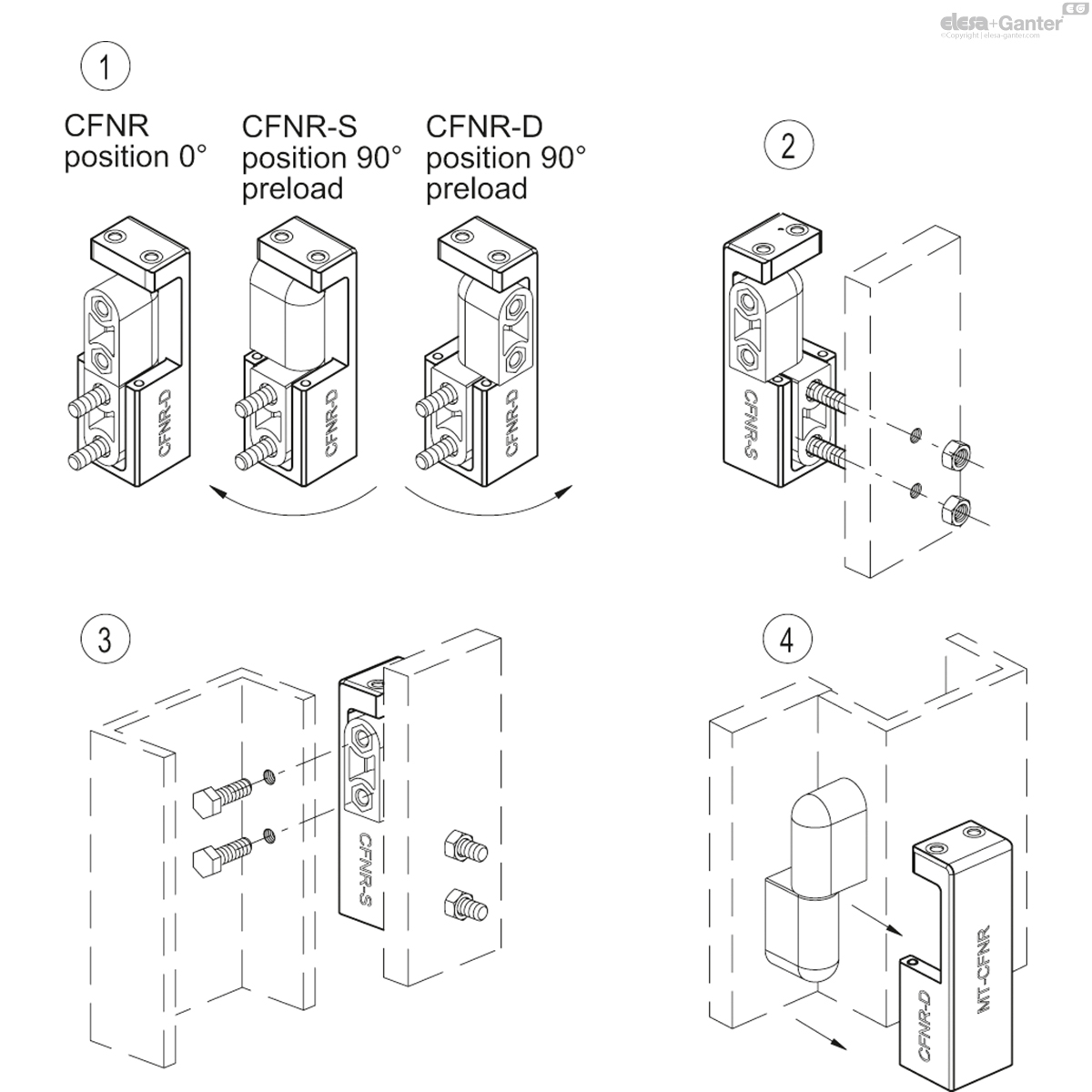

Assembly instructions
The hinge CFNR, during the assembly phase needs to be preloaded at 90° to ensure that the door remains closed or open in the resting position.
To facilitate this operation it is possible to use the MT-CFNR tool, following the procedure below:
- Insert the hinge into the tool and preload the spring by rotating it 90°. On the side of the tool is shown the side towards which the hinge must be rotated according to the model.
- Mount the fixed side to the jamb.
- Mount the movable side to the door.
- Remove the tool.
The side screws can be adjusted to calibrate the holding force.

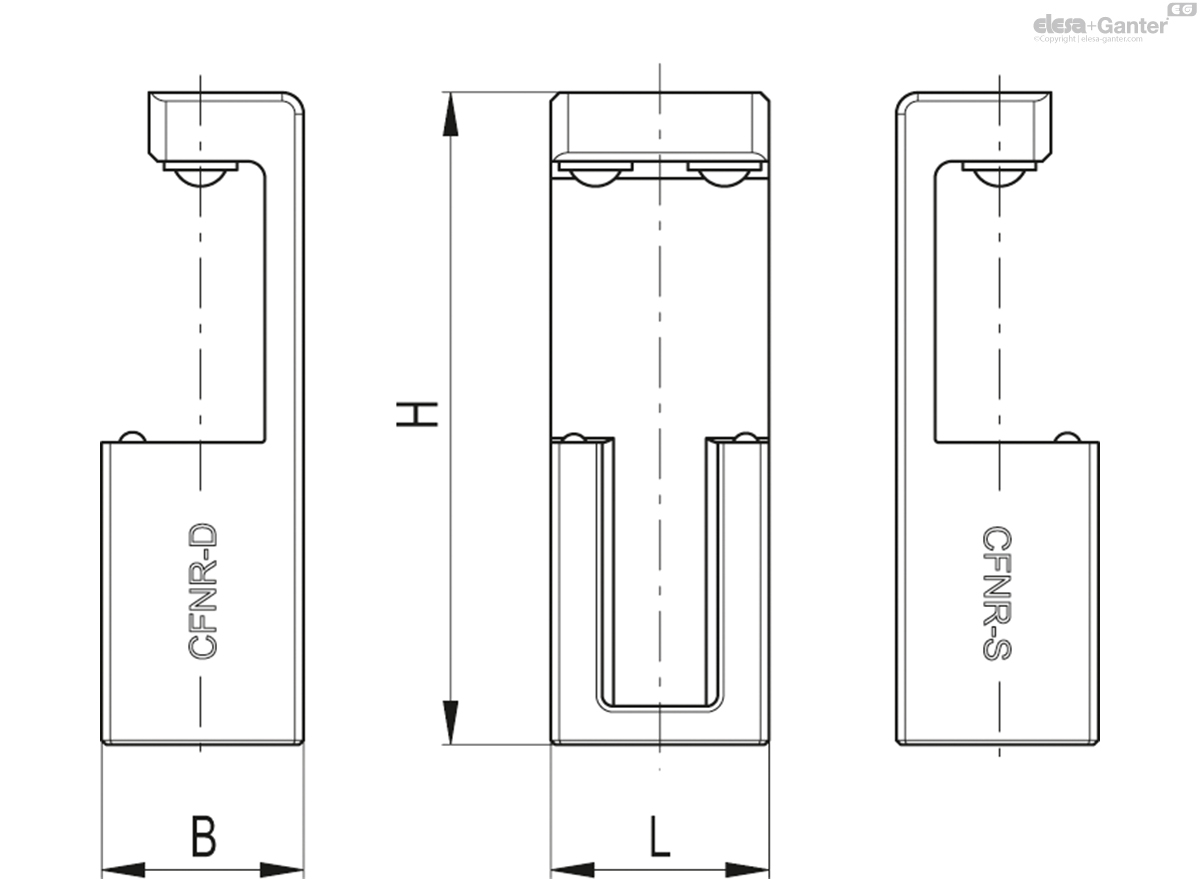

 MT-CFNR
| L | B | H |  |
|||
|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||
| 426200 | MT-CFNR.65 | 25.5 | 23.5 | 76 | 49 |
|
