Home Clamping Levers Adjustable handles MRX.

MRX.

Adjustable handles

Technopolymer

Enquire Now

MRX-B

Adjustable handles

Brass boss, threaded hole

MRX-SST

Adjustable handles

Stainless steel boss, threaded hole

MRX-p

Adjustable handles

Zinc-plated steel threaded stud

MRX-SST-p

Adjustable handles

Stainless steel threaded stud

Description

Main specifications

Lever body

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 7021 grey-black colour, RAL 2004 (C2-C1) orange colour, matte finish.

Push button

Technopolymer, black colour, matte finish.

Standard executions

Glass-fibre reinforced technopolymer clamping element with retaining pin, black colour, with knurling on the protruding part to make initial tightening easier. AISI 302 stainless steel return spring.

MRX-B: brass boss, threaded blind hole.
MRX-SST: AISI 303 stainless steel boss, threaded blind hole.

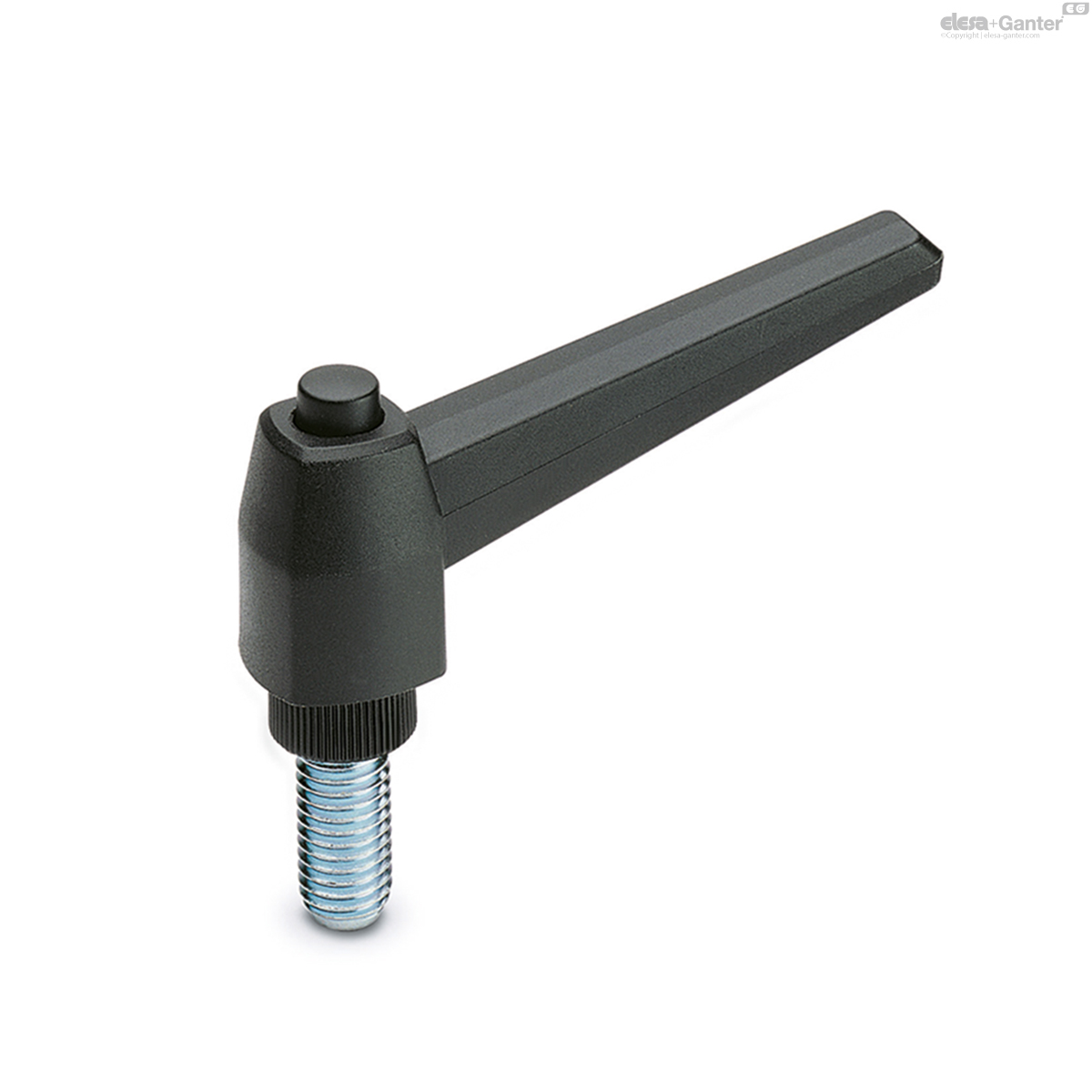

MRX-p: zinc-plated steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data).
MRX-SST-p: AISI 303 stainless steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data).

General information

Features and applications

Particularly suitable when the lever turning angle is limited owing to lack of space.

Compared to other types of adjustable handles with metal retaining screw this solution offers:

absolute electric insulation for the operator
more comfortable lever release.

Stress resistance

See ERX..

Instructions of use

For clamping, lift the lever to disengage the clamping device teeth and bring it back to start position. By releasing the lever, the return spring automatically engages the teeth.

MRX-p

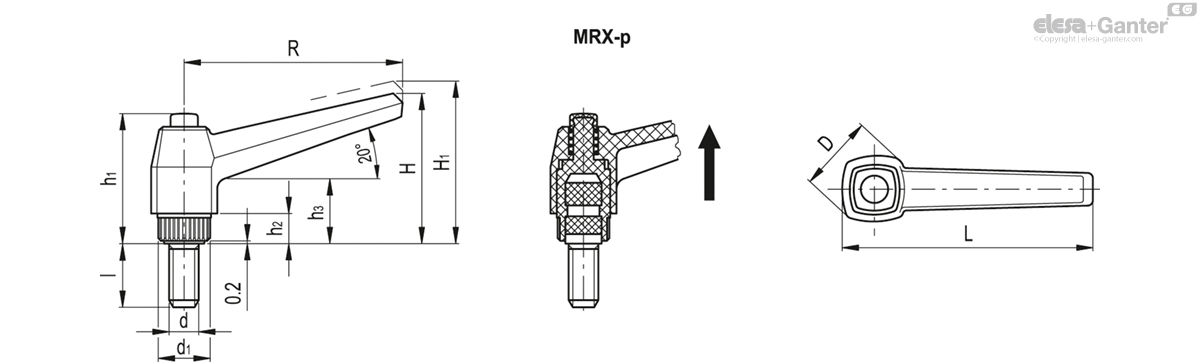

		Color	R	d_6g	L	D	H	H₁	h₁	h₂	h₃	d₁	l	Teeth no.
Code	Description															Actions
141201	MRX.40 p-M5x10	C1 - RAL 7021	42	M5	50	18	32	35.5	29	6	14	12	10	18	12

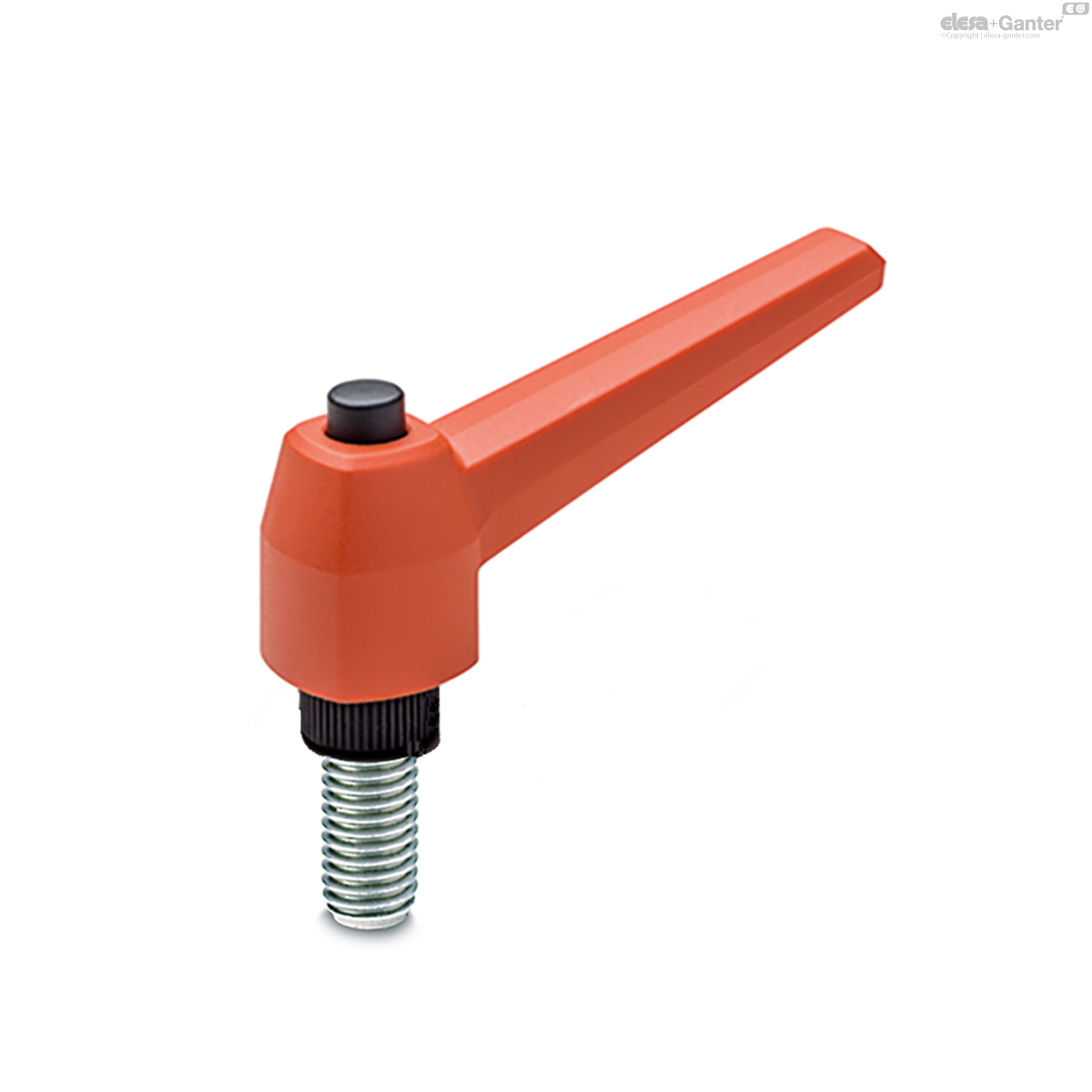

141201-C2-C1	MRX.40-C2-p-M5x10-C1	C2 - RAL 2004	42	M5	50	18	32	35.5	29	6	14	12	10	18	12
141211	MRX.40 p-M5x16	C1 - RAL 7021	42	M5	50	18	32	35.5	29	6	14	12	16	18	13
141211-C2-C1	MRX.40-C2-p-M5x16-C1	C2 - RAL 2004	42	M5	50	18	32	35.5	29	6	14	12	16	18	13
141221	MRX.40 p-M5x20	C1 - RAL 7021	42	M5	50	18	32	35.5	29	6	14	12	20	18	13
141221-C2-C1	MRX.40-C2-p-M5x20-C1	C2 - RAL 2004	42	M5	50	18	32	35.5	29	6	14	12	20	18	13
141301	MRX.40 p-M6x10	C1 - RAL 7021	42	M6	50	18	32	35.5	29	6	14	12	10	18	13
141301-C2-C1	MRX.40-C2-p-M6x10-C1	C2 - RAL 2004	42	M6	50	18	32	35.5	29	6	14	12	10	18	13
141311	MRX.40 p-M6x16	C1 - RAL 7021	42	M6	50	18	32	35.5	29	6	14	12	16	18	14
141311-C2-C1	MRX.40-C2-p-M6x16-C1	C2 - RAL 2004	42	M6	50	18	32	35.5	29	6	14	12	16	18	14
141321	MRX.40 p-M6x20	C1 - RAL 7021	42	M6	50	18	32	35.5	29	6	14	12	20	18	14
141321-C2-C1	MRX.40-C2-p-M6x20-C1	C2 - RAL 2004	42	M6	50	18	32	35.5	29	6	14	12	20	18	14
141331	MRX.40 p-M6x25	C1 - RAL 7021	42	M6	50	18	32	35.5	29	6	14	12	25	18	15
141331-C2-C1	MRX.40-C2-p-M6x25-C1	C2 - RAL 2004	42	M6	50	18	32	35.5	29	6	14	12	25	18	15
141335	MRX.40 p-M6x30	C1 - RAL 7021	42	M6	50	18	32	35.5	29	6	14	12	30	18	16
141335-C2-C1	MRX.40-C2-p-M6x30-C1	C2 - RAL 2004	42	M6	50	18	32	35.5	29	6	14	12	30	18	16
141341	MRX.40 p-M6x40	C1 - RAL 7021	42	M6	50	18	32	35.5	29	6	14	12	40	18	18
141341-C2-C1	MRX.40-C2-p-M6x40-C1	C2 - RAL 2004	42	M6	50	18	32	35.5	29	6	14	12	40	18	18
141345	MRX.40 p-M6X45	C1 - RAL 7021	42	M6	50	18	32	35.5	29	6	14	12	45	18	19
141345-C2-C1	MRX.40-C2-p-M6x45-C1	C2 - RAL 2004	42	M6	50	18	32	35.5	29	6	14	12	45	18	19
141351	MRX.40 p-M6X50	C1 - RAL 7021	42	M6	50	18	32	35.5	29	6	14	12	50	18	20
141351-C2-C1	MRX.40-C2-p-M6x50-C1	C2 - RAL 2004	42	M6	50	18	32	35.5	29	6	14	12	50	18	20
141361	MRX.40 p-M8x16	C1 - RAL 7021	42	M8	50	18	32	35.5	29	6	14	12	16	18	17
141361-C2-C1	MRX.40-C2-p-M8x16-C1	C2 - RAL 2004	42	M8	50	18	32	35.5	29	6	14	12	16	18	17
141362	MRX.40 p-M8x20	C1 - RAL 7021	42	M8	50	18	32	35.5	29	6	14	12	20	18	18
141362-C2-C1	MRX.40-C2-p-M8x20-C1	C2 - RAL 2004	42	M8	50	18	32	35.5	29	6	14	12	20	18	18
141363	MRX.40 p-M8x25	C1 - RAL 7021	42	M8	50	18	32	35.5	29	6	14	12	25	18	20
141363-C2-C1	MRX.40-C2-p-M8x25-C1	C2 - RAL 2004	42	M8	50	18	32	35.5	29	6	14	12	25	18	20
141431	MRX.63 p-M6x10	C1 - RAL 7021	63	M6	73	23	43	46.5	37	8	17	15	10	20	24
141431-C2-C1	MRX.63-C2-p-M6x10-C1	C2 - RAL 2004	63	M6	73	23	43	46.5	37	8	17	15	10	20	24
141441	MRX.63 p-M6x16	C1 - RAL 7021	63	M6	73	23	43	46.5	37	8	17	15	16	20	24
141441-C2-C1	MRX.63-C2-p-M6x16-C1	C2 - RAL 2004	63	M6	73	23	43	46.5	37	8	17	15	16	20	24
141451	MRX.63 p-M6x20	C1 - RAL 7021	63	M6	73	23	43	46.5	37	8	17	15	20	20	25
141451-C2-C1	MRX.63-C2-p-M6x20-C1	C2 - RAL 2004	63	M6	73	23	43	46.5	37	8	17	15	20	20	25
141461	MRX.63 p-M6x25	C1 - RAL 7021	63	M6	73	23	43	46.5	37	8	17	15	25	20	25
141461-C2-C1	MRX.63-C2-p-M6x25-C1	C2 - RAL 2004	63	M6	73	23	43	46.5	37	8	17	15	25	20	25
141466	MRX.63 p-M6x30	C1 - RAL 7021	63	M6	73	23	43	46.5	37	8	17	15	30	20	27
141466-C2-C1	MRX.63-C2-p-M6x30-C1	C2 - RAL 2004	63	M6	73	23	43	46.5	37	8	17	15	30	20	27
141470	MRX.63 p-M6x35	C1 - RAL 7021	63	M6	73	23	43	46.5	37	8	17	15	35	20	29
141470-C2-C1	MRX.63-C2-p-M6x35-C1	C2 - RAL 2004	63	M6	73	23	43	46.5	37	8	17	15	35	20	29
141471	MRX.63 p-M6x40	C1 - RAL 7021	63	M6	73	23	43	46.5	37	8	17	15	40	20	29
141471-C2-C1	MRX.63-C2-p-M6x40-C1	C2 - RAL 2004	63	M6	73	23	43	46.5	37	8	17	15	40	20	29
141501	MRX.63 p-M8x16	C1 - RAL 7021	63	M8	73	23	43	46.5	37	8	17	15	16	20	30
141501-C2-C1	MRX.63-C2-p-M8x16-C1	C2 - RAL 2004	63	M8	73	23	43	46.5	37	8	17	15	16	20	30
141511	MRX.63 p-M8x20	C1 - RAL 7021	63	M8	73	23	43	46.5	37	8	17	15	20	20	31
141511-C2-C1	MRX.63-C2-p-M8x20-C1	C2 - RAL 2004	63	M8	73	23	43	46.5	37	8	17	15	20	20	31
141521	MRX.63 p-M8x25	C1 - RAL 7021	63	M8	73	23	43	46.5	37	8	17	15	25	20	32
141521-C2-C1	MRX.63-C2-p-M8x25-C1	C2 - RAL 2004	63	M8	73	23	43	46.5	37	8	17	15	25	20	32
141531	MRX.63 p-M8x30	C1 - RAL 7021	63	M8	73	23	43	46.5	37	8	17	15	30	20	34
141531-C2-C1	MRX.63-C2-p-M8x30-C1	C2 - RAL 2004	63	M8	73	23	43	46.5	37	8	17	15	30	20	34
141535	MRX.63 p-M8x35	C1 - RAL 7021	63	M8	73	23	43	46.5	37	8	17	15	35	20	35
141535-C2-C1	MRX.63-C2-p-M8x35-C1	C2 - RAL 2004	63	M8	73	23	43	46.5	37	8	17	15	35	20	35
141541	MRX.63 p-M8x40	C1 - RAL 7021	63	M8	73	23	43	46.5	37	8	17	15	40	20	37
141541-C2-C1	MRX.63-C2-p-M8x40-C1	C2 - RAL 2004	63	M8	73	23	43	46.5	37	8	17	15	40	20	37
141551	MRX.63 p-M8x45	C1 - RAL 7021	63	M8	73	23	43	46.5	37	8	17	15	45	20	38
141551-C2-C1	MRX.63-C2-p-M8x45-C1	C2 - RAL 2004	63	M8	73	23	43	46.5	37	8	17	15	45	20	38
141561	MRX.63 p-M8x50	C1 - RAL 7021	63	M8	73	23	43	46.5	37	8	17	15	50	20	40
141561-C2-C1	MRX.63-C2-p-M8x50-C1	C2 - RAL 2004	63	M8	73	23	43	46.5	37	8	17	15	50	20	40
141569	MRX.63 p-M8x60	C1 - RAL 7021	63	M8	73	23	43	46.5	37	8	17	15	60	20	43
141569-C2-C1	MRX.63-C2-p-M8x60-C1	C2 - RAL 2004	63	M8	73	23	43	46.5	37	8	17	15	60	20	43
141571	MRX.63 p-M8x70	C1 - RAL 7021	63	M8	73	23	43	46.5	37	8	17	15	70	20	43
141571-C2-C1	MRX.63-C2-p-M8x70-C1	C2 - RAL 2004	63	M8	73	23	43	46.5	37	8	17	15	70	20	43
141576	MRX.63 p-M8x80	C1 - RAL 7021	63	M8	73	23	43	46.5	37	8	17	15	80	20	48
141576-C2-C1	MRX.63-C2-p-M8x80-C1	C2 - RAL 2004	63	M8	73	23	43	46.5	37	8	17	15	80	20	48
141581	MRX.63 p-M10x20	C1 - RAL 7021	63	M10	73	23	43	46.5	37	8	17	15	20	20	38
141581-C2-C1	MRX.63-C2-p-M10x20-C1	C2 - RAL 2004	63	M10	73	23	43	46.5	37	8	17	15	20	20	38
141583	MRX.63 p-M10x30	C1 - RAL 7021	63	M10	73	23	43	46.5	37	8	17	15	30	20	43
141583-C2-C1	MRX.63-C2-p-M10x30-C1	C2 - RAL 2004	63	M10	73	23	43	46.5	37	8	17	15	30	20	43
141585	MRX.63 p-M10x40	C1 - RAL 7021	63	M10	73	23	43	46.5	37	8	17	15	40	20	48
141585-C2-C1	MRX.63-C2-p-M10x40-C1	C2 - RAL 2004	63	M10	73	23	43	46.5	37	8	17	15	40	20	48
141587	MRX.63 p-M10x50	C1 - RAL 7021	63	M10	73	23	43	46.5	37	8	17	15	50	20	52
141587-C2-C1	MRX.63-C2-p-M10x50-C1	C2 - RAL 2004	63	M10	73	23	43	46.5	37	8	17	15	50	20	52
141589	MRX.63 p-M10x60	C1 - RAL 7021	63	M10	73	23	43	46.5	37	8	17	15	60	20	60
141589-C2-C1	MRX.63-C2-p-M10x60-C1	C2 - RAL 2004	63	M10	73	23	43	46.5	37	8	17	15	60	20	60
142181	MRX.80 p-M8x20	C1 - RAL 7021	80	M8	92	28	54	58.5	47	10	22	19	20	24	45
142181-C2-C1	MRX.80-C2-p-M8x20-C1	C2 - RAL 2004	80	M8	92	28	54	58.5	47	10	22	19	20	24	45
142183	MRX.80 p-M8x25	C1 - RAL 7021	80	M8	92	28	54	58.5	47	10	22	19	25	24	46
142183-C2-C1	MRX.80-C2-p-M8x25-C1	C2 - RAL 2004	80	M8	92	28	54	58.5	47	10	22	19	25	24	46
142185	MRX.80 p-M8x30	C1 - RAL 7021	80	M8	92	28	54	58.5	47	10	22	19	30	24	47
142185-C2-C1	MRX.80-C2-p-M8x30-C1	C2 - RAL 2004	80	M8	92	28	54	58.5	47	10	22	19	30	24	47
142187	MRX.80 p-M8x40	C1 - RAL 7021	80	M8	92	28	54	58.5	47	10	22	19	40	24	60
142187-C2-C1	MRX.80-C2-p-M8x40-C1	C2 - RAL 2004	80	M8	92	28	54	58.5	47	10	22	19	40	24	60
142189	MRX.80 p-M8x45	C1 - RAL 7021	80	M8	92	28	54	58.5	47	10	22	19	45	24	49
142189-C2-C1	MRX.80-C2-p-M8x45-C1	C2 - RAL 2004	80	M8	92	28	54	58.5	47	10	22	19	45	24	49
142191	MRX.80 p-M8x50	C1 - RAL 7021	80	M8	92	28	54	58.5	47	10	22	19	50	24	56
142191-C2-C1	MRX.80-C2-p-M8x50-C1	C2 - RAL 2004	80	M8	92	28	54	58.5	47	10	22	19	50	24	56
142193	MRX.80 p-M8x55	C1 - RAL 7021	80	M8	92	28	54	58.5	47	10	22	19	55	24	51
142193-C2-C1	MRX.80-C2-p-M8x55-C1	C2 - RAL 2004	80	M8	92	28	54	58.5	47	10	22	19	55	24	51
142195	MRX.80 p-M8x60	C1 - RAL 7021	80	M8	92	28	54	58.5	47	10	22	19	60	24	59
142195-C2-C1	MRX.80-C2-p-M8x60-C1	C2 - RAL 2004	80	M8	92	28	54	58.5	47	10	22	19	60	24	59
142197	MRX.80 p-M8x70	C1 - RAL 7021	80	M8	92	28	54	58.5	47	10	22	19	70	24	62
142197-C2-C1	MRX.80-C2-p-M8x70-C1	C2 - RAL 2004	80	M8	92	28	54	58.5	47	10	22	19	70	24	62
142201	MRX.80 p-M10x20	C1 - RAL 7021	80	M10	92	28	54	58.5	47	10	22	19	20	24	57
142201-C2-C1	MRX.80-C2-p-M10x20-C1	C2 - RAL 2004	80	M10	92	28	54	58.5	47	10	22	19	20	24	57
142211	MRX.80 p-M10x25	C1 - RAL 7021	80	M10	92	28	54	58.5	47	10	22	19	25	24	59
142211-C2-C1	MRX.80-C2-p-M10x25-C1	C2 - RAL 2004	80	M10	92	28	54	58.5	47	10	22	19	25	24	59
142221	MRX.80 p-M10x30	C1 - RAL 7021	80	M10	92	28	54	58.5	47	10	22	19	30	24	62
142221-C2-C1	MRX.80-C2-p-M10x30-C1	C2 - RAL 2004	80	M10	92	28	54	58.5	47	10	22	19	30	24	62
142225	MRX.80 p-M10x35	C1 - RAL 7021	80	M10	92	28	54	58.5	47	10	22	19	35	24	64
142225-C2-C1	MRX.80-C2-p-M10x35-C1	C2 - RAL 2004	80	M10	92	28	54	58.5	47	10	22	19	35	24	64
142231	MRX.80 p-M10x40	C1 - RAL 7021	80	M10	92	28	54	58.5	47	10	22	19	40	24	67
142231-C2-C1	MRX.80-C2-p-M10x40-C1	C2 - RAL 2004	80	M10	92	28	54	58.5	47	10	22	19	40	24	67
142241	MRX.80 p-M10x50	C1 - RAL 7021	80	M10	92	28	54	58.5	47	10	22	19	50	24	72
142241-C2-C1	MRX.80-C2-p-M10x50-C1	C2 - RAL 2004	80	M10	92	28	54	58.5	47	10	22	19	50	24	72
142245	MRX.80 p-M10x60	C1 - RAL 7021	80	M10	92	28	54	58.5	47	10	22	19	60	24	76
142245-C2-C1	MRX.80-C2-p-M10x60-C1	C2 - RAL 2004	80	M10	92	28	54	58.5	47	10	22	19	60	24	76
142251	MRX.80 p-M10x70	C1 - RAL 7021	80	M10	92	28	54	58.5	47	10	22	19	70	24	81
142251-C2-C1	MRX.80-C2-p-M10x70-C1	C2 - RAL 2004	80	M10	92	28	54	58.5	47	10	22	19	70	24	81
142301	MRX.80 p-M12x20	C1 - RAL 7021	80	M12	92	28	54	58.5	47	10	22	19	20	24	64
142301-C2-C1	MRX.80-C2-p-M12x20-C1	C2 - RAL 2004	80	M12	92	28	54	58.5	47	10	22	19	20	24	64
142311	MRX.80 p-M12x25	C1 - RAL 7021	80	M12	92	28	54	58.5	47	10	22	19	25	24	68
142311-C2-C1	MRX.80-C2-p-M12x25-C1	C2 - RAL 2004	80	M12	92	28	54	58.5	47	10	22	19	25	24	68
142321	MRX.80 p-M12x30	C1 - RAL 7021	80	M12	92	28	54	58.5	47	10	22	19	30	24	71
142321-C2-C1	MRX.80-C2-p-M12x30-C1	C2 - RAL 2004	80	M12	92	28	54	58.5	47	10	22	19	30	24	71
142325	MRX.80 p-M12x35	C1 - RAL 7021	80	M12	92	28	54	58.5	47	10	22	19	35	24	75
142325-C2-C1	MRX.80-C2-p-M12x35-C1	C2 - RAL 2004	80	M12	92	28	54	58.5	47	10	22	19	35	24	75
142331	MRX.80 p-M12x40	C1 - RAL 7021	80	M12	92	28	54	58.5	47	10	22	19	40	24	81
142331-C2-C1	MRX.80-C2-p-M12x40-C1	C2 - RAL 2004	80	M12	92	28	54	58.5	47	10	22	19	40	24	81
142335	MRX.80 p-M12x45	C1 - RAL 7021	80	M12	92	28	54	58.5	47	10	22	19	45	24	80
142335-C2-C1	MRX.80-C2-p-M12x45-C1	C2 - RAL 2004	80	M12	92	28	54	58.5	47	10	22	19	45	24	80
142341	MRX.80 p-M12x50	C1 - RAL 7021	80	M12	92	28	54	58.5	47	10	22	19	50	24	86
142341-C2-C1	MRX.80-C2-p-M12x50-C1	C2 - RAL 2004	80	M12	92	28	54	58.5	47	10	22	19	50	24	86
142351	MRX.80 p-M12x60	C1 - RAL 7021	80	M12	92	28	54	58.5	47	10	22	19	60	24	93
142351-C2-C1	MRX.80-C2-p-M12x60-C1	C2 - RAL 2004	80	M12	92	28	54	58.5	47	10	22	19	60	24	93
142361	MRX.80 p-M12x70	C1 - RAL 7021	80	M12	92	28	54	58.5	47	10	22	19	70	24	98
142361-C2-C1	MRX.80-C2-p-M12x70-C1	C2 - RAL 2004	80	M12	92	28	54	58.5	47	10	22	19	70	24	98
142365	MRX.80 p-M12x80	C1 - RAL 7021	80	M12	92	28	54	58.5	47	10	22	19	80	24	107
142365-C2-C1	MRX.80-C2-p-M12x80-C1	C2 - RAL 2004	80	M12	92	28	54	58.5	47	10	22	19	80	24	107
142591	MRX.100 p-M12x20	C1 - RAL 7021	100	M12	114	33	65	69.5	54	12	25	25	20	28	101
142591-C2-C1	MRX.100-C2-p-M12x20-C1	C2 - RAL 2004	100	M12	114	33	65	69.5	54	12	25	25	20	28	101
142601	MRX.100 p-M12x30	C1 - RAL 7021	100	M12	114	33	65	69.5	54	12	25	25	30	28	103
142601-C2-C1	MRX.100-C2-p-M12x30-C1	C2 - RAL 2004	100	M12	114	33	65	69.5	54	12	25	25	30	28	103
142651	MRX.100 p-M12x50	C1 - RAL 7021	100	M12	114	33	65	69.5	54	12	25	25	50	28	118
142651-C2-C1	MRX.100-C2-p-M12x50-C1	C2 - RAL 2004	100	M12	114	33	65	69.5	54	12	25	25	50	28	118
142701	MRX.100 p-M12x70	C1 - RAL 7021	100	M12	114	33	65	69.5	54	12	25	25	70	28	131
142701-C2-C1	MRX.100-C2-p-M12x70-C1	C2 - RAL 2004	100	M12	114	33	65	69.5	54	12	25	25	70	28	131
142801	MRX.100 p-M14x30	C1 - RAL 7021	100	M14	114	33	65	69.5	54	12	25	25	30	28	120
142801-C2-C1	MRX.100-C2-p-M14x30-C1	C2 - RAL 2004	100	M14	114	33	65	69.5	54	12	25	25	30	28	120
142831	MRX.100 p-M14x50	C1 - RAL 7021	100	M14	114	33	65	69.5	54	12	25	25	50	28	140
142831-C2-C1	MRX.100-C2-p-M14x50-C1	C2 - RAL 2004	100	M14	114	33	65	69.5	54	12	25	25	50	28	140
142851	MRX.100 p-M14x70	C1 - RAL 7021	100	M14	114	33	65	69.5	54	12	25	25	70	28	156
142851-C2-C1	MRX.100-C2-p-M14x70-C1	C2 - RAL 2004	100	M14	114	33	65	69.5	54	12	25	25	70	28	156
142901	MRX.100 p-M16x30	C1 - RAL 7021	100	M16	114	33	65	69.5	54	12	25	25	30	28	144
142901-C2-C1	MRX.100-C2-p-M16x30-C1	C2 - RAL 2004	100	M16	114	33	65	69.5	54	12	25	25	30	28	144
142951	MRX.100 p-M16x50	C1 - RAL 7021	100	M16	114	33	65	69.5	54	12	25	25	50	28	168
142951-C2-C1	MRX.100-C2-p-M16x50-C1	C2 - RAL 2004	100	M16	114	33	65	69.5	54	12	25	25	50	28	168
142981	MRX.100 p-M16x70	C1 - RAL 7021	100	M16	114	33	65	69.5	54	12	25	25	70	28	196
142981-C2-C1	MRX.100-C2-p-M16x70-C1	C2 - RAL 2004	100	M16	114	33	65	69.5	54	12	25	25	70	28	196

Enquiry Now

To allow us to respond to your enquiry promptly, please provide all required information.
