MPR-CLEAN

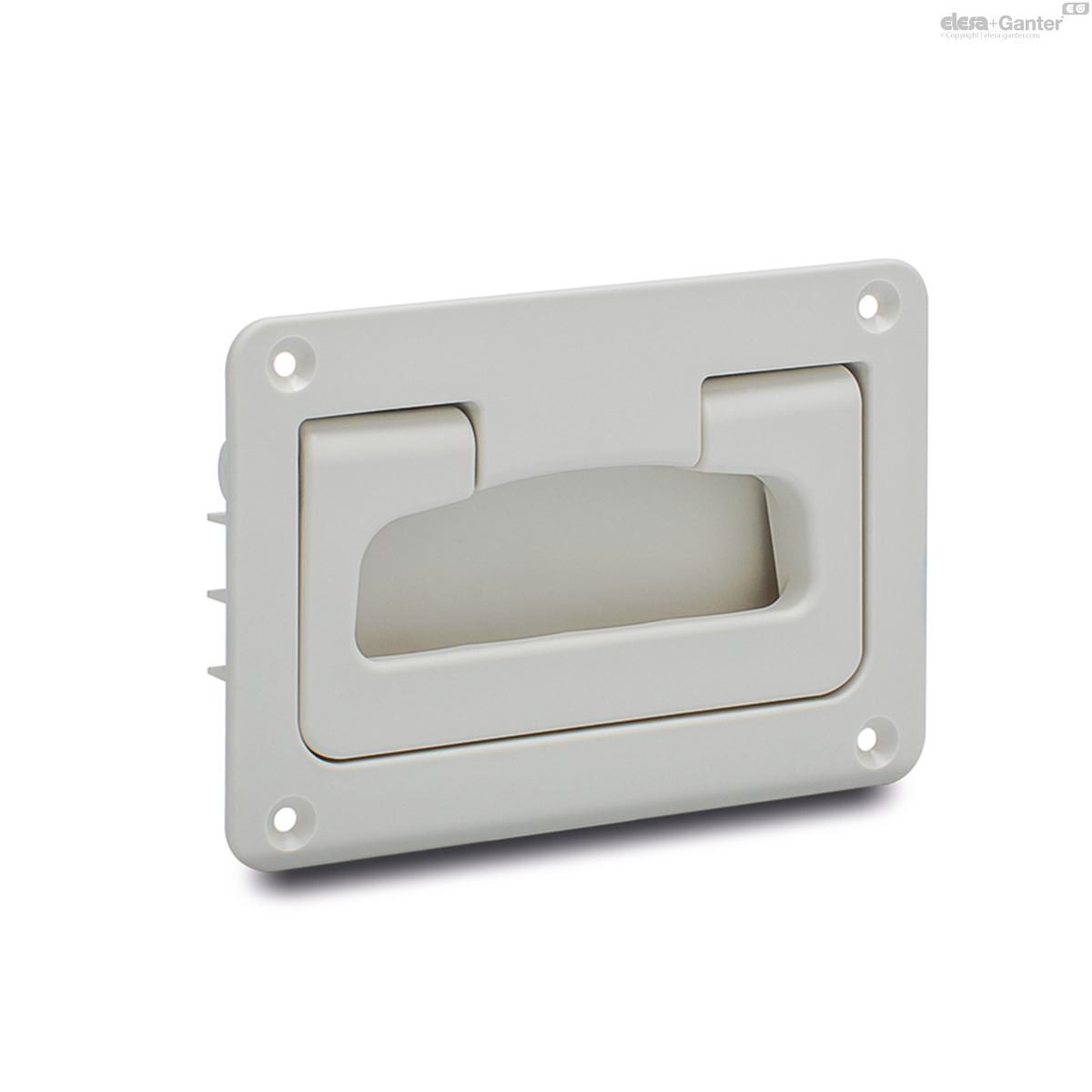

Folding handles with recessed tray

with return spring, technopolymer, easy cleaning

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, white colour similar to RAL 9002, matte finish.

Standard execution

Pass-through holes for M4 or M5 countersunk-head screws (not supplied).

Rotation pin and return springs

AISI 303 stainless steel pin, AISI 302 stainless steel springs.

General information

Technical data

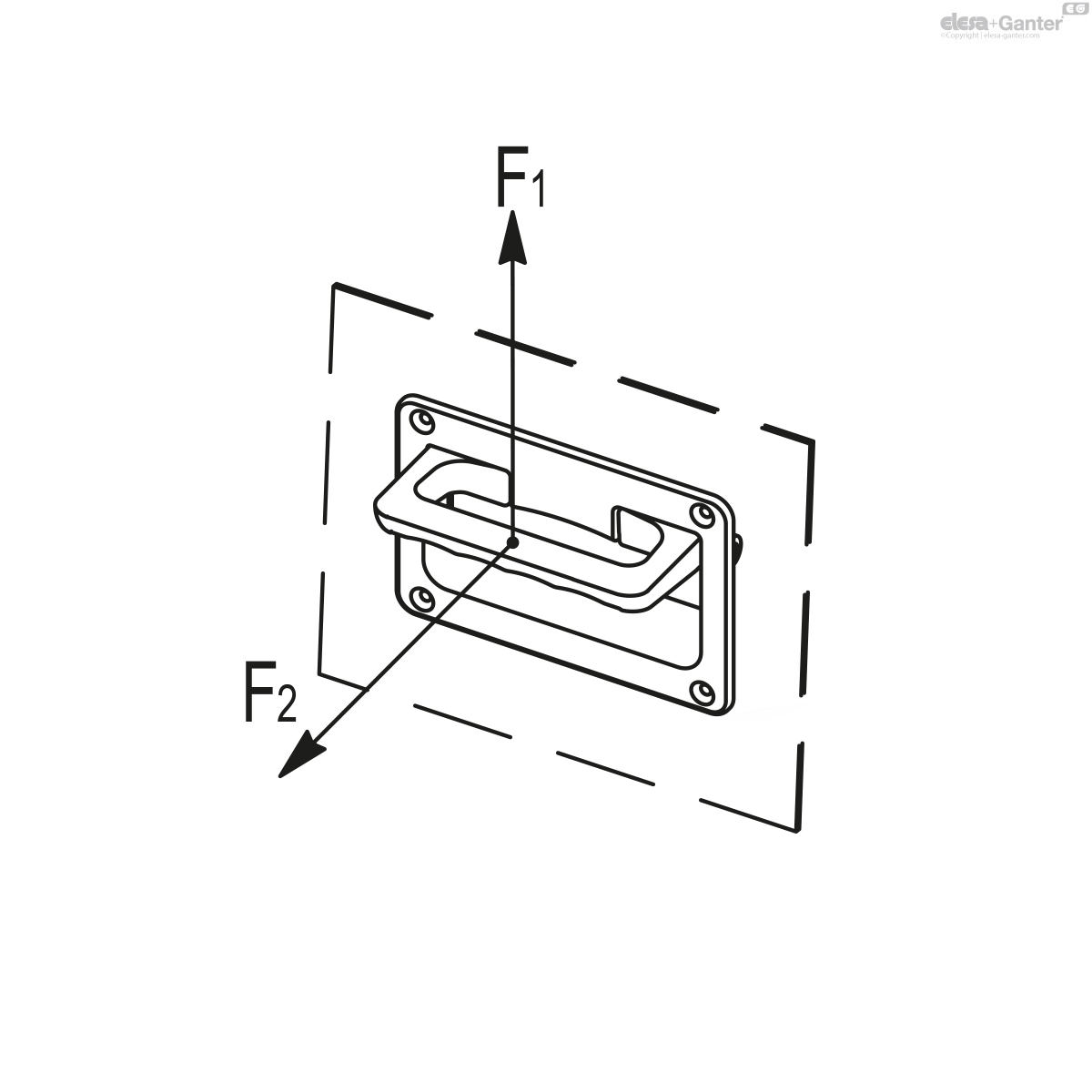

The lifting resistance (F1) and tensile strength (F2) values reported in the table are the result of permanent deformation by means of the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Instructions of use

Assembly instructions

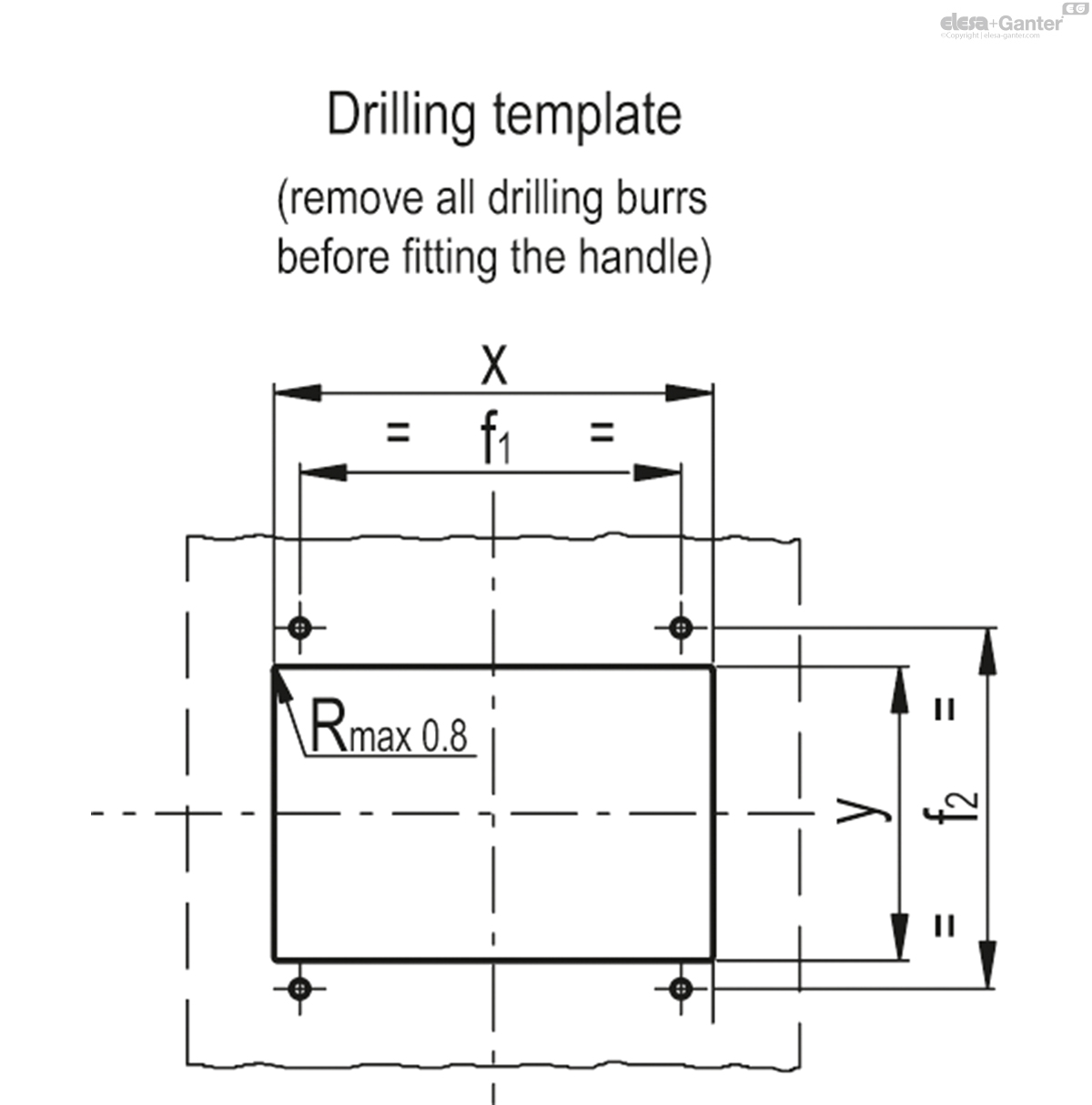

Drill the handle housing according to the template dimensions.

	x	y	f₁	f₂
MPR.141	135^+0.2	65^+0,2	118^+/-0,1	79^+/-0,1
MPR.167	158^-0.2	86^-0,2	141^+/-0,1	98^+/-0,1

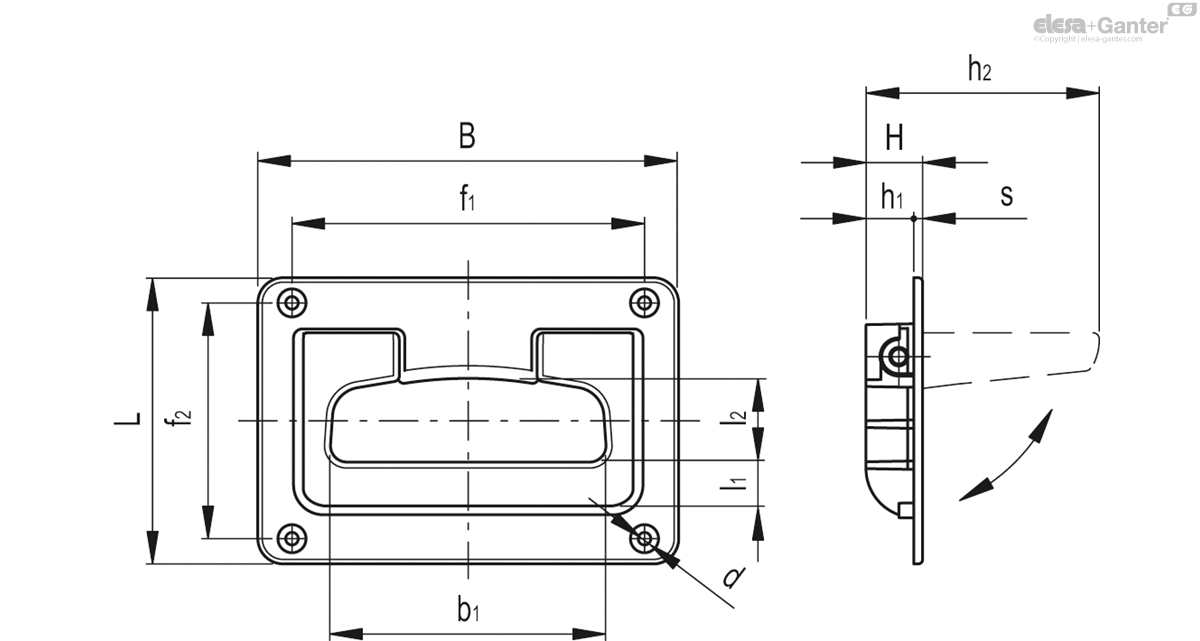

		B	f1	f2	L	H	h₁	h₂	b₁	l₁	l₂	s	d	F1 [N]	F2 [N]
Code	Description																Actions
151061	MPR.141-CLEAN	141	118	79	96	19	16	63	90	16.5	29	3	4.2	1650	2400	147
151065	MPR.167-CLEAN	167	141	98	116	21	18	78	105	17	43	3	5.2	2000	2700	255
