MPR

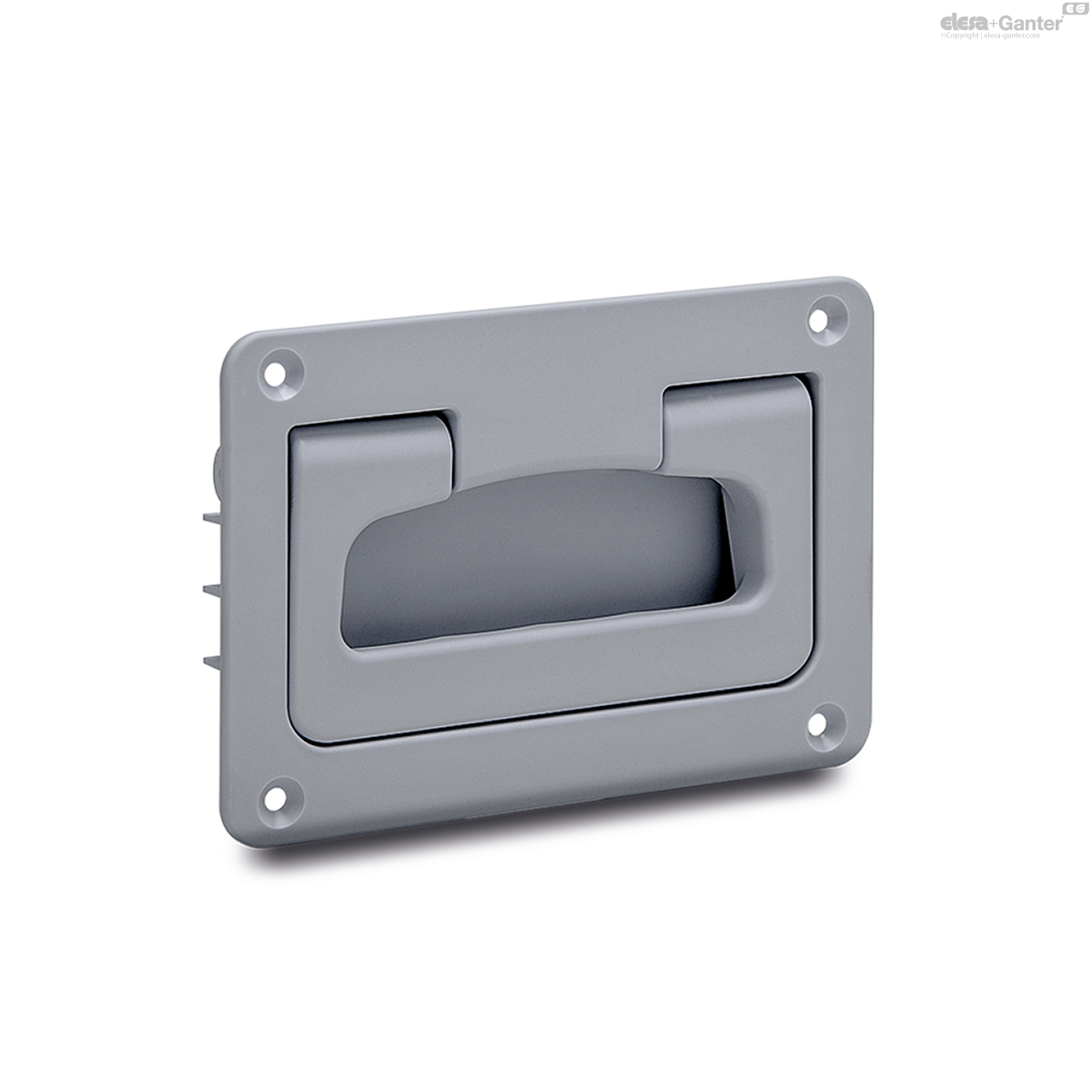

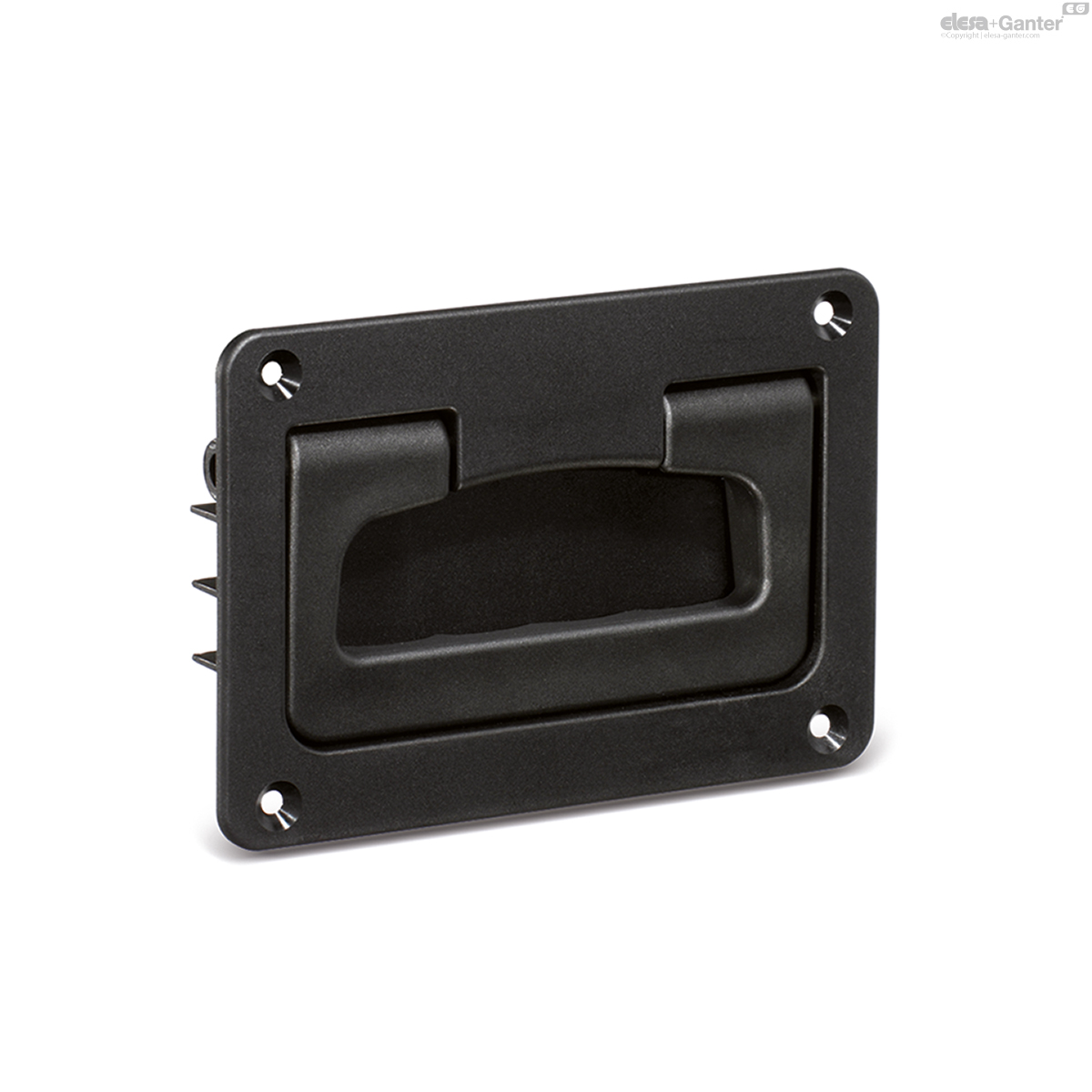

Folding handles with recessed tray

with return spring, technopolymer

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 black colour or grey RAL 7040 (C33) colour, matte finish.

Standard execution

Pass-through holes for M4 or M5 countersunk-head screws (not supplied).

Rotation pin and return springs

AISI 303 stainless steel pin, AISI 302 stainless steel springs.

General information

Technical data

The lifting resistance (F1) and tensile strength (F2) values reported in the table are the result of permanent deformation by means of the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Instructions of use

Assembly instructions

Drill the handle housing according to the template dimensions.

	x	y	f₁	f₂
MPR.141	135^+0.2	65^+0,2	118^+/-0,1	79^+/-0,1
MPR.167	158^-0.2	86^-0,2	141^+/-0,1	98^+/-0,1

		Color	B	f1	f2	L	H	h₁	h₂	b₁	l₁	l₂	s	d	F1 [N]	F2 [N]
Code	Description																	Actions
43851	MPR.141	C9 - RAL 9005	141	118	79	96	19	16	63	90	16.5	29	3	4.2	1650	2400	146
43851-C33	MPR.141-C33	C33 - RAL 7040	141	118	79	96	19	16	63	90	16.5	29	3	4.2	1650	2400	150
43861	MPR.167	C9 - RAL 9005	167	141	98	116	21	18	78	105	17	43	3	5.2	2000	2700	226
43861-C33	MPR.167-C33	C33 - RAL 7040	167	141	98	116	21	18	78	105	17	43	3	5.2	2000	2700	255
