MPG
Guide rail clamps
Technopolymer
MPG-T
Guide rail clamps
For trapezoidal guides
MPG-C
Guide rail clamps
For round guides
MPG-R
Guide rail clamps
For rectangular guides
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
AISI 304 stainless steel cylindrical head screws with hexagon socket, nickel-plated brass nuts.
- MPG-T: for both the standard trapezoidal guides.
- MPG-C: for round guide.
- MPG-R: for rectangular guide.
General information
Features and applications
MPG-T execution can be used with the side guides having an AISI 304 stainless steel bracket of thickness 1.5 or 2 mm.
 | s | B | L |
| 1.5 | 17.5 | 16 |
| 2 | 18 | 17 |
Assembly instructions
Assembly instructions
- Mount the guide rail clamp on the support bar (dimension 25x8 mm), the assembly consists in inserting the bar into the specific clamp slot (Fig.1).
- Insert the guide into the clamp housing and then clamp the screws (Fig.2).
- Set the height of the clamp and clamp by means of a M8 screw, not supplied (Fig.3).

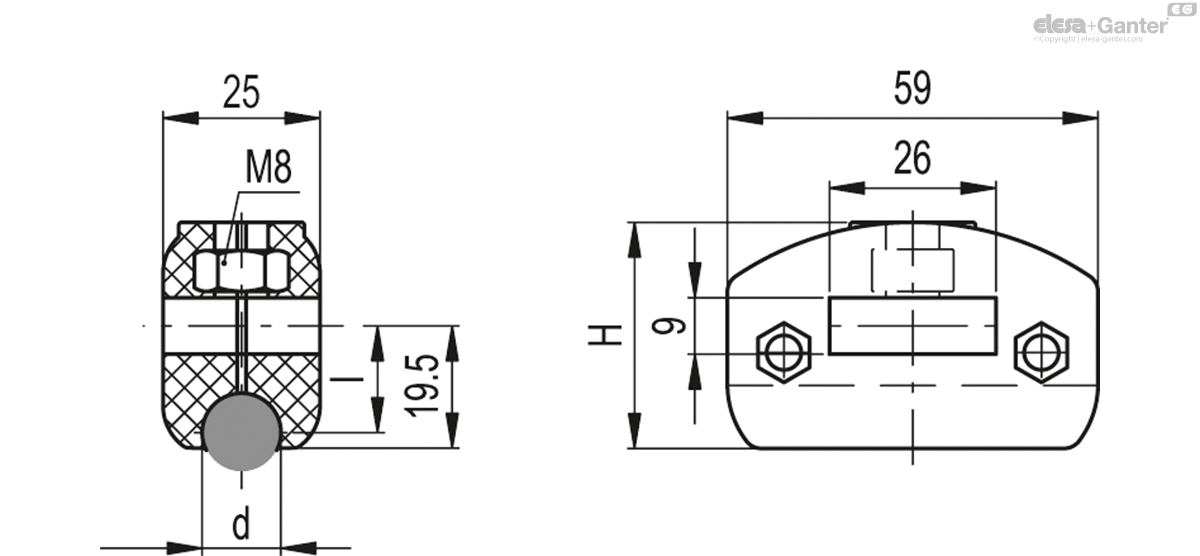

 MPG-C
| d | H | l |  |
|||
|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||
| 419687 | MPG-C-12 | 12 | 36 | 15 | 54 |
|
| 419749 | MPG-C-8 | 8 | 36 | 16 | 52 |
|
| 419787 | MPG-C-14 | 14 | 36 | 15 | 53 |
|
| 419788 | MPG-C-10 | 10 | 36 | 15 | 59 |
|
