MPG-2
Guide rail clamps
Technopolymer and stainless steel
MPG-2T
Guide rail clamps
For trapezoidal guides
MPG-2T-P
Guide rail clamps
For trapezoidal guides, with pin and nut
MPG-2C
Guide rail clamps
For round guides
MPG-2C-P
Guide rail clamps
For round guides, with pin and nut
MPG-2R
Guide rail clamps
For rectangular guides
MPG-2R-P
Guide rail clamps
For rectangular guides, with pin and nut
MPG-2S
Guide rail clamps
For smooth side guides
MPG-2S-P
Guide rail clamps
For smooth side guides, with pin and nut
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Standard executions
AISI 304 stainless steel washers.
- MPG-2T: housings for standard trapezoidal guides with housing for clamping nut (M10).
- MPG-2T-P:Â housings for standard trapezoidal guides, with AISI 304 stainless steel pin and clamping nut (M10).
- MPG-2C: housings for round guides with housing for clamping nut (M10).
- MPG-2C-P:Â housings for round guides, with AISI 304 stainless steel pin and clamping nut (M10).
- MPG-2R: housings for rectangular guides with housing for clamping nut (M10).
- MPG-2R-P:Â housings for rectangular guides, with AISI 304 stainless steel pin and clamping nut (M10).
- MPG-2S: housings for smooth side guides with AISI 304 stainless steel clamping nut.
- MPG-2S-P: housings for smooth side guides with AISI 304 stainless steel pin and clamping nut.
General information
Features and applications
MPG-2T and MPG-2T-P executions can be used with the side guides having an AISI 304 stainless steel bracket of thickness 1.5 or 2 mm, simply rotating the rear plate by 90°.
 | s | B | L |
| 1.5 | 17.5 | 16 |
| 2 | 18 | 17 |

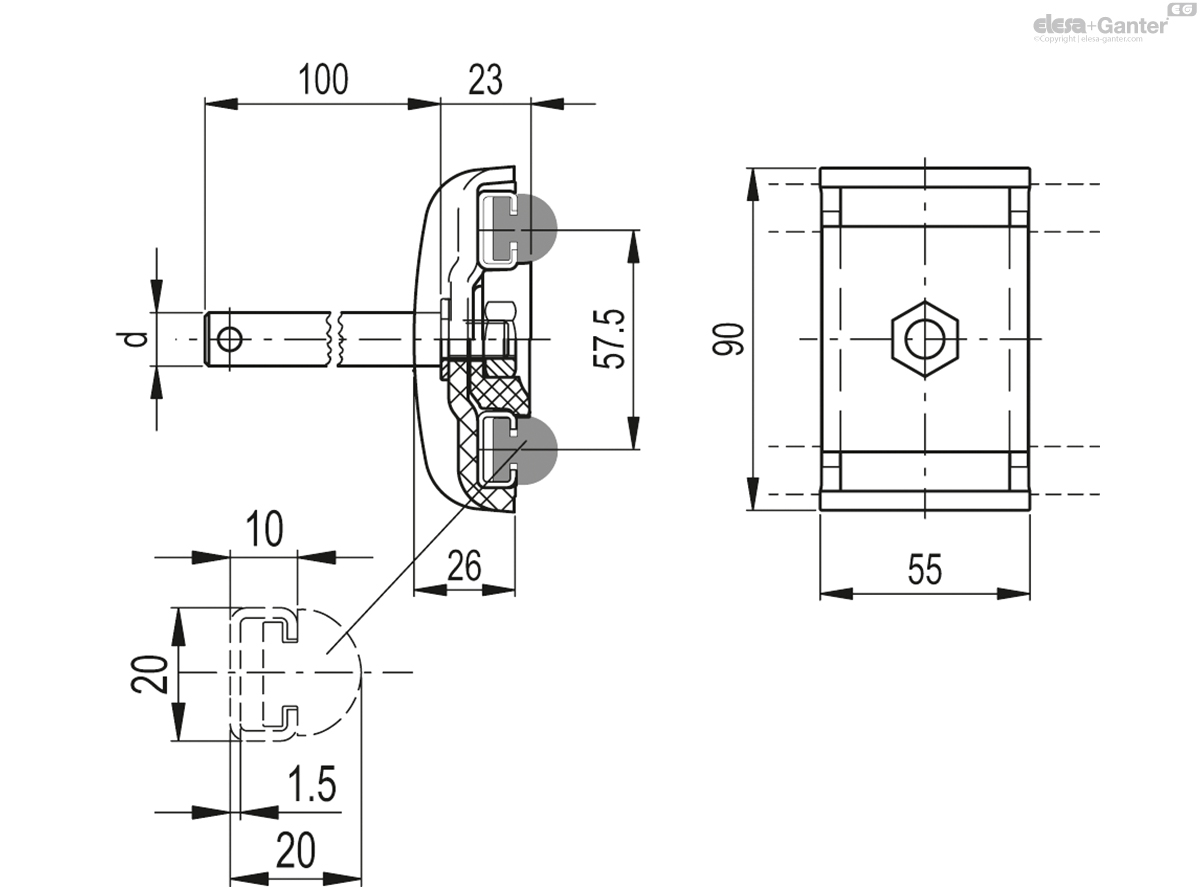

MPG-2R-P
| d |  |
|||
|---|---|---|---|---|
| Code | Description | Actions | ||
| 419694 | MPG-2R-P12 | 12 | 204 |
|
| 419695 | MPG-2R-P14 | 14 | 203 |
|
| 419696 | MPG-2R-P16 | 16 | 202 |
|
