MPG-2

Guide rail clamps

Technopolymer and stainless steel

Enquire Now

MPG-2T

Guide rail clamps

For trapezoidal guides

MPG-2T-P

Guide rail clamps

For trapezoidal guides, with pin and nut

For round guides, with pin and nut

MPG-2R

Guide rail clamps

For rectangular guides

MPG-2R-P

Guide rail clamps

For rectangular guides, with pin and nut

MPG-2S

Guide rail clamps

For smooth side guides

MPG-2S-P

Guide rail clamps

For smooth side guides, with pin and nut

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

AISI 304 stainless steel washers.

MPG-2T: housings for standard trapezoidal guides with housing for clamping nut (M10).
MPG-2T-P: housings for standard trapezoidal guides, with AISI 304 stainless steel pin and clamping nut (M10).
MPG-2C: housings for round guides with housing for clamping nut (M10).
MPG-2C-P: housings for round guides, with AISI 304 stainless steel pin and clamping nut (M10).
MPG-2R: housings for rectangular guides with housing for clamping nut (M10).
MPG-2R-P: housings for rectangular guides, with AISI 304 stainless steel pin and clamping nut (M10).
MPG-2S: housings for smooth side guides with AISI 304 stainless steel clamping nut.
MPG-2S-P: housings for smooth side guides with AISI 304 stainless steel pin and clamping nut.

General information

Features and applications

MPG-2T and MPG-2T-P executions can be used with the side guides having an AISI 304 stainless steel bracket of thickness 1.5 or 2 mm, simply rotating the rear plate by 90°.

s	B	L
1.5	17.5	16
2	18	17

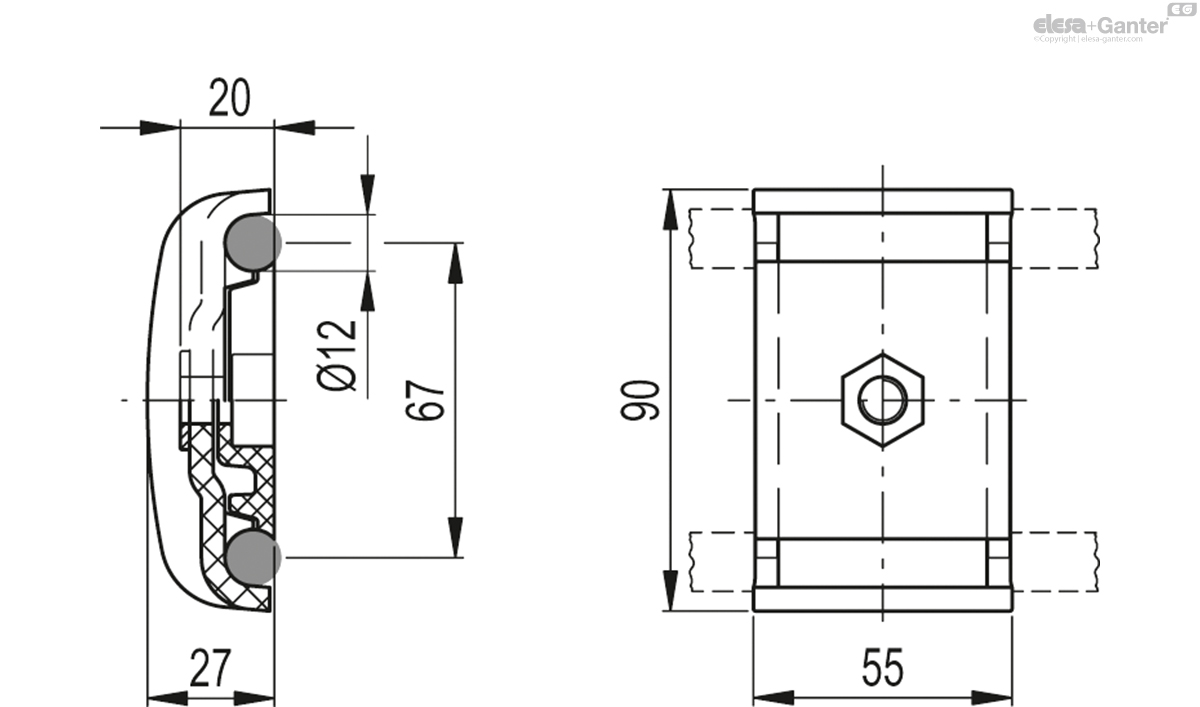

MPG-2C


Code	Description		Actions
419609	MPG-2C	83
