MI.304
Control knurled knobs

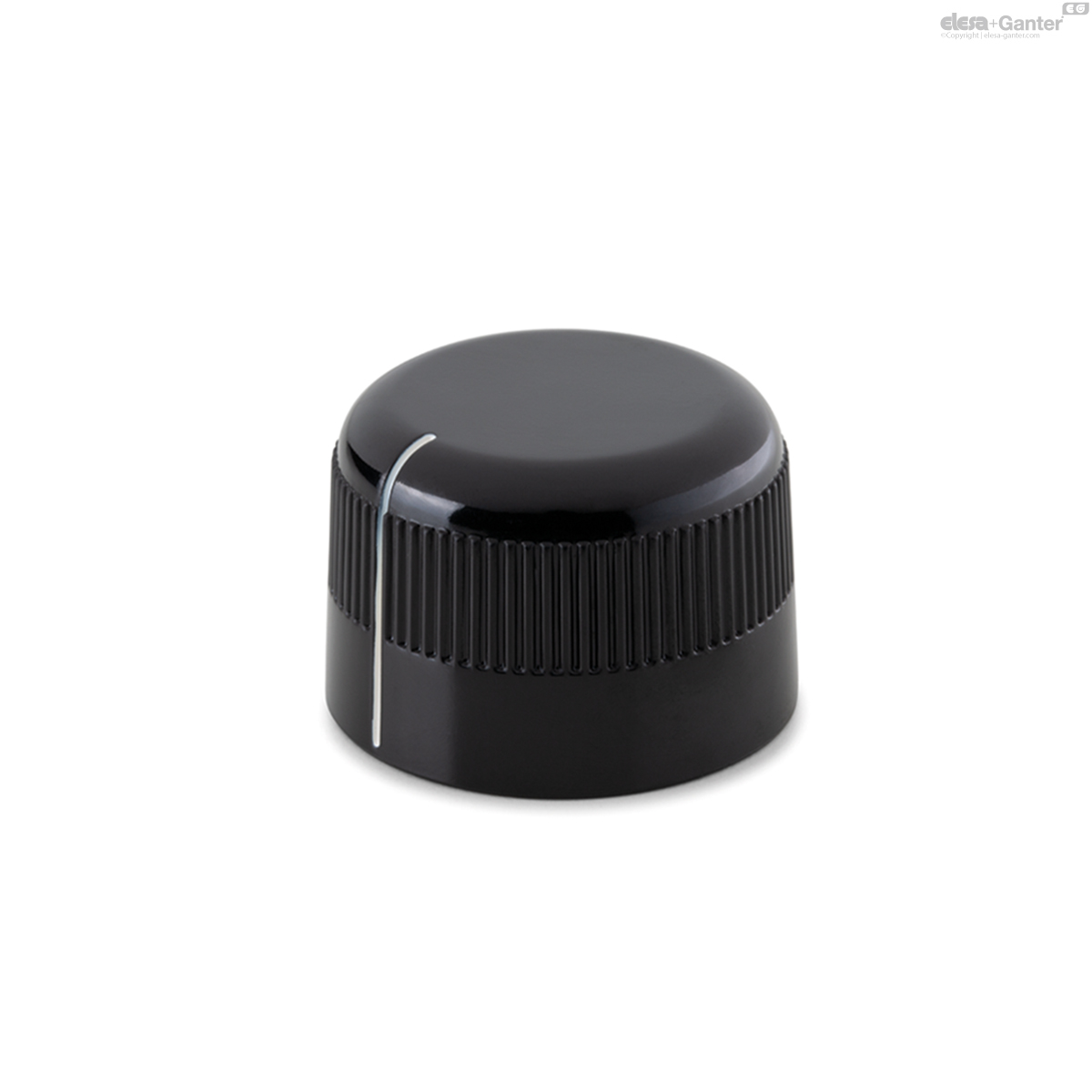

With pointer, Duroplast
Description
Main specifications
Material
Phenolic based (PF) Duroplast, black colour, glossy finish.
White pad-printed index line, placed at 180° from the transverse pressure screw.
Standard execution
Plain blind hole, fixing by means of a transverse pressure screw according to UNI 5929-85 in AISI 304 stainless steel (headless screw with hexagonal socket and cupped end) which screws into the AISI 304 stainless steel nut.
Supplied.
Features
A limited manoeuvre angle is possible by fitting stop pins in the rear guide slot.
MI.304

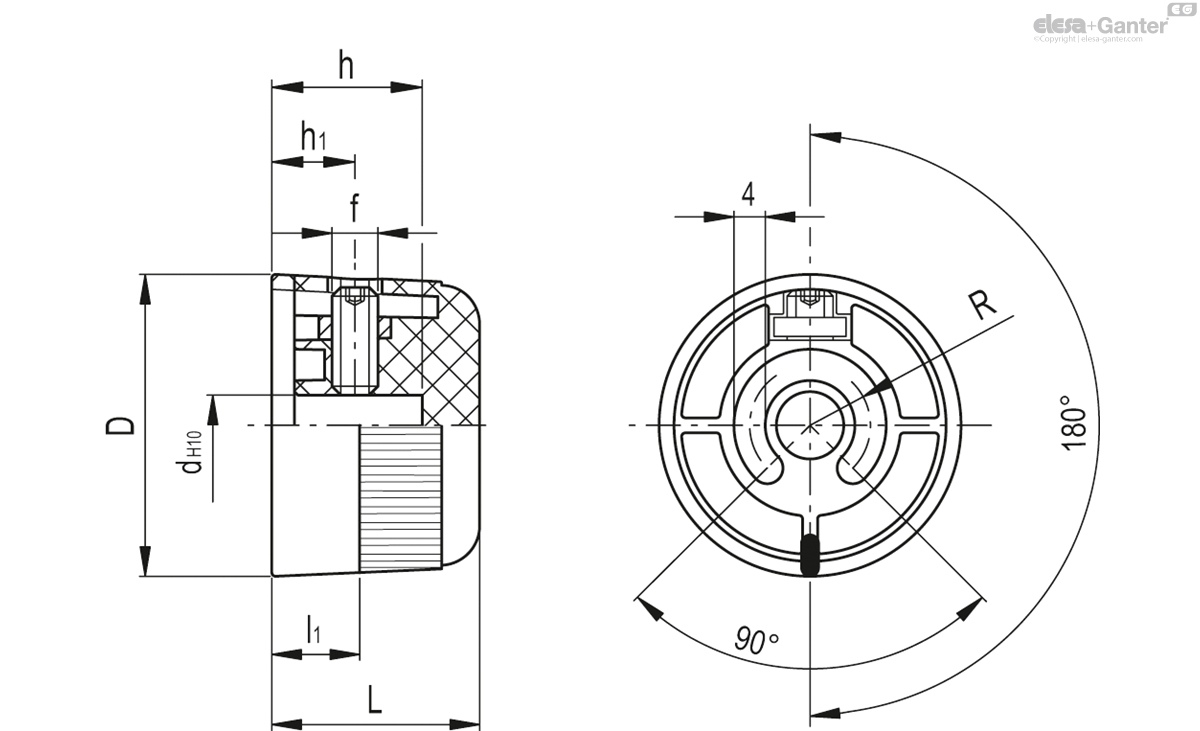

| D | dH10 | L | l1 | h | h1 | f | R |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||
| 66861 | MI.304/35 N-6 | 35 | 6 | 24.5 | 10 | 18 | 11 | M5 | 6.2 | 18 |
|
| 66863 | MI.304/40 N-8 | 40 | 8 | 27.5 | 11.5 | 20 | 11 | M5 | 8 | 18 |
|
| 66865 | MI.304/45 N-8 | 46 | 8 | 29.5 | 12.5 | 21.5 | 11 | M5 | 8.4 | 37 |
|
