MFH

Finger handles

Technopolymer

Enquire Now

Description

Main specifications

Material

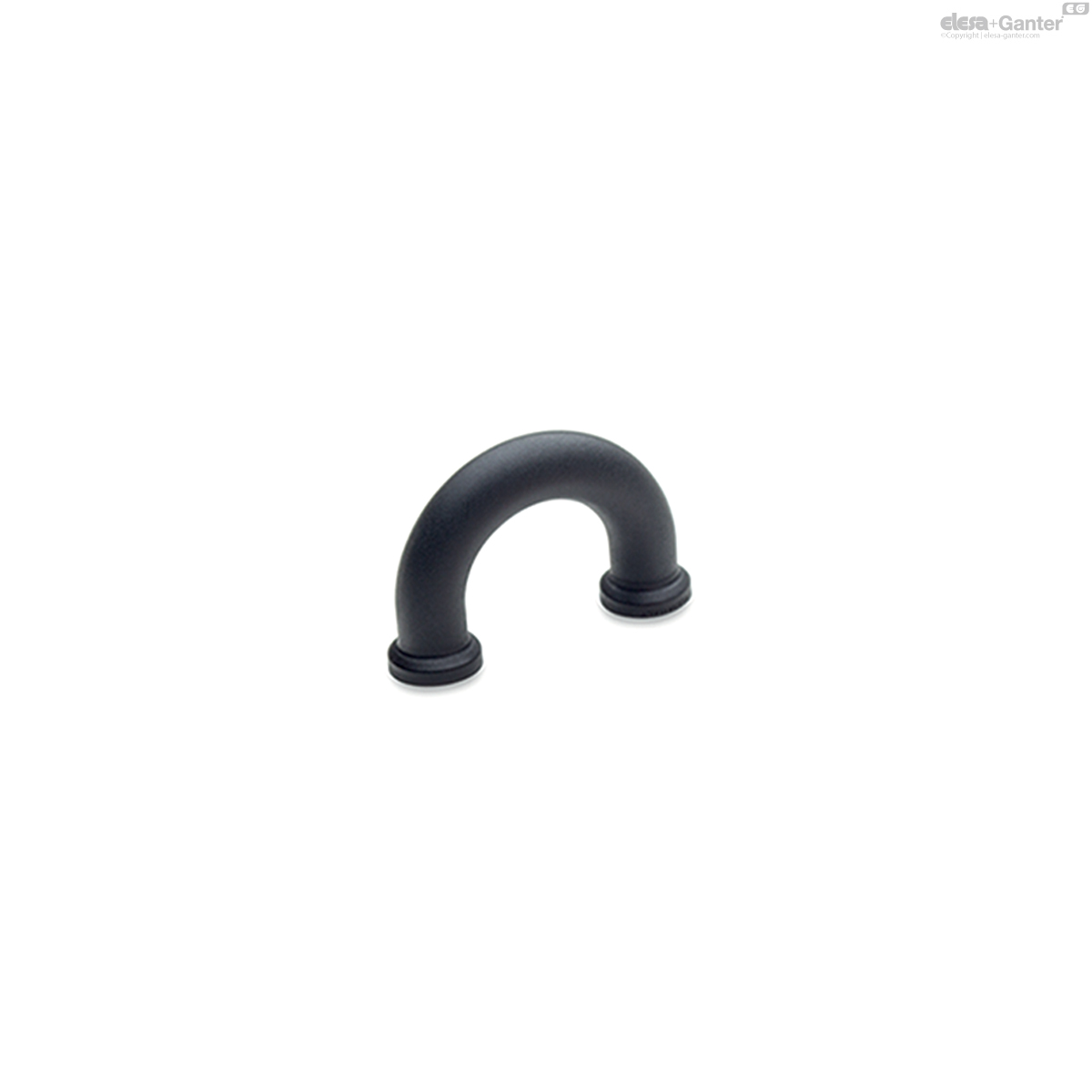

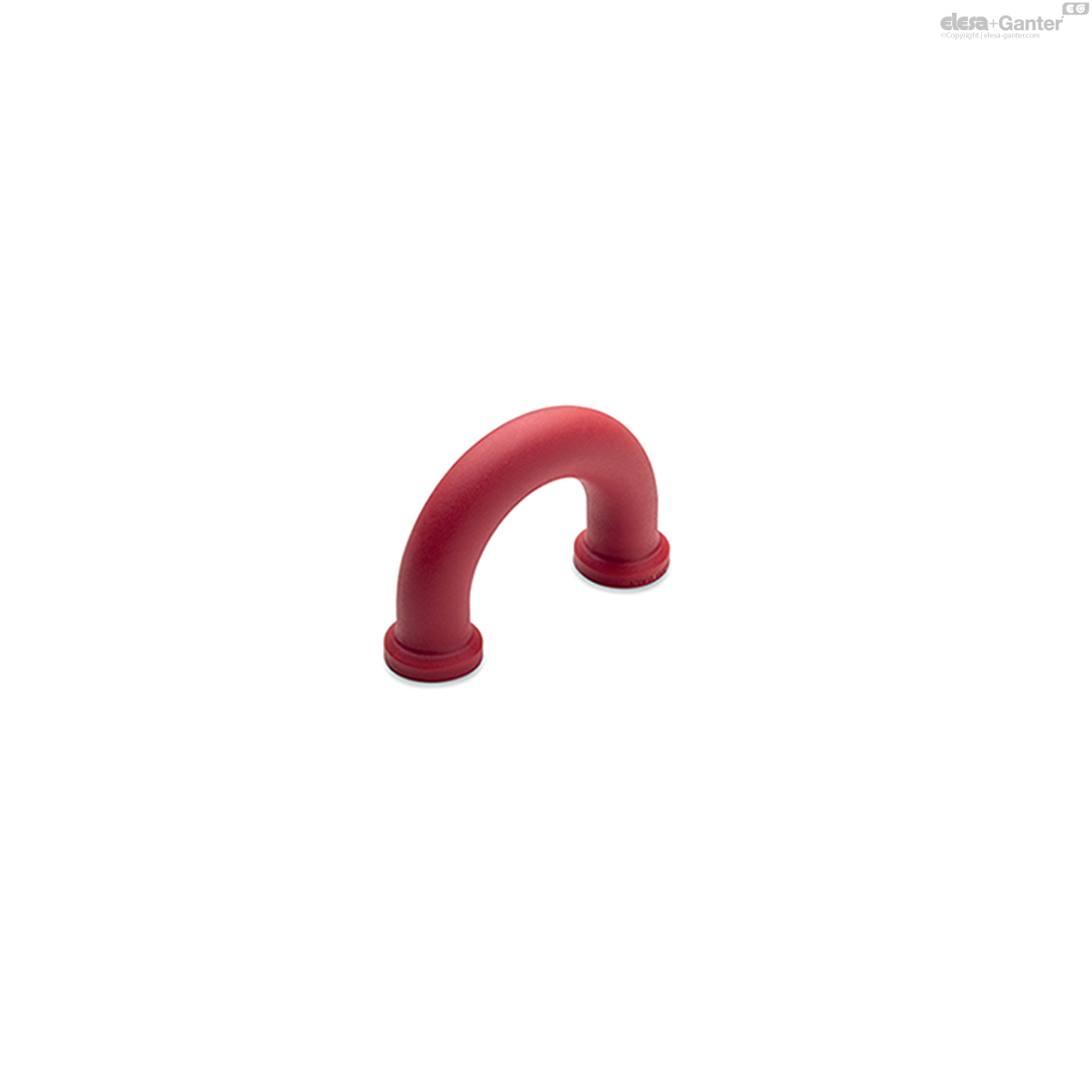

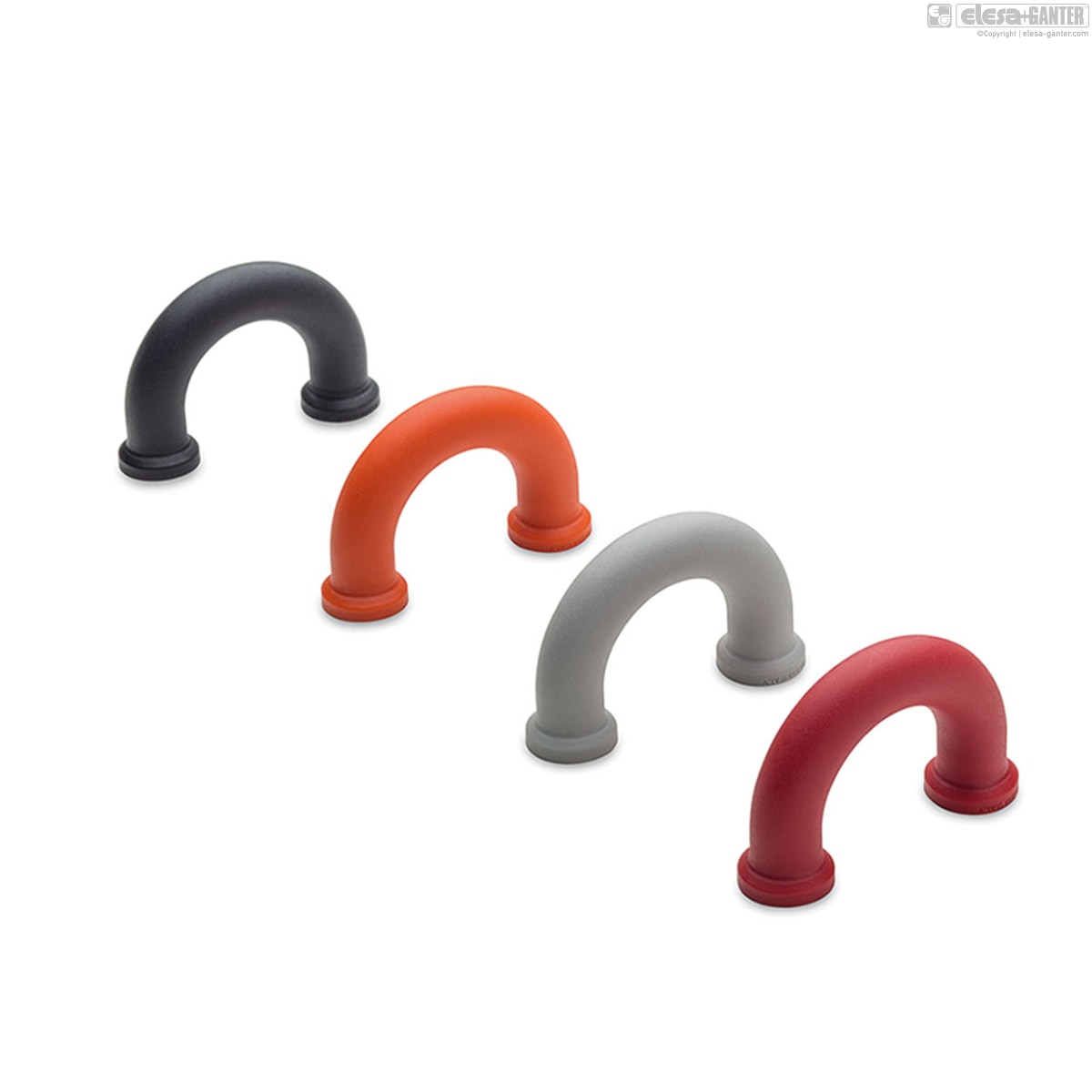

Polyamide based (PA) technopolymer, in 4 standard colours: black, orange, grey, red, matte finish.

Standard execution

Blind holes for fitting by means of no. 2 self-tapping screws for plastic materials Ø3.5 (UNI ISO 7049), not included in the supply.

Maximum tightening torque of the self-tapping screws 1,2 [Nm].

General information

Technical data

Tensile stress and impact strength: the values F2 and L1 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

		Color	l	d₁	d₂	h	F2 [N]	L1 [J]
Code	Description									Actions
138201-C2	MFH-30-AF 3,5-C2	C2 - RAL 2004	29.5	9	12	27	2300	6	6
138201-C3	MFH-30-AF 3,5-C3	C3 - RAL 7035	29.5	9	12	27	2300	6	6
138201-C6	MFH-30-AF 3,5-C6	C6 - RAL 3000	29.5	9	12	27	2300	6	6
138201-C9	MFH-30-AF 3,5-C9	C9 - RAL 9005	29.5	9	12	27	2300	6	6
138221-C2	MFH-40-AF 3,5-C2	C2 - RAL 2004	39.5	10	15	33.5	2300	10	20
138221-C3	MFH-40-AF 3,5-C3	C3 - RAL 7035	39.5	10	15	33.5	2300	10	20
138221-C6	MFH-40-AF 3,5-C6	C6 - RAL 3000	39.5	10	15	33.5	2300	10	20
138221-C9	MFH-40-AF 3,5-C9	C9 - RAL 9005	39.5	10	15	33.5	2300	10	10
