MBT.SOFT

Fluted grip knobs

'Soft-touch' technopolymer

Enquire Now

MBT-B-SOFT

Fluted grip knobs

Brass boss, threaded hole

MBT-p-SOFT

Fluted grip knobs

Zinc-plated steel threaded stud

Description

Main specifications

Material

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Fluted rim

'Soft-touch' thermoplastic elastomer (TPE) chemically bonded, hardness 70 Shore A. The coating material is certified according to FDA (U.S. Food and Drug administration).

Standard executions

MBT-B-SOFT: brass boss, threaded and plain blind hole.
MBT-p-SOFT: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

General information

Features and applications

The rim, coated with 'soft-touch' elastomer, improves the grip even in the presence of oils, greases and sweat from the hand. For this reason these fluted knobs are suitable for fitness machines, tools and machines for gardening and goods transport, high-precision instruments and disability aids.

Ergonomy and design

This kind of knob allows operation in an ergonomic way in all working conditions, reaching the maximum torque level with little fatigue for the operator's hand.

The very fine pitch structure of the rim, together with the soft-touch cover, simplifies the adjustement of the knob during rapid rotation (or screwing) without any unpleasant angular work for the hand and wrist.

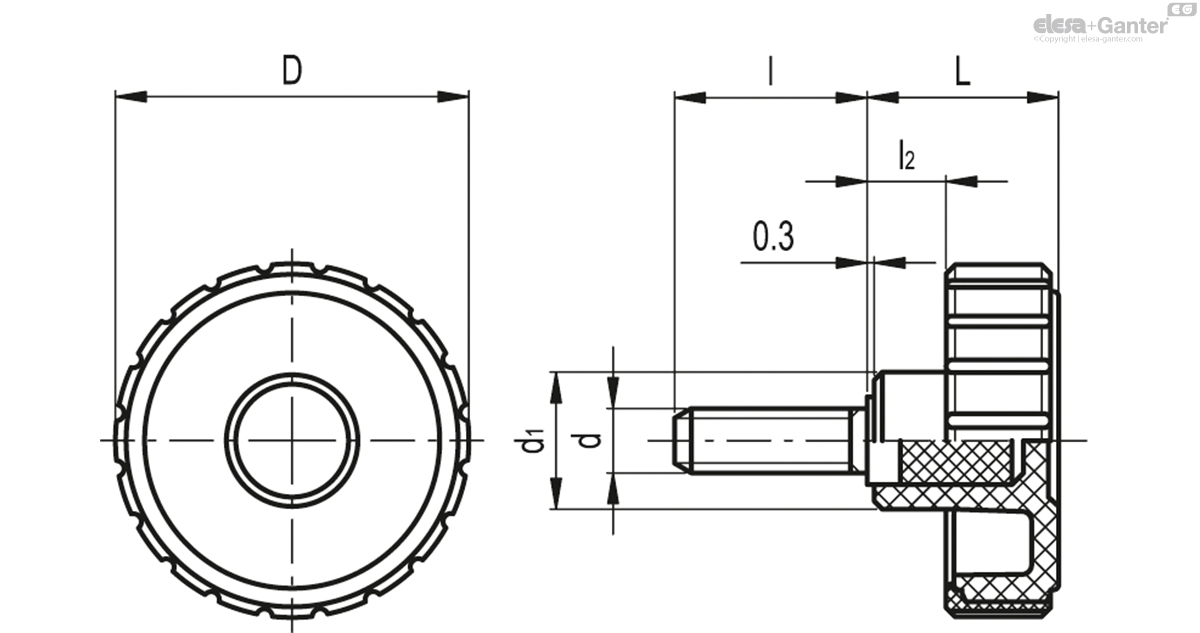

MBT-p-SOFT

		D	d_6g	L	d₁	l	l₂	C# [Nm]
Code	Description									Actions
134341	MBT.45 p-M6x10-SOFT	44	M6	24	17	10	10	13	25
134346	MBT.45 p-M6x20-SOFT	44	M6	24	17	20	10	13	31
134381	MBT.45 p-M8x16-SOFT	44	M8	24	17	16	10	16	30
134391	MBT.45 p-M8x30-SOFT	44	M8	24	17	30	10	16	36
134396	MBT.45 p-M8x50-SOFT	44	M8	24	17	50	10	16	41
134431	MBT.55 p-M8x16-SOFT	54	M8	30	20	16	12.5	25	46
134436	MBT.55 p-M8x30-SOFT	54	M8	30	20	30	12.5	25	57
134441	MBT.55 p-M8x50-SOFT	54	M8	30	20	50	12.5	25	60
134451	MBT.55 p-M10x20-SOFT	54	M10	30	20	20	12.5	27	56
134456	MBT.55 p-M10x30-SOFT	54	M10	30	20	30	12.5	27	61
134471	MBT.55 p-M10x50-SOFT	54	M10	30	20	50	12.5	27	71
