MBT-GA

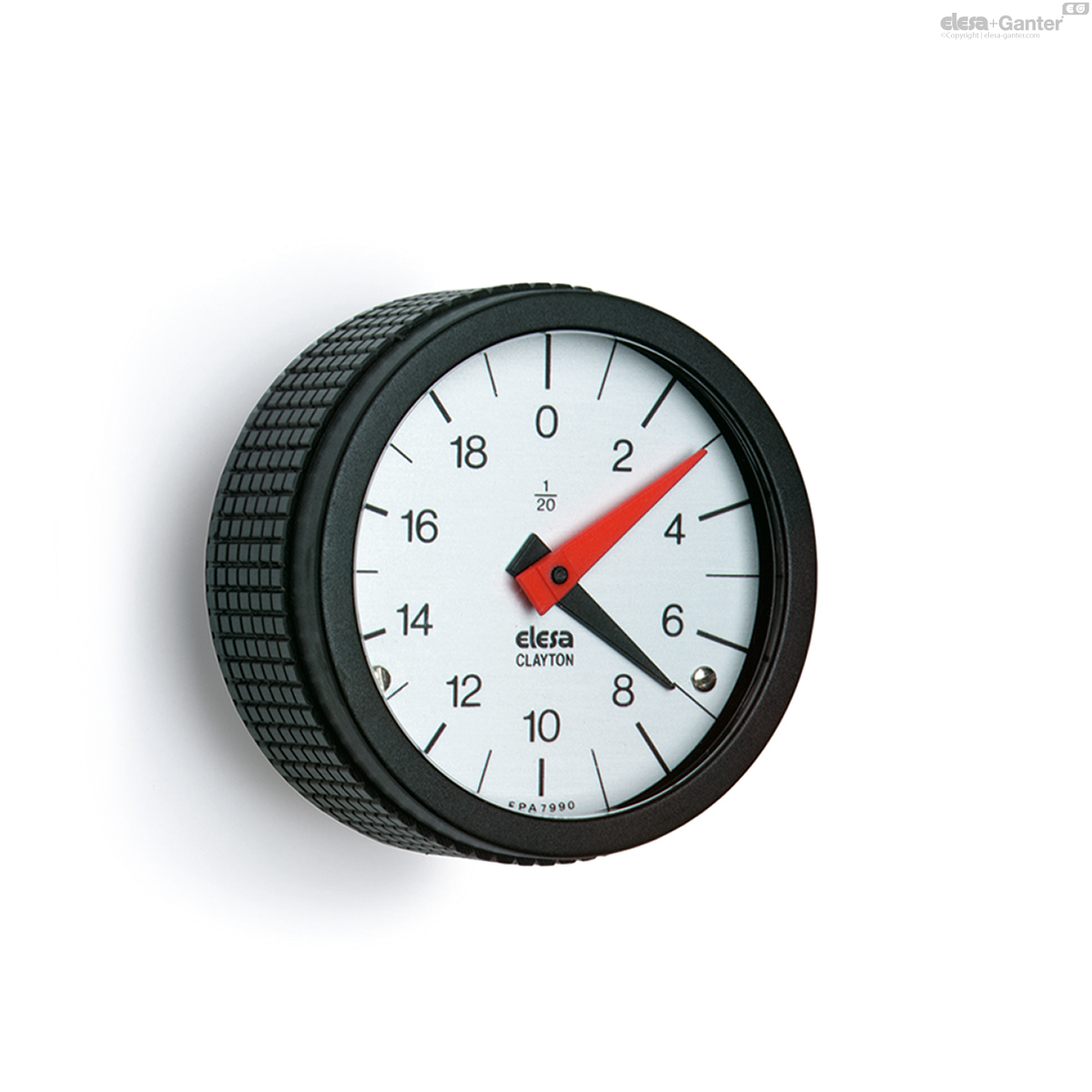

Knobs with integral indicator

gravity drive, technopolymer

Enquire Now

Description

Main specifications

Diamond cut knurled knob

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Moulded-in spindle.

Bezel

Technopolymer. Moulded over the window.

Window

Transparent polyamide based (PA-T) technopolymer (practically unbreakable).

Resistant to solvents, oils, greases and other chemical agents (avoid contact with alcohol during cleaning operations).

Dial

Natural matte anodised aluminium.

Clockwise (D) or anti-clockwise (S) graduation, black colour.

Standard execution

Black-oxide steel boss, H7 reamed blind hole, fitting to shaft by means of a supplied grub screw with hexagon socket and cup end UNI 5929-85.

Reading

The black pointer indicates the number of turns of the spindle from the start position (0); the red pointer indicates the fractions of turn.

Ballrace rotation: maximum reading accuracy.

Ratio

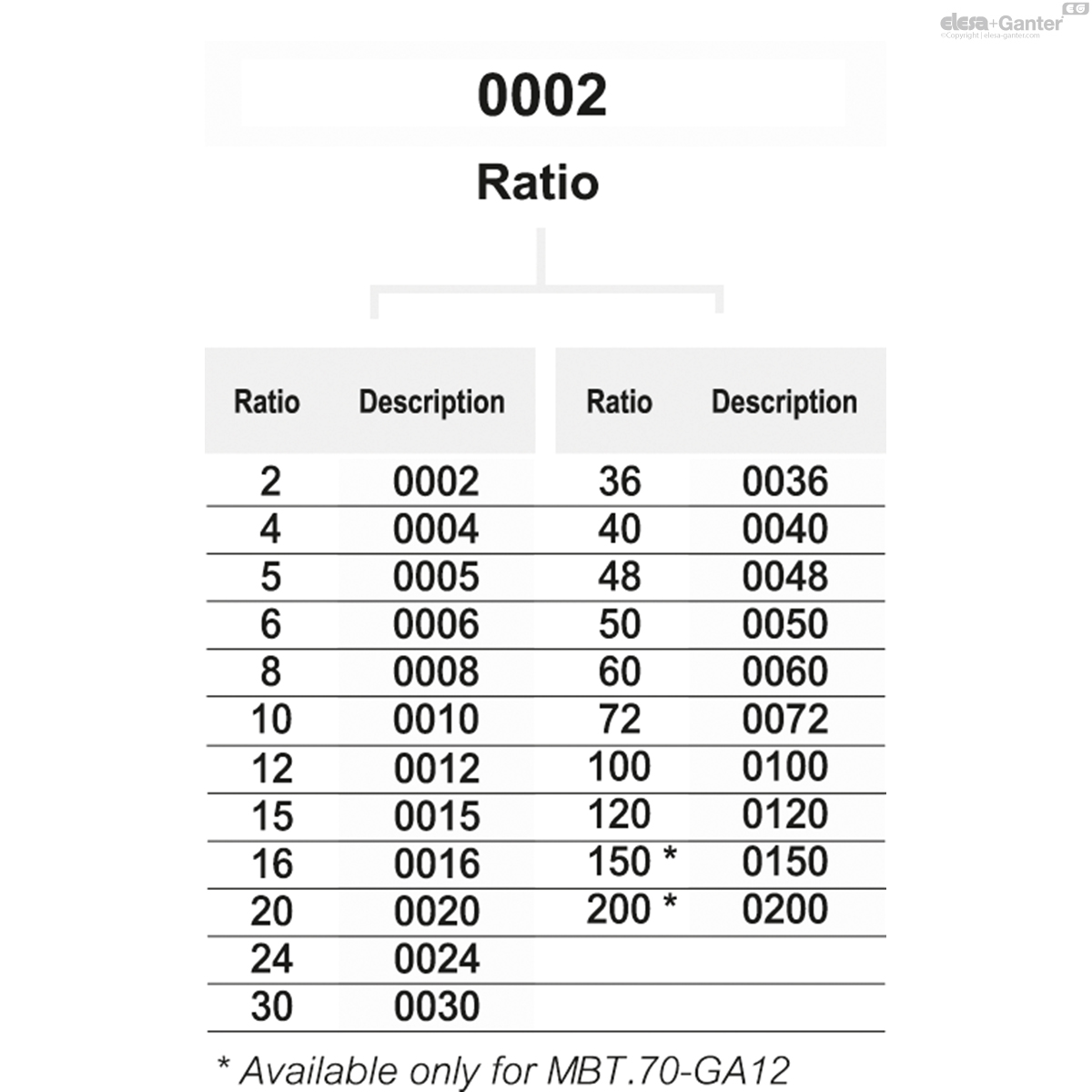

To choose the ratio see 'Gravity position indicators introduction'.

IP protection

The ultrasonic welding of the window to the case guarantees the complete sealing with IP 67 protection class, see EN 60529 table.

General information

Features and applications

The knobs with integral gravity position indicator are suitable on spindles with horizontal or max 60° inclined axis.

Special executions on request

special dial with logo or customized graduations
special ratios
Filling with paraffin oil, maximum continuous working temperature 40°C
single pointer.

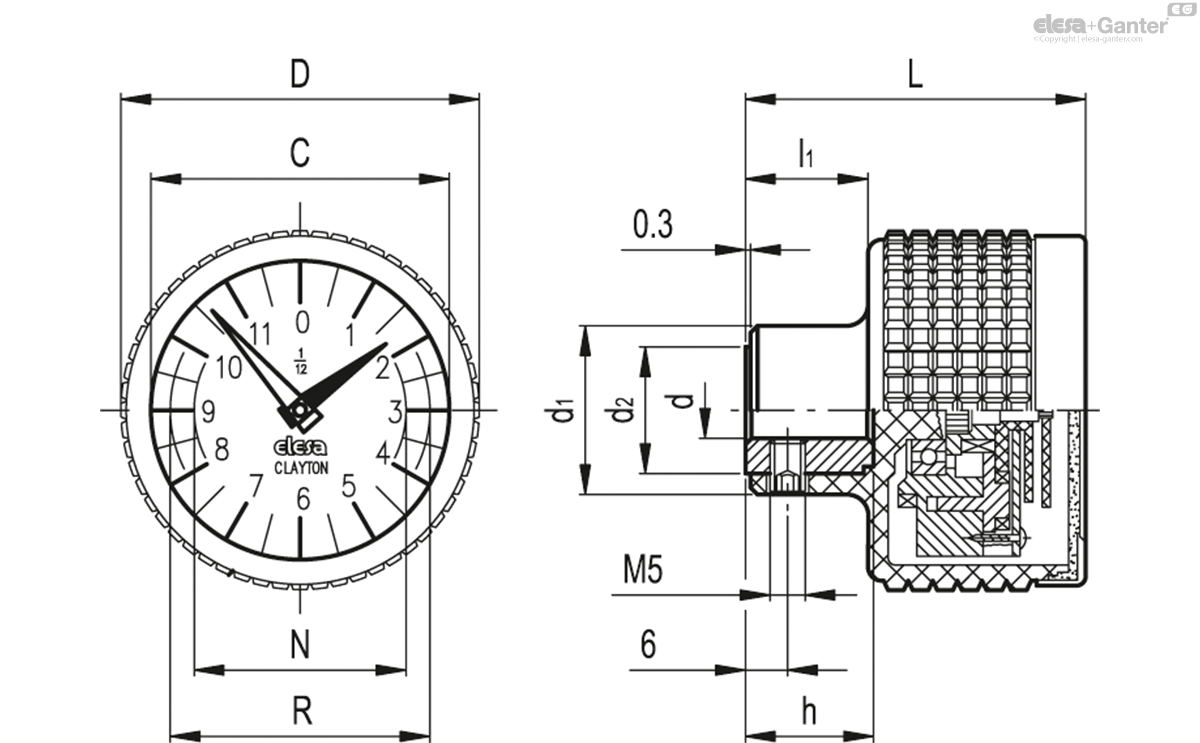

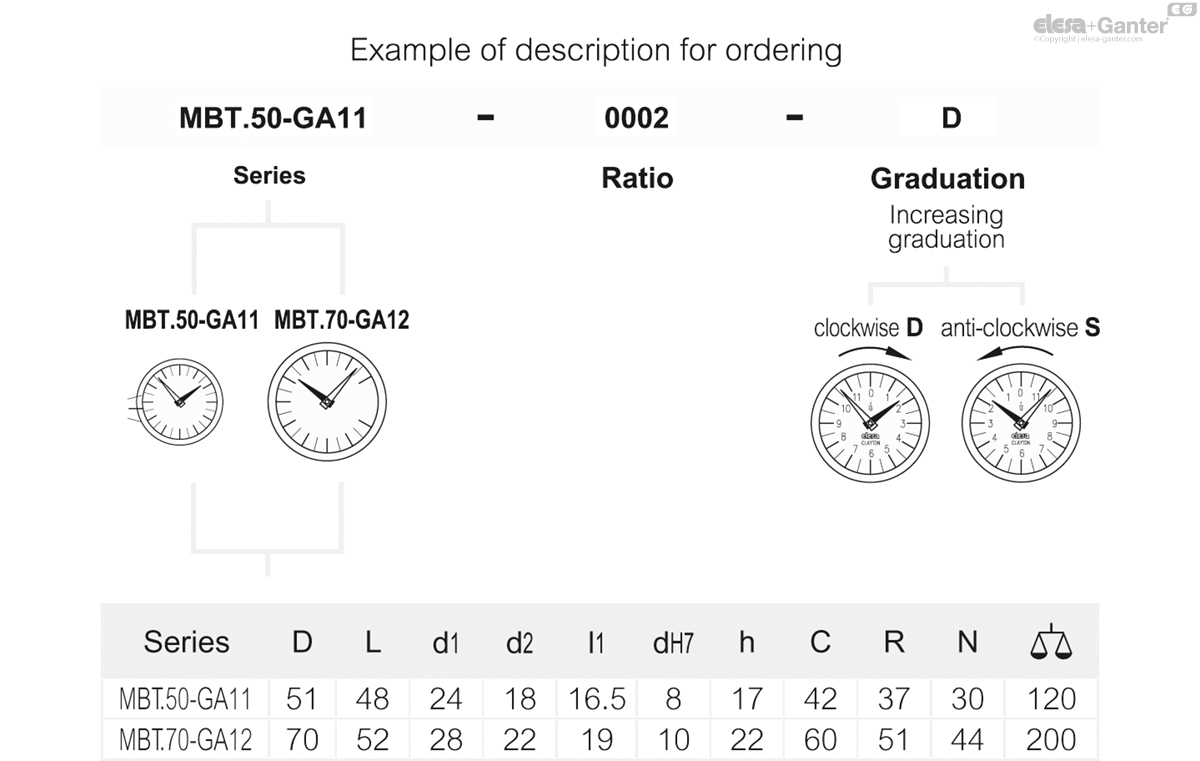

		Series	Ratio	Increasing numbering
Code	Description					Actions
CE.56091	MBT.50-GA11-0002-D	MBT.50-GA11	2	D	146
CE.56092	MBT.50-GA11-0002-S	MBT.50-GA11	2	S	144
CE.56101	MBT.50-GA11-0004-D	MBT.50-GA11	4	D	113
CE.56102	MBT.50-GA11-0004-S	MBT.50-GA11	4	S	120
CE.56105	MBT.50-GA11-0005-D	MBT.50-GA11	5	D	114
CE.56106	MBT.50-GA11-0005-S	MBT.50-GA11	5	S	145
CE.56111	MBT.50-GA11-0006-D	MBT.50-GA11	6	D	114
CE.56112	MBT.50-GA11-0006-S	MBT.50-GA11	6	S	115
CE.56121	MBT.50-GA11-0008-D	MBT.50-GA11	8	D	114
CE.56122	MBT.50-GA11-0008-S	MBT.50-GA11	8	S	120
CE.56131	MBT.50-GA11-0010-D	MBT.50-GA11	10	D	146
CE.56132	MBT.50-GA11-0010-S	MBT.50-GA11	10	S	146
CE.56141	MBT.50-GA11-0012-D	MBT.50-GA11	12	D	15
CE.56142	MBT.50-GA11-0012-S	MBT.50-GA11	12	S	146
CE.56145	MBT.50-GA11-0015-D	MBT.50-GA11	15	D	115
CE.56146	MBT.50-GA11-0015-S	MBT.50-GA11	15	S	114
CE.56151	MBT.50-GA11-0016-D	MBT.50-GA11	16	D	118
CE.56152	MBT.50-GA11-0016-S	MBT.50-GA11	16	S	116
CE.56161	MBT.50-GA11-0020-D	MBT.50-GA11	20	D	145
CE.56162	MBT.50-GA11-0020-S	MBT.50-GA11	20	S	115
CE.56171	MBT.50-GA11-0024-D	MBT.50-GA11	24	D	147
CE.56172	MBT.50-GA11-0024-S	MBT.50-GA11	24	S	120
CE.56175	MBT.50-GA11-0030-D	MBT.50-GA11	30	D	147
CE.56176	MBT.50-GA11-0030-S	MBT.50-GA11	30	S	147
CE.56179	MBT.50-GA11-0036-D	MBT.50-GA11	36	D	118
CE.56180	MBT.50-GA11-0036-S	MBT.50-GA11	36	S	144
CE.56181	MBT.50-GA11-0040-D	MBT.50-GA11	40	D	145
CE.56182	MBT.50-GA11-0040-S	MBT.50-GA11	40	S	114
CE.56187	MBT.50-GA11-0048-D	MBT.50-GA11	48	D	115
CE.56188	MBT.50-GA11-0048-S	MBT.50-GA11	48	S	120
CE.56191	MBT.50-GA11-0050-D	MBT.50-GA11	50	D	120
CE.56192	MBT.50-GA11-0050-S	MBT.50-GA11	50	S	115
CE.56201	MBT.50-GA11-0060-D	MBT.50-GA11	60	D	114
CE.56202	MBT.50-GA11-0060-S	MBT.50-GA11	60	S	120
CE.56211	MBT.50-GA11-0072-D	MBT.50-GA11	72	D	120
CE.56212	MBT.50-GA11-0072-S	MBT.50-GA11	72	S	120
CE.56221	MBT.50-GA11-0100-D	MBT.50-GA11	100	D	115
CE.56222	MBT.50-GA11-0100-S	MBT.50-GA11	100	S	120
CE.56231	MBT.50-GA11-0120-D	MBT.50-GA11	120	D	115
CE.56232	MBT.50-GA11-0120-S	MBT.50-GA11	120	S	120
CE.57081	MBT.70-GA12-0002-D	MBT.70-GA12	2	D	218
CE.57082	MBT.70-GA12-0002-S	MBT.70-GA12	2	S	200
CE.57091	MBT.70-GA12-0004-D	MBT.70-GA12	4	D	186
CE.57092	MBT.70-GA12-0004-S	MBT.70-GA12	4	S	200
CE.57095	MBT.70-GA12-0005-D	MBT.70-GA12	5	D	186
CE.57096	MBT.70-GA12-0005-S	MBT.70-GA12	5	S	200
CE.57101	MBT.70-GA12-0006-D	MBT.70-GA12	6	D	219
CE.57102	MBT.70-GA12-0006-S	MBT.70-GA12	6	S	189
CE.57105	MBT.70-GA12-0008-D	MBT.70-GA12	8	D	200
CE.57106	MBT.70-GA12-0008-S	MBT.70-GA12	8	S	200
CE.57111	MBT.70-GA12-0010-D	MBT.70-GA12	10	D	219
CE.57112	MBT.70-GA12-0010-S	MBT.70-GA12	10	S	220
CE.57121	MBT.70-GA12-0012-D	MBT.70-GA12	12	D	221
CE.57122	MBT.70-GA12-0012-S	MBT.70-GA12	12	S	187
CE.57123	MBT.70-GA12-0015-D	MBT.70-GA12	15	D	187
CE.57124	MBT.70-GA12-0015-S	MBT.70-GA12	15	S	200
CE.57125	MBT.70-GA12-0016-D	MBT.70-GA12	16	D	190
CE.57126	MBT.70-GA12-0016-S	MBT.70-GA12	16	S	200
CE.57131	MBT.70-GA12-0020-D	MBT.70-GA12	20	D	221
CE.57132	MBT.70-GA12-0020-S	MBT.70-GA12	20	S	221
CE.57141	MBT.70-GA12-0024-D	MBT.70-GA12	24	D	188
CE.57142	MBT.70-GA12-0024-S	MBT.70-GA12	24	S	188
CE.57146	MBT.70-GA12-0030-D	MBT.70-GA12	30	D	189
CE.57147	MBT.70-GA12-0030-S	MBT.70-GA12	30	S	189
CE.57151	MBT.70-GA12-0036-D	MBT.70-GA12	36	D	189
CE.57152	MBT.70-GA12-0036-S	MBT.70-GA12	36	S	220
CE.57155	MBT.70-GA12-0040-D	MBT.70-GA12	40	D	200
CE.57156	MBT.70-GA12-0040-S	MBT.70-GA12	40	S	200
CE.57159	MBT.70-GA12-0048-D	MBT.70-GA12	48	D	200
CE.57160	MBT.70-GA12-0048-S	MBT.70-GA12	48	S	200
CE.57161	MBT.70-GA12-0050-D	MBT.70-GA12	50	D	189
CE.57162	MBT.70-GA12-0050-S	MBT.70-GA12	50	S	200
CE.57171	MBT.70-GA12-0060-D	MBT.70-GA12	60	D	191
CE.57172	MBT.70-GA12-0060-S	MBT.70-GA12	60	S	200
CE.57181	MBT.70-GA12-0072-D	MBT.70-GA12	72	D	200
CE.57182	MBT.70-GA12-0072-S	MBT.70-GA12	72	S	187
CE.57191	MBT.70-GA12-0100-D	MBT.70-GA12	100	D	190
CE.57192	MBT.70-GA12-0100-S	MBT.70-GA12	100	S	190
CE.57201	MBT.70-GA12-0120-D	MBT.70-GA12	120	D	190
CE.57202	MBT.70-GA12-0120-S	MBT.70-GA12	120	S	190
CE.57391	MBT.70-GA12-0150-D	MBT.70-GA12	150*	D	190
CE.57392	MBT.70-GA12-0150-S	MBT.70-GA12	150*	S	190
CE.57401	MBT.70-GA12-0200-D	MBT.70-GA12	200*	D	190
CE.57402	MBT.70-GA12-0200-S	MBT.70-GA12	200*	S	190
