MBT.

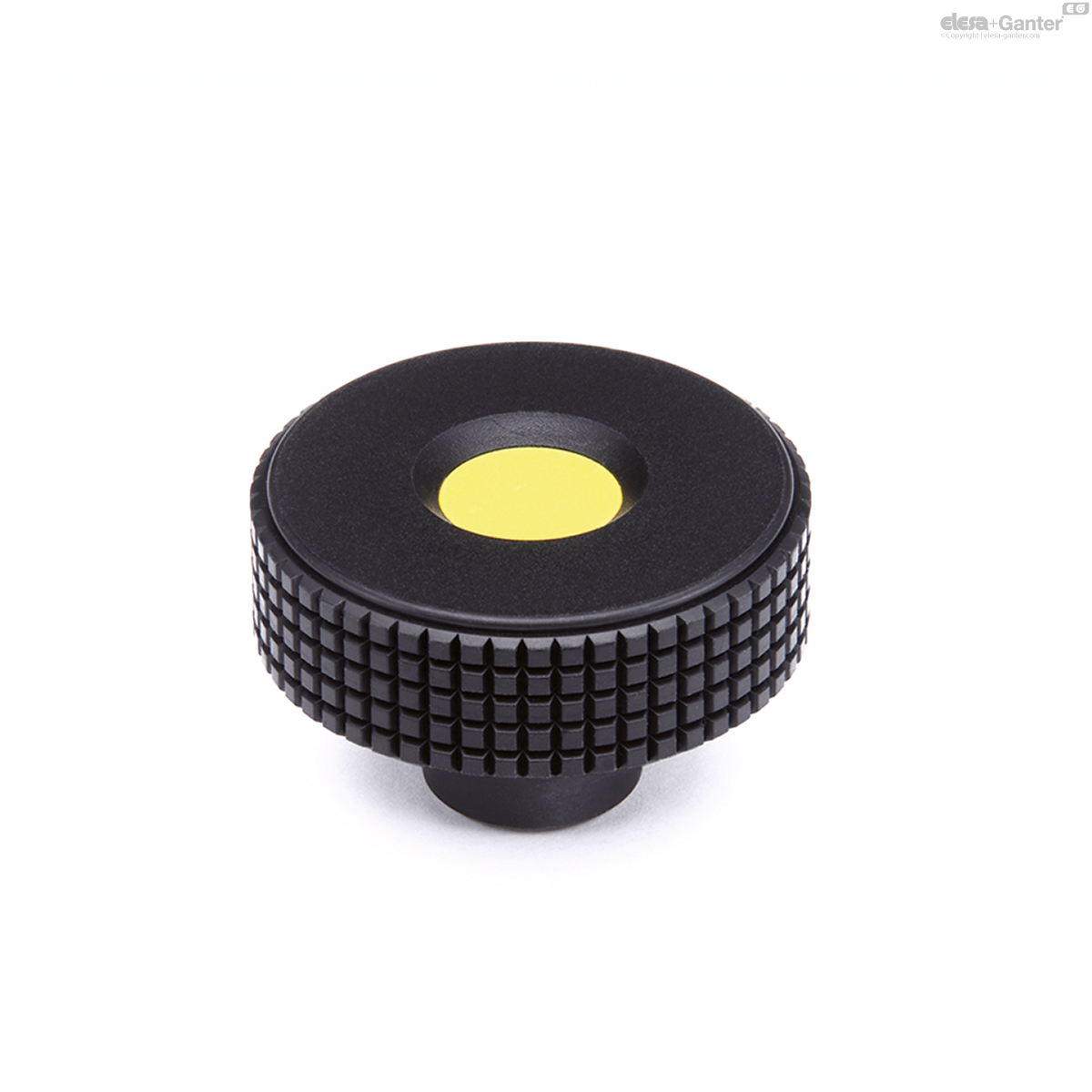

Diamond cut knurled knobs

Technopolymer

Enquire Now

MBT-B

Diamond cut knurled knobs

Brass boss, plain or threaded hole

MBT-p

Diamond cut knurled knobs

Zinc-plated steel threaded stud

Description

Main specifications

Material

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

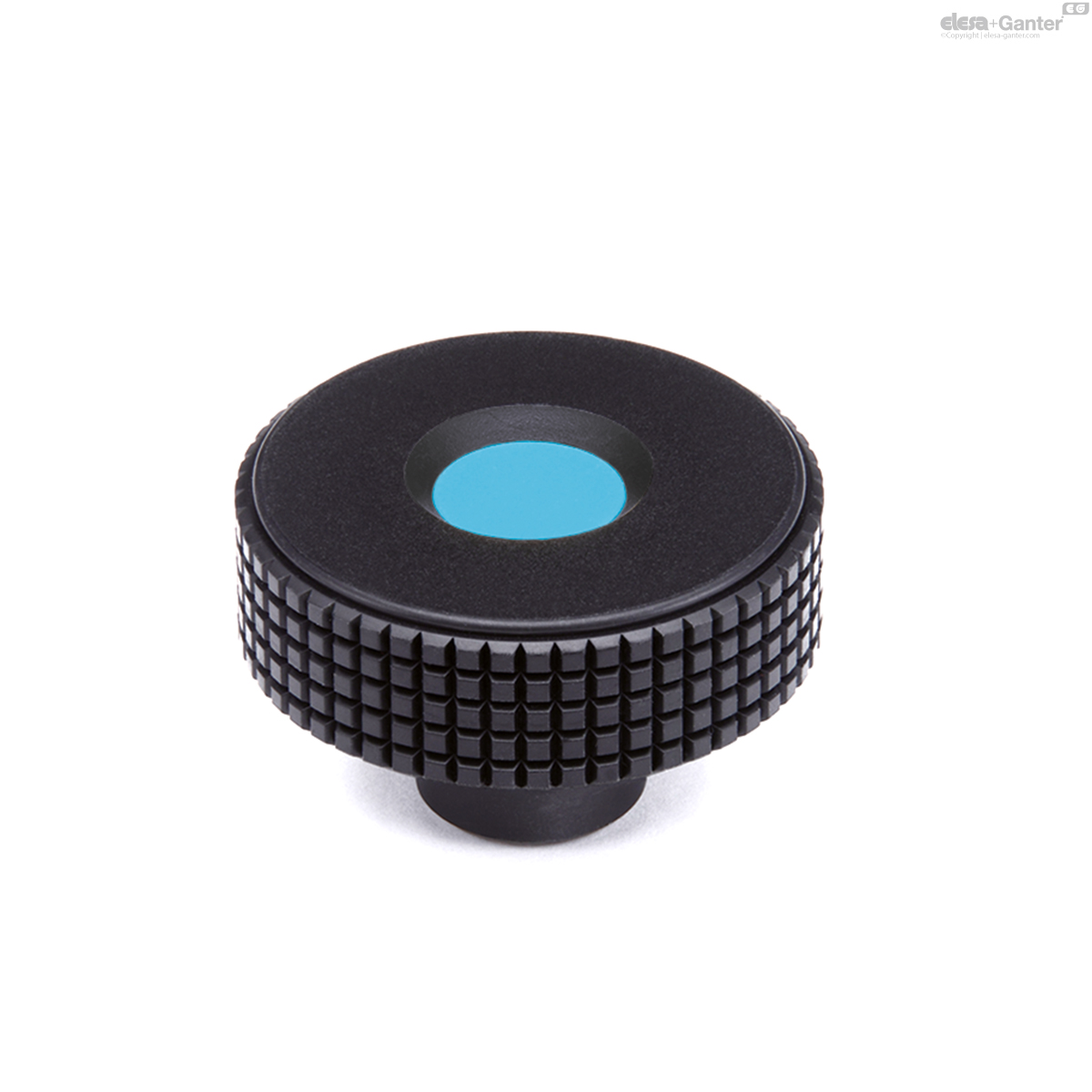

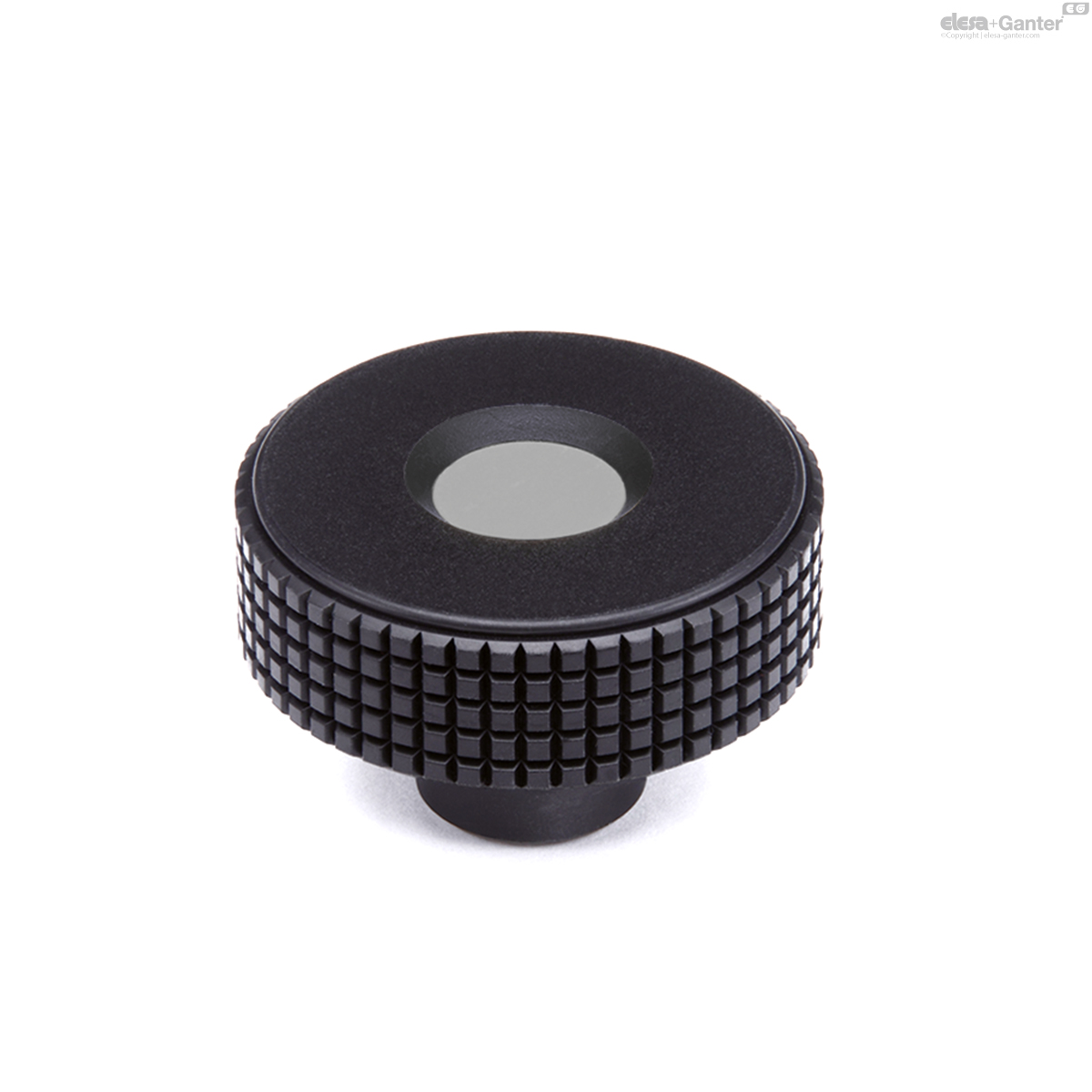

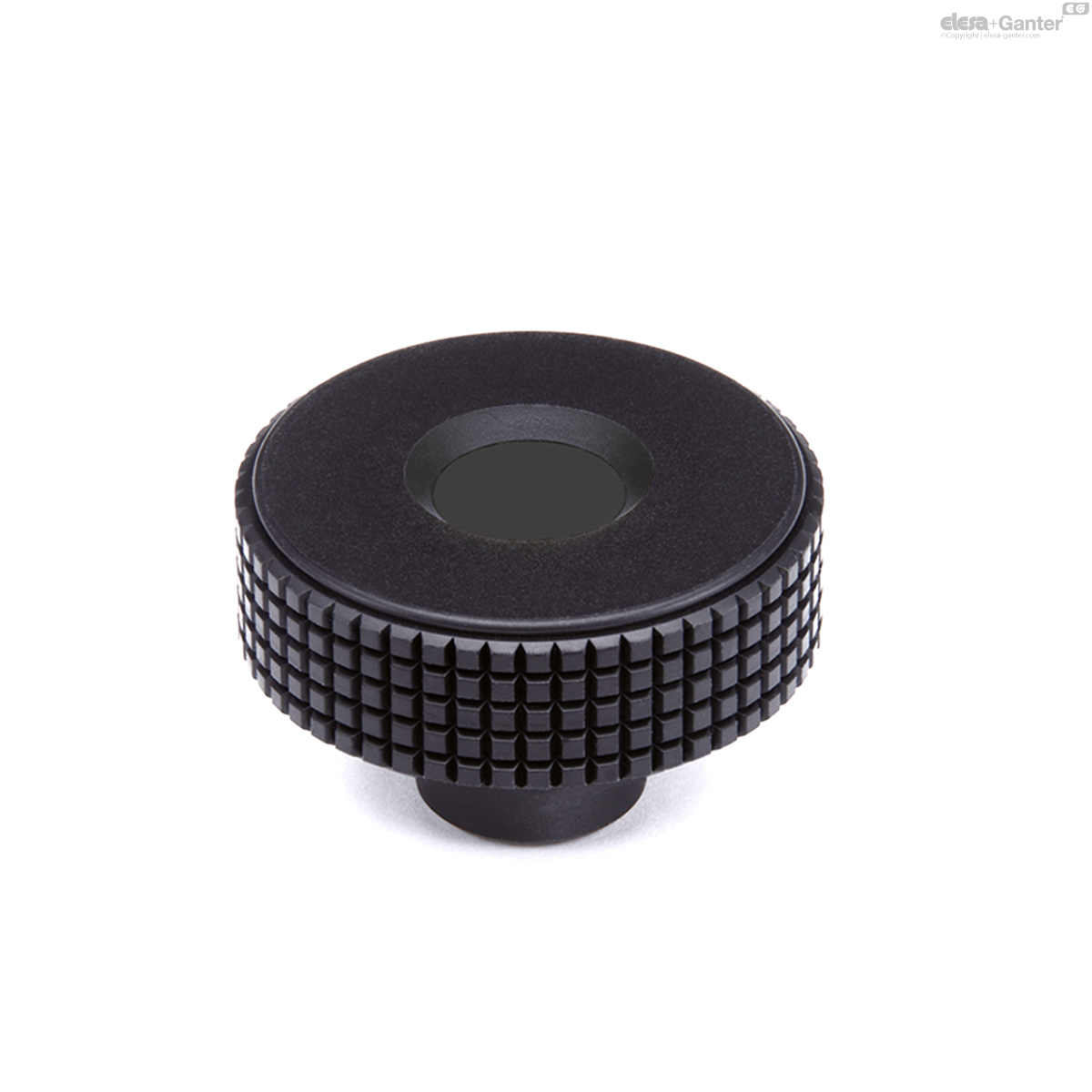

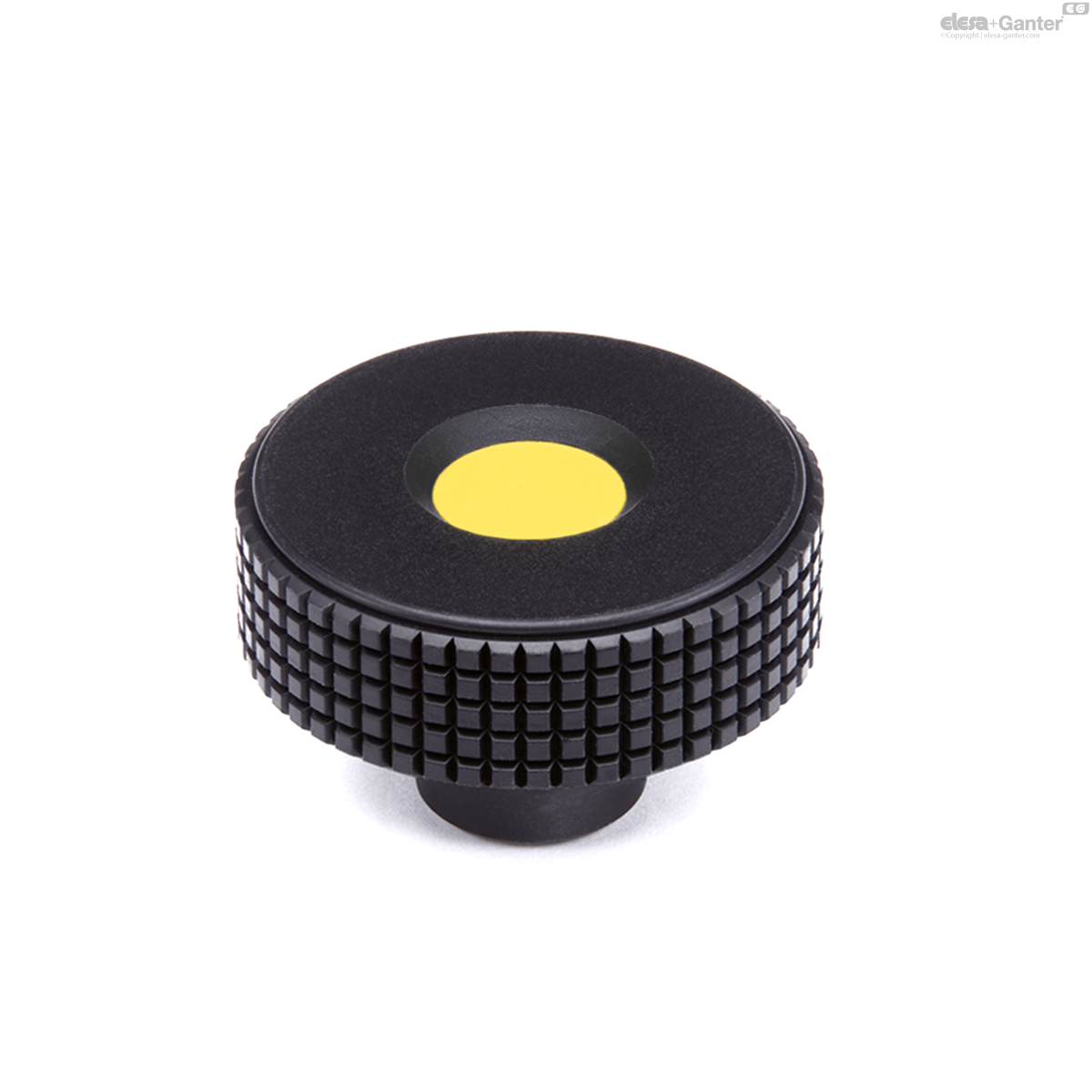

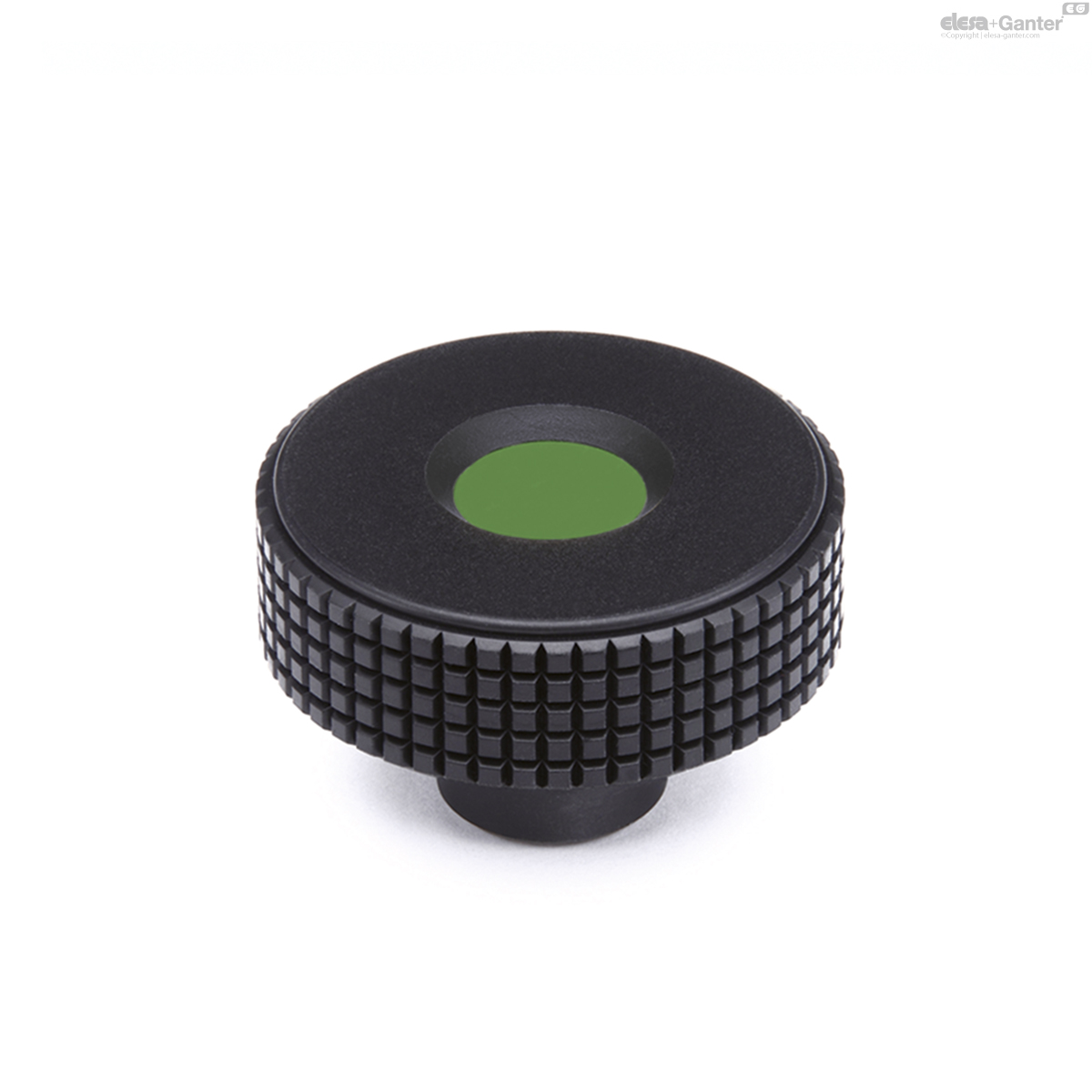

Coloured centre cap

Technopolymer, matte finish.

To order, add the index of the desired colour (C9, ..., C17) to the code and the description.

On request and for sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.

Standard executions

MBT-B: brass boss, plain or threaded blind hole.
MBT-p: zinc-plated steel threaded stud with chamfered flat end as in UNI 947 : ISO 4753 (see Technical Data).

General information

Ergonomy and design

The particular knurling on the outside rim of the knob, provided with a structure of very fine pitch, allows a safe and comfortable grip, offering the operator the possibility of operating under the most different working conditions in a sensitive and ergonomic way and simplifying the adjustment of the knob during rapid rotation (or screwing) without any unpleasant angular work for the hand and wrist.

MBT-B

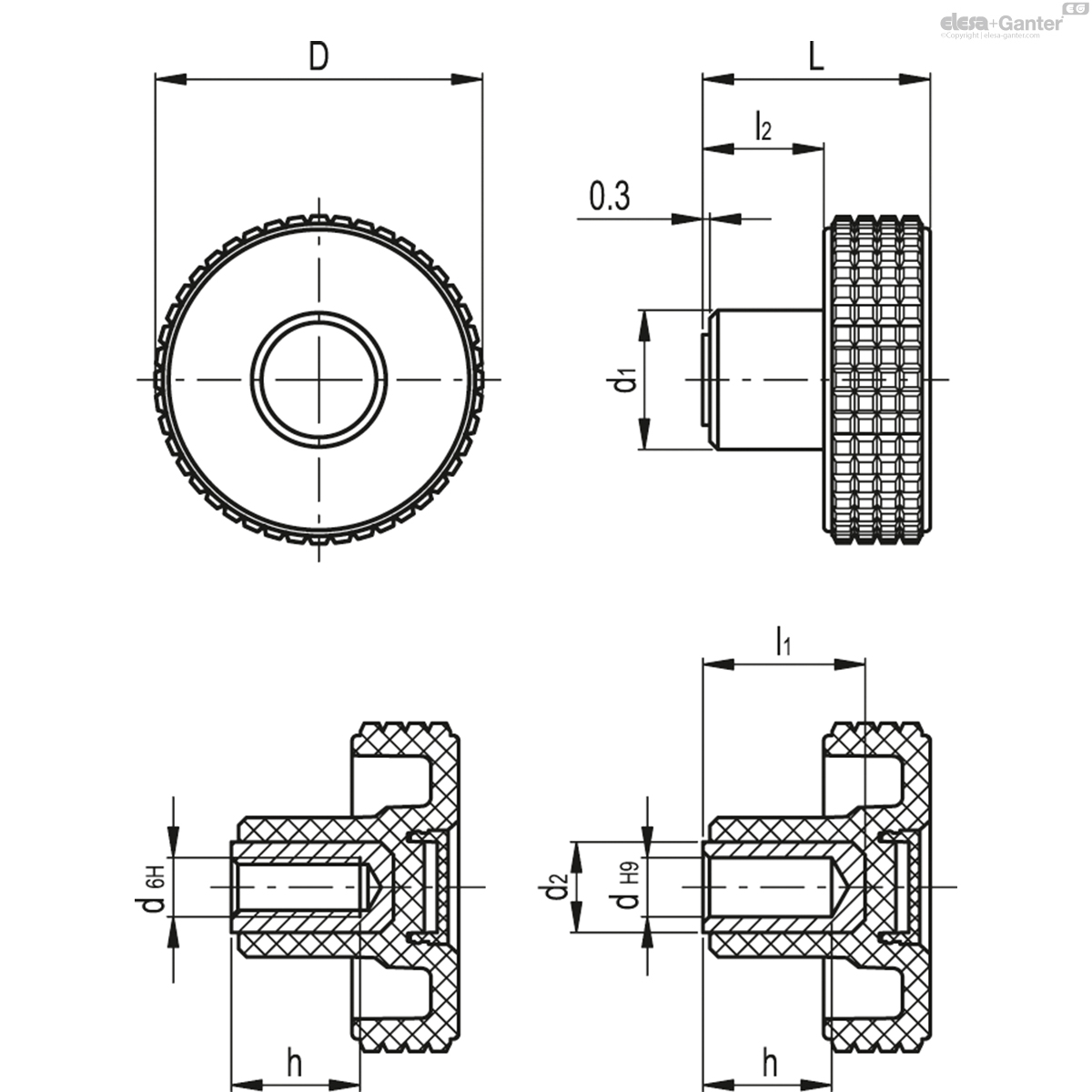

		Color	D	d_6H	d_H9	L	d₁	d₂	l₁	l₂	h
Code	Description												Actions
34196-C2	MBT.30 B-5-C2	C2 - RAL 2004	31	-	5	24	15	11	16	11.5	12	21
34196-C3	MBT.30 B-5-C3	C3 - RAL 7035	31	-	5	24	15	11	16	11.5	12	21
34196-C4	MBT.30 B-5-C4	C4 - RAL 1021	31	-	5	24	15	11	16	11.5	12	21
34196-C5	MBT.30 B-5-C5	C5 - RAL 5024	31	-	5	24	15	11	16	11.5	12	21
34196-C6	MBT.30 B-5-C6	C6 - RAL 3000	31	-	5	24	15	11	16	11.5	12	21
34196-C9	MBT.30 B-5-C9	C9 - RAL 9005	31	-	5	24	15	11	16	11.5	12	21
34196-C17	MBT.30 B-5-C17	C17 - RAL 6017	31	-	5	24	15	11	16	11.5	12	21
34197-C2	MBT.30 B-6-C2	C2 - RAL 2004	31	-	6	24	15	12	17	11.5	14	22
34197-C3	MBT.30 B-6-C3	C3 - RAL 7035	31	-	6	24	15	12	17	11.5	14	22
34197-C4	MBT.30 B-6-C4	C4 - RAL 1021	31	-	6	24	15	12	17	11.5	14	22
34197-C5	MBT.30 B-6-C5	C5 - RAL 5024	31	-	6	24	15	12	17	11.5	14	22
34197-C6	MBT.30 B-6-C6	C6 - RAL 3000	31	-	6	24	15	12	17	11.5	14	22
34197-C9	MBT.30 B-6-C9	C9 - RAL 9005	31	-	6	24	15	12	17	11.5	14	22
34197-C17	MBT.30 B-6-C17	C17 - RAL 6017	31	-	6	24	15	12	17	11.5	14	22
34201-C2	MBT.30 B-M5-C2	C2 - RAL 2004	31	M5	-	24	15	-	-	11.5	10	14
34201-C3	MBT.30 B-M5-C3	C3 - RAL 7035	31	M5	-	24	15	-	-	11.5	10	14
34201-C4	MBT.30 B-M5-C4	C4 - RAL 1021	31	M5	-	24	15	-	-	11.5	10	14
34201-C5	MBT.30 B-M5-C5	C5 - RAL 5024	31	M5	-	24	15	-	-	11.5	10	14
34201-C6	MBT.30 B-M5-C6	C6 - RAL 3000	31	M5	-	24	15	-	-	11.5	10	14
34201-C9	MBT.30 B-M5-C9	C9 - RAL 9005	31	M5	-	24	15	-	-	11.5	10	15
34201-C17	MBT.30 B-M5-C17	C17 - RAL 6017	31	M5	-	24	15	-	-	11.5	10	14
34206-C2	MBT.30 B-M6-C2	C2 - RAL 2004	31	M6	-	24	15	-	-	11.5	12	17
34206-C3	MBT.30 B-M6-C3	C3 - RAL 7035	31	M6	-	24	15	-	-	11.5	12	17
34206-C4	MBT.30 B-M6-C4	C4 - RAL 1021	31	M6	-	24	15	-	-	11.5	12	17
34206-C5	MBT.30 B-M6-C5	C5 - RAL 5024	31	M6	-	24	15	-	-	11.5	12	17
34206-C6	MBT.30 B-M6-C6	C6 - RAL 3000	31	M6	-	24	15	-	-	11.5	12	17
34206-C9	MBT.30 B-M6-C9	C9 - RAL 9005	31	M6	-	24	15	-	-	11.5	12	19
34206-C17	MBT.30 B-M6-C17	C17 - RAL 6017	31	M6	-	24	15	-	-	11.5	12	17
34316-C2	MBT.40 B-6-C2	C2 - RAL 2004	39.5	-	6	26.5	17	12	17	12.5	14	27
34316-C3	MBT.40 B-6-C3	C3 - RAL 7035	39.5	-	6	26.5	17	12	17	12.5	14	27
34316-C4	MBT.40 B-6-C4	C4 - RAL 1021	39.5	-	6	26.5	17	12	17	12.5	14	27
34316-C5	MBT.40 B-6-C5	C5 - RAL 5024	39.5	-	6	26.5	17	12	17	12.5	14	27
34316-C6	MBT.40 B-6-C6	C6 - RAL 3000	39.5	-	6	26.5	17	12	17	12.5	14	27
34316-C9	MBT.40 B-6-C9	C9 - RAL 9005	39.5	-	6	26.5	17	12	17	12.5	14	27
34316-C17	MBT.40 B-6-C17	C17 - RAL 6017	39.5	-	6	26.5	17	12	17	12.5	14	27
34321-C2	MBT.40 B-M6-C2	C2 - RAL 2004	39.5	M6	-	26.5	17	-	-	12.5	12	23
34321-C3	MBT.40 B-M6-C3	C3 - RAL 7035	39.5	M6	-	26.5	17	-	-	12.5	12	23
34321-C4	MBT.40 B-M6-C4	C4 - RAL 1021	39.5	M6	-	26.5	17	-	-	12.5	12	23
34321-C5	MBT.40 B-M6-C5	C5 - RAL 5024	39.5	M6	-	26.5	17	-	-	12.5	12	23
34321-C6	MBT.40 B-M6-C6	C6 - RAL 3000	39.5	M6	-	26.5	17	-	-	12.5	12	23
34321-C9	MBT.40 B-M6-C9	C9 - RAL 9005	39.5	M6	-	26.5	17	-	-	12.5	12	25
34321-C17	MBT.40 B-M6-C17	C17 - RAL 6017	39.5	M6	-	26.5	17	-	-	12.5	12	23
34326-C2	MBT.40 B-M8-C2	C2 - RAL 2004	39.5	M8	-	26.5	17	-	-	12.5	13	23
34326-C3	MBT.40 B-M8-C3	C3 - RAL 7035	39.5	M8	-	26.5	17	-	-	12.5	13	23
34326-C4	MBT.40 B-M8-C4	C4 - RAL 1021	39.5	M8	-	26.5	17	-	-	12.5	13	23
34326-C5	MBT.40 B-M8-C5	C5 - RAL 5024	39.5	M8	-	26.5	17	-	-	12.5	13	23
34326-C6	MBT.40 B-M8-C6	C6 - RAL 3000	39.5	M8	-	26.5	17	-	-	12.5	13	23
34326-C9	MBT.40 B-M8-C9	C9 - RAL 9005	39.5	M8	-	26.5	17	-	-	12.5	13	25
34326-C17	MBT.40 B-M8-C17	C17 - RAL 6017	39.5	M8	-	26.5	17	-	-	12.5	13	23
34411-C2	MBT.50 B-6-C2	C2 - RAL 2004	50	-	6	33	20	15	23	16	18	52
34411-C3	MBT.50 B-6-C3	C3 - RAL 7035	50	-	6	33	20	15	23	16	18	52
34411-C4	MBT.50 B-6-C4	C4 - RAL 1021	50	-	6	33	20	15	23	16	18	52
34411-C5	MBT.50 B-6-C5	C5 - RAL 5024	50	-	6	33	20	15	23	16	18	52
34411-C6	MBT.50 B-6-C6	C6 - RAL 3000	50	-	6	33	20	15	23	16	18	52
34411-C9	MBT.50 B-6-C9	C9 - RAL 9005	50	-	6	33	20	15	23	16	18	52
34411-C17	MBT.50 B-6-C17	C17 - RAL 6017	50	-	6	33	20	15	23	16	18	52
34416-C2	MBT.50 B-8-C2	C2 - RAL 2004	50	-	8	33	20	15	25	16	20	48
34416-C3	MBT.50 B-8-C3	C3 - RAL 7035	50	-	8	33	20	15	25	16	20	48
34416-C4	MBT.50 B-8-C4	C4 - RAL 1021	50	-	8	33	20	15	25	16	20	48
34416-C5	MBT.50 B-8-C5	C5 - RAL 5024	50	-	8	33	20	15	25	16	20	48
34416-C6	MBT.50 B-8-C6	C6 - RAL 3000	50	-	8	33	20	15	25	16	20	48
34416-C9	MBT.50 B-8-C9	C9 - RAL 9005	50	-	8	33	20	15	25	16	20	48
34416-C17	MBT.50 B-8-C17	C17 - RAL 6017	50	-	8	33	20	15	25	16	20	48
34421-C2	MBT.50 B-M8-C2	C2 - RAL 2004	50	M8	-	33	20	-	-	16	20	36
34421-C3	MBT.50 B-M8-C3	C3 - RAL 7035	50	M8	-	33	20	-	-	16	20	36
34421-C4	MBT.50 B-M8-C4	C4 - RAL 1021	50	M8	-	33	20	-	-	16	20	36
34421-C5	MBT.50 B-M8-C5	C5 - RAL 5024	50	M8	-	33	20	-	-	16	20	36
34421-C6	MBT.50 B-M8-C6	C6 - RAL 3000	50	M8	-	33	20	-	-	16	20	36
34421-C9	MBT.50 B-M8-C9	C9 - RAL 9005	50	M8	-	33	20	-	-	16	20	36
34421-C17	MBT.50 B-M8-C17	C17 - RAL 6017	50	M8	-	33	20	-	-	16	20	36
34426-C2	MBT.50 B-M10-C2	C2 - RAL 2004	50	M10	-	33	20	-	-	16	18	39
34426-C3	MBT.50 B-M10-C3	C3 - RAL 7035	50	M10	-	33	20	-	-	16	18	39
34426-C4	MBT.50 B-M10-C4	C4 - RAL 1021	50	M10	-	33	20	-	-	16	18	39
34426-C5	MBT.50 B-M10-C5	C5 - RAL 5024	50	M10	-	33	20	-	-	16	18	39
34426-C6	MBT.50 B-M10-C6	C6 - RAL 3000	50	M10	-	33	20	-	-	16	18	39
34426-C9	MBT.50 B-M10-C9	C9 - RAL 9005	50	M10	-	33	20	-	-	16	18	39
34426-C17	MBT.50 B-M10-C17	C17 - RAL 6017	50	M10	-	33	20	-	-	16	18	39
34506-C2	MBT.60 B-10-C2	C2 - RAL 2004	61	-	10	39	23	16	30	18.5	25	66
34506-C3	MBT.60 B-10-C3	C3 - RAL 7035	61	-	10	39	23	16	30	18.5	25	66
34506-C4	MBT.60 B-10-C4	C4 - RAL 1021	61	-	10	39	23	16	30	18.5	25	66
34506-C5	MBT.60 B-10-C5	C5 - RAL 5024	61	-	10	39	23	16	30	18.5	25	66
34506-C6	MBT.60 B-10-C6	C6 - RAL 3000	61	-	10	39	23	16	30	18.5	25	66
34506-C9	MBT.60 B-10-C9	C9 - RAL 9005	61	-	10	39	23	16	30	18.5	25	66
34506-C17	MBT.60 B-10-C17	C17 - RAL 6017	61	-	10	39	23	16	30	18.5	25	66
34511-C2	MBT.60 B-M10-C2	C2 - RAL 2004	61	M10	-	39	23	-	-	18.5	20	54
34511-C3	MBT.60 B-M10-C3	C3 - RAL 7035	61	M10	-	39	23	-	-	18.5	20	54
34511-C4	MBT.60 B-M10-C4	C4 - RAL 1021	61	M10	-	39	23	-	-	18.5	20	54
34511-C5	MBT.60 B-M10-C5	C5 - RAL 5024	61	M10	-	39	23	-	-	18.5	20	54
34511-C6	MBT.60 B-M10-C6	C6 - RAL 3000	61	M10	-	39	23	-	-	18.5	20	54
34511-C9	MBT.60 B-M10-C9	C9 - RAL 9005	61	M10	-	39	23	-	-	18.5	20	54
34511-C17	MBT.60 B-M10-C17	C17 - RAL 6017	61	M10	-	39	23	-	-	18.5	20	54
34516-C2	MBT.60 B-M12-C2	C2 - RAL 2004	61	M12	-	39	23	-	-	18.5	20	60
34516-C3	MBT.60 B-M12-C3	C3 - RAL 7035	61	M12	-	39	23	-	-	18.5	20	58
34516-C4	MBT.60 B-M12-C4	C4 - RAL 1021	61	M12	-	39	23	-	-	18.5	20	58
34516-C5	MBT.60 B-M12-C5	C5 - RAL 5024	61	M12	-	39	23	-	-	18.5	20	58
34516-C6	MBT.60 B-M12-C6	C6 - RAL 3000	61	M12	-	39	23	-	-	18.5	20	58
34516-C9	MBT.60 B-M12-C9	C9 - RAL 9005	61	M12	-	39	23	-	-	18.5	20	58
34516-C17	MBT.60 B-M12-C17	C17 - RAL 6017	61	M12	-	39	23	-	-	18.5	20	58
34611-C2	MBT.70 B-M12-C2	C2 - RAL 2004	70	M12	-	42	24	-	-	20.5	20	70
34611-C3	MBT.70 B-M12-C3	C3 - RAL 7035	70	M12	-	42	24	-	-	20.5	20	70
34611-C4	MBT.70 B-M12-C4	C4 - RAL 1021	70	M12	-	42	24	-	-	20.5	20	70
34611-C5	MBT.70 B-M12-C5	C5 - RAL 5024	70	M12	-	42	24	-	-	20.5	20	70
34611-C6	MBT.70 B-M12-C6	C6 - RAL 3000	70	M12	-	42	24	-	-	20.5	20	70
34611-C9	MBT.70 B-M12-C9	C9 - RAL 9005	70	M12	-	42	24	-	-	20.5	20	70
34611-C17	MBT.70 B-M12-C17	C17 - RAL 6017	70	M12	-	42	24	-	-	20.5	20	70
34616-C2	MBT.70 B-M14-C2	C2 - RAL 2004	70	M14	-	42	24	-	-	20.5	20	75
34616-C3	MBT.70 B-M14-C3	C3 - RAL 7035	70	M14	-	42	24	-	-	20.5	20	75
34616-C4	MBT.70 B-M14-C4	C4 - RAL 1021	70	M14	-	42	24	-	-	20.5	20	75
34616-C5	MBT.70 B-M14-C5	C5 - RAL 5024	70	M14	-	42	24	-	-	20.5	20	75
34616-C6	MBT.70 B-M14-C6	C6 - RAL 3000	70	M14	-	42	24	-	-	20.5	20	75
34616-C9	MBT.70 B-M14-C9	C9 - RAL 9005	70	M14	-	42	24	-	-	20.5	20	75
34616-C17	MBT.70 B-M14-C17	C17 - RAL 6017	70	M14	-	42	24	-	-	20.5	20	75
