MBR
Diamond cut knurled control knobs
with collar or flange, technopolymer
MBR+C
Diamond cut knurled control knobs
Plain collar
MBR+CK
Diamond cut knurled control knobs
Collar with triangular index
MBR+CGS
Diamond cut knurled control knobs
Collar with graduation
MBR+FK
Diamond cut knurled control knobs
Flange with triangular index
MBR+FGS
Diamond cut knurled control knobs
Flange with graduation
MBR+FKP
Diamond cut knurled control knobs
Flange with triangular index and rear compartment
MBR+FGSP
Diamond cut knurled control knobs
Flange with graduation and rear compartment
Description
Main specifications
Knob
High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.
Collar or flange
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Coloured centre cap
Technopolymer, matte finish.
To order, add the index of the desired colour (C9, ..., C6) to the code and the description.
On request and for sufficient quantities, it can be supplied in other colours or with customised graphic symbols, marks or writings.
Standard executions
Brass boss, plain blind hole.
Assembly by means of a black-oxide steel transversal grub screw UNI 5929 (grub screw with hexagon socket and cup end). Included in the supply.
- MBR+C:Â plain collar.
- MBR+CK:Â collar with triangular index.
- MBR+CGS:Â collar with standard graduation, 40 marks, the numbering from 0 to 9 increases as the knob is turned clockwise.
- MBR+FK:Â flange with triangular index.
- MBR+FGS:Â flange with standard graduation, 40 marks, the numbering from 0 to 9 increases as the knob is turned clockwise.
- MBR+FKP: flange with triangular index. Rear compartment for potentiometer housing.
- MBR+FGSP: flange with standard graduation, 40 marks, the numbering from 0 to 9 increases as the knob is turned clockwise. Rear compartment for potentiometer housing.
Precision graduations, laser engraved numbering and triangular index.
General information
Ergonomy and design
The fine pitch knurling on the outside rim of the knob, allows a safe and comfortable grip, offering the operator the possibility of operating under the most different working conditions in a sensitive and ergonomic way and simplifying the adjustment of the knob during rapid rotation (or screwing) without any unpleasant angular work for the hand and wrist.

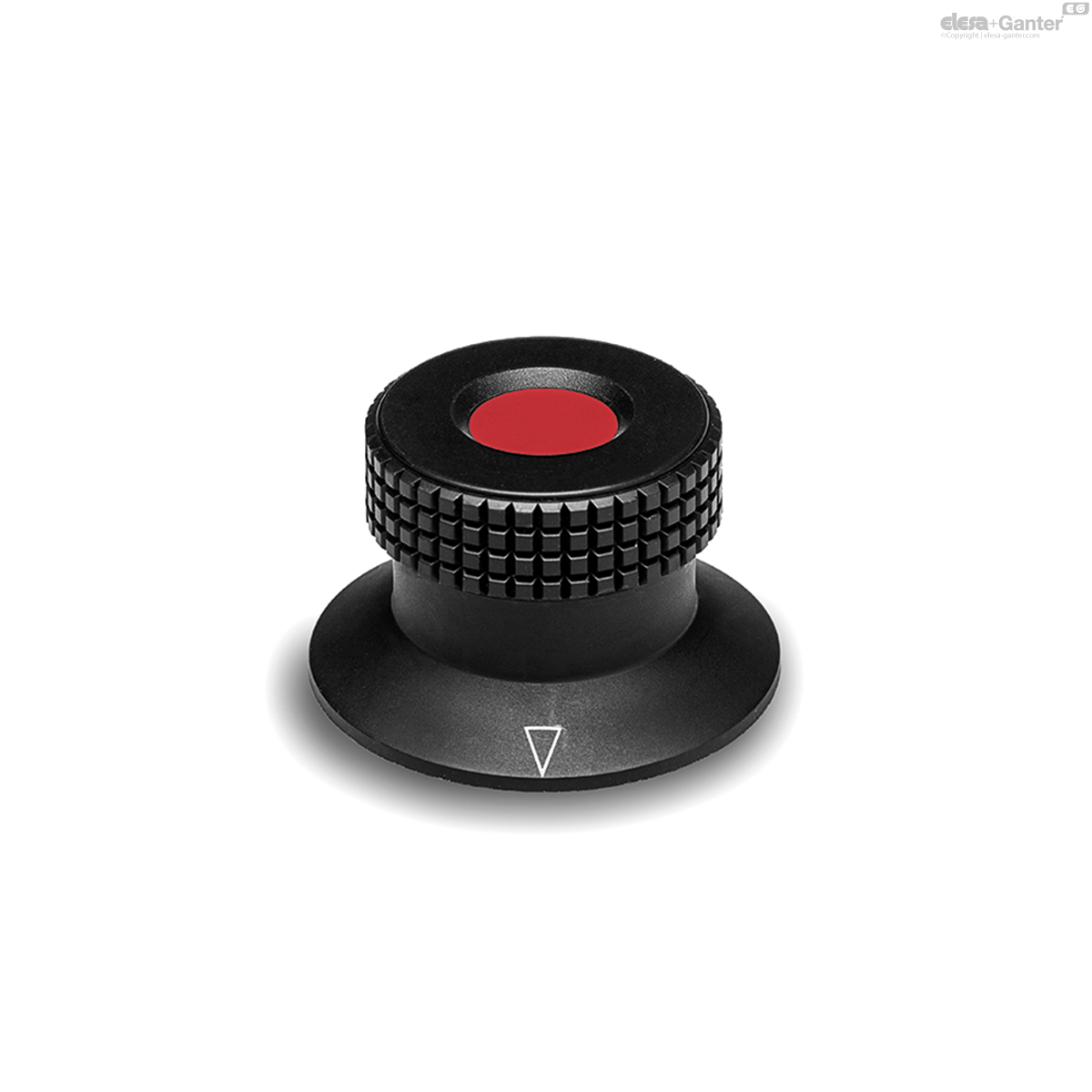

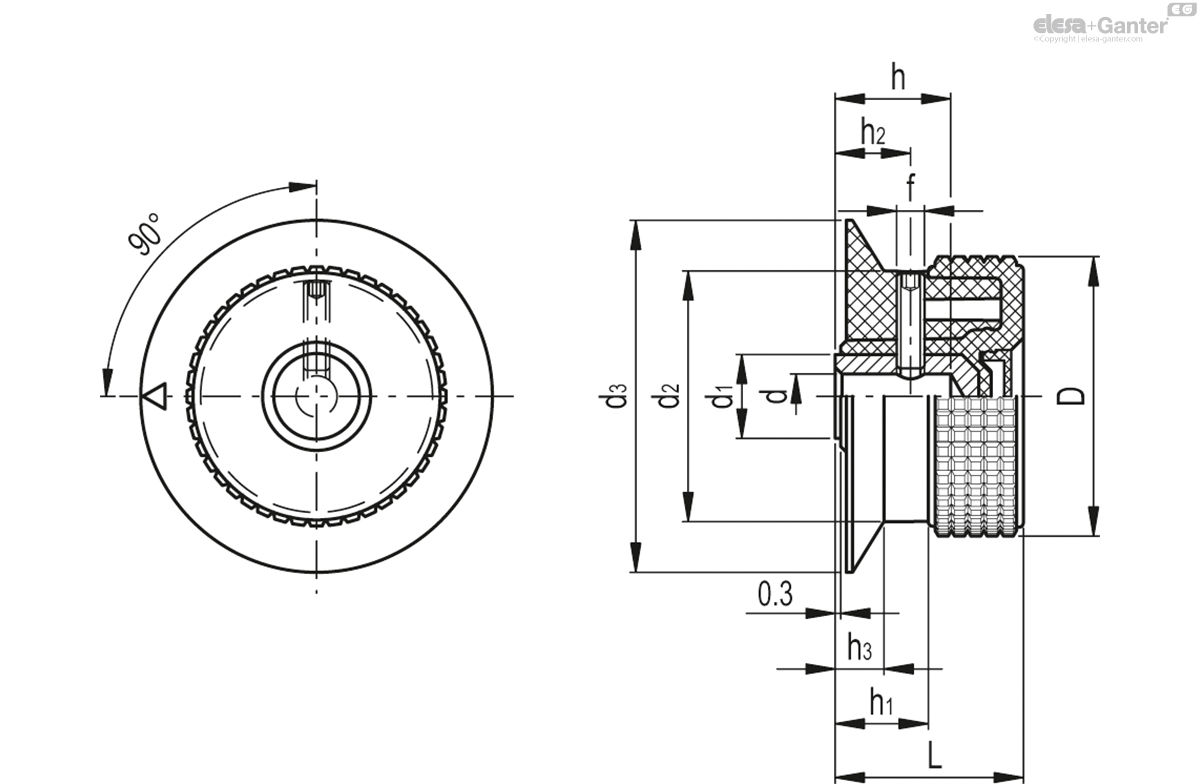

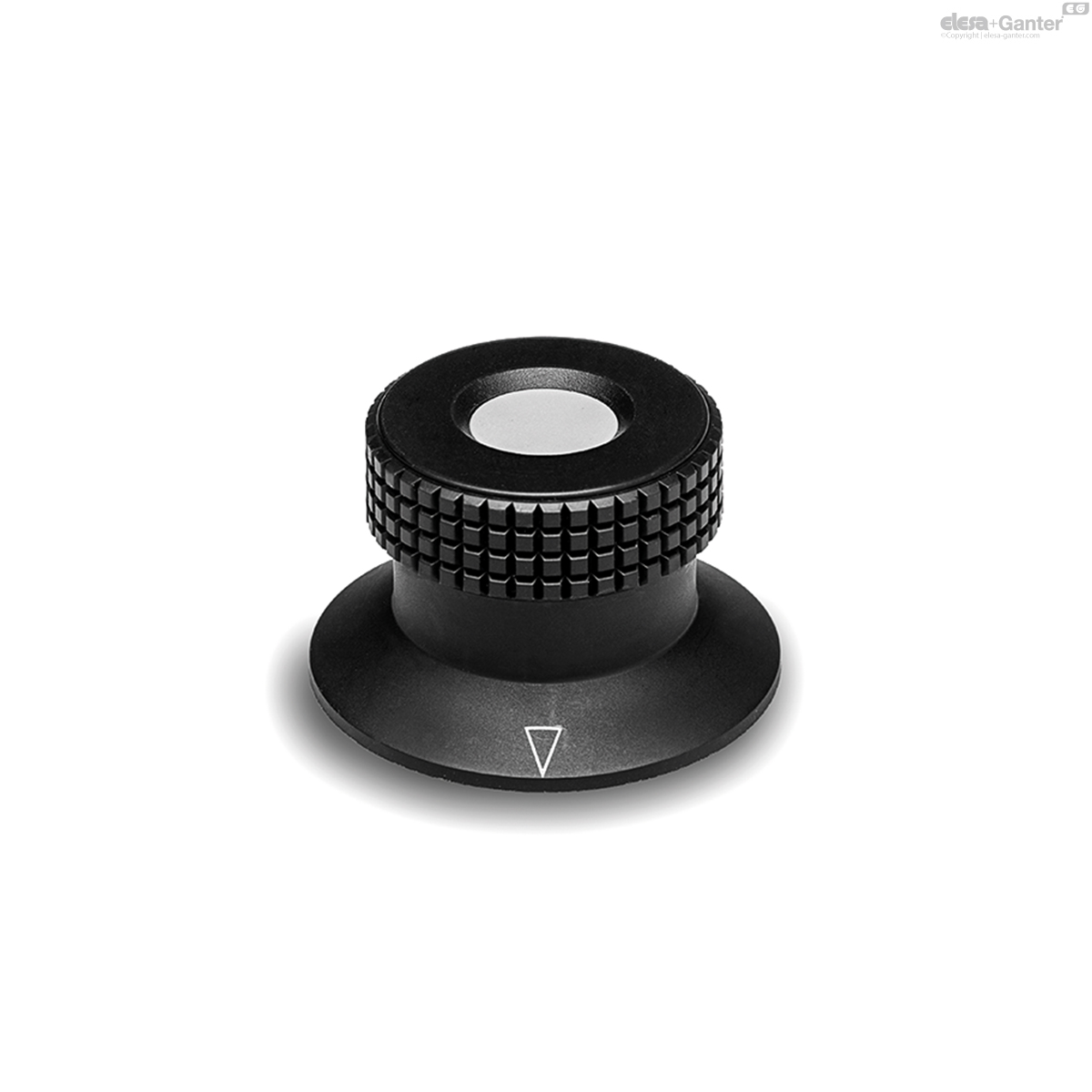

MBR+FK
| Color | D | dH9 | L | d1 | d2 | d3 | h | h1 | h2 | h3 | f |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||||||
| 34814-C2 | MBR.30 B-5+FK-C2 | C2 - RAL 2004 | 30 | 5 | 24 | 11 | 26 | 42 | 12 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34814-C3 | MBR.30 B-5+FK-C3 | C3 - RAL 7035 | 30 | 5 | 24 | 11 | 26 | 42 | 12 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34814-C4 | MBR.30 B-5+FK-C4 | C4 - RAL 1021 | 30 | 5 | 24 | 11 | 26 | 42 | 12 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34814-C5 | MBR.30 B-5+FK-C5 | C5 - RAL 5024 | 30 | 5 | 24 | 11 | 26 | 42 | 12 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34814-C6 | MBR.30 B-5+FK-C6 | C6 - RAL 3000 | 30 | 5 | 24 | 11 | 26 | 42 | 12 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34814-C9 | MBR.30 B-5+FK-C9 | C9 - RAL 9005 | 30 | 5 | 24 | 11 | 26 | 42 | 12 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34814-C17 | MBR.30 B-5+FK-C17 | C17 - RAL 6017 | 30 | 5 | 24 | 11 | 26 | 42 | 12 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34824-C2 | MBR.30 B-6+FK-C2 | C2 - RAL 2004 | 30 | 6 | 24 | 12 | 26 | 42 | 14 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34824-C3 | MBR.30 B-6+FK-C3 | C3 - RAL 7035 | 30 | 6 | 24 | 12 | 26 | 42 | 14 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34824-C4 | MBR.30 B-6+FK-C4 | C4 - RAL 1021 | 30 | 6 | 24 | 12 | 26 | 42 | 14 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34824-C5 | MBR.30 B-6+FK-C5 | C5 - RAL 5024 | 30 | 6 | 24 | 12 | 26 | 42 | 14 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34824-C6 | MBR.30 B-6+FK-C6 | C6 - RAL 3000 | 30 | 6 | 24 | 12 | 26 | 42 | 14 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34824-C9 | MBR.30 B-6+FK-C9 | C9 - RAL 9005 | 30 | 6 | 24 | 12 | 26 | 42 | 14 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34824-C17 | MBR.30 B-6+FK-C17 | C17 - RAL 6017 | 30 | 6 | 24 | 12 | 26 | 42 | 14 | 10.5 | 8.5 | 5 | M4 | 25 |
|
| 34834-C2 | MBR.40 B-6+FK-C2 | C2 - RAL 2004 | 40 | 6 | 26 | 12 | 34.5 | 50 | 14 | 12 | 9 | 5.5 | M4 | 33 |
|
| 34834-C3 | MBR.40 B-6+FK-C3 | C3 - RAL 7035 | 40 | 6 | 26 | 12 | 34.5 | 50 | 14 | 12 | 9 | 5.5 | M4 | 33 |
|
| 34834-C4 | MBR.40 B-6+FK-C4 | C4 - RAL 1021 | 40 | 6 | 26 | 12 | 34.5 | 50 | 14 | 12 | 9 | 5.5 | M4 | 33 |
|
| 34834-C5 | MBR.40 B-6+FK-C5 | C5 - RAL 5024 | 40 | 6 | 26 | 12 | 34.5 | 50 | 14 | 12 | 9 | 5.5 | M4 | 33 |
|
| 34834-C6 | MBR.40 B-6+FK-C6 | C6 - RAL 3000 | 40 | 6 | 26 | 12 | 34.5 | 50 | 14 | 12 | 9 | 5.5 | M4 | 33 |
|
| 34834-C9 | MBR.40 B-6+FK-C9 | C9 - RAL 9005 | 40 | 6 | 26 | 12 | 34.5 | 50 | 14 | 12 | 9 | 5.5 | M4 | 43 |
|
| 34834-C17 | MBR.40 B-6+FK-C17 | C17 - RAL 6017 | 40 | 6 | 26 | 12 | 34.5 | 50 | 14 | 12 | 9 | 5.5 | M4 | 33 |
|
| 34854-C2 | MBR.50 B-8+FK-C2 | C2 - RAL 2004 | 50 | 8 | 33 | 15 | 45 | 63 | 20 | 15 | 11.5 | 6.5 | M5 | 83 |
|
| 34854-C3 | MBR.50 B-8+FK-C3 | C3 - RAL 7035 | 50 | 8 | 33 | 15 | 45 | 63 | 20 | 15 | 11.5 | 6.5 | M5 | 83 |
|
| 34854-C4 | MBR.50 B-8+FK-C4 | C4 - RAL 1021 | 50 | 8 | 33 | 15 | 45 | 63 | 20 | 15 | 11.5 | 6.5 | M5 | 83 |
|
| 34854-C5 | MBR.50 B-8+FK-C5 | C5 - RAL 5024 | 50 | 8 | 33 | 15 | 45 | 63 | 20 | 15 | 11.5 | 6.5 | M5 | 83 |
|
| 34854-C6 | MBR.50 B-8+FK-C6 | C6 - RAL 3000 | 50 | 8 | 33 | 15 | 45 | 63 | 20 | 15 | 11.5 | 6.5 | M5 | 83 |
|
| 34854-C9 | MBR.50 B-8+FK-C9 | C9 - RAL 9005 | 50 | 8 | 33 | 15 | 45 | 63 | 20 | 15 | 11.5 | 6.5 | M5 | 83 |
|
| 34854-C17 | MBR.50 B-8+FK-C17 | C17 - RAL 6017 | 50 | 8 | 33 | 15 | 45 | 63 | 20 | 15 | 11.5 | 6.5 | M5 | 83 |
|
