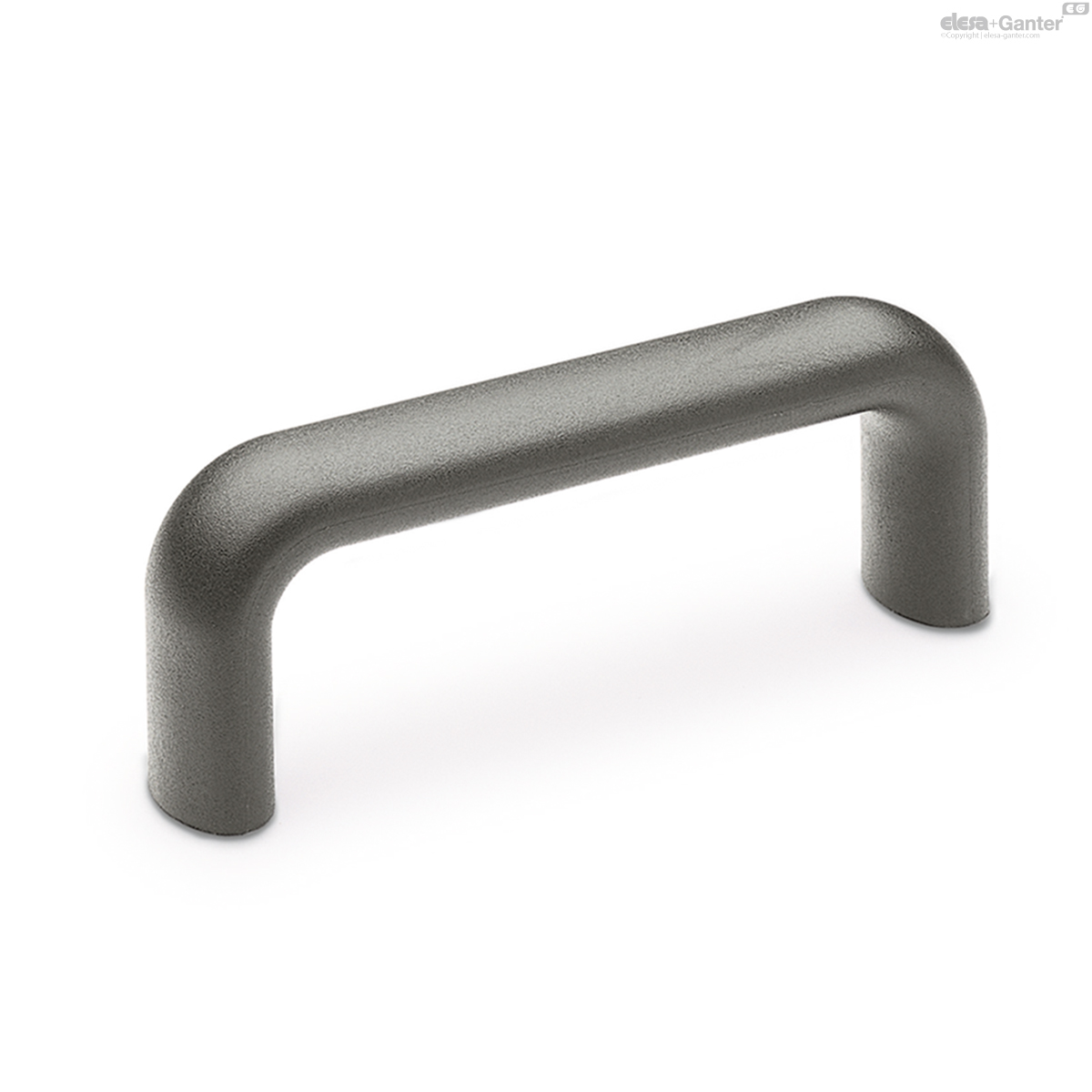

M.643 HT
Bridge handles
Technopolymer with high thermic resistance
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, resistant to high temperatures, grey-black colour, matte finish.
Standard execution
Brass bosses, threaded blind holes.
Maximum working temperature
200°C.
Technical data
Technical Data
Tensile stress and impact strength: F1, F2, L1 and L2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

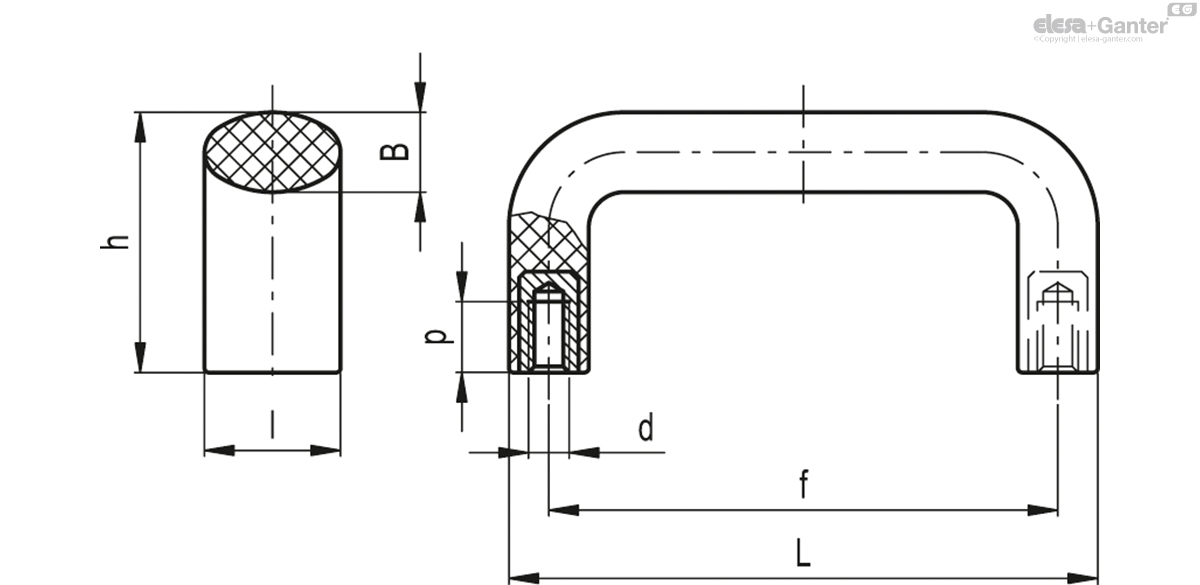

| L | f | d6H | h | B | l | p | F1 [N] |
F2 [N] |
L1 [J] |
L2 [J] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||||
| 37502 | M.643/100 B-M6 HT | 100 | 86±1 | M6 | 44 | 14 | 23 | 12 | 2400 | 2400 | 12 | 6 | 55 |
|
| 37510 | M.643/140 B-M6 HT | 134 | 117±1 | M6 | 49 | 15 | 25 | 12 | 2500 | 3400 | 8 | 12 | 95 |
|
| 37511 | M.643/140 B-M8 HT | 134 | 117±1 | M8 | 49 | 15 | 25 | 13 | 2500 | 3400 | 8 | 12 | 94 |
|
| 37551 | M.643/200 B-M8 HT | 196 | 179±1 | M8 | 57 | 16 | 27 | 13 | 1900 | 2600 | 11 | 17 | 148 |
|
