M.243
Bridge handles
Duroplast
Description
Main specifications
Material

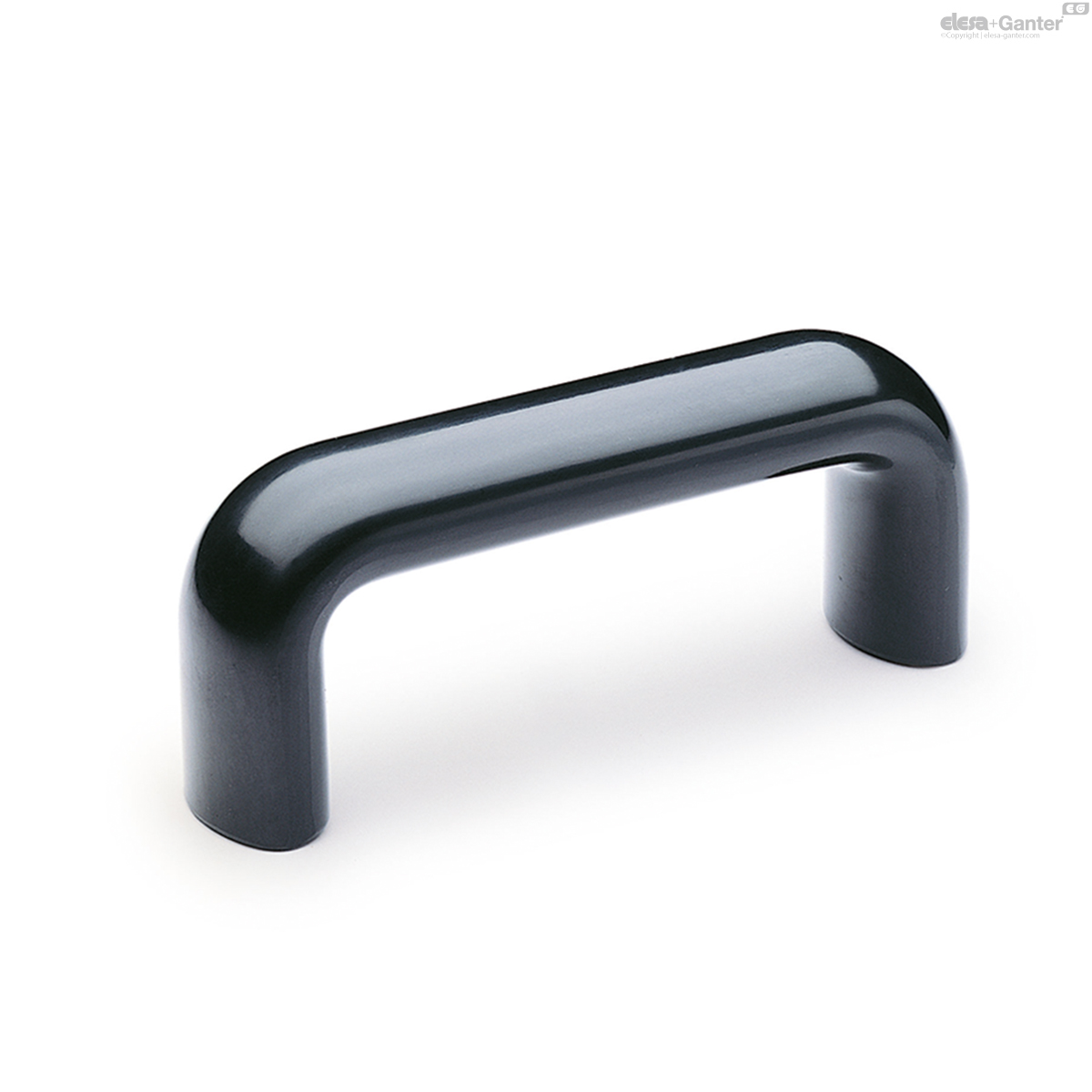

Phenolic based (PF) Duroplast, black colour, glossy finish.
Standard execution
Brass bosses, threaded blind holes.
Technical data
Technical Data

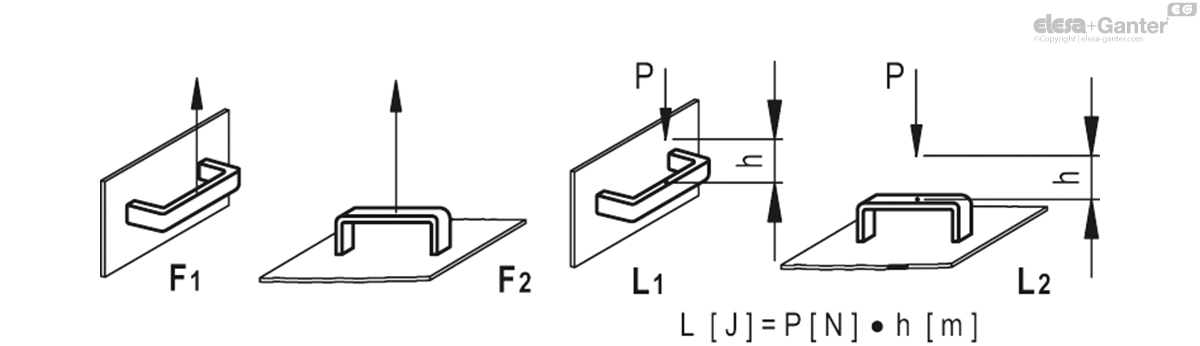

Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

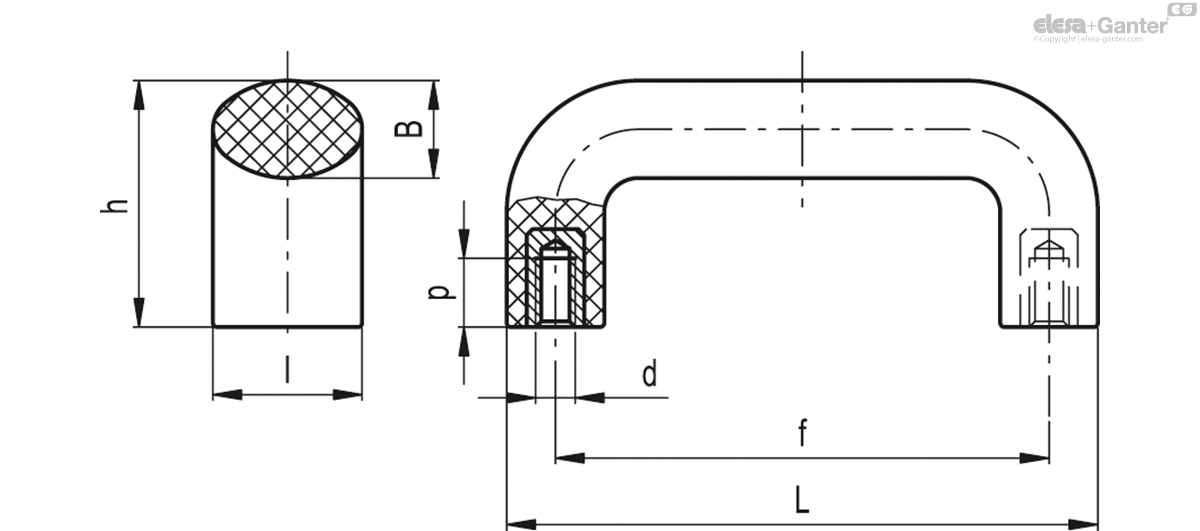

| L | f | d6H | h | B | l | p | F1 [N] |
F2 [N] |
L1 [J] |
L2 [J] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||||
| 36501 | M.243/100 | 103 | 86±0.5 | M6 | 43 | 17 | 26 | 12 | 2500 | 2500 | 5 | 6 | 96 |
|
| 36601 | M.243/140 | 138 | 117±0.5 | M8 | 54 | 20 | 30 | 13 | 4000 | 5000 | 6 | 10 | 151 |
|
| 36701 | M.243/200 | 198 | 179±1 | M8 | 62 | 20 | 30 | 13 | 3000 | 2000 | 7 | 8 | 206 |
|
