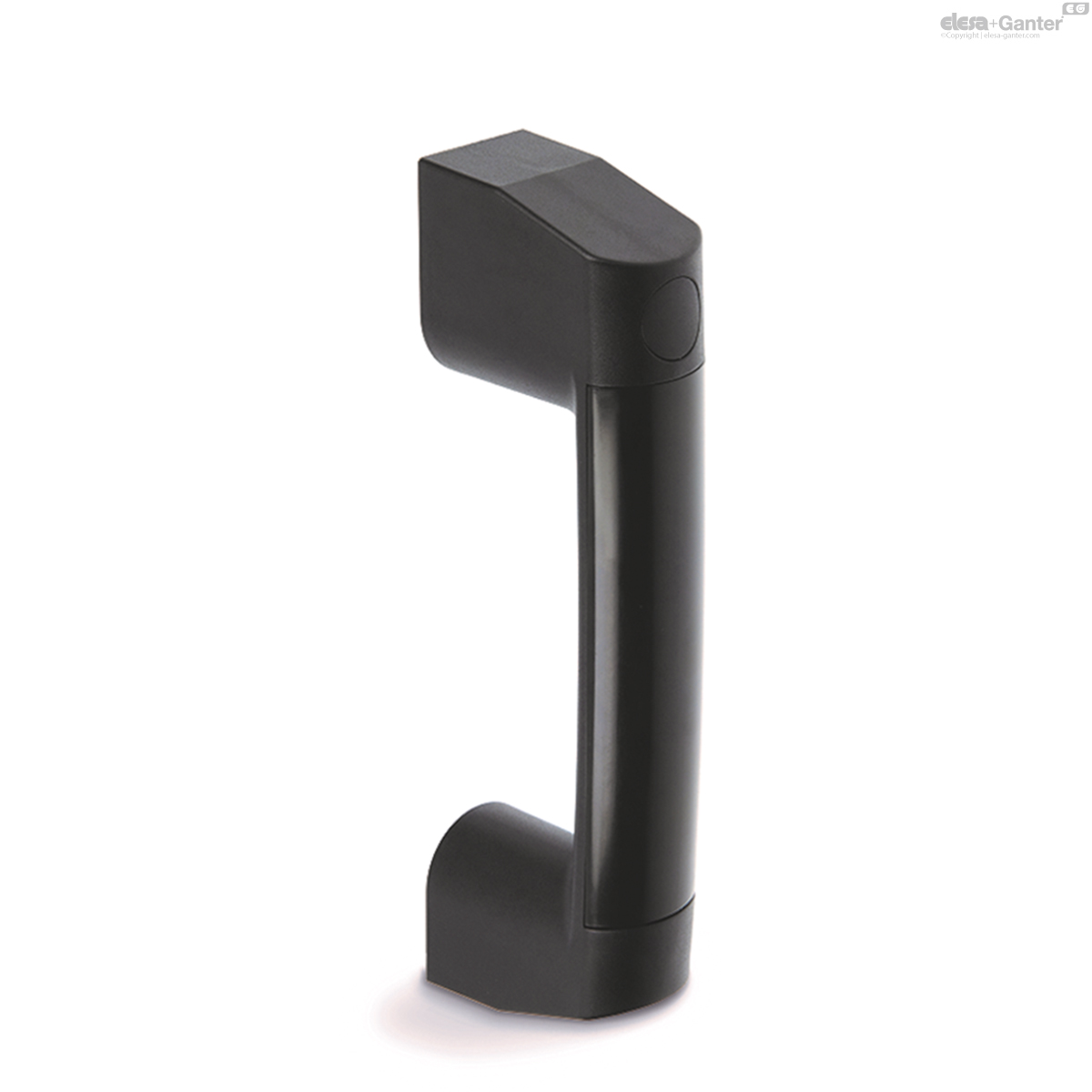

M.2000
Bridge handle
Self-extinguishing technopolymer
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer certified self-extinguishing UL-94 V0, black colour, matte finish.
Standard executions
Brass bushings, M6 threaded blind holes for rear mounting.
Applications
The M.2000 handle can be combined with M.2000-SWM handles with monostable electrical switch.
General information
Technical data
Tensile stress and impact strength: the values F1, F2, L1 and L2 indicated in the table were obtained during breaking tests carried out under the test conditions shown in the figure with ambient temperature.

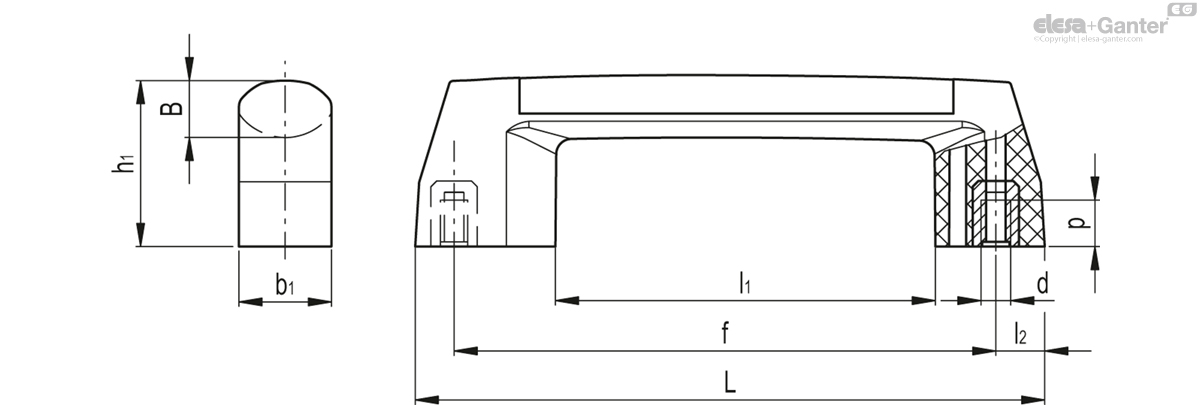

 M.2000
| L | d | h1 | B | b1 | l1 | l2 | p | F1 [N] |
F2 [N] |
L1 [J] |
L2 [J] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||||||
| 260830-C1 | M.2000/180-B-M6 | 212.05.00 | M6 | 65 | 24 | 35 | 113 | 20 | 12 | 700 | 900 | 7 | 6 | 320 |
|
