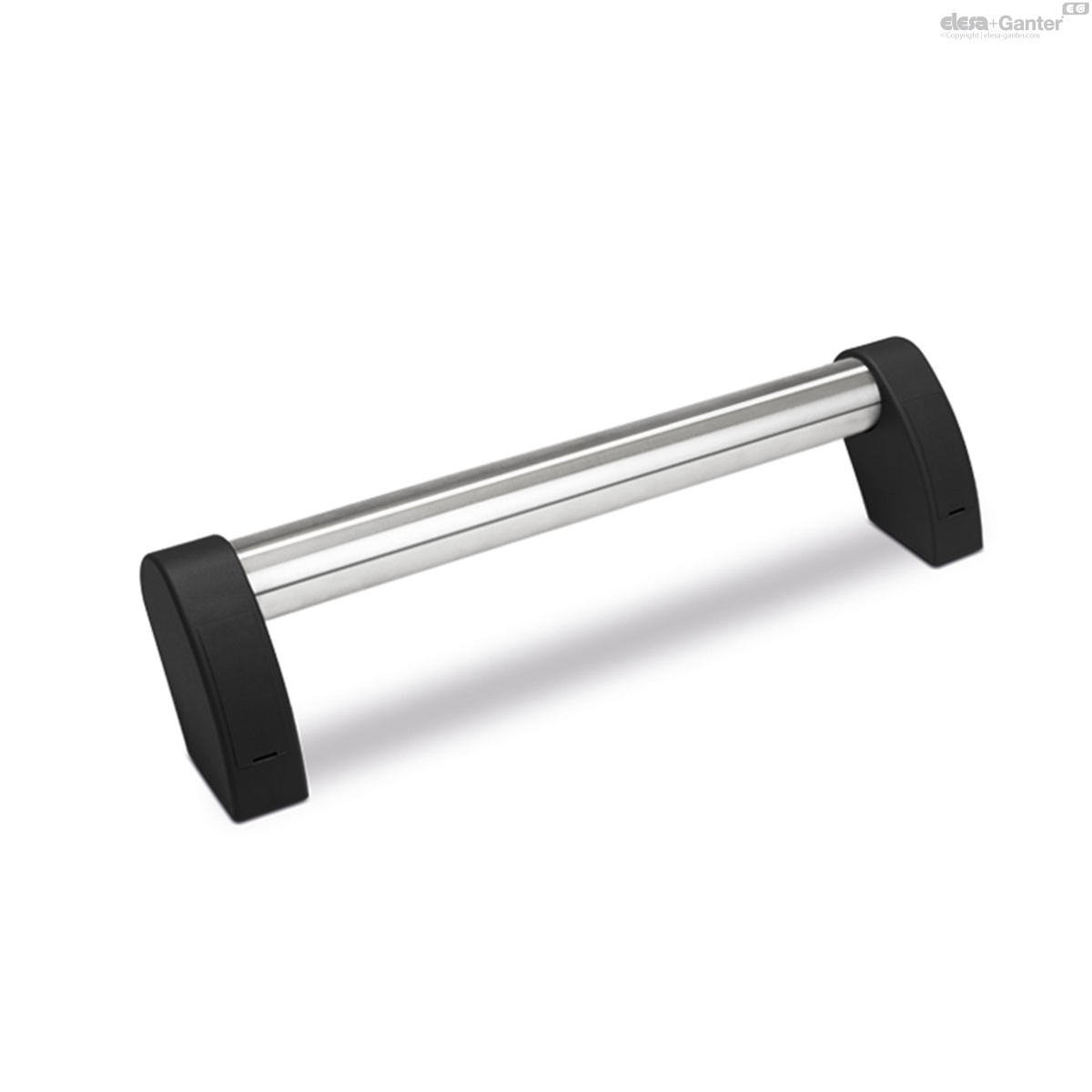

M.1053-SST

Offset tubular handles

Technopolymer and stainless steel

Enquire Now

Description

Main specifications

Pass-through handle shanks

Glass-fibre reinforced polyamide based (PA) technopolymer, matte finish.

To prevent tube rotation, screw up to the stop the self-tapping screw ø3,9x6,5 arranged inside the handle shank.

Closing caps

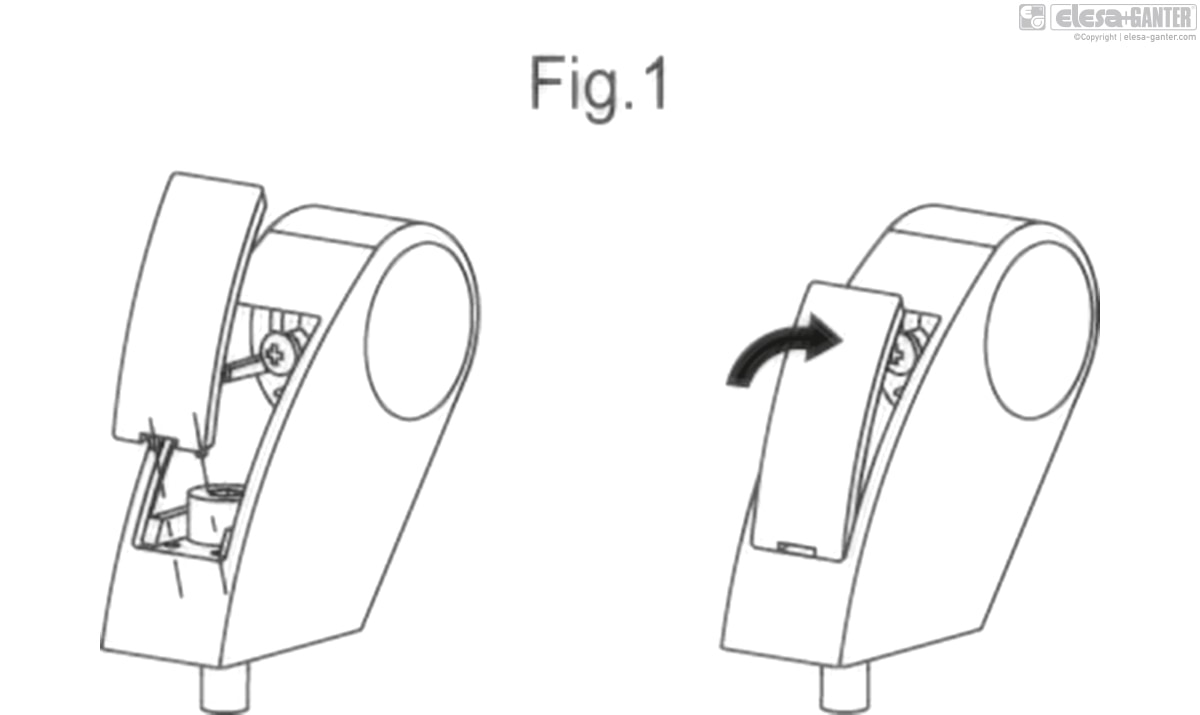

ECS.T: polyamide based (PA) technopolymer, RAL 9005 black colour (C9), matte finish, press-fit assembly. Supplied, removable by a screwdriver.

Available also as accessory sold separately (see table).

Tube

AISI 304 stainless steel.

Mounting

Pass-through hole for front or rear mounting by means of cylindrical-head screws with hexagon socket, hexagonal-head screws or standard nuts.

General information

Technical data

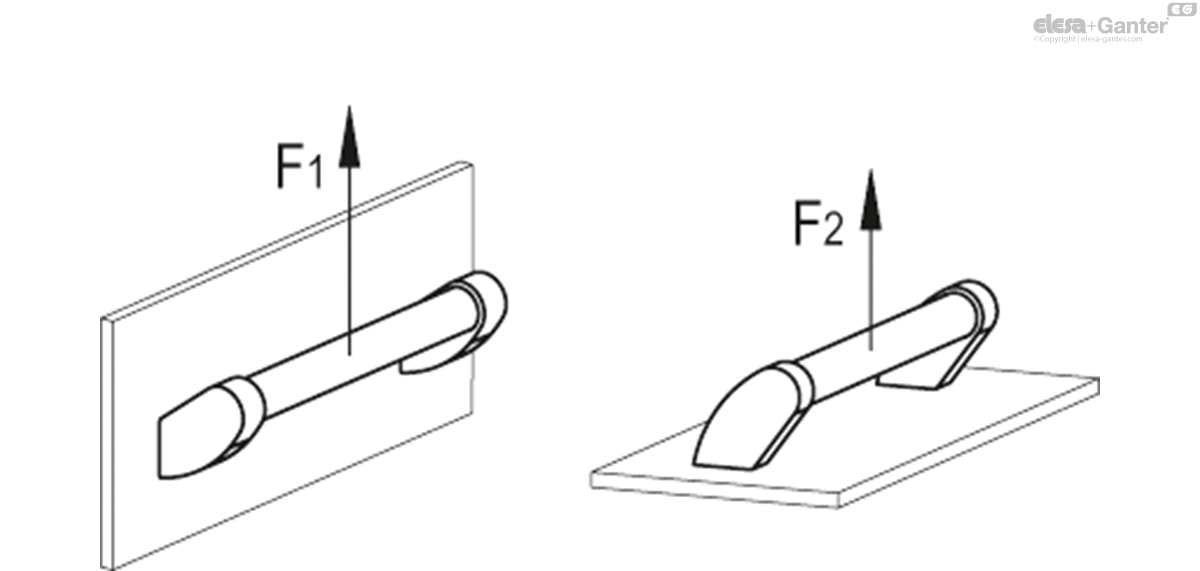

Tensile stress: F values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Other executions

Special executions on request

Different lengths.

Accessories on request

ECS.T: Polyamide based (PA) technopolymer closing caps, RAL 9005 black colour (C9), matte finish, press-fit assembly (see table). For sufficient quantities, it can be supplied in other colours.

M.1053-SST

		d₂	f_±1	f₁	L	d	h	h₁	h₂	l	l₁	l₂	l₃	F1* [N]	F1# [N]	F2* [N]	F2# [N]
Code	Description																		Actions
36807	M.1053/30-300-SST	30	300	37.5	327	8.5	68.5	50	17.5	42	273	75	56	2600	4700	3500	5600	262
36817	M.1053/30-350-SST	30	350	37.5	377	8.5	68.5	50	17.5	42	323	75	56	2500	4600	3300	5200	283
36827	M.1053/30-400-SST	30	400	37.5	427	8.5	68.5	50	17.5	42	373	75	56	2100	3900	3000	4500	312
36837	M.1053/30-500-SST	30	500	37.5	527	8.5	68.5	50	17.5	42	473	75	56	1950	3000	2850	3600	338
36847	M.1053/30-600-SST	30	600	37.5	627	8.5	68.5	50	17.5	42	573	75	56	1650	2850	2100	3600	397
36857	M.1053/30-700-SST	30	700	37.5	727	8.5	68.5	50	17.5	42	673	75	56	1500	2400	1800	2800	419
