M.1043-HEI

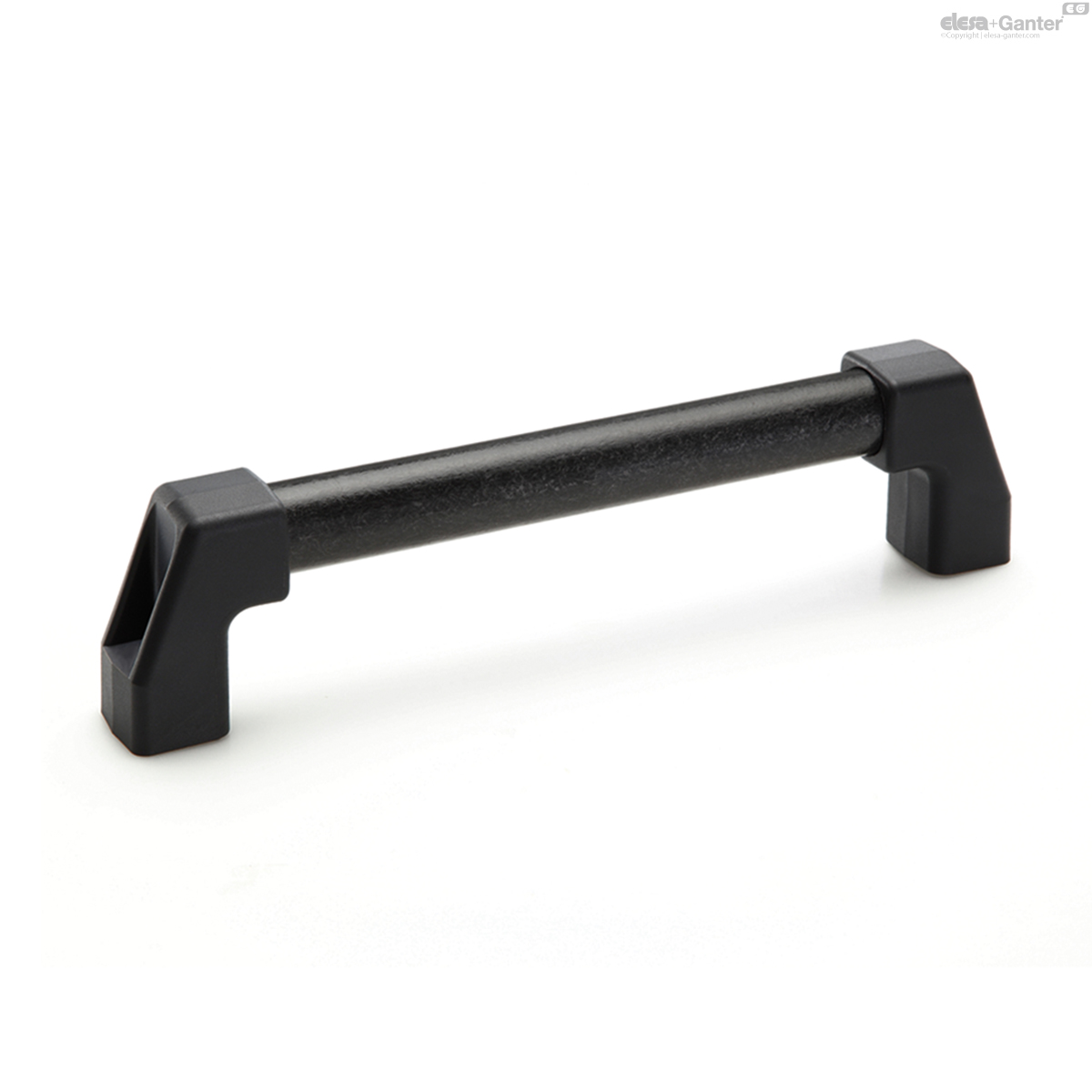

Tubular handles for electrical insulation

Technopolymer and polyester

Enquire Now

Description

Main specifications

Handle shanks

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Supplied assembled. The seat for housing the tube in the shank is shaped so as to prevent its rotation.

Tube

Glass-fibre reinforced polyester, black colour with high resistivity. High resistance to wear, scratches and agents.

Mounting

Rear fastening with screws M10.

Two reference pins (to be fitted during assembly) guarantee a precise positioning.

Mechanical and dielectric features

Tensile stress: F2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

The following table lists the main dielectric features of the tube.

Dielectric features of the tube
Volume Resistivity	10¹⁰ ÷ 10¹⁵ [Ω *cm]
Surface resistivity	10¹⁰ ÷ 10¹³ [Ω*] (according to IEC93 standard)
Dielectric resistivity	8 [KV/mm]
Comparative tracking index (CTI)	> 600 (V)
Dielectric constant	5

Accessories

Accessories on request

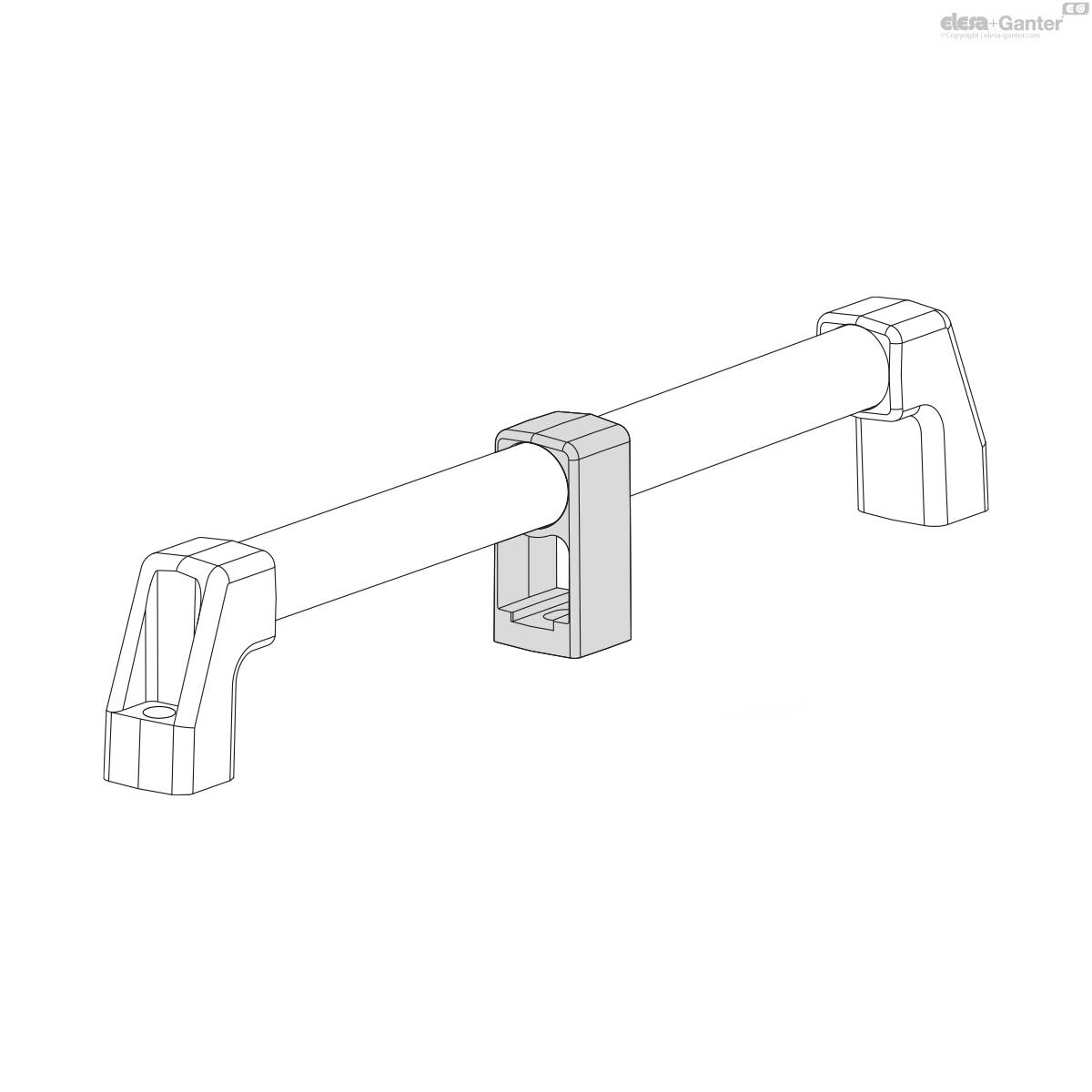

SCM.: intermediate shank for tube Ø30 in polyester based (PBT) technopolymer, black colour, matte finish. Suggested for tube longer than 700 mm (see table).

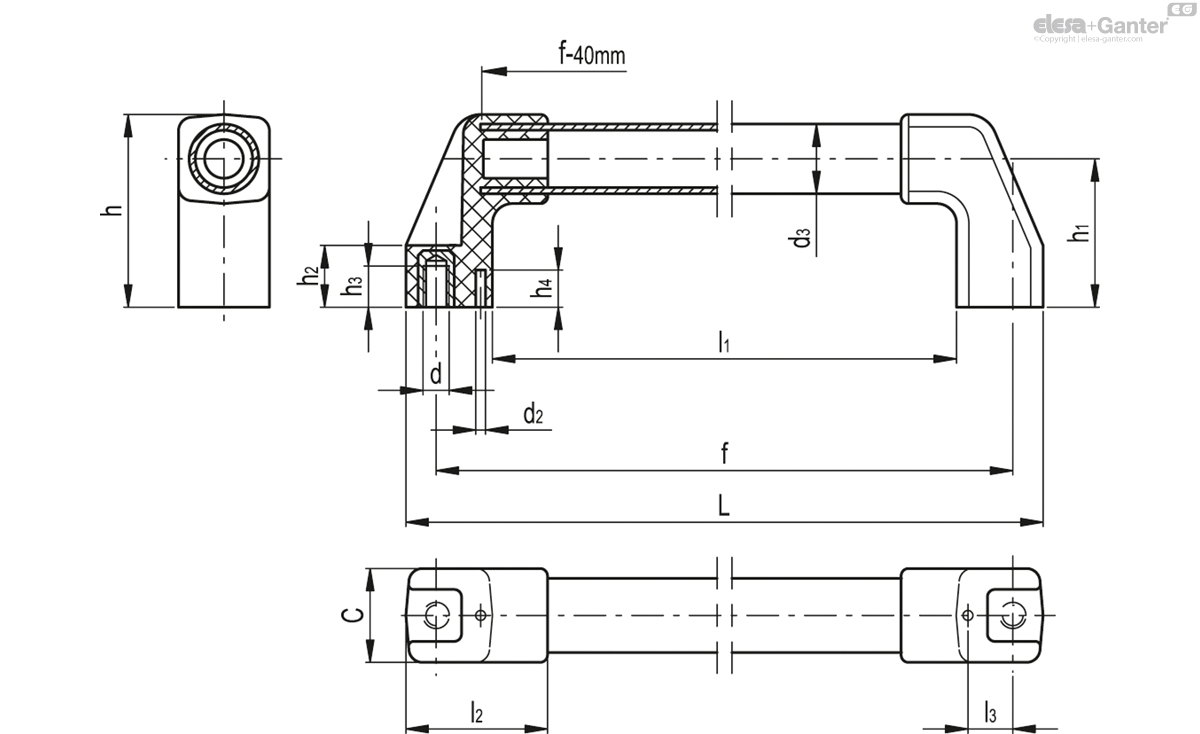

		d₃	f_±1	L	d	h	h₁	h₂	h₃	h₄	l₁	l₂	l₃	d₂	C	F2* [N]	F2# [N]
Code	Description																		Actions
37776	M.1043/30-500-HEI	30	500	524	M10	78	60	25	17	15	454	57	18	4	38	3000	4500	480
37786	M.1043/30-700-HEI	30	700	724	M10	78	60	25	17	15	654	57	18	4	38	2000	3500	630
