M.1043

Tubular handles

Technopolymer, aluminium, stainless steel

Enquire Now

M.1043-EP

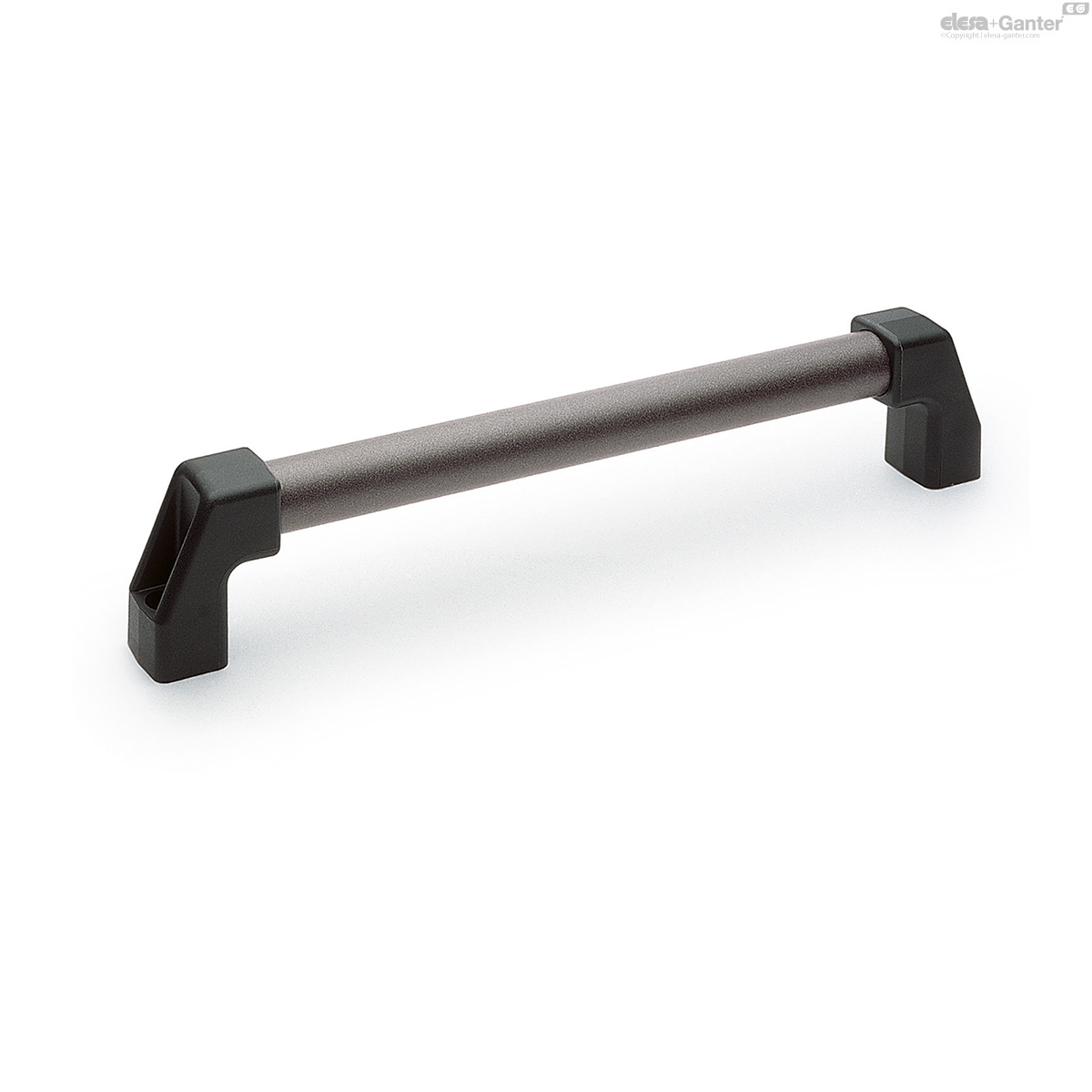

Tubular handles

Aluminium tube with epoxy resin coating, front mounting

M.1043-AN

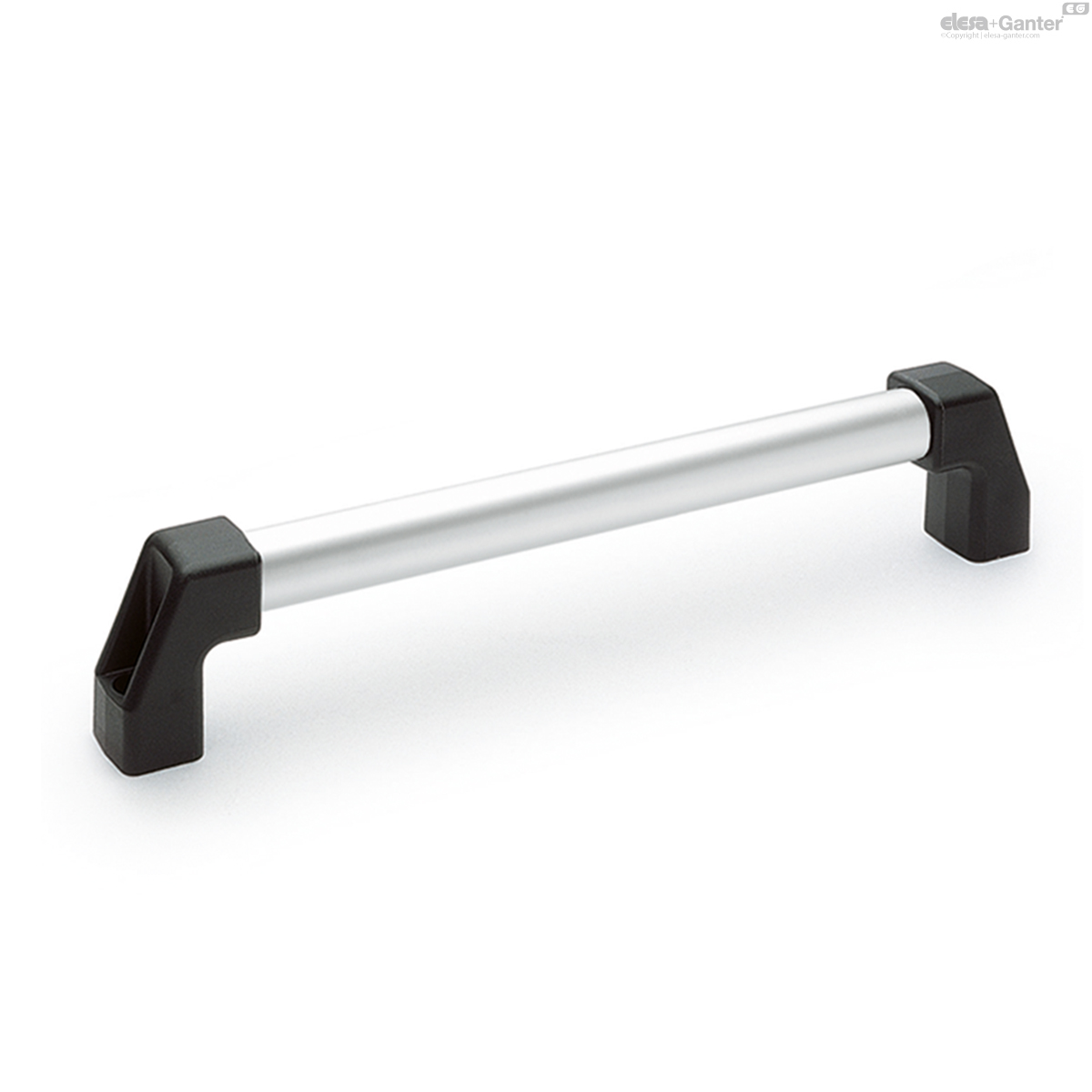

Tubular handles

Anodised aluminium tube, front mounting

M.1043-SST

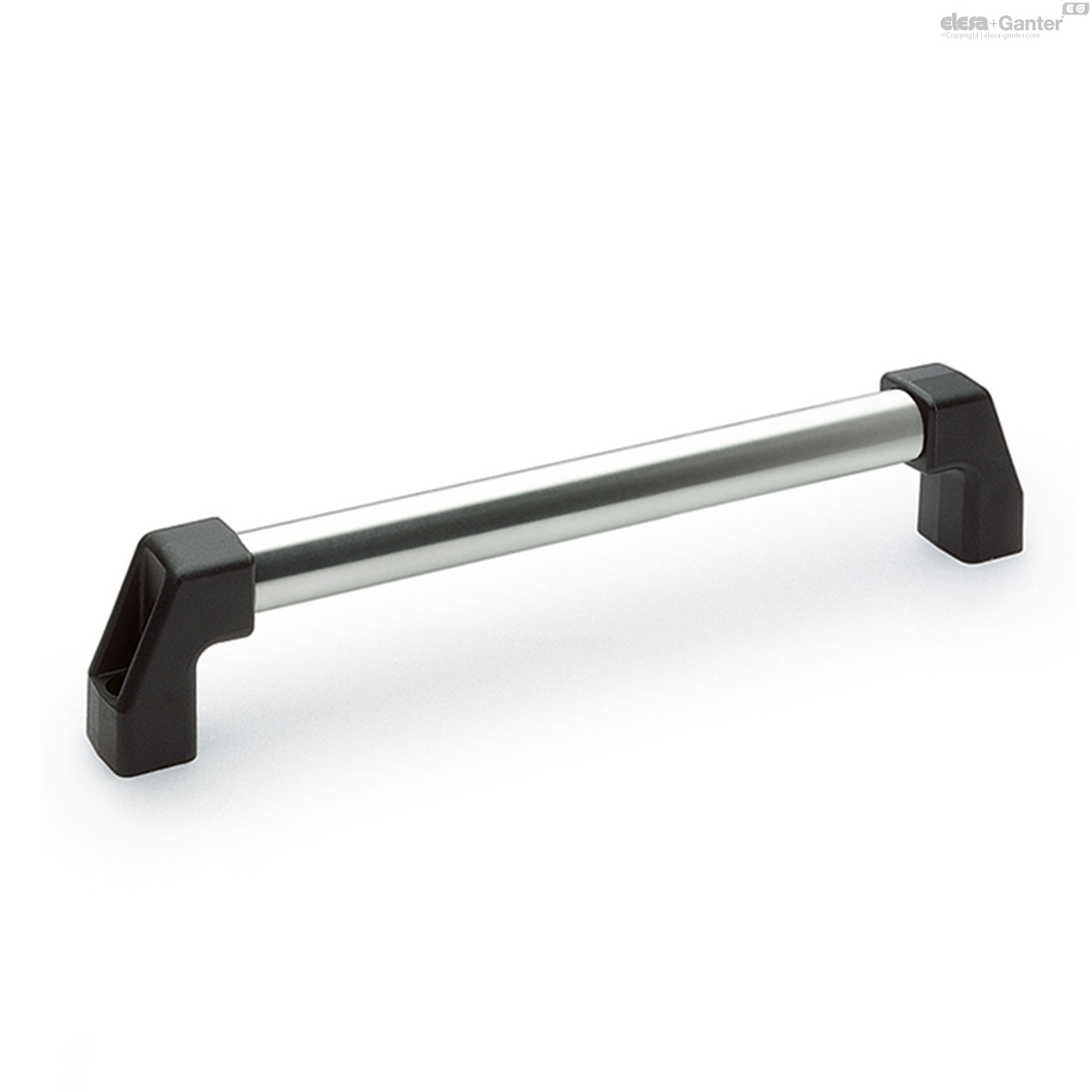

Tubular handles

Stainless steel tube, front mounting

M.1043-BM-EP

Tubular handles

Aluminium tube with epoxy resin coating, back mounting

M.1043-BM-AN

Tubular handles

Anodised aluminium tube, back mounting

M.1043-BM-SST

Tubular handles

Stainless steel tube, back mounting

Description

Main specifications

Handle shanks

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish. Supplied assembled. The handle shank connection to the tube avoids tube rotation.

Anti-rotation tube end plugs

NBR synthetic rubber.

Standard executions

Pass-through holes for cylindrical-head screws with hexagon socket.

M.1043-EP: aluminium tube, epoxy resin coating, metalflake graphite colour, matte finish. Highly resistant to wear, scratches and chemical agents. Avoid continuous and prolonged contact with boiling water or steam.
M.1043-AN: anodised aluminium tube, natural colour.
M.1043-SST: AISI 304 stainless steel tube.

Threaded blind holes.

M.1043-BM-EP: aluminium tube, epoxy resin coating, metalflake graphite colour, matte finish. Highly resistant to wear, scratches and chemical agents. Avoid continuous and prolonged contact with boiling water or steam.
M.1043 BM-AN: anodised aluminium tube, natural colour.
M.1043-BM-SST: AISI 304 stainless steel tube.

General information

Technical data

Tensile stress: F2 values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.

Accessories

Accessories on request

DS-M.1043: spacer sleeves for side shank with connection for tube Ø30 in polyamide based (PA) technopolymer to increase the distance between the handle and the fitting surface (see table).

M.1043-EP

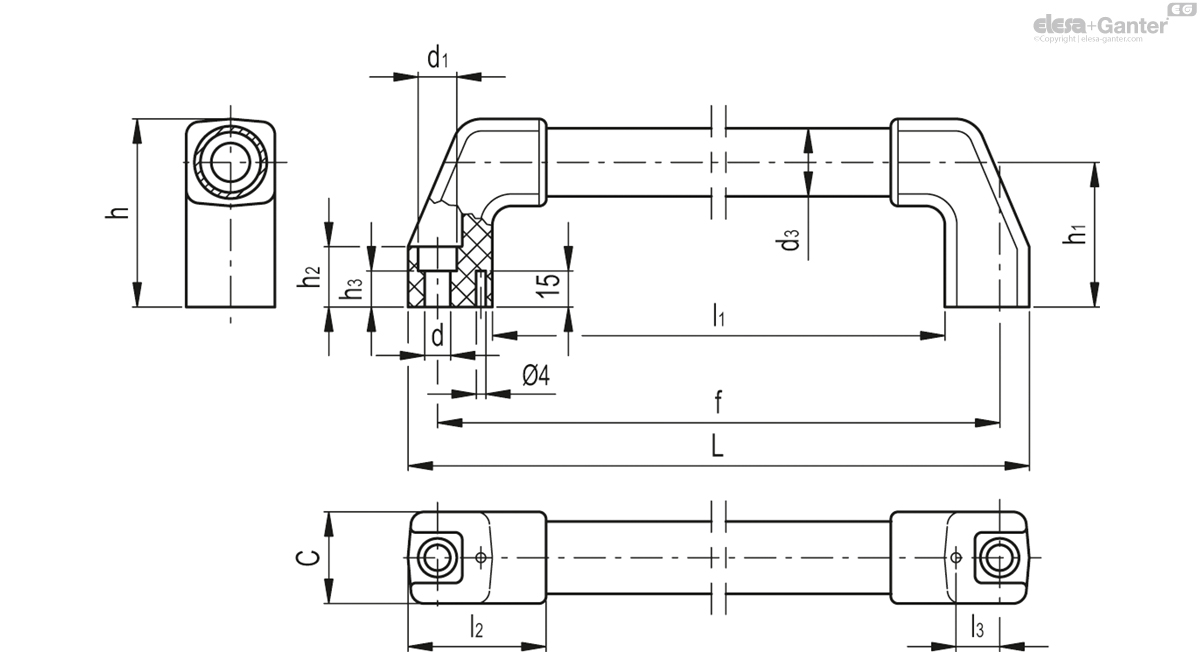

		d₂	d₃	f_±1	L	d	d₁	h	h₁	h₂	h₃	l₁	l₂	l₃	C	F2* [N]	F2# [N]
Code	Description																		Actions
37621-R	M.1043/20-200-EP	4	20	200	220	8.5	13.5	58	45	18	9.5	162	47	13	28	1500	2000	124
37624-R	M.1043/20-180-EP	-	20	180	200	8.5	13.5	58	45	18	9.5	142	47	13	28	1500	2000	262
37627-R	M.1043/20-250-EP	4	20	250	270	8.5	13.5	58	45	18	9.5	212	47	13	28	1500	2000	262
37631-R	M.1043/20-300-EP	4	20	300	320	8.5	13.5	58	45	18	9.5	262	47	13	28	1500	2000	262
37641-R	M.1043/20-350-EP	4	20	350	370	8.5	13.5	58	45	18	9.5	312	47	13	28	1400	1800	283
37651-R	M.1043/20-400-EP	4	20	400	420	8.5	13.5	58	45	18	9.5	362	47	13	28	1200	1600	312
37661-R	M.1043/20-500-EP	4	20	500	520	8.5	13.5	58	45	18	9.5	462	47	13	28	1000	1200	338
37671-R	M.1043/20-600-EP	4	20	600	620	8.5	13.5	58	45	18	9.5	562	47	13	28	800	1000	397
37681-R	M.1043/20-700-EP	4	20	700	720	8.5	13.5	58	45	18	9.5	662	47	13	28	600	900	419
37692-R	M.1043/30-180-EP	4	30	180	204	10.5	16	78	60	25	15	134	57	18	38	3000	3900	175
37695-R	M.1043/30-200-EP	4	30	200	224	10.5	16	78	60	25	15	154	57	18	38	3000	3900	175
37698-R	M.1043/30-250-EP	4	30	250	274	10.5	16	78	60	25	15	204	57	18	38	3000	3900	175
37701-R	M.1043/30-300-EP	4	30	300	324	10.5	16	78	60	25	15	254	57	18	38	3000	3900	262
37711-R	M.1043/30-350-EP	4	30	350	374	10.5	16	78	60	25	15	304	57	18	38	2600	3500	283
37721-R	M.1043/30-400-EP	4	30	400	424	10.5	16	78	60	25	15	354	57	18	38	2200	3300	312
37731-R	M.1043/30-500-EP	4	30	500	524	10.5	16	78	60	25	15	454	57	18	38	1800	2400	338
37741-R	M.1043/30-600-EP	4	30	600	624	10.5	16	78	60	25	15	554	57	18	38	1600	2000	397
37751-R	M.1043/30-700-EP	4	30	700	724	10.5	16	78	60	25	15	654	57	18	38	1300	1800	419
37761-R	M.1043/30-1000-EP	4	30	1000	1024	10.5	16	78	60	25	15	954	57	18	38	1300	1800	598
