LX-SST

Levelling elements, fixed stem

Technopolymer base, stainless steel stem

Enquire Now

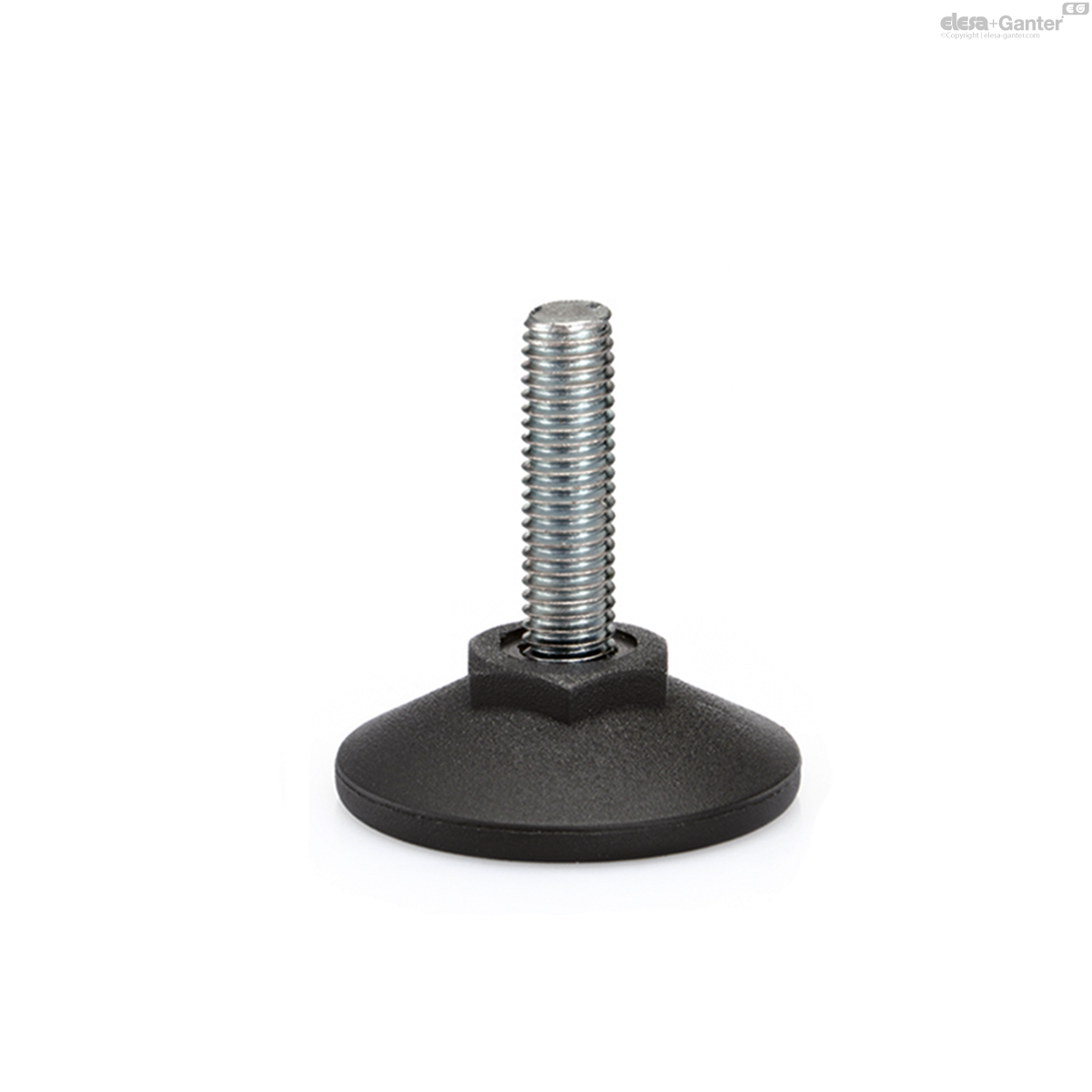

LX-SST

Levelling elements, fixed stem

AISI 304 stainless steel

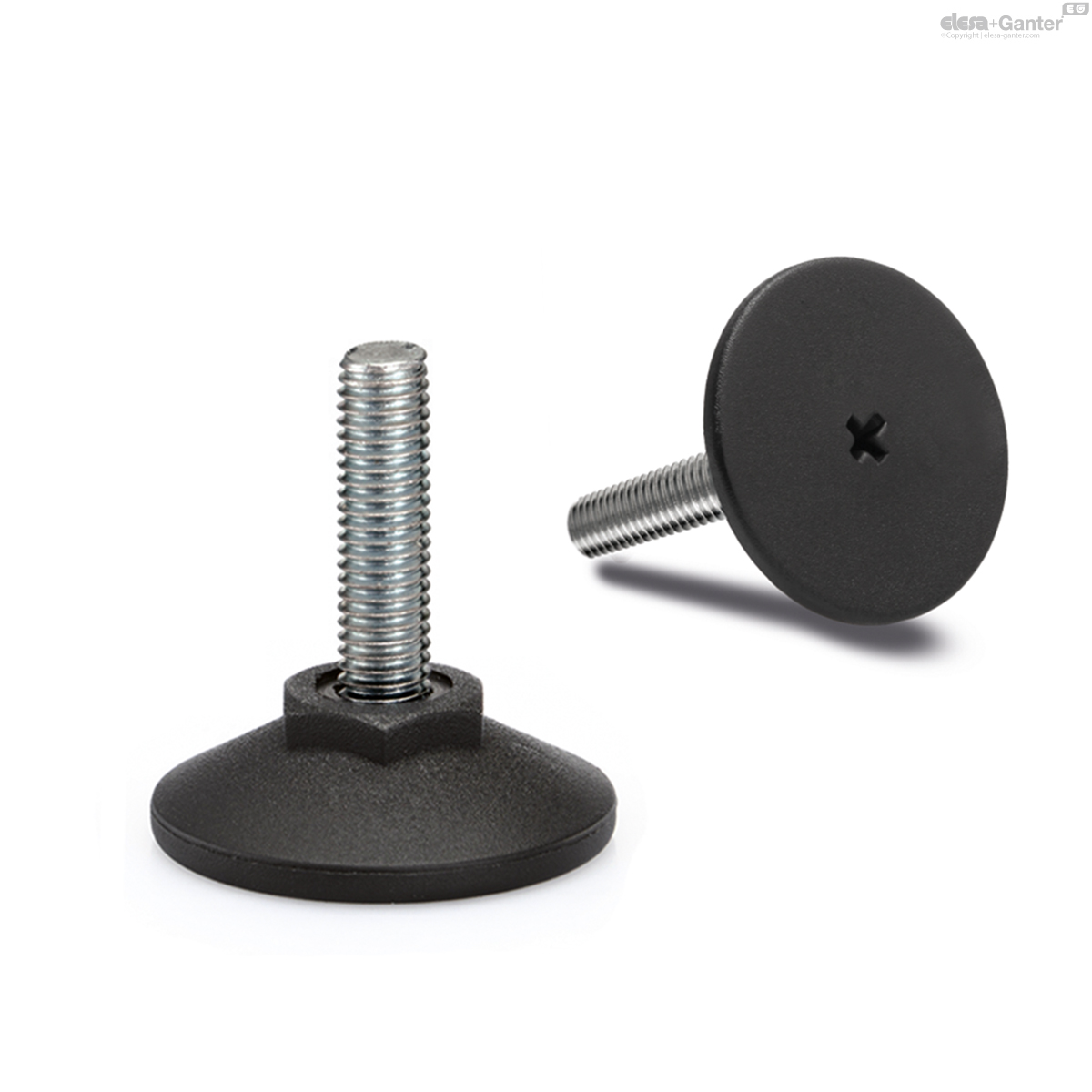

LX-SST-S

Levelling elements, fixed stem

AISI 304 stainless steel, base with screwdriver slot

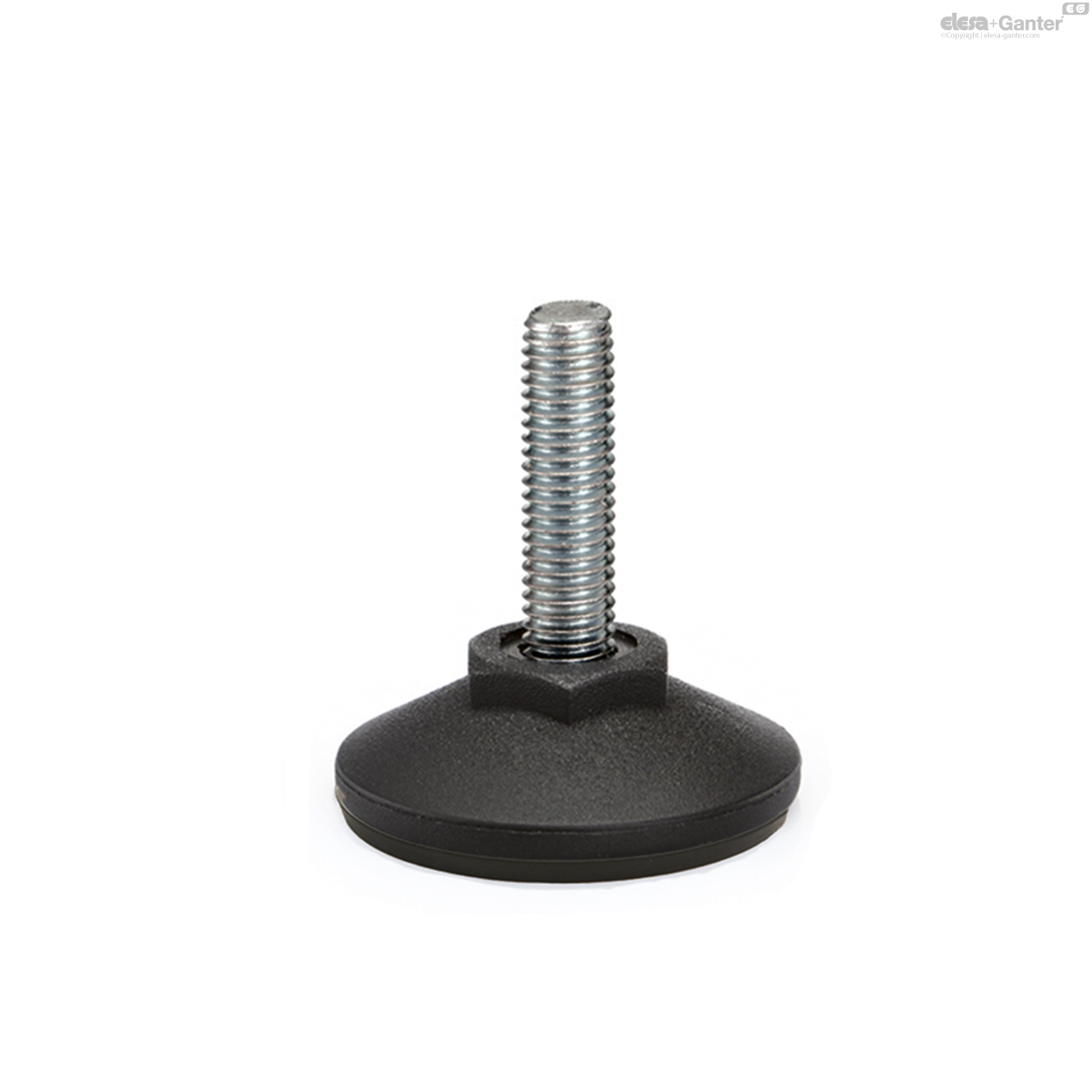

LX-AS-SST

Levelling elements, fixed stem

AISI 304 stainless steel, base with no-slip disk

Description

Main specifications

Base

Polyamide based (PA) technopolymer with adjusting hexagon, black colour, matte finish.

Standard executions

LX-SST: AISI 304 stainless steel threaded stem.
LX-SST-S: AISI 304 stainless steel threaded stem, base with screwdriver slot.
LX-AS-SST: AISI 304 stainless steel threaded stem, base with SBR rubber no-slip disk, supplied assembled to the base.

LX-SST

		D	d	L	l	l₂	s	Max. limit static load* [N]
Code	Description									Actions
431101	LX.25-SW13-SST-M6x24	25	M6	35	24	11	13	1500	10
431103	LX.25-SW13-SST-M6x34	25	M6	45	34	11	13	1500	11
431105	LX.25-SW13-SST-M6x54	25	M6	65	54	11	13	1500	86
431113	LX.25-SW13-SST-M8x22	25	M8	35	24	11	13	2500	13
431115	LX.25-SW13-SST-M8x32	25	M8	43	32	11	13	2500	17
431117	LX.25-SW13-SST-M8x52	25	M8	63	52	11	13	2500	23
431133	LX.40-SW17-SST-M8x20	40	M8	33	19.5	13.5	17	2500	19
431135	LX.40-SW17-SST-M8x30	40	M8	43	29.5	13.5	17	2500	23
431137	LX.40-SW17-SST-M8x50	40	M8	63	49.5	13.5	17	2500	29
431142	LX.40-SW17-SST-M10x30	40	M10	42	28.5	13.5	17	3000	144
431144	LX.40-SW17-SST-M10x50	40	M10	62	48.5	13.5	17	3000	37
431146	LX.40-SW17-SST-M10x70	40	M10	82	68.5	13.5	17	3000	49
431148	LX.40-SW17-SST-M12x50	40	M12	62.5	49	13.5	17	5000	41
431149	LX.40-SW17-SST-M12x70	40	M12	82.5	69	13.5	17	5000	216
431150	LX.40-SW17-SST-M12x100	40	M12	112.5	99	13.5	17	5000	86
431151	LX.30-SW17-SST-M6x22	30	M6	35	23	12	17	1500	11
431153	LX.30-SW17-SST-M6x32	30	M6	45	33	12	17	1500	14
431155	LX.30-SW17-SST-M6x52	30	M6	65	53	12	17	1500	17
431159	LX.30-SW17-SST-M8x21	30	M8	33	21	12	17	2500	16
431161	LX.30-SW17-SST-M8x31	30	M8	43	31	12	17	2500	90
431163	LX.30-SW17-SST-M8x51	30	M8	63	51	12	17	2500	24
431171	LX.30-SW17-SST-M10x31	30	M10	43	31	12	17	3000	25
431175	LX.30-SW17-SST-M10x51	30	M10	63	51	12	17	3000	36
431179	LX.30-SW17-SST-M10x71	30	M10	83	71	12	17	3000	46
431181	LX.50-SW19-SST-M10x46	50	M10	64	47	17	19	3000	48
431182	LX.50-SW19-SST-M10x66	50	M10	84	67	17	19	3000	68
431183	LX.50-SW19-SST-M10x96	50	M10	114	97	17	19	3000	72
431184	LX.50-SW19-SST-M12x46	50	M12	64	47	17	19	5000	67
431185	LX.50-SW19-SST-M12x66	50	M12	84	67	17	19	5000	72
431186	LX.50-SW19-SST-M12x96	50	M12	114	97	17	19	5000	79
431191	LX.60-SW24-SST-M12x44	60	M12	64.5	45.5	19	24	5000	67
431192	LX.60-SW24-SST-M12x64	60	M12	84.5	65.5	19	24	5000	85
431193	LX.60-SW24-SST-M12x94	60	M12	114.5	95.5	19	24	5000	106
431194	LX.60-SW24-SST-M16x68	60	M16	87	68	19	24	7500	132
431195	LX.60-SW24-SST-M16x108	60	M16	127	108	19	24	7500	328
431196	LX.60-SW24-SST-M16x148	60	M16	167	148	19	24	7500	238
