LX

Levelling elements, fixed stem

Technopolymer base, steel stem

Enquire Now

Levelling elements, fixed stem

Zinc-plated steel

LX-S

Levelling elements, fixed stem

Zinc-plated steel, base with screwdriver slot

LX-AS

Levelling elements, fixed stem

Zinc-plated steel, base with no-slip disk

Description

Main specifications

Base

Polyamide based (PA) technopolymer with adjusting hexagon, black colour, matte finish.

Standard executions

LX: zinc-plated steel threaded stem.
LX-S: zinc-plated steel threaded stem, base with screwdriver slot.
LX-AS: zinc-plated steel threaded stem, base with SBR rubber no-slip disk, supplied assembled to the base.

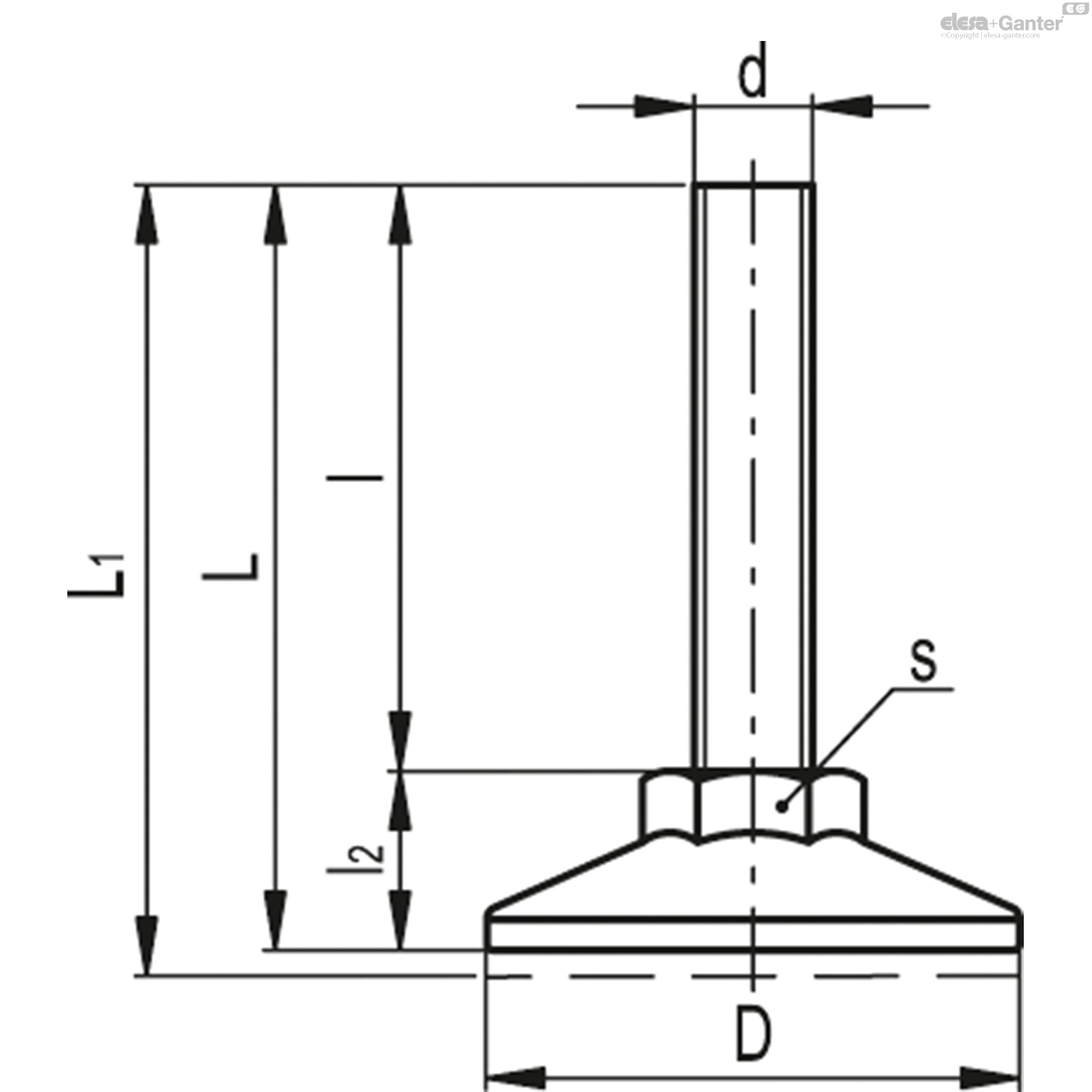

LX-AS

		D	d	L	L₁	l	l₂	s	Max. limit static load* [N]
Code	Description										Actions
531001	LX.25-SW13-AS-M6x24	25	M6	35	36	24	11	13	1500	11
531003	LX.25-SW13-AS-M6x34	25	M6	45	46	34	11	13	1500	12
531005	LX.25-SW13-AS-M6x54	25	M6	65	66	54	11	13	1500	16
531007	LX.25-SW13-AS-M6x62	25	M6	73	74	62	11	13	1500	17
531011	LX.25-SW13-AS-M8x17	25	M8	28	29	17	11	13	2500	13
531013	LX.25-SW13-AS-M8x22	25	M8	33	34	22	11	13	2500	14
531015	LX.25-SW13-AS-M8x32	25	M8	43	44	32	11	13	2500	17
531017	LX.25-SW13-AS-M8x52	25	M8	63	64	52	11	13	2500	23
531019	LX.25-SW13-AS-M8x72	25	M8	83	84	72	11	13	2500	30
531031	LX.40-SW17-AS-M8x12	40	M8	24.5	25.5	11.5	13	17	2500	19
531033	LX.40-SW17-AS-M8x20	40	M8	32.5	33.5	19.5	13	17	2500	21
531035	LX.40-SW17-AS-M8x30	40	M8	42.5	43.5	29.5	13	17	2500	24
531037	LX.40-SW17-AS-M8x50	40	M8	62.5	63.5	49.5	13	17	2500	30
531039	LX.40-SW17-AS-M8x70	40	M8	82.5	83.5	69.5	13	17	2500	31
531041	LX.40-SW17-AS-M10x20	40	M10	32	33	18.5	13.5	17	3000	26
531042	LX.40-SW17-AS-M10x30	40	M10	42	43	28.5	13.5	17	3000	28
531043	LX.40-SW17-AS-M10x40	40	M10	52	53	38.5	13.5	17	3000	36
531044	LX.40-SW17-AS-M10x50	40	M10	62	63	48.5	13.5	17	3000	33
531045	LX.40-SW17-AS-M10x60	40	M10	72	73	58.5	13.5	17	3000	36
531046	LX.40-SW17-AS-M10x70	40	M10	82	83	68.5	13.5	17	3000	39
531047	LX.40-SW17-AS-M10x100	40	M10	112.5	113.5	99	13.5	17	3000	74
531048	LX.40-SW17-AS-M12x50	40	M12	62.5	63.5	49	13.5	17	5000	36
531049	LX.40-SW17-AS-M12x70	40	M12	82.5	83.5	69	13.5	17	5000	42
531050	LX.40-SW17-AS-M12x100	40	M12	112.5	113.5	99	13.5	17	5000	89
531051	LX.30-SW17-AS-M6x22	30	M6	34	36	23	12	17	1500	13
531053	LX.30-SW17-AS-M6x32	30	M6	44	46	33	12	17	1500	15
531055	LX.30-SW17-AS-M6x52	30	M6	64	66	53	12	17	1500	18
531057	LX.30-SW17-AS-M8x16	30	M8	28	29	16	12	17	2500	15
531059	LX.30-SW17-AS-M8x21	30	M8	33	34	21	12	17	2500	16
531061	LX.30-SW17-AS-M8x31	30	M8	42	43	31	12	17	2500	19
531063	LX.30-SW17-AS-M8x51	30	M8	63	64	51	12	17	2500	25
531065	LX.30-SW17-AS-M8x71	30	M8	83	84	71	12	17	2500	32
531067	LX.30-SW17-AS-M10x16	30	M10	28	29	16	12	17	3000	19
531069	LX.30-SW17-AS-M10x21	30	M10	33	34	21	12	17	3000	22
531071	LX.30-SW17-AS-M10x31	30	M10	43	44	31	12	17	3000	25
531073	LX.30-SW17-AS-M10x41	30	M10	53	54	41	12	17	3000	31
531075	LX.30-SW17-AS-M10x51	30	M10	63	65	51	12	17	3000	36
531077	LX.30-SW17-AS-M10x61	30	M10	73	74	61	12	17	3000	31
531079	LX.30-SW17-AS-M10x71	30	M10	83	84	71	12	17	3000	45
531081	LX.50-SW19-AS-M10x46	50	M10	64	65	47	17	19	3000	67
531082	LX.50-SW19-AS-M10x66	50	M10	84	85	67	17	19	3000	60
531083	LX.50-SW19-AS-M10x96	50	M10	114	115	97	17	19	3000	75
531084	LX.50-SW19-AS-M12x46	50	M12	64	65	47	17	19	5000	70
531085	LX.50-SW19-AS-M12x66	50	M12	84	85	67	17	19	5000	75
531086	LX.50-SW19-AS-M12x96	50	M12	114	115	97	17	19	5000	100
531091	LX.60-SW24-AS-M12x44	60	M12	64.5	65.5	45.5	19	24	5000	72
531092	LX.60-SW24-AS-M12x64	60	M12	84.5	85.5	65.5	19	24	5000	78
531093	LX.60-SW24-AS-M12x94	60	M12	114.5	115.5	95.5	19	24	5000	87
531094	LX.60-SW24-AS-M16x68	60	M16	87	88	68	19	24	7500	132
531095	LX.60-SW24-AS-M16x108	60	M16	127	128	108	19	24	7500	137
531096	LX.60-SW24-AS-M16x148	60	M16	167	168	148	19	24	7500	161
