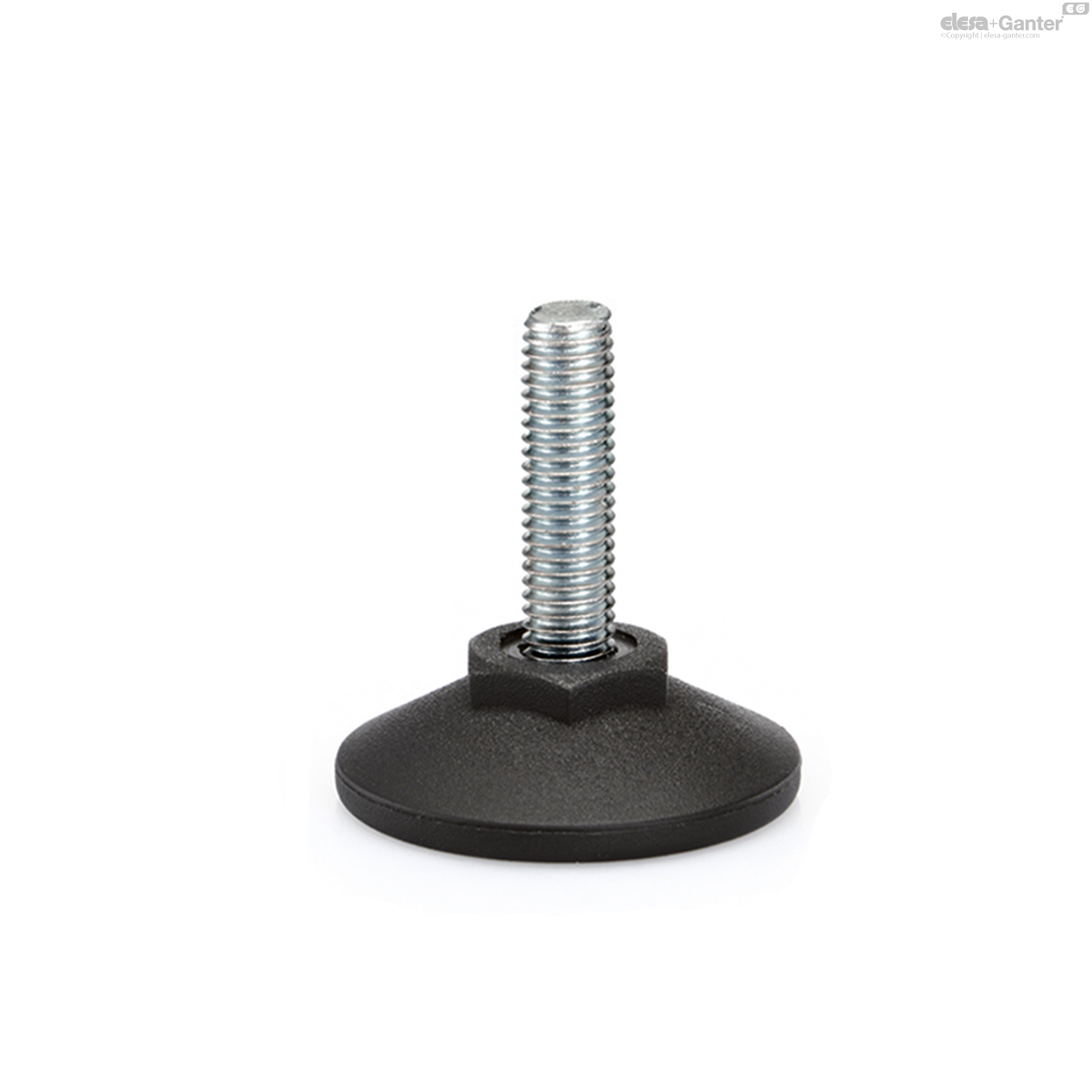

LX

Levelling elements, fixed stem

Technopolymer base, steel stem

Enquire Now

Levelling elements, fixed stem

Zinc-plated steel

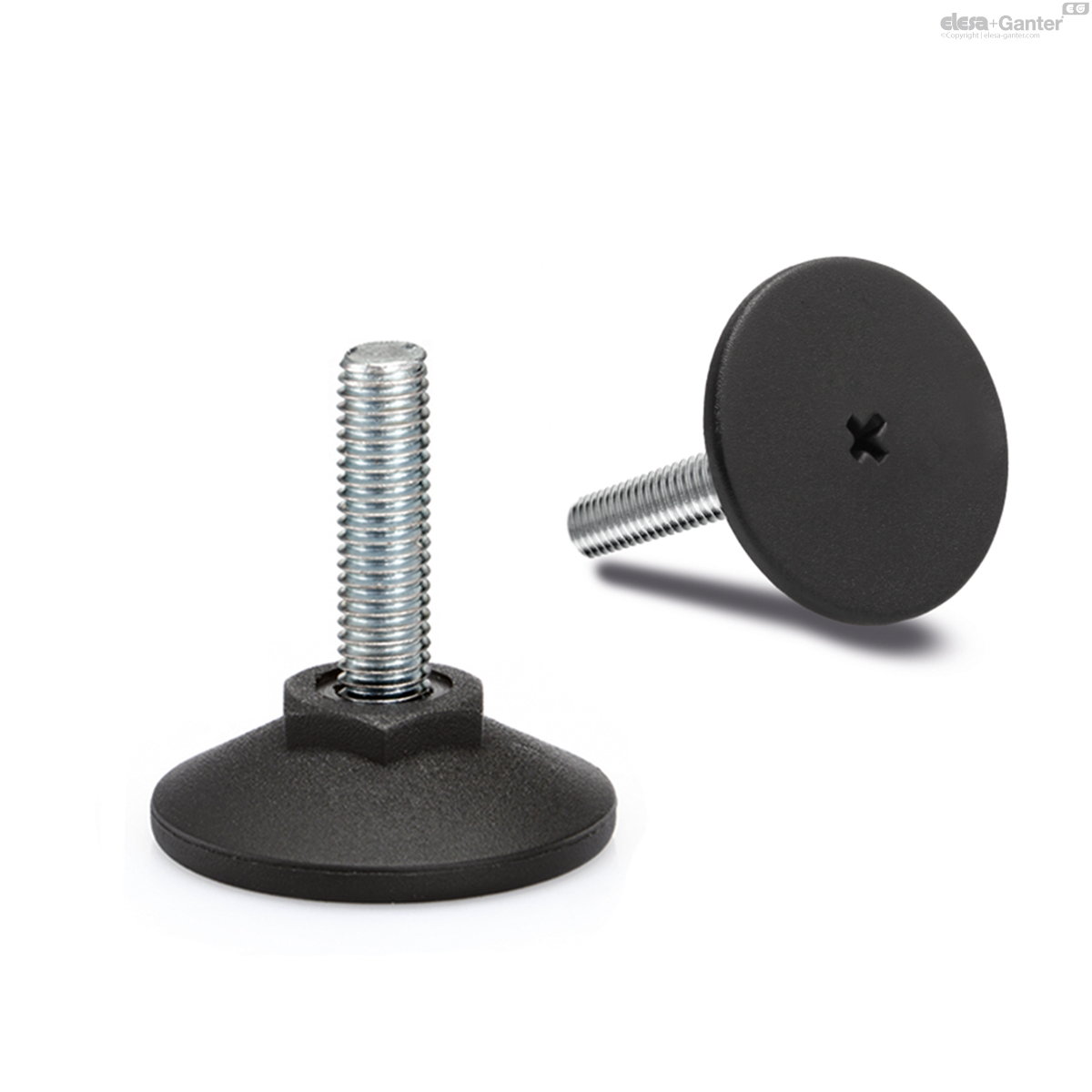

LX-S

Levelling elements, fixed stem

Zinc-plated steel, base with screwdriver slot

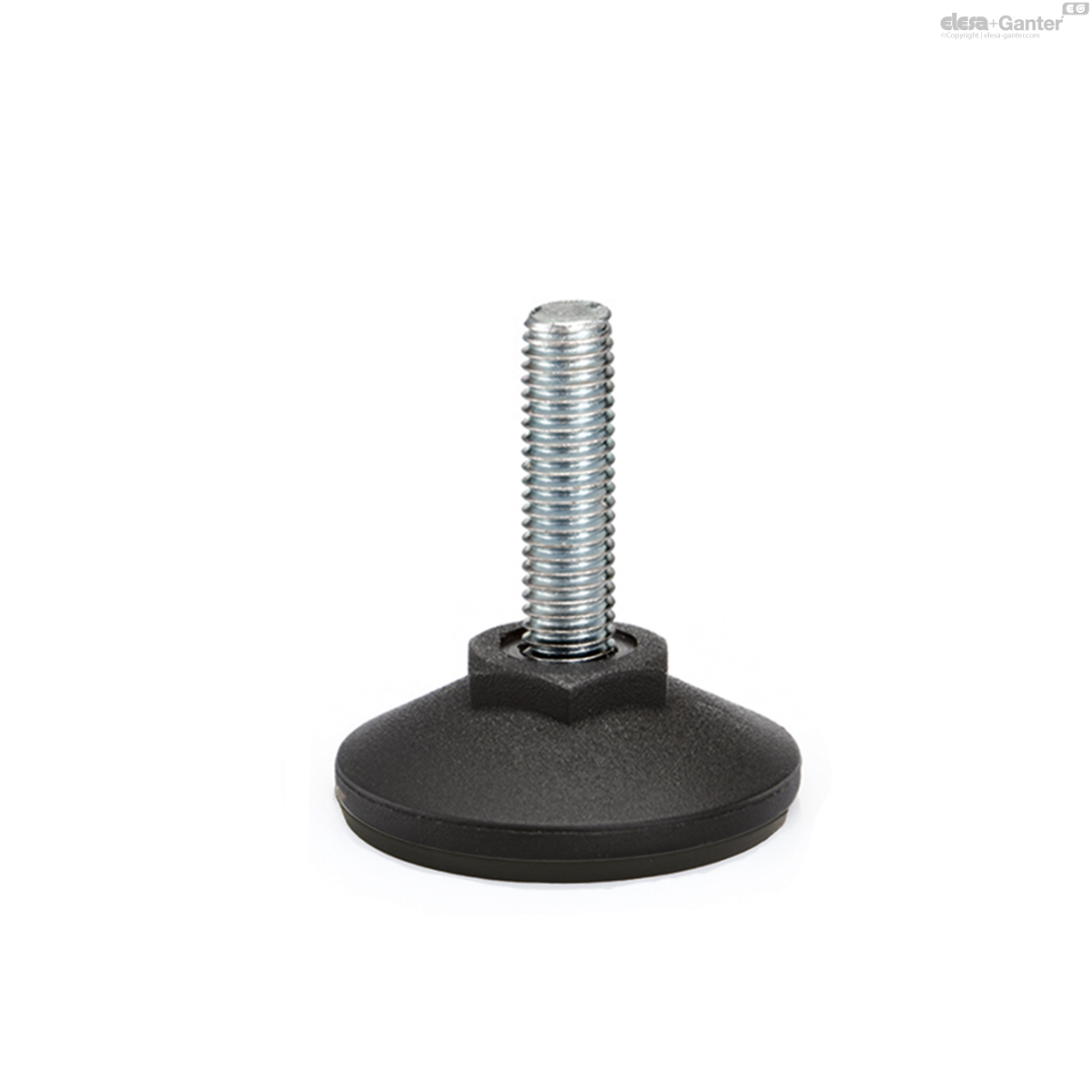

LX-AS

Levelling elements, fixed stem

Zinc-plated steel, base with no-slip disk

Description

Main specifications

Base

Polyamide based (PA) technopolymer with adjusting hexagon, black colour, matte finish.

Standard executions

LX: zinc-plated steel threaded stem.
LX-S: zinc-plated steel threaded stem, base with screwdriver slot.
LX-AS: zinc-plated steel threaded stem, base with SBR rubber no-slip disk, supplied assembled to the base.

LX

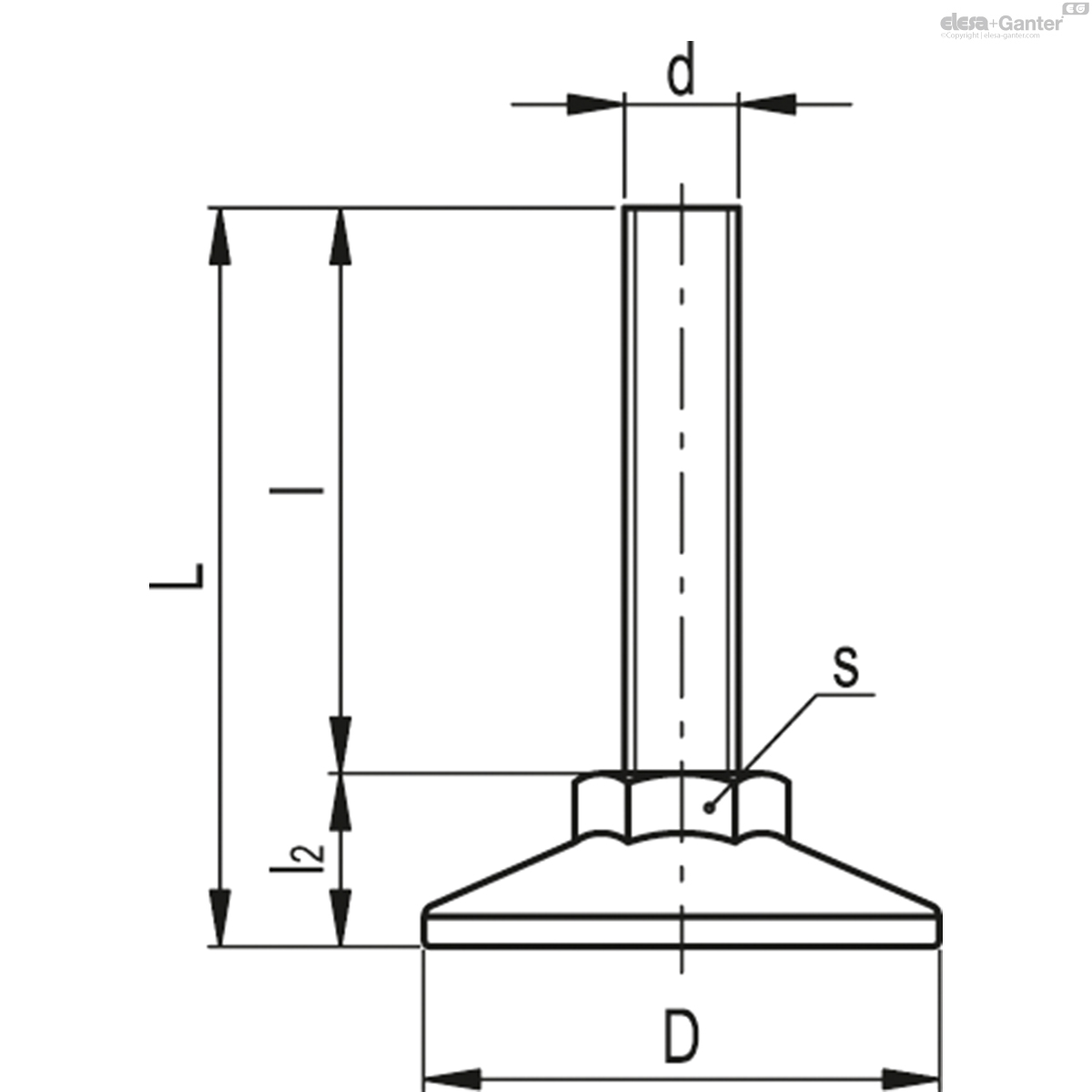

		D	d	L	l	l₂	s	Max. limit static load* [N]
Code	Description									Actions
431001	LX.25-SW13-M6x24	25	M6	35	24	11	13	1500	10
431003	LX.25-SW13-M6x34	25	M6	45	34	11	13	1500	11
431005	LX.25-SW13-M6x54	25	M6	65	54	11	13	1500	15
431007	LX.25-SW13-M6x62	25	M6	73	62	11	13	1500	16
431011	LX.25-SW13-M8x17	25	M8	28	17	11	13	2500	12
431013	LX.25-SW13-M8x22	25	M8	33	22	11	13	2500	13
431015	LX.25-SW13-M8x32	25	M8	43	32	11	13	2500	16
431017	LX.25-SW13-M8x52	25	M8	63	52	11	13	2500	23
431019	LX.25-SW13-M8x72	25	M8	83	72	11	13	2500	29
431031	LX.40-SW17-M8x12	40	M8	24.5	11.5	13	17	2500	17
431033	LX.40-SW17-M8x20	40	M8	32.5	18.5	13	17	2500	19
431035	LX.40-SW17-M8x30	40	M8	42.5	29.5	13	17	2500	22
431037	LX.40-SW17-M8x50	40	M8	62.5	49.5	13	17	2500	28
431039	LX.40-SW17-M8x70	40	M8	82.5	69.5	13	17	2500	34
431041	LX.40-SW17-M10x20	40	M10	32	18.5	13.5	17	3000	24
431042	LX.40-SW17-M10x30	40	M10	42	28.5	13.5	17	3000	29
431043	LX.40-SW17-M10x40	40	M10	52	38.5	13.5	17	3000	34
431044	LX.40-SW17-M10x50	40	M10	62	48.5	13.5	17	3000	39
431045	LX.40-SW17-M10x60	40	M10	72	58.5	13.5	17	3000	44
431046	LX.40-SW17-M10x70	40	M10	82	68.5	13.5	17	3000	48
431047	LX.40-SW17-M12x50	40	M12	62.5	49	13.5	17	5000	51
431048	LX.40-SW17-M12x70	40	M12	82.5	69	13.5	17	5000	65
431049	LX.40-SW17-M10x100	40	M10	112.5	99	13.5	17	3000	63
431050	LX.40-SW17-M12x100	40	M12	112.5	99	13.5	17	5000	87
431051	LX.30-SW17-M6x22	30	M6	35	23	12	17	1500	12
431053	LX.30-SW17-M6x32	30	M6	45	33	12	17	1500	14
431055	LX.30-SW17-M6x52	30	M6	65	53	12	17	1500	17
431057	LX.30-SW17-M8x16	30	M8	28	16	12	17	2500	12
431059	LX.30-SW17-M8x21	30	M8	33	21	12	17	2500	15
431061	LX.30-SW17-M8x31	30	M8	43	31	12	17	2500	18
431063	LX.30-SW17-M8x51	30	M8	63	51	12	17	2500	25
431065	LX.30-SW17-M8x71	30	M8	83	71	12	17	2500	30
431067	LX.30-SW17-M10x16	30	M10	28	16	12	17	3000	18
431069	LX.30-SW17-M10x21	30	M10	33	21	12	17	3000	19
431071	LX.30-SW17-M10x31	30	M10	43	31	12	17	3000	25
431073	LX.30-SW17-M10x41	30	M10	53	41	12	17	3000	30
431075	LX.30-SW17-M10x51	30	M10	63	51	12	17	3000	35
431077	LX.30-SW17-M10x61	30	M10	73	61	12	17	3000	40
431079	LX.30-SW17-M10x71	30	M10	83	71	12	17	3000	45
431081	LX.50-SW19-M10x46	50	M10	64	47	17	19	3000	47
431082	LX.50-SW19-M10x66	50	M10	84	67	17	19	3000	57
431083	LX.50-SW19-M10x96	50	M10	114	97	17	19	3000	71
431084	LX.50-SW19-M12x46	50	M12	64	47	17	19	5000	60
431085	LX.50-SW19-M12x66	50	M12	84	67	17	19	5000	74
431086	LX.50-SW19-M12x96	50	M12	114	97	17	19	5000	95
431091	LX.60-SW24-M12x44	60	M12	64.5	45.5	19	24	5000	71
431092	LX.60-SW24-M12x64	60	M12	84.5	65.5	19	24	5000	83
431093	LX.60-SW24-M12x94	60	M12	114.5	95.5	19	24	5000	106
431094	LX.60-SW24-M16x68	60	M16	87	68	19	24	7500	130
431095	LX.60-SW24-M16x108	60	M16	127	108	19	24	7500	183
431096	LX.60-SW24-M16x148	60	M16	167	148	19	24	7500	235
