LVQ.FO-SST

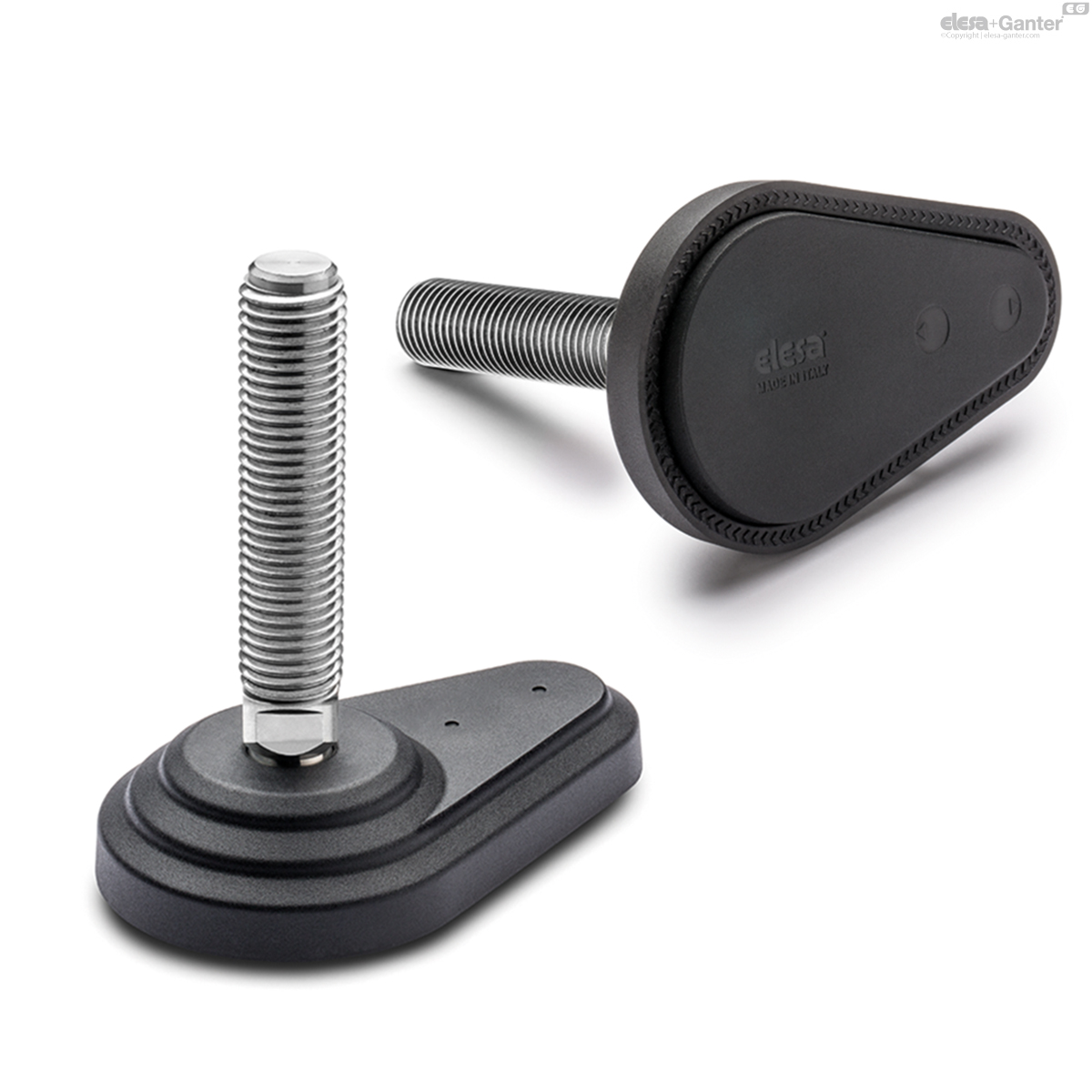

Levelling elements for ground mounting

Technopolymer base, stainless steel stem

Enquire Now

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

AISI 304 stainless steel articulated and threaded stem with adjusting square.

LVQ.FO-SST: base without no-slip disk.
LVQ.FO-AS-SST: base with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Ground mounting

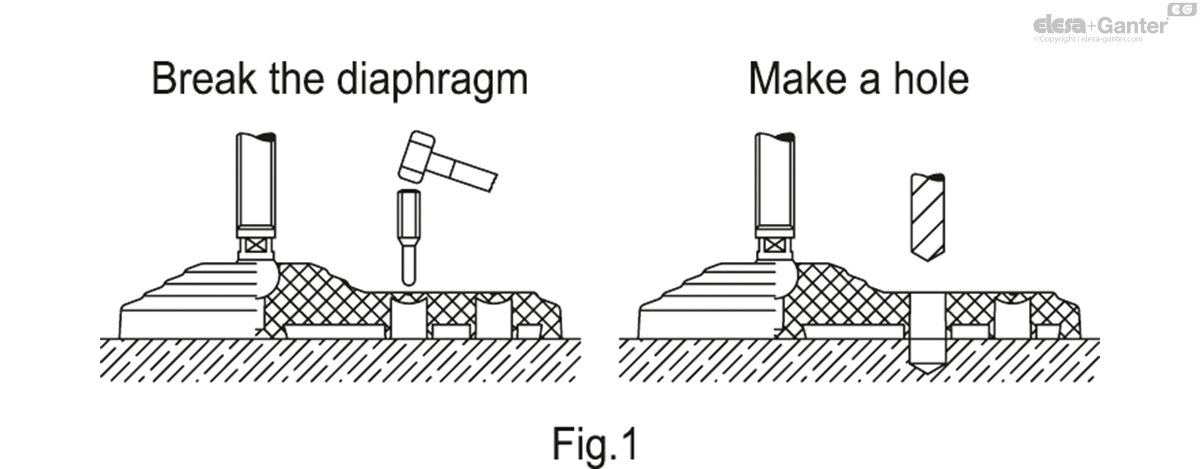

By means of two holes, supplied covered by a diaphragm (which can be easily removed by a metal tool), to avoid all unhealthy deposits of dirt and dust when only one hole is used (see Fig. 1).

General information

Features

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disks).

Order information

The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

Accessories on request

AISI 304 stainless steel nut (see Nuts NT.).

LVQ.FO-SST

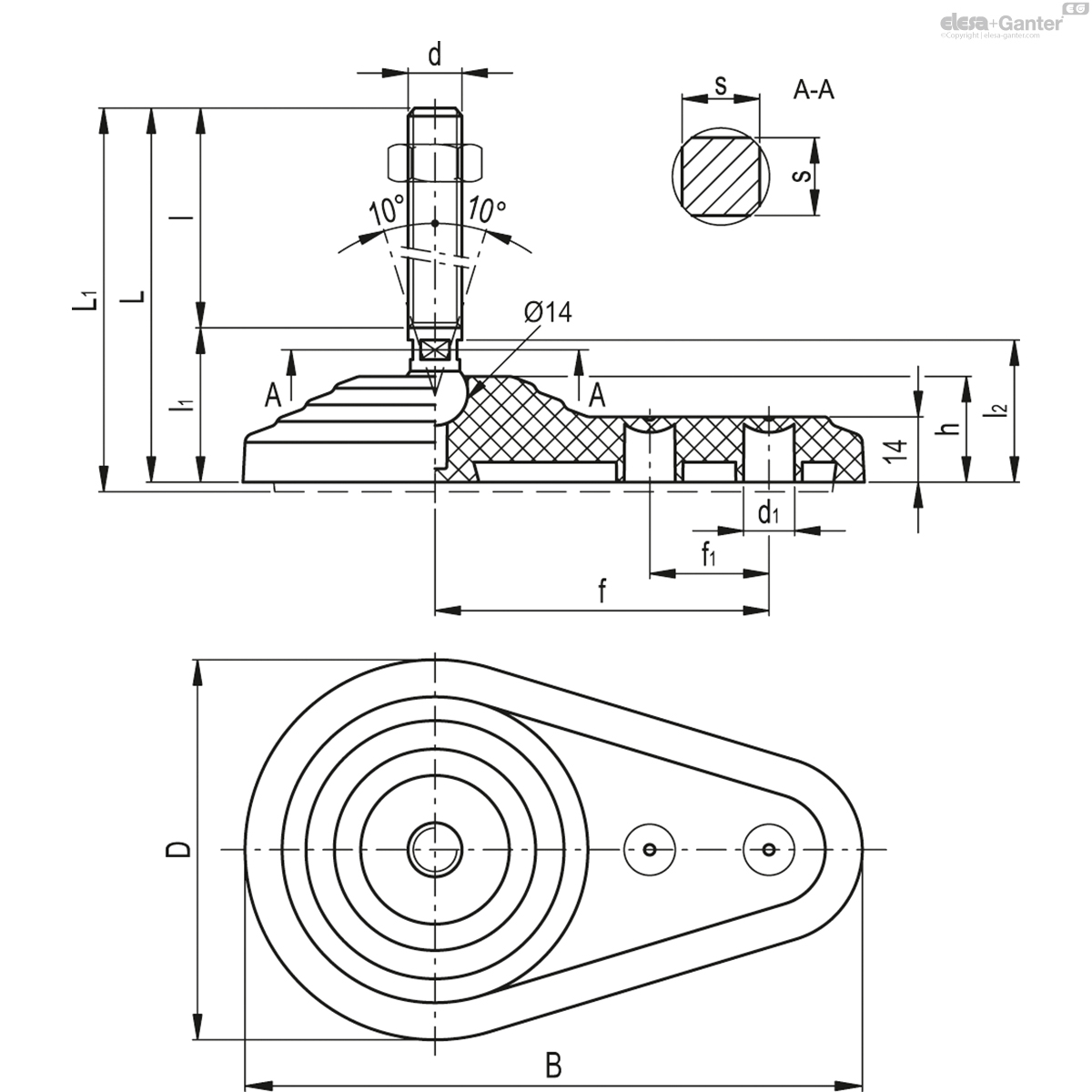

		D	d	d₁	L	l	l₁	l₂	h	h₁	B	f	f₁	s	Articulation Ø	Max. limit static load* [N]
Code	Description																	Actions
533901	LVQ.FO-60-14-SST-M16x68	60	M16	8.5	99	68	31	29.5	21	14	96.5	50	18	12	14	14000	78
533906	LVQ.FO-60-14-SST-M16x108	60	M16	8.5	139	108	31	29.5	21	14	96.5	50	18	12	14	14000	78
533911	LVQ.FO-60-14-SST-M16x148	60	M16	8.5	179	148	31	29.5	21	14	96.5	50	18	12	14	14000	78
533916	LVQ.FO-60-14-SST-M16x168	60	M16	8.5	199	168	31	29.5	21	14	96.5	50	18	12	14	14000	91
533921	LVQ.FO-60-14-SST-M20x110	60	M20	8.5	146	110	36	33.5	21	14	96.5	50	18	15	14	14000	106
533926	LVQ.FO-60-14-SST-M20x150	60	M20	8.5	186	150	36	33.5	21	14	96.5	50	18	15	14	14000	88
533931	LVQ.FO-60-14-SST-M20x170	60	M20	8.5	206	170	36	33.5	21	14	96.5	50	18	15	14	14000	106
533936	LVQ.FO-60-14-SST-M20x210	60	M20	8.5	246	210	36	33.5	21	14	96.5	50	18	15	14	14000	129
533941	LVQ.FO-60-14-SST-M24x110	60	M24	8.5	146	110	36	33.5	21	14	96.5	50	18	18	14	14000	47
533946	LVQ.FO-60-14-SST-M24x170	60	M24	8.5	206	170	36	33.5	21	14	96.5	50	18	18	14	14000	186
533951	LVQ.FO-60-14-SST-M24x210	60	M24	8.5	246	210	36	33.5	21	14	96.5	50	18	18	14	14000	259
534001	LVQ.FO-80-14-SST-M16x68	80	M16	10.5	100	68	32	30.5	22	14	130	70	25	12	14	16000	281
534003	LVQ.FO-80-14-SST-M16x108	80	M16	10.5	140	108	32	30.5	22	14	130	70	25	12	14	16000	241
534005	LVQ.FO-80-14-SST-M16x148	80	M16	10.5	180	148	32	30.5	22	14	130	70	25	12	14	16000	305
534007	LVQ.FO-80-14-SST-M16x168	80	M16	10.5	200	168	32	30.5	22	14	130	70	25	12	14	16000	337
534011	LVQ.FO-80-14-SST-M20x110	80	M20	10.5	147	110	37	34.5	22	14	130	70	25	15	14	16000	341
534013	LVQ.FO-80-14-SST-M20x150	80	M20	10.5	187	150	37	34.5	22	14	130	70	25	15	14	16000	441
534015	LVQ.FO-80-14-SST-M20x170	80	M20	10.5	207	170	37	34.5	22	14	130	70	25	15	14	16000	491
534017	LVQ.FO-80-14-SST-M20x210	80	M20	10.5	247	210	37	34.5	22	14	130	70	25	15	14	16000	590
534021	LVQ.FO-80-14-SST-M24x110	80	M24	10.5	147	110	37	34.5	22	14	130	70	25	18	14	16000	448
534023	LVQ.FO-80-14-SST-M24x170	80	M24	10.5	207	170	37	34.5	22	14	130	70	25	18	14	16000	663
534025	LVQ.FO-80-14-SST-M24x210	80	M24	10.5	247	210	37	34.5	22	14	130	70	25	18	14	16000	807

LVQ.FO-AS-SST

		D	d	d₁	L	l	L₁	l₁	l₂	h	h₁	B	f	f₁	s	Articulation Ø	Max. limit static load* [N]
Code	Description																		Actions
536901	LVQ.FO-60-14-AS-SST-M16x68	60	M16	8.5	99	68	101	31	29.5	21	14	96.5	50	18	12	14	14000	70
536906	LVQ.FO-60-14-AS-SST-M16x108	60	M16	8.5	139	108	141	31	29.5	21	14	96.5	50	18	12	14	14000	78
536911	LVQ.FO-60-14-AS-SST-M16x148	60	M16	8.5	179	148	181	31	29.5	21	14	96.5	50	18	12	14	14000	78
536916	LVQ.FO-60-14-AS-SST-M16x168	60	M16	8.5	199	168	201	31	29.5	21	14	96.5	50	18	12	14	14000	90
536921	LVQ.FO-60-14-AS-SST-M20x110	60	M20	8.5	146	110	148	36	33.5	21	14	96.5	50	18	15	14	14000	104
536926	LVQ.FO-60-14-AS-SST-M20x150	60	M20	8.5	186	150	188	36	33.5	21	14	96.5	50	18	15	14	14000	87
536931	LVQ.FO-60-14-AS-SST-M20x170	60	M20	8.5	206	170	208	36	33.5	21	14	96.5	50	18	15	14	14000	104
536936	LVQ.FO-60-14-AS-SST-M20x210	60	M20	8.5	246	210	248	36	33.5	21	14	96.5	50	18	15	14	14000	124
536941	LVQ.FO-60-14-AS-SST-M24x110	60	M24	8.5	146	110	148	36	33.5	21	14	96.5	50	18	18	14	14000	147
536946	LVQ.FO-60-14-AS-SST-M24x170	60	M24	8.5	206	170	208	36	33.5	21	14	96.5	50	18	18	14	14000	196
536951	LVQ.FO-60-14-AS-SST-M24x210	60	M24	8.5	246	210	248	36	33.5	21	14	96.5	50	18	18	14	14000	249
537001	LVQ.FO-80-14-AS-SST-M16x68	80	M16	10.5	100	68	102	32	30.5	22	14	130	70	25	12	14	16000	177
537003	LVQ.FO-80-14-AS-SST-M16x108	80	M16	10.5	140	108	142	32	30.5	22	14	130	70	25	12	14	16000	241
537005	LVQ.FO-80-14-AS-SST-M16x148	80	M16	10.5	180	148	182	32	30.5	22	14	130	70	25	12	14	16000	305
537007	LVQ.FO-80-14-AS-SST-M16x168	80	M16	10.5	200	168	202	32	30.5	22	14	130	70	25	12	14	16000	337
537011	LVQ.FO-80-14-AS-SST-M20x110	80	M20	10.5	147	110	149	37	34.5	22	14	130	70	25	15	14	16000	341
537013	LVQ.FO-80-14-AS-SST-M20x150	80	M20	10.5	187	150	189	37	34.5	22	14	130	70	25	15	14	16000	441
537015	LVQ.FO-80-14-AS-SST-M20x170	80	M20	10.5	207	170	209	37	34.5	22	14	130	70	25	15	14	16000	491
537017	LVQ.FO-80-14-AS-SST-M20x210	80	M20	10.5	247	210	249	37	34.5	22	14	130	70	25	15	14	16000	590
537021	LVQ.FO-80-14-AS-SST-M24x110	80	M24	10.5	147	110	149	37	34.5	22	14	130	70	25	18	14	16000	448
537023	LVQ.FO-80-14-AS-SST-M24x170	80	M24	10.5	207	170	209	37	34.5	22	14	130	70	25	18	14	16000	663
537025	LVQ.FO-80-14-AS-SST-M24x210	80	M24	10.5	247	210	249	37	34.5	22	14	130	70	25	18	14	16000	807
