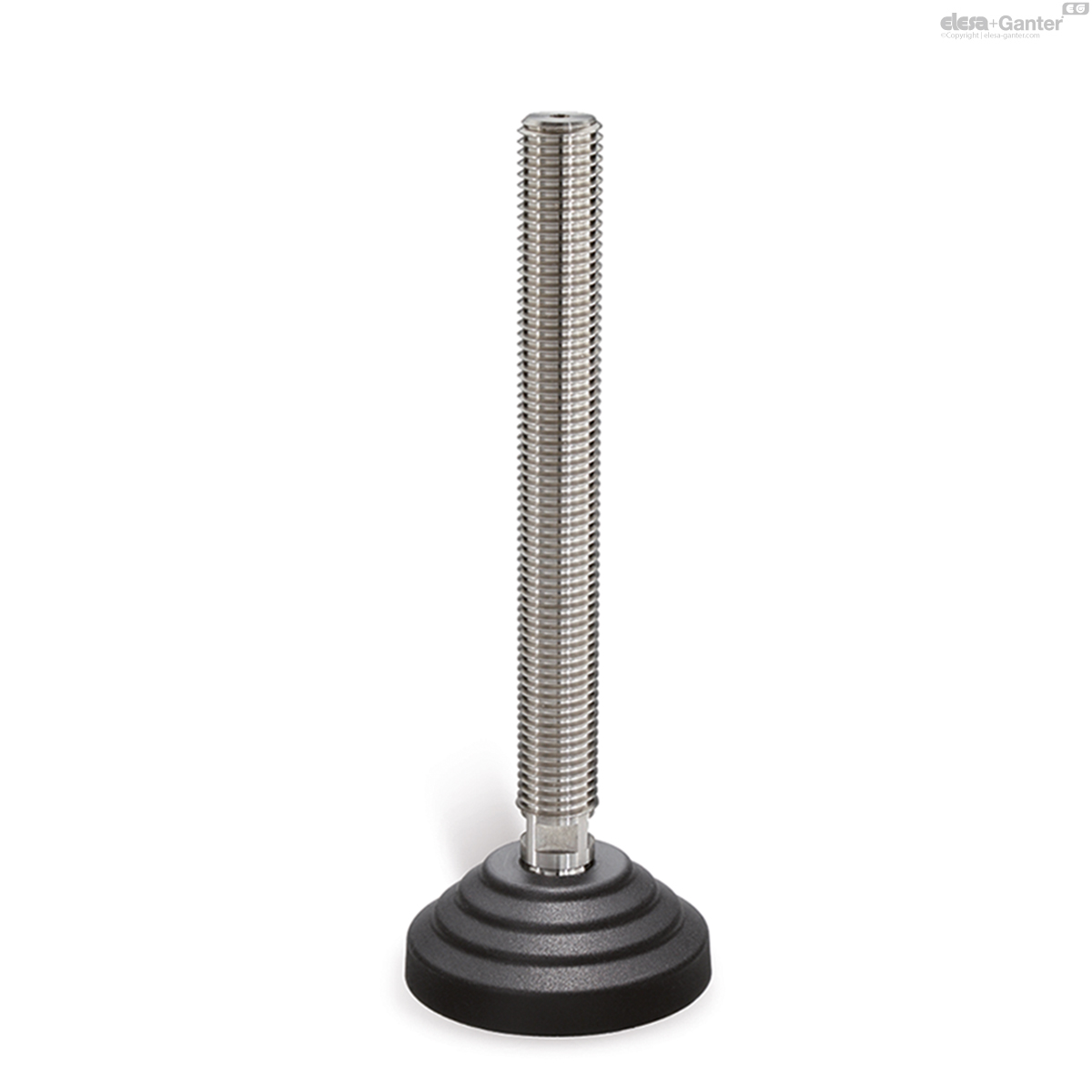

LVQ.A-SST

Levelling elements

Technopolymer base, stainless steel stem

Enquire Now

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated stem

Threaded AISI 304 stainless steel with adjusting square.

Standard executions

LVQ.A-SST: without no-slip disk.
LVQ.A-AS-SST: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

General information

Features

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disks).

Order information

The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

Accessories on request

AISI 304 stainless steel nut (see Nuts NT.-).

LVQ.A-SST

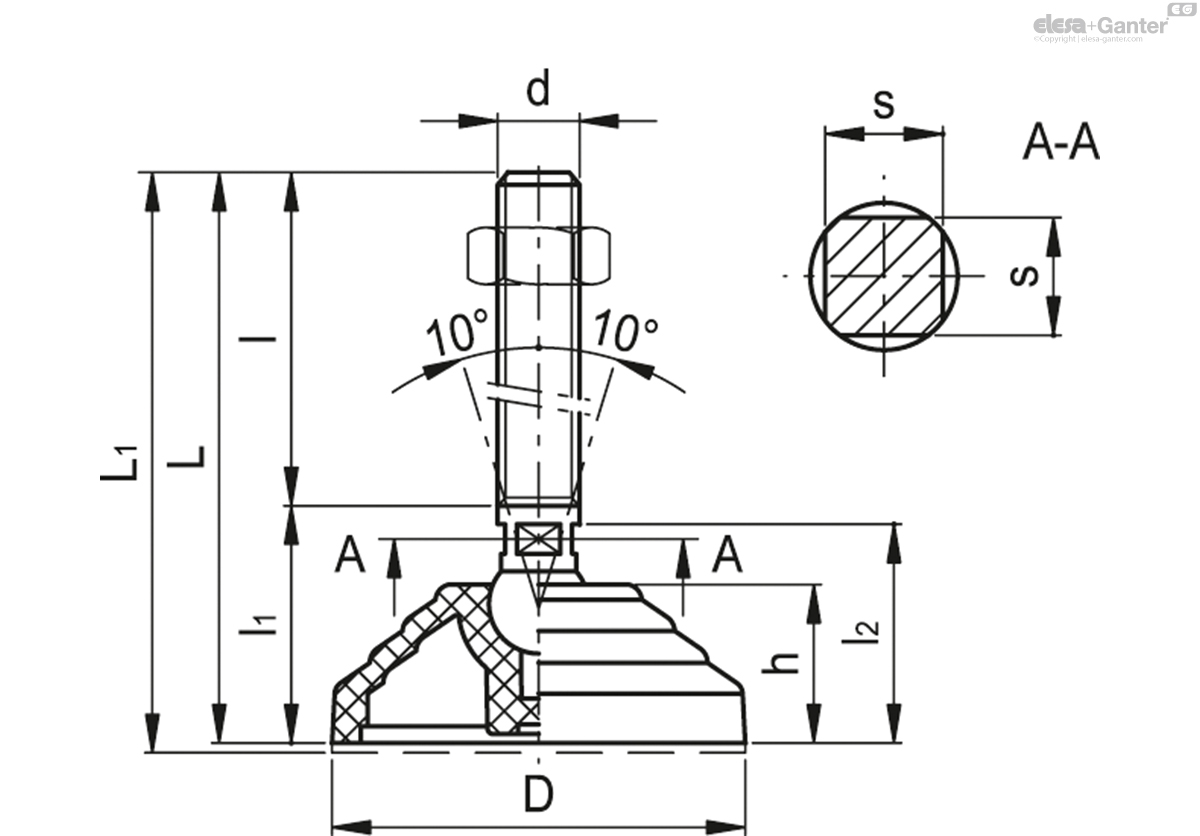

		D	d	L	l	l₁	l₂	h	s	Articulation Ø	Max. limit static load* [N]
Code	Description												Actions
323901	LVQ.A-60-14-SST-M16x68	60	M16	102	68	34	32.5	24	12	14	14000	128
323903	LVQ.A-60-14-SST-M16x108	60	M16	142	108	34	32.5	24	12	14	14000	192
323905	LVQ.A-60-14-SST-M16x148	60	M16	182	148	34	32.5	24	12	14	14000	256
323907	LVQ.A-60-14-SST-M16x168	60	M16	202	168	34	32.5	24	12	14	14000	288
323911	LVQ.A-60-14-SST-M20x110	60	M20	149	110	39	36.5	24	15	14	14000	292
323913	LVQ.A-60-14-SST-M20x150	60	M20	189	150	39	36.5	24	15	14	14000	392
323915	LVQ.A-60-14-SST-M20x170	60	M20	209	170	39	36.5	24	15	14	14000	442
323917	LVQ.A-60-14-SST-M20x210	60	M20	249	210	39	36.5	24	15	14	14000	541
324951	LVQ.A-70-14-SST-M16x68	70	M16	97	68	29	27.5	19	12	14	14000	126
324953	LVQ.A-70-14-SST-M16x108	70	M16	137	108	29	27.5	19	12	14	14000	190
324955	LVQ.A-70-14-SST-M16x148	70	M16	177	148	29	27.5	19	12	14	14000	254
324957	LVQ.A-70-14-SST-M16x168	70	M16	197	168	29	27.5	19	12	14	14000	286
324961	LVQ.A-70-14-SST-M20x110	70	M20	144	110	34	31.5	19	15	14	14000	290
324963	LVQ.A-70-14-SST-M20x150	70	M20	184	150	34	31.5	19	15	14	14000	390
324965	LVQ.A-70-14-SST-M20x170	70	M20	204	170	34	31.5	19	15	14	14000	440
324967	LVQ.A-70-14-SST-M20x210	70	M20	244	210	34	31.5	19	15	14	14000	539
324971	LVQ.A-70-14-SST-M24x110	70	M24	144	110	34	31.5	19	18	14	14000	397
324973	LVQ.A-70-14-SST-M24x170	70	M24	204	170	34	31.5	19	18	14	14000	612
324975	LVQ.A-70-14-SST-M24x210	70	M24	244	210	34	31.5	19	18	14	14000	756
325001	LVQ.A-80-14-SST-M16x68	80	M16	102	68	34	32.5	24	12	14	16000	149
325003	LVQ.A-80-14-SST-M16x108	80	M16	142	108	34	32.5	24	12	14	16000	213
325005	LVQ.A-80-14-SST-M16x148	80	M16	182	148	34	32.5	24	12	14	16000	277
325007	LVQ.A-80-14-SST-M16x168	80	M16	202	168	34	32.5	24	12	14	16000	309
325011	LVQ.A-80-14-SST-M20x110	80	M20	149	110	39	36.5	24	15	14	16000	313
325013	LVQ.A-80-14-SST-M20x150	80	M20	189	150	39	36.5	24	15	14	16000	413
325015	LVQ.A-80-14-SST-M20x170	80	M20	209	170	39	36.5	24	15	14	16000	463
325017	LVQ.A-80-14-SST-M20x210	80	M20	249	210	39	36.5	24	15	14	16000	562
325021	LVQ.A-80-14-SST-M24x110	80	M24	149	110	39	36.5	24	18	14	16000	420
325023	LVQ.A-80-14-SST-M24x170	80	M24	209	170	39	36.5	24	18	14	16000	635
325025	LVQ.A-80-14-SST-M24x210	80	M24	249	210	39	36.5	24	18	14	16000	779
325851	LVQ.A-100-14-SST-M16x68	100	M16	102	68	34	32.5	24	12	14	16000	179
325853	LVQ.A-100-14-SST-M16x108	100	M16	142	108	34	32.5	24	12	14	16000	243
325855	LVQ.A-100-14-SST-M16x148	100	M16	182	148	34	32.5	24	12	14	16000	307
325857	LVQ.A-100-14-SST-M16x168	100	M16	202	168	34	32.5	24	12	14	16000	339
325861	LVQ.A-100-14-SST-M20x110	100	M20	149	110	39	36.5	24	15	14	16000	343
325863	LVQ.A-100-14-SST-M20x150	100	M20	189	150	39	36.5	24	15	14	16000	443
325865	LVQ.A-100-14-SST-M20x170	100	M20	209	170	39	36.5	24	15	14	16000	493
325867	LVQ.A-100-14-SST-M20x210	100	M20	249	210	39	36.5	24	15	14	16000	592
325871	LVQ.A-100-14-SST-M24x110	100	M24	149	110	39	36.5	24	18	14	16000	450
325873	LVQ.A-100-14-SST-M24x170	100	M24	209	170	39	36.5	24	18	14	16000	665
325875	LVQ.A-100-14-SST-M24x210	100	M24	249	210	39	36.5	24	18	14	16000	809
