LV.FO-STP

Levelling feet for ground mounting

Technopolymer base, SUPER-technopolymer stem

Enquire Now

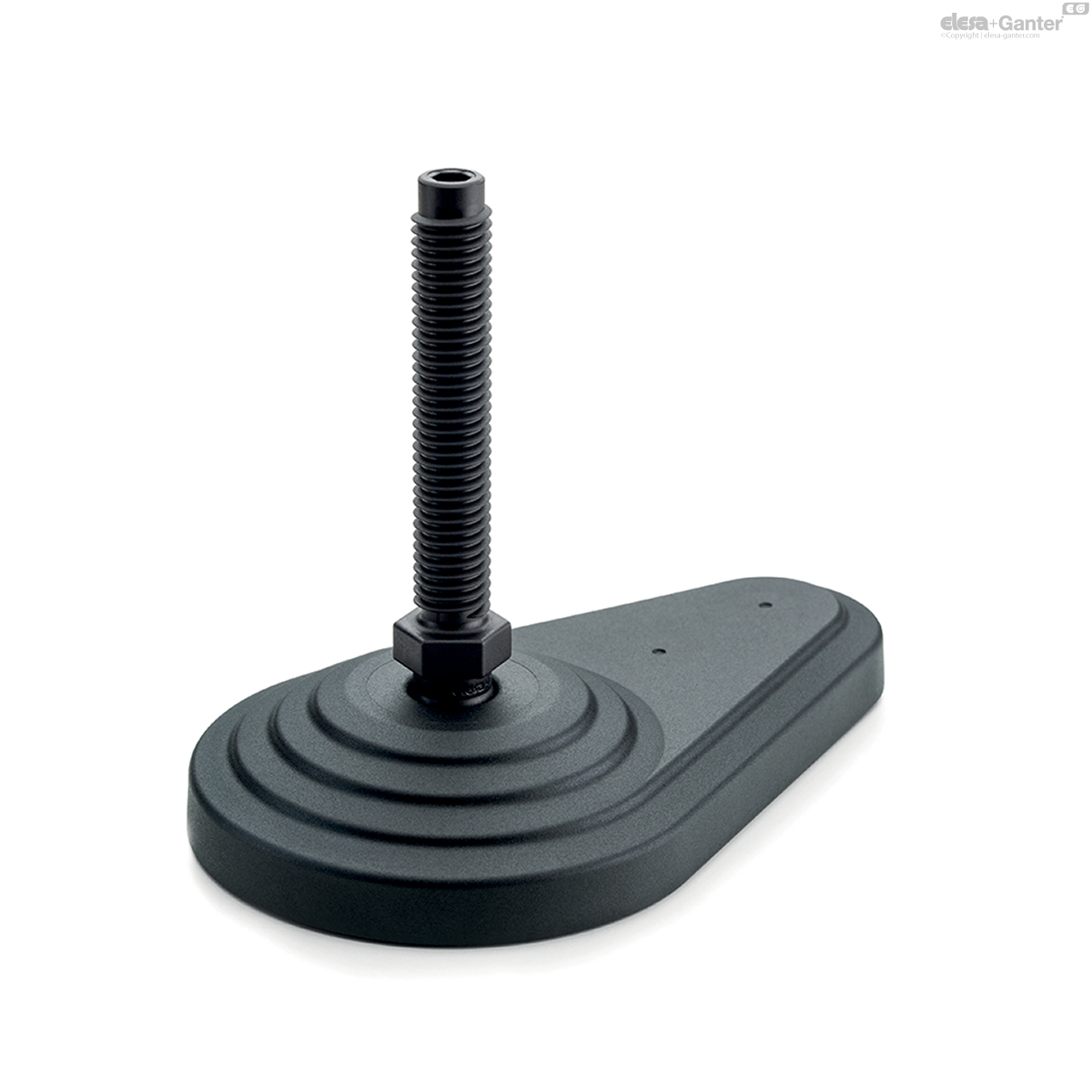

LV.FO-STP

Levelling feet for ground mounting

Without no-slip disk

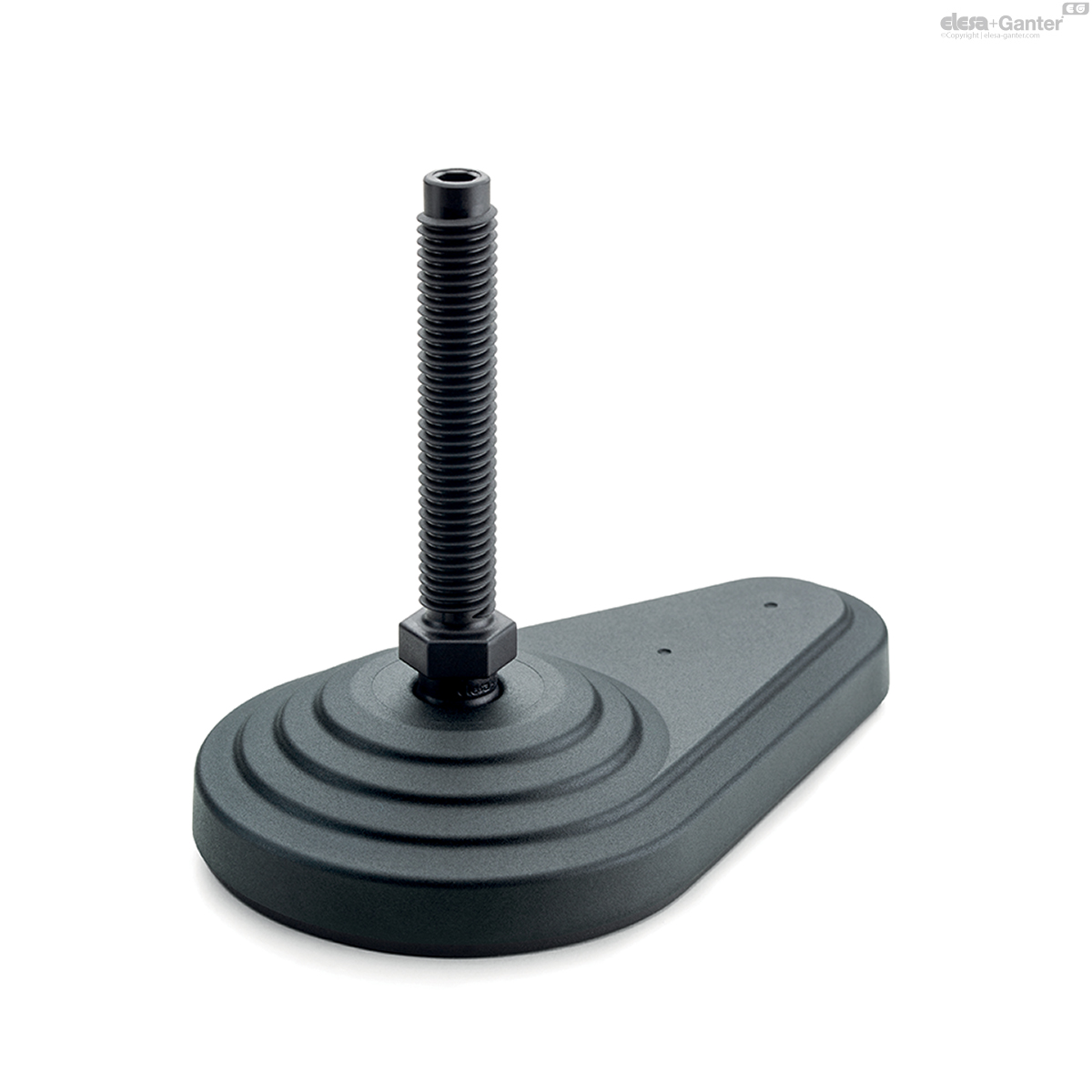

LV.FO-AS-STP

Levelling feet for ground mounting

With no-slip disk

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated stem

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, with hexagonal socket and regulation hexagon.

Standard executions

LV.FO-STP: without no-slip disk.

LV.FO-AS-STP: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

General information

Features

Thanks to the property of the SUPER-technopolymer stem, high rigidity and mechanical resistance are obtained in addition to natural resistance to corrosion.

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk).

Order information

The levelling feet are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

the codes of the Bases

the codes of the Stems

Accessories

Accessories on request

NT.: AISI 304 stainless steel or zinc-plated steel nut.

LV.FO-STP

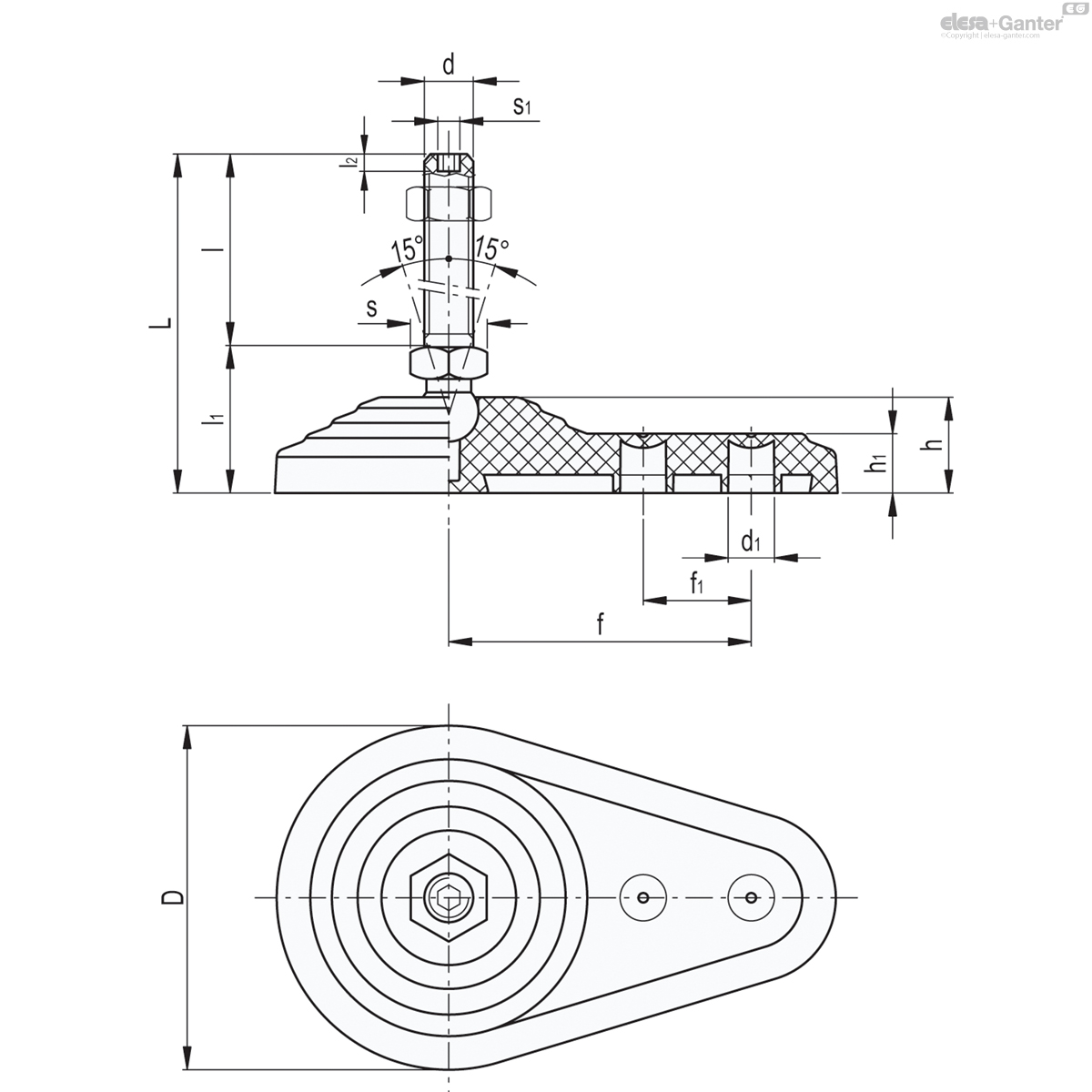

		D	d	d₁	L	l	l₁	l₂	s	s₁	Articulation Ø	Max. limit static load [N]
Code	Description													Actions
513013	LV.FO-60-14-STP-M8x44	60	M8	8.5	75.5	44	31.5	5	16	3	14	2700	56
513018	LV.FO-60-14-STP-M8x69	60	M8	8.5	100.5	69	31.5	5	16	3	14	2700	58
513023	LV.FO-60-14-STP-M10x44	60	M10	8.5	75.5	44	31.5	6	16	4	14	4800	58
513028	LV.FO-60-14-STP-M10x69	60	M10	8.5	100.5	69	31.5	6	16	4	14	5000	60
513033	LV.FO-60-14-STP-M10x99	60	M10	8.5	130.5	99	31.5	6	16	4	14	5100	64
513038	LV.FO-60-14-STP-M12x44	60	M12	8.5	75.5	44	31.5	7	16	5	14	6800	60
513043	LV.FO-60-14-STP-M12x69	60	M12	8.5	100.5	69	31.5	7	16	5	14	7000	63
513048	LV.FO-60-14-STP-M12x99	60	M12	8.5	130.5	99	31.5	7	16	5	14	7000	68
513123	LV.FO-80-14-STP-M8x44	80	M8	10.5	77	44	33	5	16	3	14	2700	94
513127	LV.FO-80-14-STP-M8x69	80	M8	10.5	102	69	33	5	16	3	14	2700	96
513223	LV.FO-80-14-STP-M10x44	80	M10	10.5	77	44	33	6	16	4	14	4800	96
513227	LV.FO-80-14-STP-M10x69	80	M10	10.5	102	69	33	6	16	4	14	5000	98
513233	LV.FO-80-14-STP-M10x99	80	M10	10.5	132	99	33	6	16	4	14	5100	102
513323	LV.FO-80-14-STP-M12x44	80	M12	10.5	77	44	33	7	16	5	14	6800	98
513327	LV.FO-80-14-STP-M12x69	80	M12	10.5	102	69	33	7	16	5	14	7000	101
513333	LV.FO-80-14-STP-M12x99	80	M12	10.5	132	99	33	7	16	5	14	7000	68
