LV.F-STP

Levelling feet for ground mounting

Technopolymer base, SUPER-technopolymer stem

Enquire Now

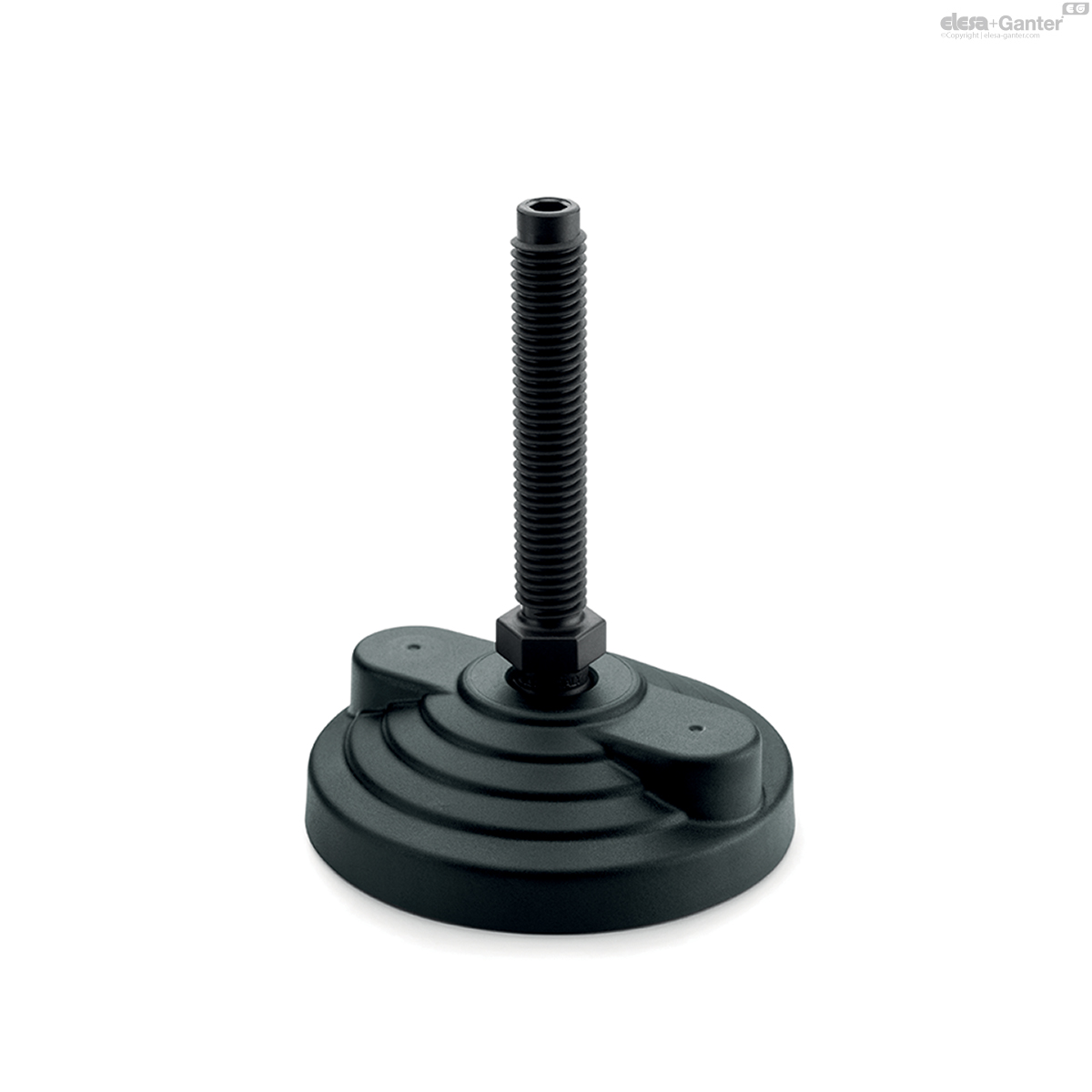

LV.F-STP

Levelling feet for ground mounting

Without no-slip disk

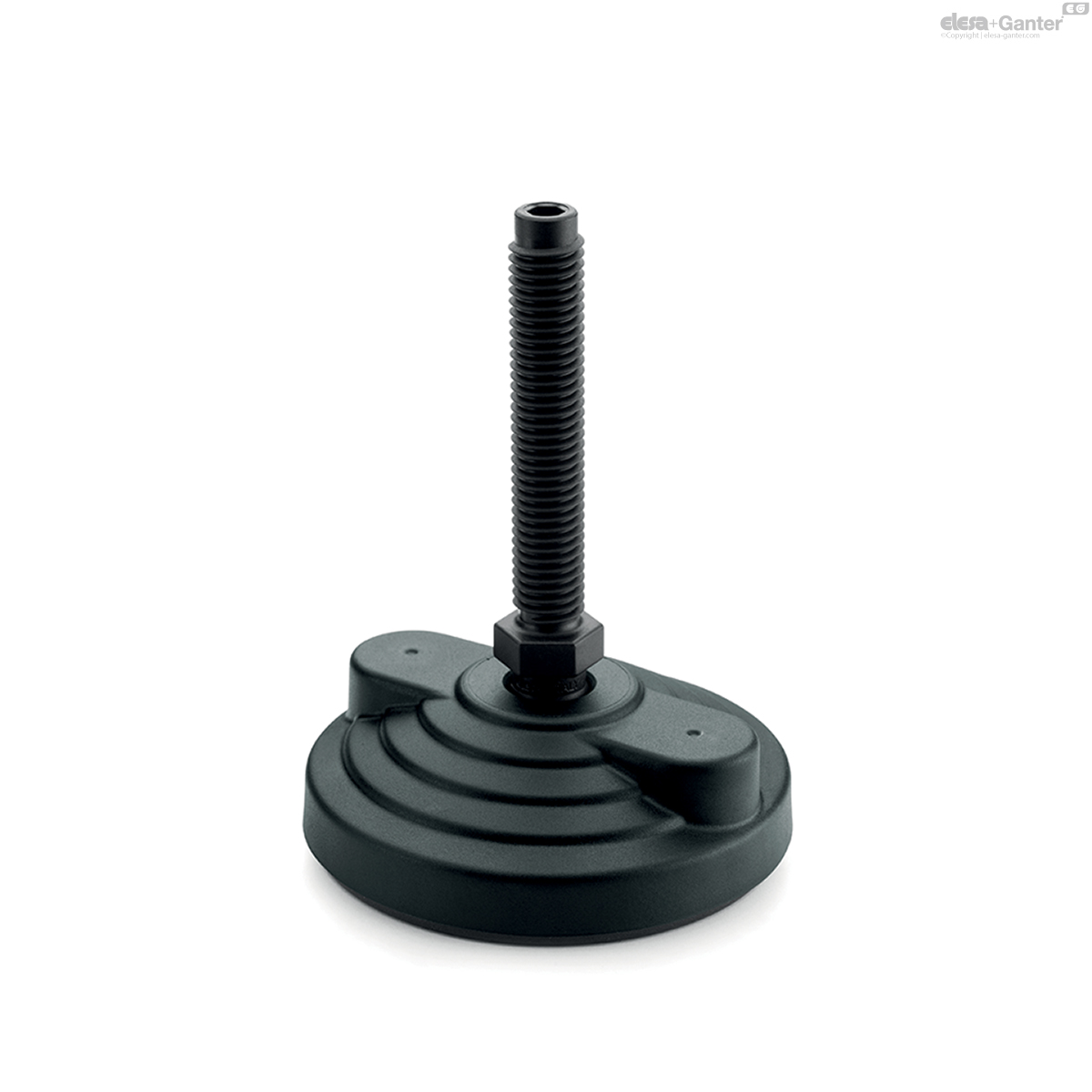

LV.F-AS-STP

Levelling feet for ground mounting

With no-slip disk

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated stem

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, with hexagonal socket and regulation hexagon.

Standard executions

LV.F-STP: without no-slip disk.

LV.F-AS-STP: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Ground mounting

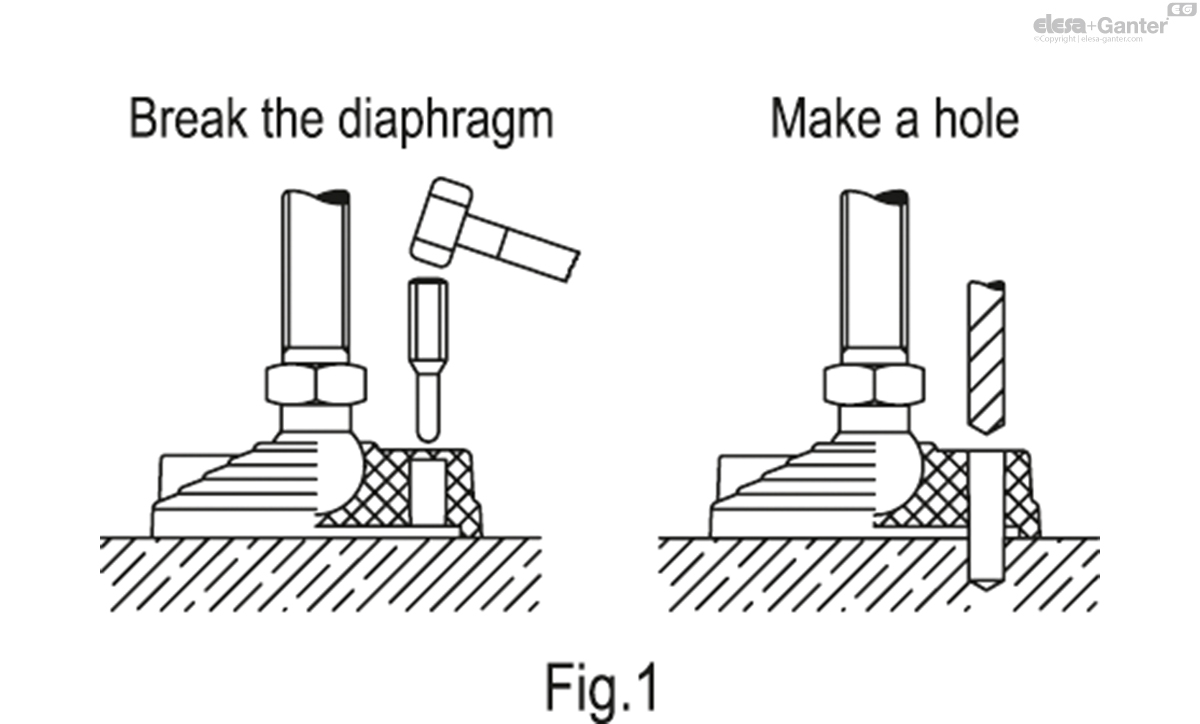

By means of two holes at 180°, supplied covered by a diaphragm (which can be easily removed by a metal tool), to avoid all unhealthy deposits of dirt and dust when the ground mounting is not required (see Fig.1).

General information

Features and applications

Thanks to the property of the SUPER-technopolymer stem, high rigidity and mechanical resistance are obtained in addition to natural resistance to corrosion.

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk).

Order information

The levelling feet are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

the codes of the Bases

the codes of the Stems

Accessories

Accessories on request

NT.: AISI 304 stainless steel or zinc-plated steel nut.

LV.F-STP

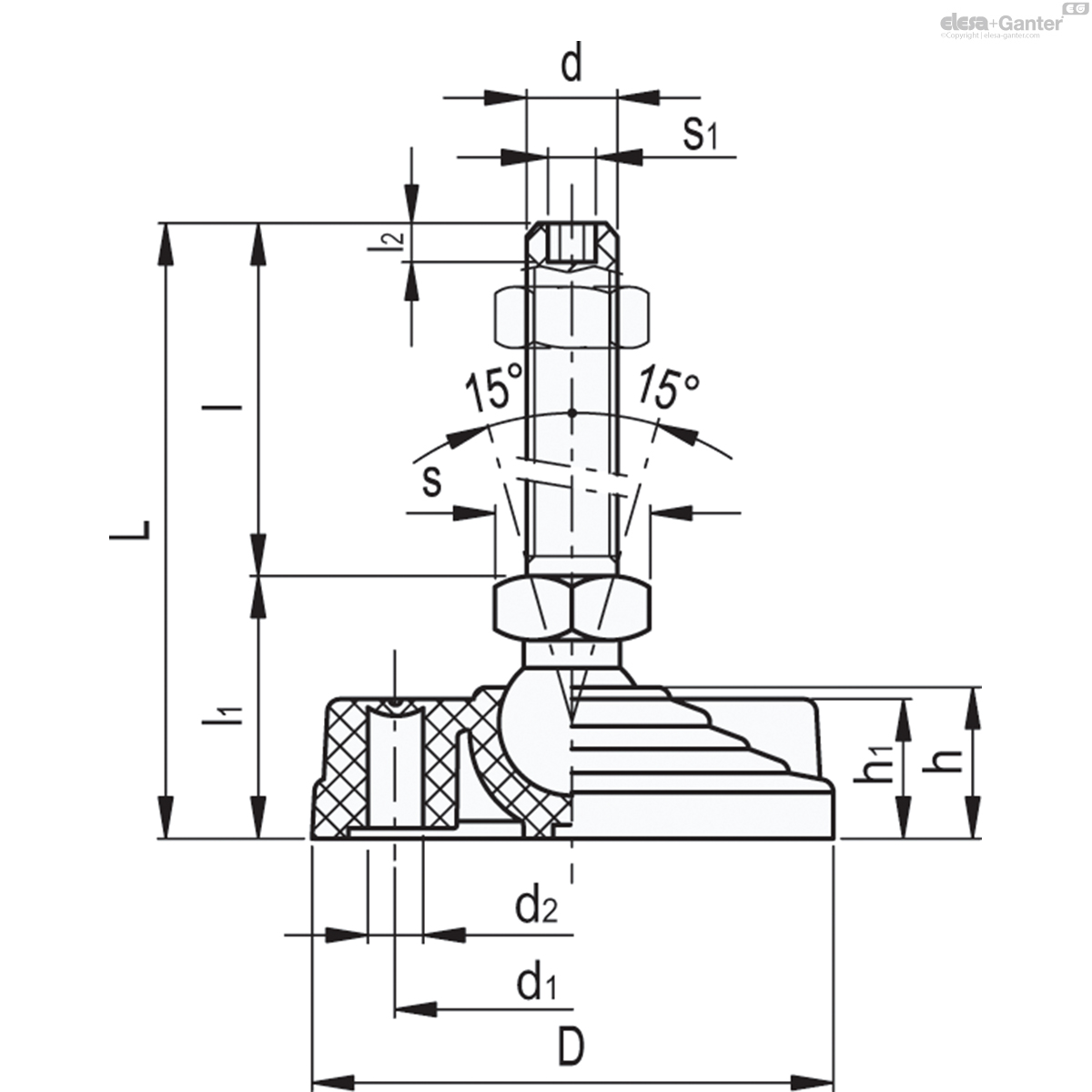

		D	d	d₁	L	l	l₁	l₂	d₂	h	h₁	s	s₁	Articulation Ø	Max. limit static load* [N]
Code	Description																Actions
311123	LV.F-80-14-STP-M8x44	80	M8	54	79	44	35	5	8.5	24	23	16	3	14	2700	63
311127	LV.F-80-14-STP-M8x69	80	M8	54	104	69	35	5	8.5	24	23	16	3	14	2700	65
311223	LV.F-80-14-STP-M10x44	80	M10	54	79	44	35	6	8.5	24	23	16	4	14	4800	65
311227	LV.F-80-14-STP-M10x69	80	M10	54	104	69	35	6	8.5	24	23	16	4	14	5000	67
311233	LV.F-80-14-STP-M10x99	80	M10	54	134	99	35	6	8.5	24	23	16	4	14	5100	71
311323	LV.F-80-14-STP-M12x44	80	M12	54	79	44	35	7	8.5	24	23	16	5	14	6800	67
311327	LV.F-80-14-STP-M12x69	80	M12	54	104	69	35	7	8.5	24	23	16	5	14	7000	70
311333	LV.F-80-14-STP-M12x99	80	M12	54	134	99	35	7	8.5	24	23	16	5	14	7000	75
312452	LV.F-100-14-STP-M8x44	100	M8	54	80	44	36	5	12.5	24	23	16	3	14	2700	93
312454	LV.F-100-14-STP-M8x69	100	M8	54	105	69	36	5	12.5	24	23	16	3	14	2700	95
312462	LV.F-100-14-STP-M10x44	100	M10	54	80	44	36	6	12.5	24	23	16	4	14	4800	95
312464	LV.F-100-14-STP-M10x69	100	M10	54	105	69	36	6	12.5	24	23	16	4	14	5000	97
312466	LV.F-100-14-STP-M10x99	100	M10	54	135	99	36	6	12.5	24	23	16	4	14	5100	101
312472	LV.F-100-14-STP-M12x44	100	M12	54	80	44	36	7	12.5	24	23	16	5	14	6800	97
312474	LV.F-100-14-STP-M12x69	100	M12	54	105	69	36	7	12.5	24	23	16	5	14	7000	100
312476	LV.F-100-14-STP-M12x99	100	M12	54	135	99	36	7	12.5	24	23	16	5	14	7000	105
