LV.F-SST-VD

Levelling feet for ground mounting

Visually Detectable technopolymer base, stainless steel stem

Enquire Now

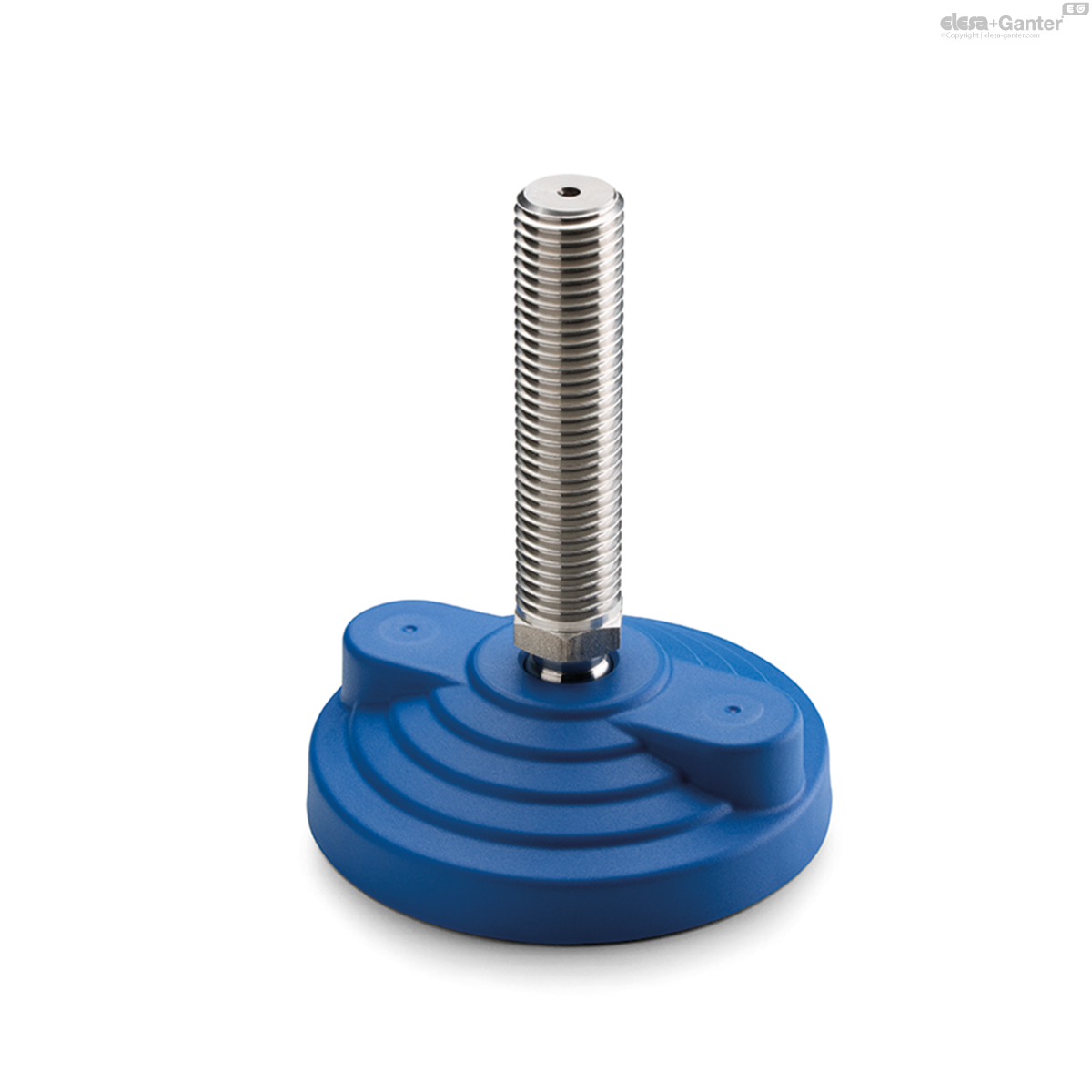

LV.F-SST-VD

Levelling feet for ground mounting

Without no-slip disk

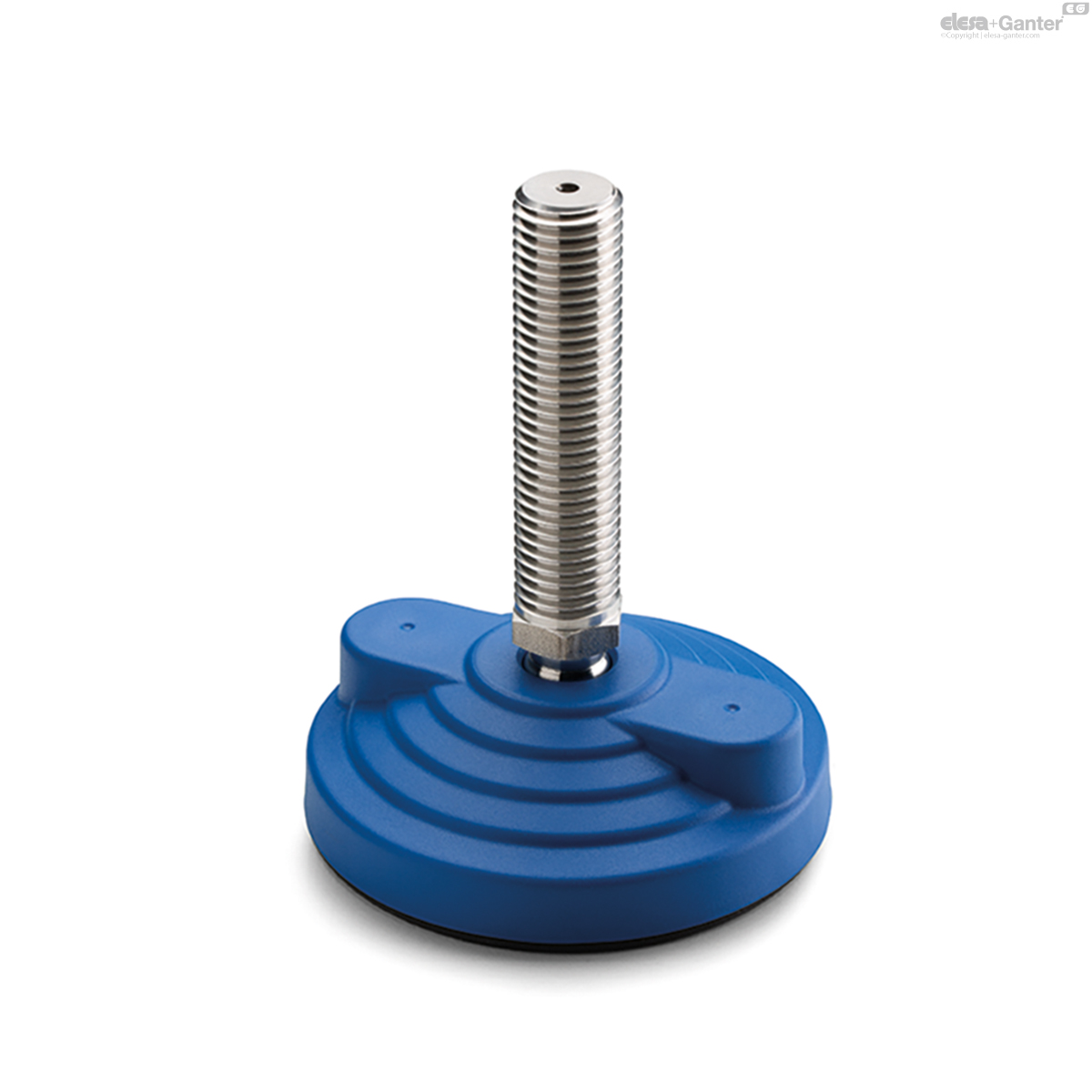

LV.F-AS-SST-VD

Levelling feet for ground mounting

With no-slip disk

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 5005 blue colour, matte finish.

Produced from FDA compliant raw material (FDA CFR.21 and EU 10/2011).

Articulated stem

Threaded AISI 304 stainless steel with regulation hexagon.

Standard executions

LV.F-SST-VD: without no-slip disk.

LV.F-AS-SST-VD: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Ground mounting

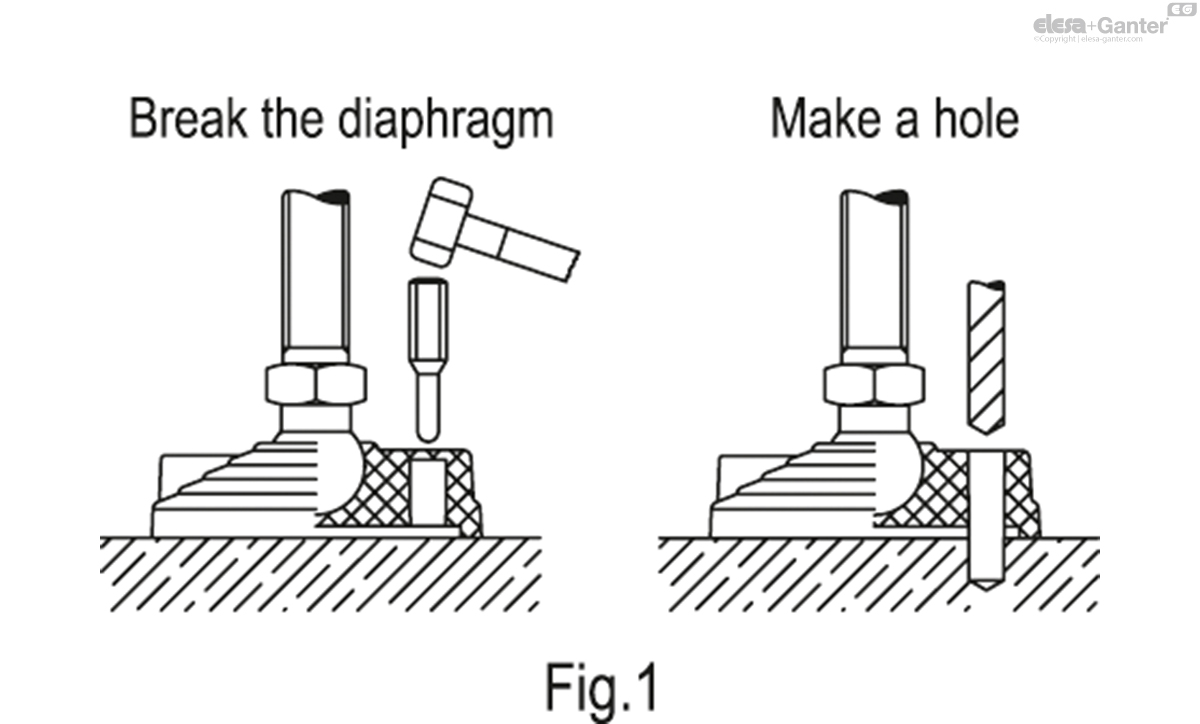

By means of two holes at 180°, supplied covered by a diaphragm (which can be easily removed by a metal tool), to avoid all unhealthy deposits of dirt and dust when the ground mounting is not required (see Fig.1).

General information

Features and applications

The RAL 5005 blue colour is easily visible in case of accidental food contamination.

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk).

Order information

The levelling feet are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

the codes of the Bases

the codes of the Stems

Accessories

Accessories on request

AISI 304 stainless steel nut (see Nuts NT.).

LV.F-SST-VD

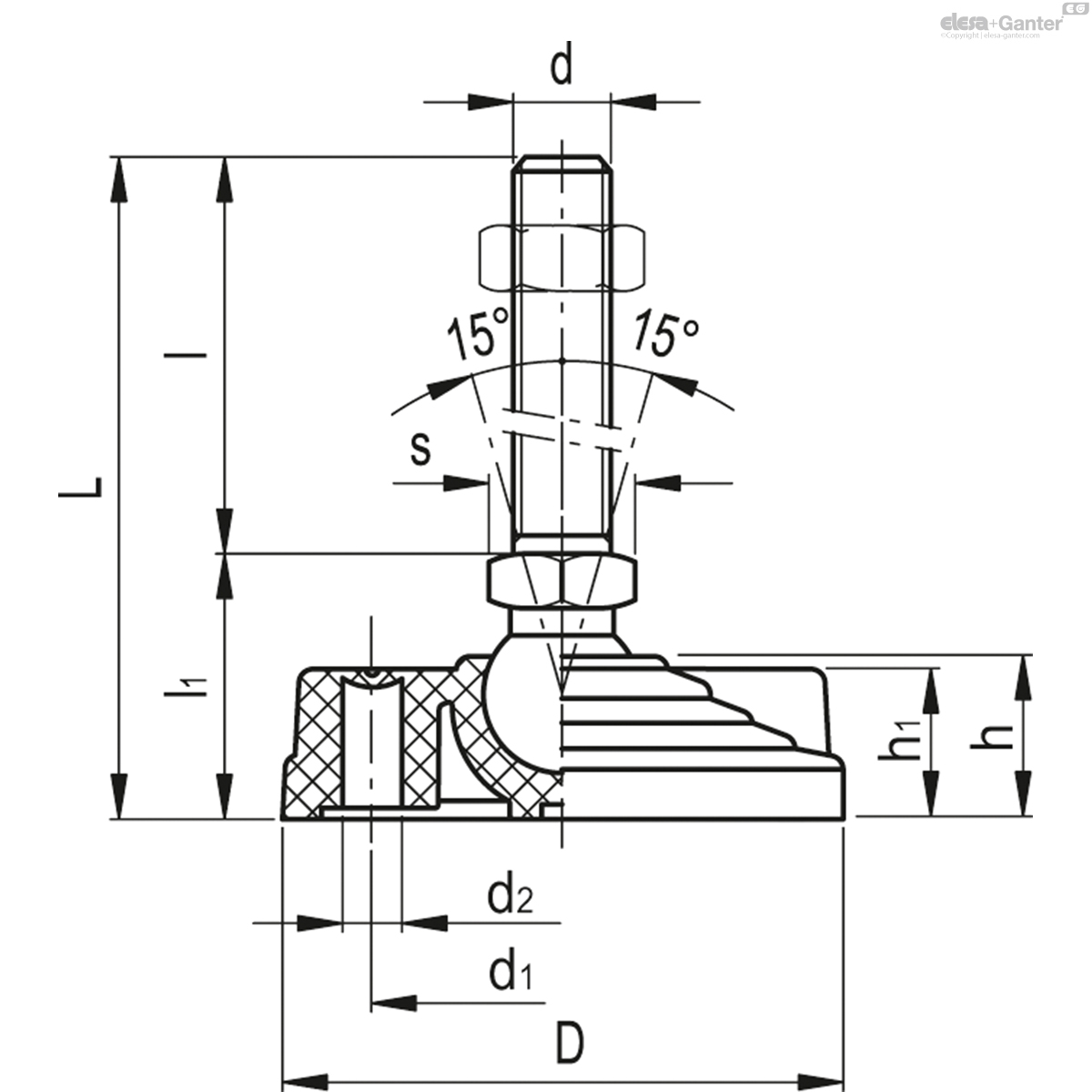

		D	d	d₁	L	l	l₁	d₂	h	h₁	s	Articulation Ø	Max. limit static load* [N]
Code	Description														Actions
185301	LV.F-80-14-SST-M8x43-VD	80	M8	54	76	43	33	8.5	24	23	14	14	16000	104
185303	LV.F-80-14-SST-M8x68-VD	80	M8	54	101	68	33	8.5	24	23	14	14	16000	104
185311	LV.F-80-14-SST-M10x43-VD	80	M10	54	76	43	33	8.5	24	23	14	14	16000	103
185313	LV.F-80-14-SST-M10x68-VD	80	M10	54	101	68	33	8.5	24	23	14	14	16000	117
185315	LV.F-80-14-SST-M10x98-VD	80	M10	54	131	98	33	8.5	24	23	14	14	16000	133
185321	LV.F-80-14-SST-M12x43-VD	80	M12	54	76	43	33	8.5	24	23	14	14	16000	114
185323	LV.F-80-14-SST-M12x68-VD	80	M12	54	101	68	33	8.5	24	23	14	14	16000	133
185325	LV.F-80-14-SST-M12x98-VD	80	M12	54	131	98	33	8.5	24	23	14	14	16000	155
185331	LV.F-80-14-SST-M14x68-VD	80	M14	54	101	68	33	8.5	24	23	14	14	16000	133
185333	LV.F-80-14-SST-M14x98-VD	80	M14	54	131	98	33	8.5	24	23	14	14	16000	155
185335	LV.F-80-14-SST-M14x148-VD	80	M14	54	181	148	33	8.5	24	23	14	14	16000	212
185341	LV.F-80-14-SST-M16x68-VD	80	M16	54	101	68	33	8.5	24	23	16	14	16000	73
185343	LV.F-80-14-SST-M16x108-VD	80	M16	54	141	108	33	8.5	24	23	16	14	16000	212
185345	LV.F-80-14-SST-M16x148-VD	80	M16	54	181	148	33	8.5	24	23	16	14	16000	286
185347	LV.F-80-14-SST-M16x168-VD	80	M16	54	201	168	33	8.5	24	23	16	14	16000	307
185351	LV.F-80-24-SST-M16x58-VD	80	M16	54	101	58	43	8.5	24	23	24	24	18000	229
185353	LV.F-80-24-SST-M16x98-VD	80	M16	54	141	98	43	8.5	24	23	24	24	18000	284
185355	LV.F-80-24-SST-M16x138-VD	80	M16	54	181	138	43	8.5	24	23	24	24	18000	332
185357	LV.F-80-24-SST-M16x158-VD	80	M16	54	201	158	43	8.5	24	23	24	24	18000	80
185361	LV.F-80-24-SST-M20x98-VD	80	M20	54	141	98	43	8.5	24	23	24	24	18000	365
185363	LV.F-80-24-SST-M20x138-VD	80	M20	54	181	138	43	8.5	24	23	24	24	18000	447
185365	LV.F-80-24-SST-M20x158-VD	80	M20	54	201	158	43	8.5	24	23	24	24	18000	490
185367	LV.F-80-24-SST-M20x198-VD	80	M20	54	241	198	43	8.5	24	23	24	24	18000	100
185371	LV.F-80-24-SST-M24x98-VD	80	M24	54	141	98	43	8.5	24	23	24	24	18000	451
185373	LV.F-80-24-SST-M24x158-VD	80	M24	54	201	158	43	8.5	24	23	24	24	18000	600
185375	LV.F-80-24-SST-M24x198-VD	80	M24	54	241	198	43	8.5	24	23	24	24	18000	750
185401	LV.F-100-14-SST-M8x43-VD	100	M8	70	76	43	33	12.5	24	23	14	14	18000	132
185403	LV.F-100-14-SST-M8x68-VD	100	M8	70	101	68	33	12.5	24	23	14	14	18000	140
185411	LV.F-100-14-SST-M10x43-VD	100	M10	70	76	43	33	12.5	24	23	14	14	18000	140
185413	LV.F-100-14-SST-M10x68-VD	100	M10	70	101	68	33	12.5	24	23	14	14	18000	153
185415	LV.F-100-14-SST-M10x98-VD	100	M10	70	131	98	33	12.5	24	23	14	14	18000	168
185421	LV.F-100-14-SST-M12x43-VD	100	M12	70	76	43	33	12.5	24	23	14	14	18000	150
185423	LV.F-100-14-SST-M12x68-VD	100	M12	70	101	68	33	12.5	24	23	14	14	18000	167
185425	LV.F-100-14-SST-M12x98-VD	100	M12	70	131	98	33	12.5	24	23	14	14	18000	189
185431	LV.F-100-14-SST-M14x68-VD	100	M14	70	101	68	33	12.5	24	23	14	14	18000	167
185433	LV.F-100-14-SST-M14x98-VD	100	M14	70	131	98	33	12.5	24	23	14	14	18000	189
185435	LV.F-100-14-SST-M14x148-VD	100	M14	70	181	148	33	12.5	24	23	14	14	18000	263
185441	LV.F-100-14-SST-M16x68-VD	100	M16	70	101	68	33	12.5	24	23	16	14	18000	214
185443	LV.F-100-14-SST-M16x108-VD	100	M16	70	141	108	33	12.5	24	23	16	14	18000	263
185445	LV.F-100-14-SST-M16x148-VD	100	M16	70	181	148	33	12.5	24	23	16	14	18000	320
185447	LV.F-100-14-SST-M16x168-VD	100	M16	70	201	168	33	12.5	24	23	16	14	18000	345
185451	LV.F-100-24-SST-M16x58-VD	100	M16	70	101	58	43	12.5	24	23	24	24	25000	270
185453	LV.F-100-24-SST-M16x98-VD	100	M16	70	141	98	43	12.5	24	23	24	24	25000	325
185455	LV.F-100-24-SST-M16x138-VD	100	M16	70	181	138	43	12.5	24	23	24	24	25000	373
185457	LV.F-100-24-SST-M16x158-VD	100	M16	70	201	158	43	12.5	24	23	24	24	25000	121
185461	LV.F-100-24-SST-M20x98-VD	100	M20	70	141	98	43	12.5	24	23	24	24	25000	406
185463	LV.F-100-24-SST-M20x138-VD	100	M20	70	181	138	43	12.5	24	23	24	24	25000	488
185465	LV.F-100-24-SST-M20x158-VD	100	M20	70	201	158	43	12.5	24	23	24	24	25000	531
185467	LV.F-100-24-SST-M20x198-VD	100	M20	70	241	198	43	12.5	24	23	24	24	25000	141
185471	LV.F-100-24-SST-M24x98-VD	100	M24	70	141	98	43	12.5	24	23	24	24	25000	492
185473	LV.F-100-24-SST-M24x158-VD	100	M24	70	201	158	43	12.5	24	23	24	24	25000	641
185475	LV.F-100-24-SST-M24x198-VD	100	M24	70	241	198	43	12.5	24	23	24	24	25000	791
185501	LV.F-125-24-SST-M16x58-VD	125	M16	95	125	58	67	12.5	46	23	24	24	28000	373
185503	LV.F-125-24-SST-M16x98-VD	125	M16	95	165	98	67	12.5	46	23	24	24	28000	428
185505	LV.F-125-24-SST-M16x138-VD	125	M16	95	205	138	67	12.5	46	23	24	24	28000	476
185507	LV.F-125-24-SST-M16x158-VD	125	M16	95	225	158	67	12.5	46	23	24	24	28000	224
185511	LV.F-125-24-SST-M20x98-VD	125	M20	95	165	98	67	12.5	46	23	24	24	28000	501
185513	LV.F-125-24-SST-M20x138-VD	125	M20	95	205	138	67	12.5	46	23	24	24	28000	591
185515	LV.F-125-24-SST-M20x158-VD	125	M20	95	225	158	67	12.5	46	23	24	24	28000	634
185517	LV.F-125-24-SST-M20x198-VD	125	M20	95	265	198	67	12.5	46	23	24	24	28000	244
185521	LV.F-125-24-SST-M24x98-VD	125	M24	95	165	98	67	12.5	46	23	24	24	28000	595
185523	LV.F-125-24-SST-M24x158-VD	125	M24	95	225	158	67	12.5	46	23	24	24	28000	744
185525	LV.F-125-24-SST-M24x198-VD	125	M24	95	265	198	67	12.5	46	23	24	24	28000	894
