LV.F-SST-ESD-C

Levelling feet for ground mounting

ESD conductive technopolymer base, stainless steel stem

Enquire Now

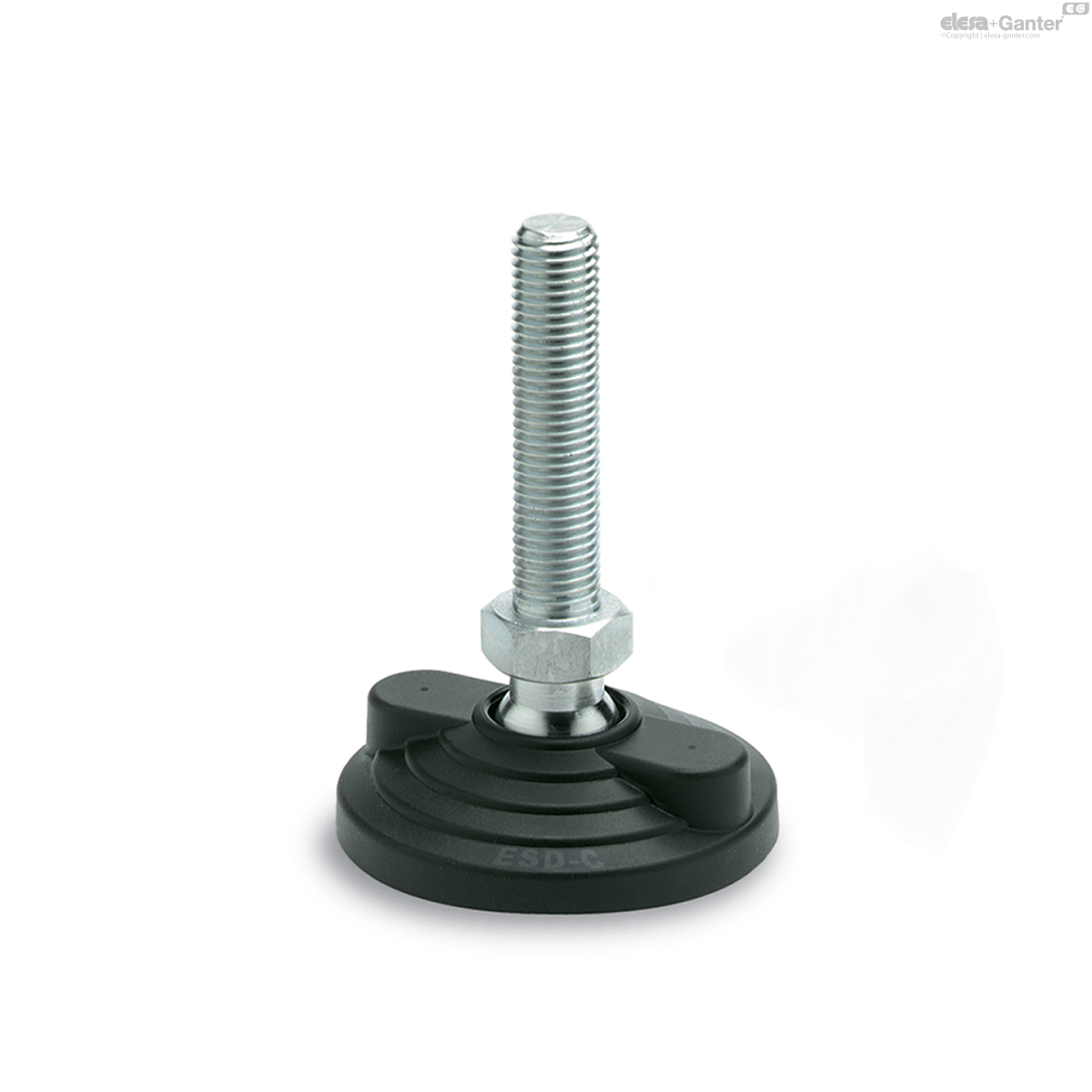

LV.F-SST-ESD-C

Levelling feet for ground mounting

Without no-slip disk

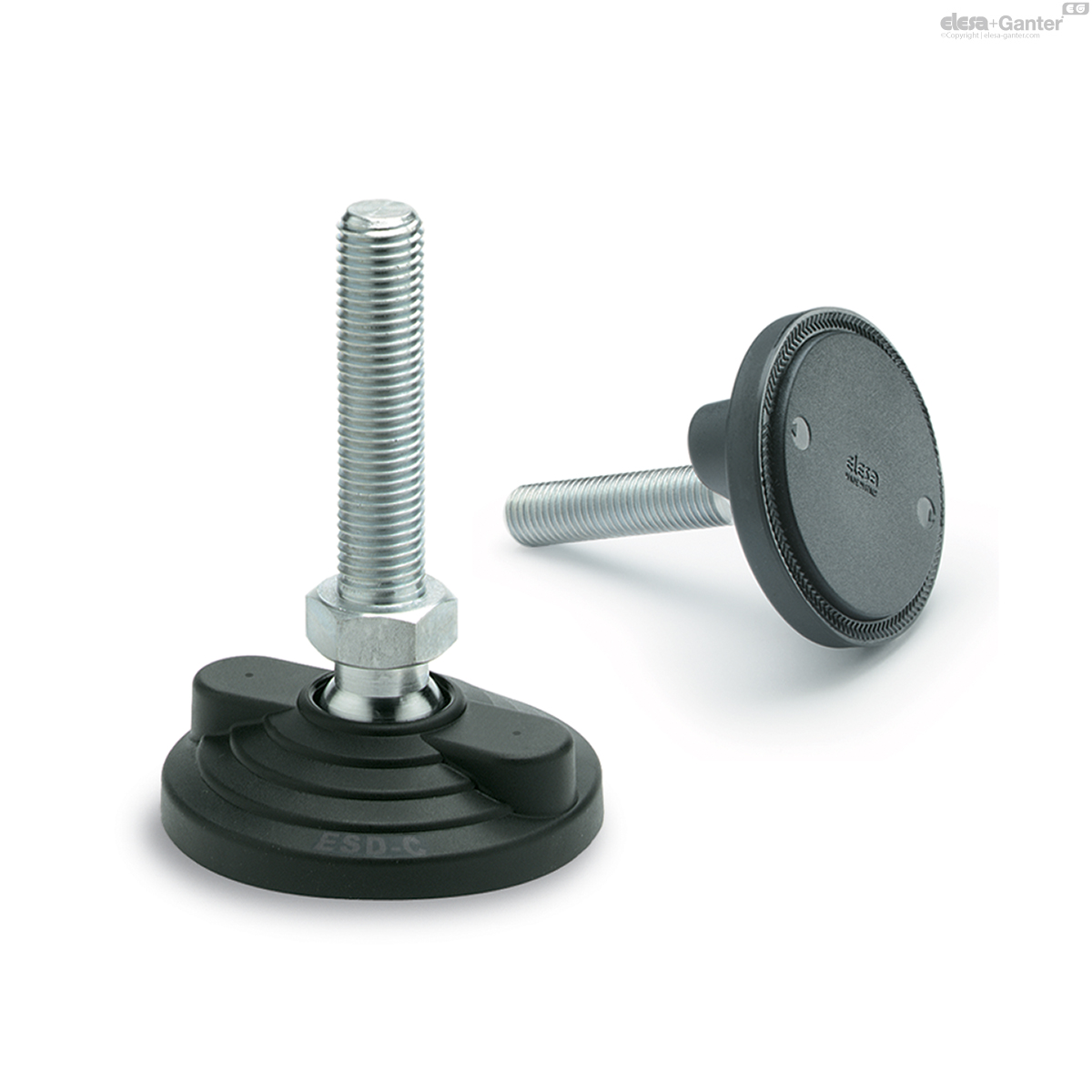

LV.F-AS-SST-ESD-C

Levelling feet for ground mounting

With no-slip disk

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) special conductive technopolymer, black colour, matte finish.

Surface resistivity = 10³ Ω (ASTM D257 measuring method).

Volume resistivity = 10³ Ωcm (ASTM D257 measuring method).

Articulated stem

Threaded AISI 304 stainless steel with regulation hexagon.

Standard executions

LV.F-SST-ESD-C: without no-slip disk.

LV.F-AS-SST-ESD-C: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Surface resistivity = 10³ Ω (ASTM D991 measuring method).

Volume resistivity = 10³ Ωcm (ASTM D991 measuring method).

Ground mounting

By means of two holes at 180°, supplied covered by a diaphragm (which can be easily removed by a metal tool), to avoid all unhealthy deposits of dirt and dust when the ground mounting is not required (see Fig.1).

General information

Features and applications

The special conductive technopolymer (ESD-C Electrostatic Discharge Conductive) prevents the accumulation of electrostatic charge.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disks.

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The bases are suitable for 'ESD PROTECTED AREA' (EPA) where components, which are susceptible to electrostatic discharges, are handled. The (ESD-C) indelibly printed mark on the surface of the levelling feet bases identifies the particular conductive features of the material according to EN 100015/1 and IEC 61340-5-1.

Order information

The levelling feet are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

the codes of the Bases

the codes of the Stems.

Accessories

Accessories on request

Zinc-plated steel nut (see Nuts NT..

LV.F-SST-ESD-C

		D	d	L	l	l₁	d₁	d₂	h	h₁	s	Articulation Ø	Max. limit static load* [N]
Code	Description														Actions
332451-ESD	LV.F-100-14-SST-M8x43-ESD-C	100	M8	76	43	33	70	12.5	24	23	14	14	18000	132
332453-ESD	LV.F-100-14-SST-M8x68-ESD-C	100	M8	101	68	33	70	12.5	24	23	14	14	18000	140
332461-ESD	LV.F-100-14-SST-M10x43-ESD-C	100	M10	76	43	33	70	12.5	24	23	14	14	18000	140
332463-ESD	LV.F-100-14-SST-M10x68-ESD-C	100	M10	101	68	33	70	12.5	24	23	14	14	18000	153
332465-ESD	LV.F-100-14-SST-M10x98-ESD-C	100	M10	131	98	33	70	12.5	24	23	14	14	18000	168
332471-ESD	LV.F-100-14-SST-M12x43-ESD-C	100	M12	76	43	33	70	12.5	24	23	14	14	18000	150
332473-ESD	LV.F-100-14-SST-M12x68-ESD-C	100	M12	101	68	33	70	12.5	24	23	14	14	18000	167
332475-ESD	LV.F-100-14-SST-M12x98-ESD-C	100	M12	131	98	33	70	12.5	24	23	14	14	18000	189
332481-ESD	LV.F-100-14-SST-M16x68-ESD-C	100	M16	101	68	33	70	12.5	24	23	16	14	18000	214
332483-ESD	LV.F-100-14-SST-M16x108-ESD-C	100	M16	141	108	33	70	12.5	24	23	16	14	18000	263
332485-ESD	LV.F-100-14-SST-M16x148-ESD-C	100	M16	181	148	33	70	12.5	24	23	16	14	18000	320
332487-ESD	LV.F-100-14-SST-M16x168-ESD-C	100	M16	201	168	33	70	12.5	24	23	16	14	18000	345
