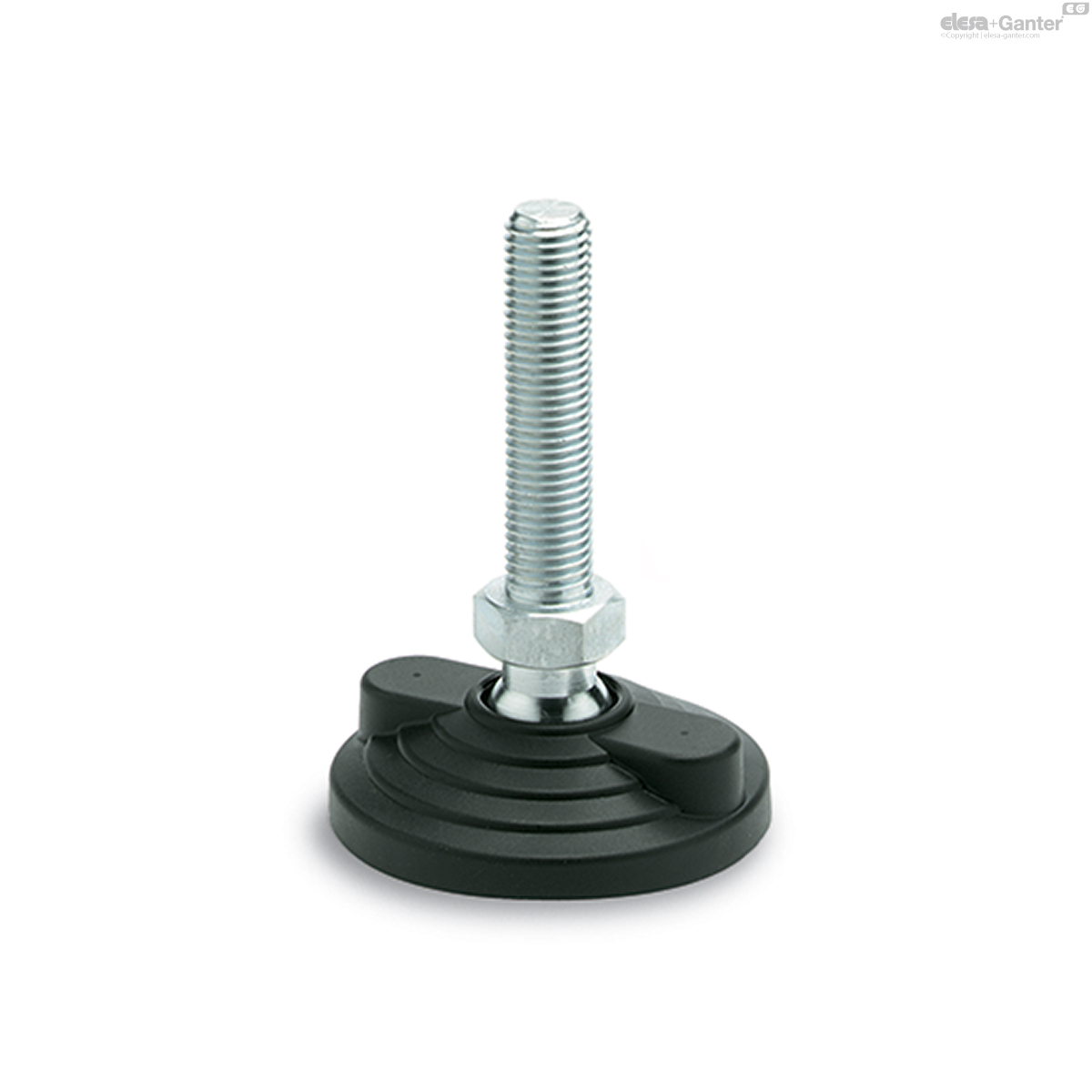

LV.F-SST

Levelling elements for ground mounting

Technopolymer base, stainless steel stem

Enquire Now

LV.F-SST

Levelling elements for ground mounting

Without no-slip disk

LV.F-AS-SST

Levelling elements for ground mounting

With no-slip disk

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated stem

Threaded AISI 304 stainless steel with regulation hexagon.

Standard executions

LV.F-SST: without no-slip disk.
LV.F-AS-SST: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Ground mounting

By means of two holes at 180°, supplied covered by a diaphragm (which can be easily removed by a metal tool), to avoid all unhealthy deposits of dirt and dust when the ground mounting is not required (see Fig. 1).

General information

Features

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk).

Order information

The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

Accessories on request

AISI 304 stainless steel nut (see Nuts NT.-).

LV.F-SST

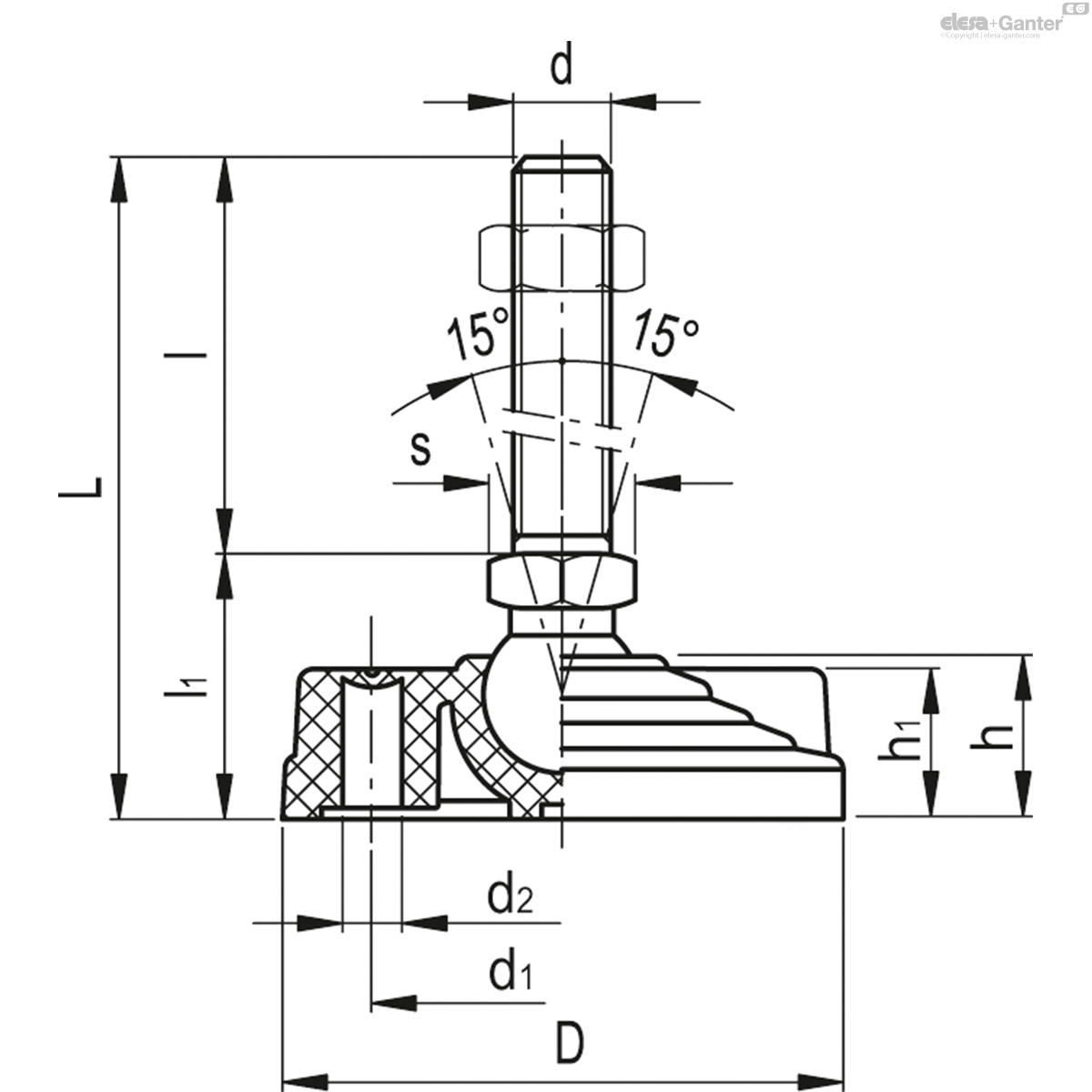

		D	d	d₁	L	l	Articulation Ø	l₁	d₂	h	h₁	s	Articulation Ø	Max. limit static load* [N]
Code	Description															Actions
331121	LV.F-80-14-SST-M8x43	80	M8	54	76	43	14	33	8.5	24	23	14	14	16000	104
331125	LV.F-80-14-SST-M8x68	80	M8	54	101	68	14	33	8.5	24	23	14	14	16000	104
331221	LV.F-80-14-SST-M10x43	80	M10	54	76	43	14	33	8.5	24	23	14	14	16000	103
331225	LV.F-80-14-SST-M10x68	80	M10	54	101	68	14	33	8.5	24	23	14	14	16000	117
331231	LV.F-80-14-SST-M10x98	80	M10	54	131	98	14	33	8.5	24	23	14	14	16000	133
331321	LV.F-80-14-SST-M12x43	80	M12	54	76	43	14	33	8.5	24	23	14	14	16000	114
331325	LV.F-80-14-SST-M12x68	80	M12	54	101	68	14	33	8.5	24	23	14	14	16000	133
331331	LV.F-80-14-SST-M12x98	80	M12	54	131	98	14	33	8.5	24	23	14	14	16000	155
331421	LV.F-80-14-SST-M14X68	80	M14	54	101	68	14	33	8.5	24	23	14	14	16000	133
331431	LV.F-80-14-SST-M14X98	80	M14	54	131	98	14	33	8.5	24	23	14	14	16000	155
331441	LV.F-80-14-SST-M14X148	80	M14	54	181	148	14	33	8.5	24	23	14	14	16000	212
331521	LV.F-80-14-SST-M16x68	80	M16	54	101	68	14	33	8.5	24	23	16	14	16000	73
331525	LV.F-80-14-SST-M16x108	80	M16	54	141	108	14	33	8.5	24	23	16	14	16000	212
331541	LV.F-80-14-SST-M16x148	80	M16	54	181	148	14	33	8.5	24	23	16	14	16000	286
331561	LV.F-80-14-SST-M16x168	80	M16	54	201	168	14	33	8.5	24	23	16	14	16000	307
331621	LV.F-80-24-SST-M16x58	80	M16	54	101	58	24	43	8.5	24	23	24	24	18000	229
331625	LV.F-80-24-SST-M16x98	80	M16	54	141	98	24	43	8.5	24	23	24	24	18000	284
331641	LV.F-80-24-SST-M16x138	80	M16	54	181	138	24	43	8.5	24	23	24	24	18000	332
331661	LV.F-80-24-SST-M16x158	80	M16	54	201	158	24	43	8.5	24	23	24	24	18000	80
331725	LV.F-80-24-SST-M20x98	80	M20	54	141	98	24	43	8.5	24	23	24	24	18000	365
331741	LV.F-80-24-SST-M20x138	80	M20	54	181	138	24	43	8.5	24	23	24	24	18000	447
331761	LV.F-80-24-SST-M20x158	80	M20	54	201	158	24	43	8.5	24	23	24	24	18000	490
331781	LV.F-80-24-SST-M20x198	80	M20	54	241	198	24	43	8.5	24	23	24	24	18000	100
331825	LV.F-80-24-SST-M24x98	80	M24	54	141	98	24	43	8.5	24	23	24	24	18000	451
331861	LV.F-80-24-SST-M24x158	80	M24	54	201	158	24	43	8.5	24	23	24	24	18000	600
331881	LV.F-80-24-SST-M24x198	80	M24	54	241	198	24	43	8.5	24	23	24	24	18000	750
332451	LV.F-100-14-SST-M8x43	100	M8	70	76	43	14	33	12.5	24	23	14	14	18000	132
332453	LV.F-100-14-SST-M8x68	100	M8	70	101	68	14	33	12.5	24	23	14	14	18000	140
332461	LV.F-100-14-SST-M10x43	100	M10	70	76	43	14	33	12.5	24	23	14	14	18000	140
332463	LV.F-100-14-SST-M10x68	100	M10	70	101	68	14	33	12.5	24	23	14	14	18000	153
332465	LV.F-100-14-SST-M10x98	100	M10	70	131	98	14	33	12.5	24	23	14	14	18000	168
332471	LV.F-100-14-SST-M12x43	100	M12	70	76	43	14	33	12.5	24	23	14	14	18000	150
332473	LV.F-100-14-SST-M12x68	100	M12	70	101	68	14	33	12.5	24	23	14	14	18000	167
332475	LV.F-100-14-SST-M12x98	100	M12	70	131	98	14	33	12.5	24	23	14	14	18000	189
332477	LV.F-100-14-SST-M14X68	100	M14	70	101	68	14	33	12.5	24	23	14	14	18000	167
332479	LV.F-100-14-SST-M14X98	100	M14	70	131	98	14	33	12.5	24	23	14	14	18000	189
332480	LV.F-100-14-SST-M14X148	100	M14	70	181	148	14	33	12.5	24	23	14	14	18000	263
332481	LV.F-100-14-SST-M16x68	100	M16	70	101	68	14	33	12.5	24	23	16	14	18000	214
332483	LV.F-100-14-SST-M16x108	100	M16	70	141	108	14	33	12.5	24	23	16	14	18000	263
332485	LV.F-100-14-SST-M16x148	100	M16	70	181	148	14	33	12.5	24	23	16	14	18000	320
332487	LV.F-100-14-SST-M16x168	100	M16	70	201	168	14	33	12.5	24	23	16	14	18000	345
332521	LV.F-100-24-SST-M16x58	100	M16	70	101	58	24	43	12.5	24	23	24	24	25000	270
332525	LV.F-100-24-SST-M16x98	100	M16	70	141	98	24	43	12.5	24	23	24	24	25000	325
332541	LV.F-100-24-SST-M16x138	100	M16	70	181	138	24	43	12.5	24	23	24	24	25000	373
332561	LV.F-100-24-SST-M16x158	100	M16	70	201	158	24	43	12.5	24	23	24	24	25000	121
332625	LV.F-100-24-SST-M20x98	100	M20	70	141	98	24	43	12.5	24	23	24	24	25000	406
332641	LV.F-100-24-SST-M20x138	100	M20	70	181	138	24	43	12.5	24	23	24	24	25000	488
332661	LV.F-100-24-SST-M20x158	100	M20	70	201	158	24	43	12.5	24	23	24	24	25000	531
332681	LV.F-100-24-SST-M20x198	100	M20	70	241	198	24	43	12.5	24	23	24	24	25000	141
332725	LV.F-100-24-SST-M24x98	100	M24	70	141	98	24	43	12.5	24	23	24	24	25000	492
332761	LV.F-100-24-SST-M24x158	100	M24	70	201	158	24	43	12.5	24	23	24	24	25000	641
332781	LV.F-100-24-SST-M24x198	100	M24	70	241	198	24	43	12.5	24	23	24	24	25000	791
333521	LV.F-125-24-SST-M16x58	125	M16	95	125	58	24	67	12.5	46	23	24	24	28000	373
333525	LV.F-125-24-SST-M16x98	125	M16	95	165	98	24	67	12.5	46	23	24	24	28000	428
333541	LV.F-125-24-SST-M16x138	125	M16	95	205	138	24	67	12.5	46	23	24	24	28000	476
333561	LV.F-125-24-SST-M16x158	125	M16	95	225	158	24	67	12.5	46	23	24	24	28000	224
333625	LV.F-125-24-SST-M20x98	125	M20	95	165	98	24	67	12.5	46	23	24	24	28000	501
333641	LV.F-125-24-SST-M20x138	125	M20	95	205	138	24	67	12.5	46	23	24	24	28000	591
333661	LV.F-125-24-SST-M20x158	125	M20	95	225	158	24	67	12.5	46	23	24	24	28000	634
333681	LV.F-125-24-SST-M20x198	125	M20	95	265	198	24	67	12.5	46	23	24	24	28000	244
333725	LV.F-125-24-SST-M24x98	125	M24	95	165	98	24	67	12.5	46	23	24	24	28000	595
333761	LV.F-125-24-SST-M24x158	125	M24	95	225	158	24	67	12.5	46	23	24	24	28000	744
333781	LV.F-125-24-SST-M24x198	125	M24	95	265	198	24	67	12.5	46	23	24	24	28000	894
