LV.F-PP-SST

Levelling feet for ground mounting

Polypropylene base, stainless steel stem

Enquire Now

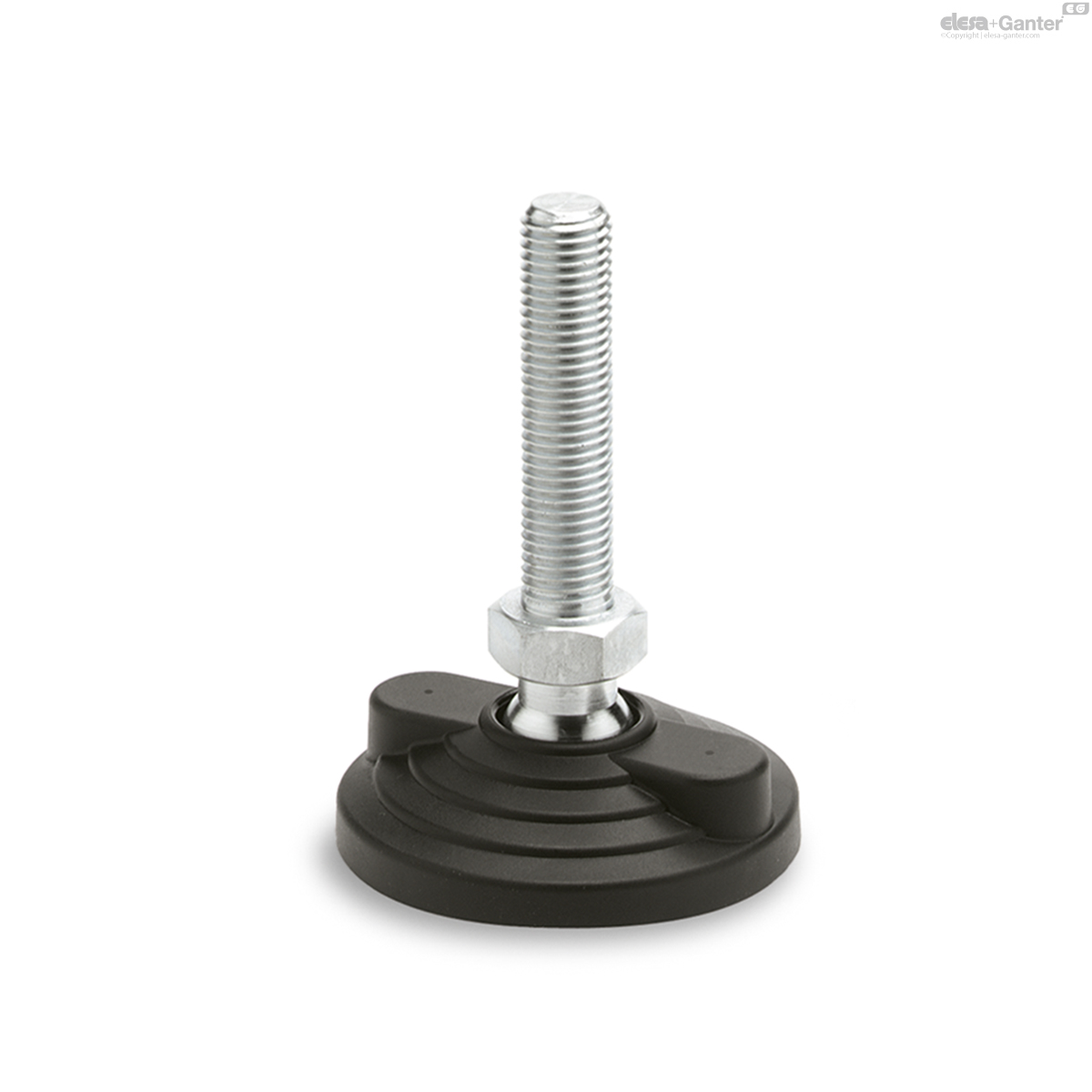

LV.F-PP-SST

Levelling feet for ground mounting

Without no-slip disk

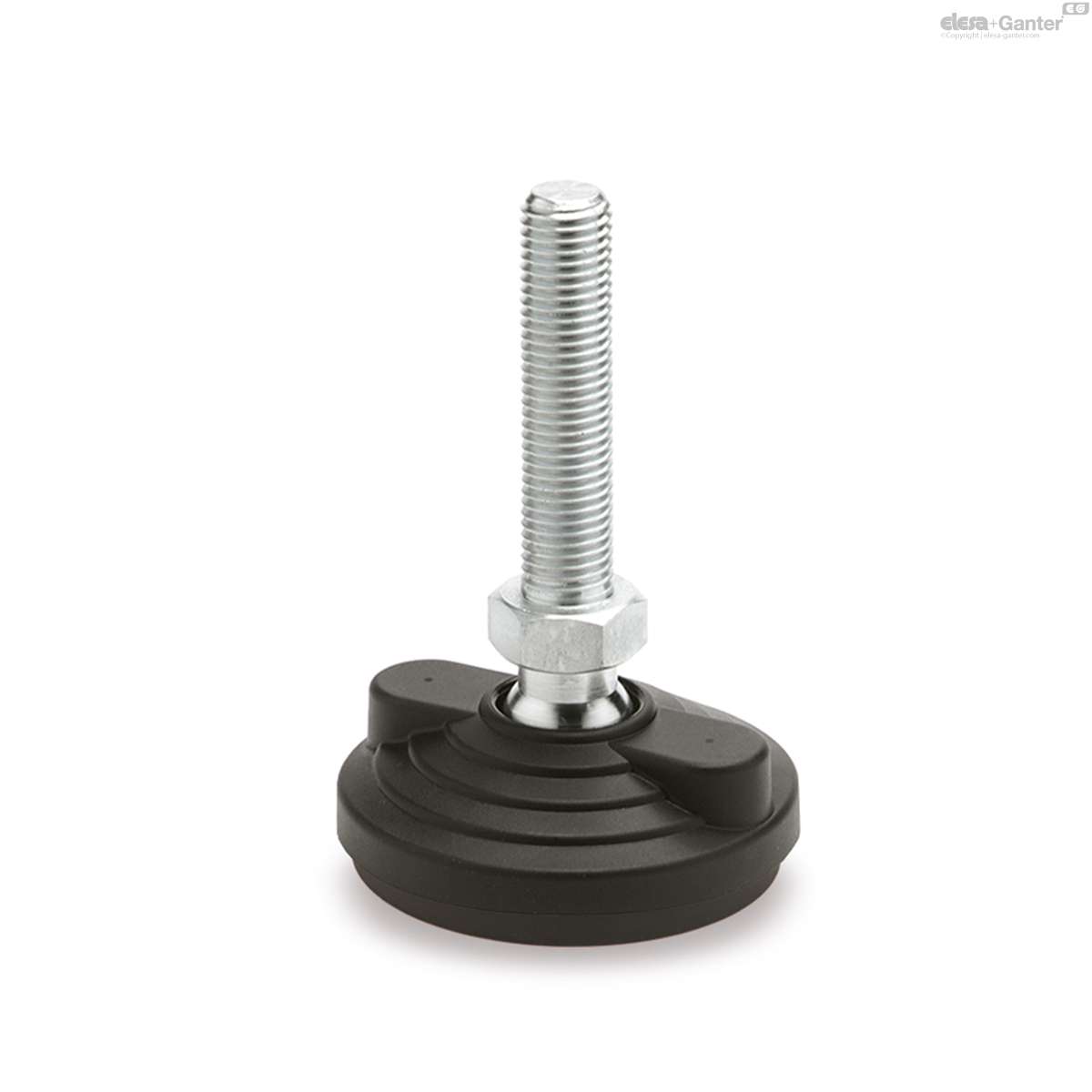

LV.F-PP-AS-SST

Levelling feet for ground mounting

With no-slip disk

Description

Main specifications

Base

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Articulated stem

Threaded AISI 304 stainless steel with regulation hexagon.

Standard executions

LV.F-PP-SST: without no-slip disk.
LV.F-PP-AS-SST: with EPDM rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Ground mounting

By means of two holes at 180°, supplied covered by a diaphragm (which can be easily removed by a metal tool), to avoid all unhealthy deposits of dirt and dust when the ground mounting is not required (see Fig.1).

General information

Features and applications

Polypropylene levelling elements are particularly suitable for those sectors where they can be in contact with chemical agents and/or for frequent washing with acidic or basic detergent solutions, such as in the chemical, process, pharmaceutical, food, textile and paper industry.

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disks).

Order information

The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

Accessories

Accessories on request

AISI 304 stainless steel nut (see Nuts NT.).

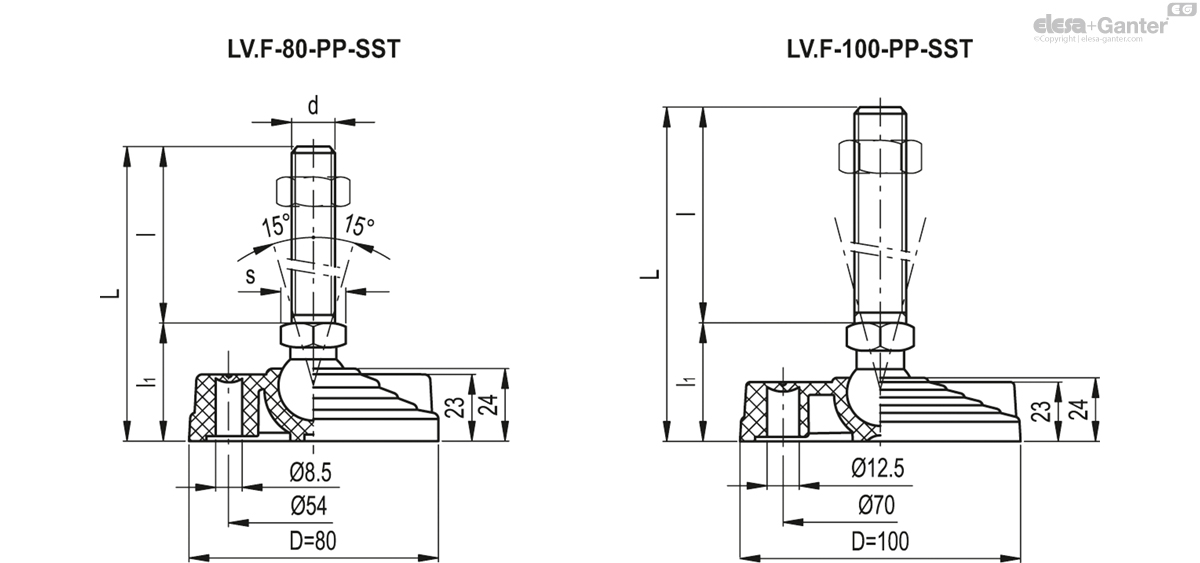

LV.F-PP-SST

		D	d	L	l	l₁	s	Articulation Ø	[N]*	[N]**
Code	Description											Actions
390621	LV.F-80-PP-24-SST-M16x58	80	M16	101	58	43	24	24	4000	18000	229
390625	LV.F-80-PP-24-SST-M16x98	80	M16	141	98	43	24	24	4000	18000	284
390641	LV.F-80-PP-24-SST-M16x138	80	M16	181	138	43	24	24	4000	18000	332
390661	LV.F-80-PP-24-SST-M16x158	80	M16	201	158	43	24	24	4000	18000	80
390725	LV.F-80-PP-24-SST-M20x98	80	M20	141	98	43	24	24	4000	18000	365
390741	LV.F-80-PP-24-SST-M20x138	80	M20	181	138	43	24	24	4000	18000	447
390761	LV.F-80-PP-24-SST-M20x158	80	M20	201	158	43	24	24	4000	18000	490
390781	LV.F-80-PP-24-SST-M20x198	80	M20	241	198	43	24	24	4000	18000	100
390825	LV.F-80-PP-24-SST-M24x98	80	M24	141	98	43	24	24	4000	18000	451
390861	LV.F-80-PP-24-SST-M24x158	80	M24	201	158	43	24	24	4000	18000	600
390881	LV.F-80-PP-24-SST-M24x198	80	M24	241	198	43	24	24	4000	18000	750
391521	LV.F-100-PP-24-SST-M16x58	100	M16	101	58	43	24	24	5000	18500	270
391525	LV.F-100-PP-24-SST-M16x98	100	M16	141	98	43	24	24	5000	18500	325
391541	LV.F-100-PP-24-SST-M16x138	100	M16	181	138	43	24	24	5000	18500	373
391561	LV.F-100-PP-24-SST-M16x158	100	M16	201	158	43	24	24	5000	18500	121
391625	LV.F-100-PP-24-SST-M20x98	100	M20	141	98	43	24	24	5000	18500	406
391641	LV.F-100-PP-24-SST-M20x138	100	M20	181	138	43	24	24	5000	18500	488
391661	LV.F-100-PP-24-SST-M20x158	100	M20	201	158	43	24	24	5000	18500	531
391681	LV.F-100-PP-24-SST-M20x198	100	M20	241	198	43	24	24	5000	18500	141
391725	LV.F-100-PP-24-SST-M24x98	100	M24	141	98	43	24	24	5000	18500	492
391761	LV.F-100-PP-24-SST-M24x158	100	M24	201	158	43	24	24	5000	18500	641
391781	LV.F-100-PP-24-SST-M24x198	100	M24	241	198	43	24	24	5000	18500	791
