LV.F-SST-VD

Levelling feet for ground mounting

Visually Detectable technopolymer base, stainless steel stem

Enquire Now

LV.F-SST-VD

Levelling feet for ground mounting

Without no-slip disk

LV.F-AS-SST-VD

Levelling feet for ground mounting

With no-slip disk

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 5005 blue colour, matte finish.

Produced from FDA compliant raw material (FDA CFR.21 and EU 10/2011).

Articulated stem

Threaded AISI 304 stainless steel with regulation hexagon.

Standard executions

LV.F-SST-VD: without no-slip disk.

LV.F-AS-SST-VD: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Ground mounting

By means of two holes at 180°, supplied covered by a diaphragm (which can be easily removed by a metal tool), to avoid all unhealthy deposits of dirt and dust when the ground mounting is not required (see Fig.1).

General information

Features and applications

The RAL 5005 blue colour is easily visible in case of accidental food contamination.

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk).

Order information

The levelling feet are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

the codes of the Bases

the codes of the Stems

Accessories

Accessories on request

AISI 304 stainless steel nut (see Nuts NT.).

LV.F-AS-SST-VD

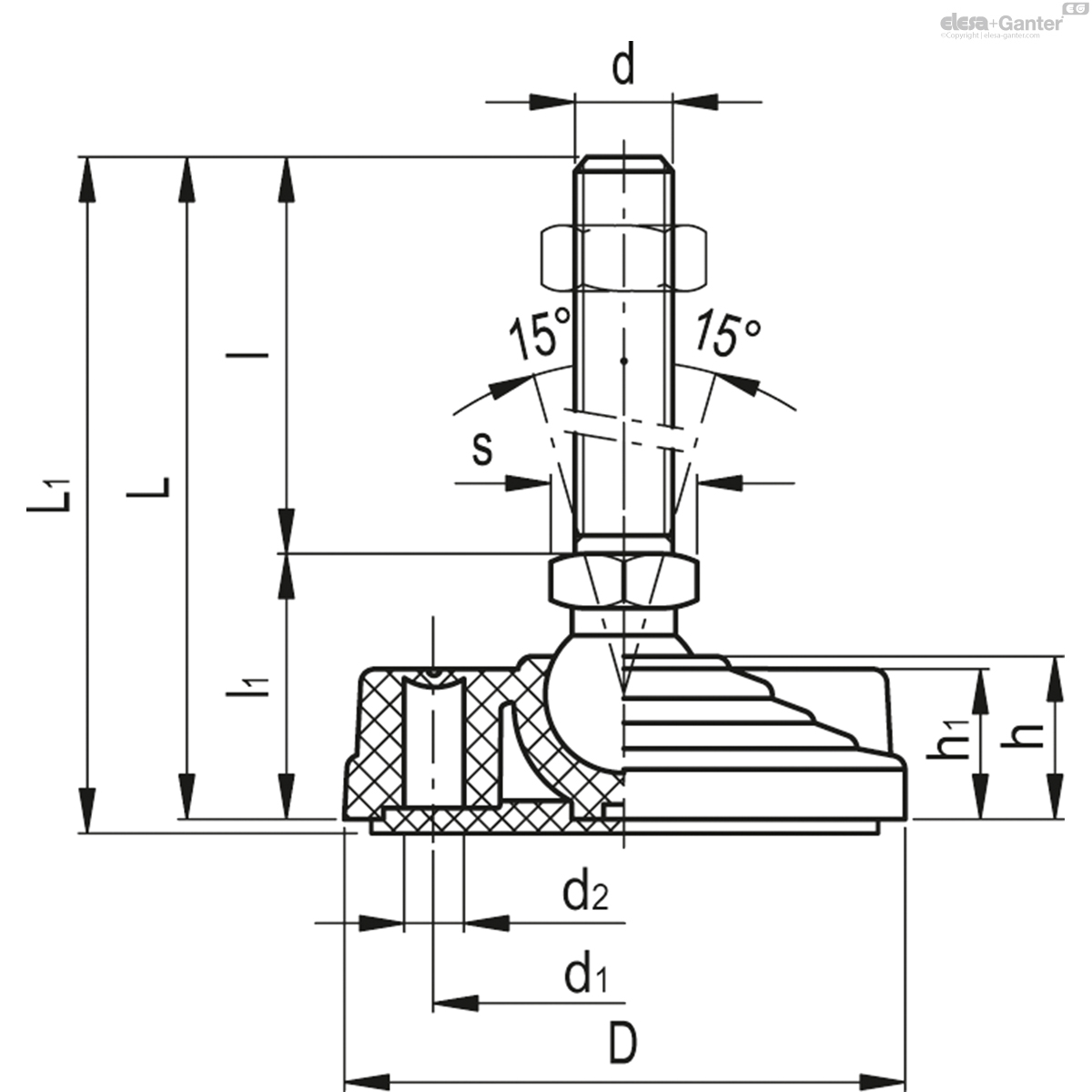

		D	d	d₁	L	L₁	l	l₁	d₂	h	h₁	s	Articulation Ø	Max. limit static load* [N]
Code	Description															Actions
186301	LV.F-80-14-AS-SST-M8x43-VD	80	M8	54	76	79	43	33	8.5	24	23	14	14	16000	130
186303	LV.F-80-14-AS-SST-M8x68-VD	80	M8	54	101	104	68	33	8.5	24	23	14	14	16000	130
186311	LV.F-80-14-AS-SST-M10x43-VD	80	M10	54	76	79	43	33	8.5	24	23	14	14	16000	129
186313	LV.F-80-14-AS-SST-M10x68-VD	80	M10	54	101	104	68	33	8.5	24	23	14	14	16000	143
186315	LV.F-80-14-AS-SST-M10x98-VD	80	M10	54	131	134	98	33	8.5	24	23	14	14	16000	159
186321	LV.F-80-14-AS-SST-M12x43-VD	80	M12	54	76	79	43	33	8.5	24	23	14	14	16000	140
186323	LV.F-80-14-AS-SST-M12x68-VD	80	M12	54	101	104	68	33	8.5	24	23	14	14	16000	159
186325	LV.F-80-14-AS-SST-M12x98-VD	80	M12	54	131	134	98	33	8.5	24	23	14	14	16000	181
186331	LV.F-80-14-AS-SST-M14x68-VD	80	M14	54	101	104	68	33	8.5	24	23	14	14	16000	140
186333	LV.F-80-14-AS-SST-M14x98-VD	80	M14	54	131	134	98	33	8.5	24	23	14	14	16000	159
186335	LV.F-80-14-AS-SST-M14x148-VD	80	M14	54	181	184	148	33	8.5	24	23	14	14	16000	181
186341	LV.F-80-14-AS-SST-M16x68-VD	80	M16	54	101	104	68	33	8.5	24	23	16	14	16000	99
186343	LV.F-80-14-AS-SST-M16x108-VD	80	M16	54	141	144	108	33	8.5	24	23	16	14	16000	238
186345	LV.F-80-14-AS-SST-M16x148-VD	80	M16	54	181	184	148	33	8.5	24	23	16	14	16000	312
186347	LV.F-80-14-AS-SST-M16x168-VD	80	M16	54	201	204	168	33	8.5	24	23	16	14	16000	333
186351	LV.F-80-24-AS-SST-M16x58-VD	80	M16	54	101	104	58	43	8.5	24	23	24	24	18000	265
186353	LV.F-80-24-AS-SST-M16x98-VD	80	M16	54	141	144	98	43	8.5	24	23	24	24	18000	320
186355	LV.F-80-24-AS-SST-M16x138-VD	80	M16	54	181	184	138	43	8.5	24	23	24	24	18000	368
186357	LV.F-80-24-AS-SST-M16x158-VD	80	M16	54	201	204	158	43	8.5	24	23	24	24	18000	116
186361	LV.F-80-24-AS-SST-M20x98-VD	80	M20	54	141	144	98	43	8.5	24	23	24	24	18000	401
186363	LV.F-80-24-AS-SST-M20x138-VD	80	M20	54	181	184	138	43	8.5	24	23	24	24	18000	483
186365	LV.F-80-24-AS-SST-M20x158-VD	80	M20	54	201	204	158	43	8.5	24	23	24	24	18000	526
186367	LV.F-80-24-AS-SST-M20x198-VD	80	M20	54	241	244	198	43	8.5	24	23	24	24	18000	136
186371	LV.F-80-24-AS-SST-M24x98-VD	80	M24	54	141	144	98	43	8.5	24	23	24	24	18000	487
186373	LV.F-80-24-AS-SST-M24x158-VD	80	M24	54	201	204	158	43	8.5	24	23	24	24	18000	636
186375	LV.F-80-24-AS-SST-M24x198-VD	80	M24	54	241	244	198	43	8.5	24	23	24	24	18000	786
186401	LV.F-100-14-AS-SST-M8x43-VD	100	M8	70	76	79	43	33	12.5	24	23	14	14	18000	175
186403	LV.F-100-14-AS-SST-M8x68-VD	100	M8	70	101	104	68	33	12.5	24	23	14	14	18000	183
186411	LV.F-100-14-AS-SST-M10x43-VD	100	M10	70	76	79	43	33	12.5	24	23	14	14	18000	183
186413	LV.F-100-14-AS-SST-M10x68-VD	100	M10	70	101	104	68	33	12.5	24	23	14	14	18000	196
186415	LV.F-100-14-AS-SST-M10x98-VD	100	M10	70	131	134	98	33	12.5	24	23	14	14	18000	211
186421	LV.F-100-14-AS-SST-M12x43-VD	100	M12	70	76	79	43	33	12.5	24	23	14	14	18000	193
186423	LV.F-100-14-AS-SST-M12x68-VD	100	M12	70	101	104	68	33	12.5	24	23	14	14	18000	210
186425	LV.F-100-14-AS-SST-M12x98-VD	100	M12	70	131	134	98	33	12.5	24	23	14	14	18000	232
186431	LV.F-100-14-AS-SST-M14x68-VD	100	M14	70	101	104	68	33	12.5	24	23	14	14	18000	210
186433	LV.F-100-14-AS-SST-M14x98-VD	100	M14	70	131	134	98	33	12.5	24	23	14	14	18000	232
186435	LV.F-100-14-AS-SST-M14x148-VD	100	M14	70	181	184	148	33	12.5	24	23	14	14	18000	306
186441	LV.F-100-14-AS-SST-M16x68-VD	100	M16	70	101	104	68	33	12.5	24	23	16	14	18000	257
186443	LV.F-100-14-AS-SST-M16x108-VD	100	M16	70	141	144	108	33	12.5	24	23	16	14	18000	306
186445	LV.F-100-14-AS-SST-M16x148-VD	100	M16	70	181	184	148	33	12.5	24	23	16	14	18000	363
186447	LV.F-100-14-AS-SST-M16x168-VD	100	M16	70	201	204	168	33	12.5	24	23	16	14	18000	388
186451	LV.F-100-24-AS-SST-M16x58-VD	100	M16	70	101	104	58	43	12.5	24	23	24	24	25000	300
186453	LV.F-100-24-AS-SST-M16x98-VD	100	M16	70	141	144	98	43	12.5	24	23	24	24	25000	355
186455	LV.F-100-24-AS-SST-M16x138-VD	100	M16	70	181	184	138	43	12.5	24	23	24	24	25000	403
186457	LV.F-100-24-AS-SST-M16x158-VD	100	M16	70	201	204	158	43	12.5	24	23	24	24	25000	151
186461	LV.F-100-24-AS-SST-M20x98-VD	100	M20	70	141	144	98	43	12.5	24	23	24	24	25000	436
186463	LV.F-100-24-AS-SST-M20x138-VD	100	M20	70	181	184	138	43	12.5	24	23	24	24	25000	518
186465	LV.F-100-24-AS-SST-M20x158-VD	100	M20	70	201	204	158	43	12.5	24	23	24	24	25000	561
186467	LV.F-100-24-AS-SST-M20x198-VD	100	M20	70	241	244	198	43	12.5	24	23	24	24	25000	171
186471	LV.F-100-24-AS-SST-M24x98-VD	100	M24	70	141	144	98	43	12.5	24	23	24	24	25000	522
186473	LV.F-100-24-AS-SST-M24x158-VD	100	M24	70	201	204	158	43	12.5	24	23	24	24	25000	671
186475	LV.F-100-24-AS-SST-M24x198-VD	100	M24	70	241	244	198	43	12.5	24	23	24	24	25000	821
186501	LV.F-125-24-AS-SST-M16x58-VD	125	M16	95	125	128	58	67	12.5	46	23	24	24	28000	484
186503	LV.F-125-24-AS-SST-M16x98-VD	125	M16	95	165	168	98	67	12.5	46	23	24	24	28000	539
186505	LV.F-125-24-AS-SST-M16x138-VD	125	M16	95	205	208	138	67	12.5	46	23	24	24	28000	587
186507	LV.F-125-24-AS-SST-M16x158-VD	125	M16	95	225	228	158	67	12.5	46	23	24	24	28000	335
186511	LV.F-125-24-AS-SST-M20x98-VD	125	M20	95	165	168	98	67	12.5	46	23	24	24	28000	620
186513	LV.F-125-24-AS-SST-M20x138-VD	125	M20	95	205	208	138	67	12.5	46	23	24	24	28000	702
186515	LV.F-125-24-AS-SST-M20x158-VD	125	M20	95	225	228	158	67	12.5	46	23	24	24	28000	745
186517	LV.F-125-24-AS-SST-M20x198-VD	125	M20	95	265	268	198	67	12.5	46	23	24	24	28000	355
186521	LV.F-125-24-AS-SST-M24x98-VD	125	M24	95	165	168	98	67	12.5	46	23	24	24	28000	706
186523	LV.F-125-24-AS-SST-M24x158-VD	125	M24	95	225	228	158	67	12.5	46	23	24	24	28000	855
186525	LV.F-125-24-AS-SST-M24x198-VD	125	M24	95	265	268	198	67	12.5	46	23	24	24	28000	1005
