LV.F-SST

Levelling elements for ground mounting

Technopolymer base, stainless steel stem

Enquire Now

LV.F-SST

Levelling elements for ground mounting

Without no-slip disk

LV.F-AS-SST

Levelling elements for ground mounting

With no-slip disk

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated stem

Threaded AISI 304 stainless steel with regulation hexagon.

Standard executions

LV.F-SST: without no-slip disk.
LV.F-AS-SST: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

Ground mounting

By means of two holes at 180°, supplied covered by a diaphragm (which can be easily removed by a metal tool), to avoid all unhealthy deposits of dirt and dust when the ground mounting is not required (see Fig. 1).

General information

Features

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk).

Order information

The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

Accessories on request

AISI 304 stainless steel nut (see Nuts NT.-).

LV.F-AS-SST

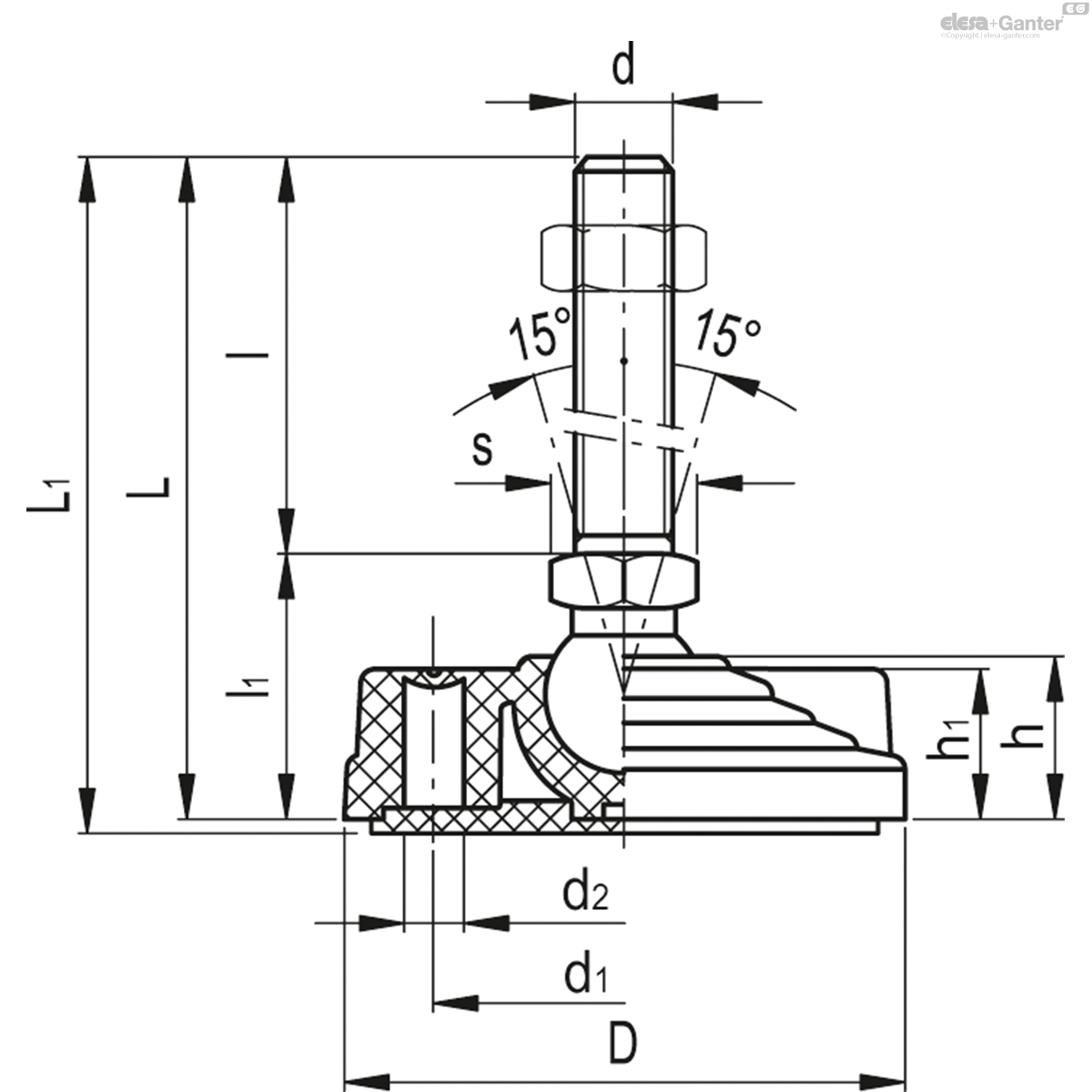

		D	d	d₁	L	L₁	l	l₁	Articulation Ø	d₂	h	h₁	s	Articulation Ø	Max. limit static load* [N]
Code	Description																Actions
334121	LV.F-80-14-AS-SST-M8x43	80	M8	54	76	79	43	33	14	8.5	24	23	14	14	16000	130
334125	LV.F-80-14-AS-SST-M8x68	80	M8	54	101	104	68	33	14	8.5	24	23	14	14	16000	130
334221	LV.F-80-14-AS-SST-M10x43	80	M10	54	76	79	43	33	14	8.5	24	23	14	14	16000	129
334225	LV.F-80-14-AS-SST-M10x68	80	M10	54	101	104	68	33	14	8.5	24	23	14	14	16000	143
334231	LV.F-80-14-AS-SST-M10x98	80	M10	54	131	134	98	33	14	8.5	24	23	14	14	16000	159
334321	LV.F-80-14-AS-SST-M12x43	80	M12	54	76	79	43	33	14	8.5	24	23	14	14	16000	140
334325	LV.F-80-14-AS-SST-M12x68	80	M12	54	101	104	68	33	14	8.5	24	23	14	14	16000	159
334331	LV.F-80-14-AS-SST-M12x98	80	M12	54	131	134	98	33	14	8.5	24	23	14	14	16000	181
334421	LV.F-80-14-AS-SST-M14X68	80	M14	54	101	104	68	33	14	8.5	24	23	14	14	16000	140
334431	LV.F-80-14-AS-SST-M14X98	80	M14	54	131	134	98	33	14	8.5	24	23	14	14	16000	159
334441	LV.F-80-14-AS-SST-M14X148	80	M14	54	181	184	148	33	14	8.5	24	23	14	14	16000	181
334521	LV.F-80-14-AS-SST-M16x68	80	M16	54	101	104	68	33	14	8.5	24	23	16	14	16000	99
334525	LV.F-80-14-AS-SST-M16x108	80	M16	54	141	144	108	33	14	8.5	24	23	16	14	16000	238
334541	LV.F-80-14-AS-SST-M16x148	80	M16	54	181	184	148	33	14	8.5	24	23	16	14	16000	312
334561	LV.F-80-14-AS-SST-M16x168	80	M16	54	201	204	168	33	14	8.5	24	23	16	14	16000	333
334621	LV.F-80-24-AS-SST-M16x58	80	M16	54	101	104	58	43	24	8.5	24	23	24	24	18000	265
334625	LV.F-80-24-AS-SST-M16x98	80	M16	54	141	144	98	43	24	8.5	24	23	24	24	18000	320
334641	LV.F-80-24-AS-SST-M16x138	80	M16	54	181	184	138	43	24	8.5	24	23	24	24	18000	368
334661	LV.F-80-24-AS-SST-M16x158	80	M16	54	201	204	158	43	24	8.5	24	23	24	24	18000	116
334725	LV.F-80-24-AS-SST-M20x98	80	M20	54	141	144	98	43	24	8.5	24	23	24	24	18000	401
334741	LV.F-80-24-AS-SST-M20x138	80	M20	54	181	184	138	43	24	8.5	24	23	24	24	18000	483
334761	LV.F-80-24-AS-SST-M20x158	80	M20	54	201	204	158	43	24	8.5	24	23	24	24	18000	526
334781	LV.F-80-24-AS-SST-M20x198	80	M20	54	241	244	198	43	24	8.5	24	23	24	24	18000	136
334825	LV.F-80-24-AS-SST-M24x98	80	M24	54	141	144	98	43	24	8.5	24	23	24	24	18000	487
334861	LV.F-80-24-AS-SST-M24x158	80	M24	54	201	204	158	43	24	8.5	24	23	24	24	18000	636
334881	LV.F-80-24-AS-SST-M24x198	80	M24	54	241	244	198	43	24	8.5	24	23	24	24	18000	786
335451	LV.F-100-14-AS-SST-M8x43	100	M8	70	76	79	43	33	14	12.5	24	23	14	14	18000	175
335453	LV.F-100-14-AS-SST-M8x68	100	M8	70	101	104	68	33	14	12.5	24	23	14	14	18000	183
335461	LV.F-100-14-AS-SST-M10x43	100	M10	70	76	79	43	33	14	12.5	24	23	14	14	18000	183
335463	LV.F-100-14-AS-SST-M10x68	100	M10	70	101	104	68	33	14	12.5	24	23	14	14	18000	196
335465	LV.F-100-14-AS-SST-M10x98	100	M10	70	131	134	98	33	14	12.5	24	23	14	14	18000	211
335471	LV.F-100-14-AS-SST-M12x43	100	M12	70	76	79	43	33	14	12.5	24	23	14	14	18000	193
335473	LV.F-100-14-AS-SST-M12x68	100	M12	70	101	104	68	33	14	12.5	24	23	14	14	18000	210
335475	LV.F-100-14-AS-SST-M12x98	100	M12	70	131	134	98	33	14	12.5	24	23	14	14	18000	232
335477	LV.F-100-14-AS-SST-M14X68	100	M14	70	101	104	68	33	14	12.5	24	23	14	14	18000	210
335479	LV.F-100-14-AS-SST-M14X98	100	M14	70	131	134	98	33	14	12.5	24	23	14	14	18000	232
335480	LV.F-100-14-AS-SST-M14X148	100	M14	70	181	184	148	33	14	12.5	24	23	14	14	18000	306
335481	LV.F-100-14-AS-SST-M16x68	100	M16	70	101	104	68	33	14	12.5	24	23	16	14	18000	257
335483	LV.F-100-14-AS-SST-M16x108	100	M16	70	141	144	108	33	14	12.5	24	23	16	14	18000	306
335485	LV.F-100-14-AS-SST-M16x148	100	M16	70	181	184	148	33	14	12.5	24	23	16	14	18000	363
335487	LV.F-100-14-AS-SST-M16x168	100	M16	70	201	204	168	33	14	12.5	24	23	16	14	18000	388
335521	LV.F-100-24-AS-SST-M16x58	100	M16	70	101	104	58	43	24	12.5	24	23	24	24	25000	300
335525	LV.F-100-24-AS-SST-M16x98	100	M16	70	141	144	98	43	24	12.5	24	23	24	24	25000	355
335541	LV.F-100-24-AS-SST-M16x138	100	M16	70	181	184	138	43	24	12.5	24	23	24	24	25000	403
335561	LV.F-100-24-AS-SST-M16x158	100	M16	70	201	204	158	43	24	12.5	24	23	24	24	25000	151
335625	LV.F-100-24-AS-SST-M20x98	100	M20	70	141	144	98	43	24	12.5	24	23	24	24	25000	436
335641	LV.F-100-24-AS-SST-M20x138	100	M20	70	181	184	138	43	24	12.5	24	23	24	24	25000	518
335661	LV.F-100-24-AS-SST-M20x158	100	M20	70	201	204	158	43	24	12.5	24	23	24	24	25000	561
335681	LV.F-100-24-AS-SST-M20x198	100	M20	70	241	244	198	43	24	12.5	24	23	24	24	25000	171
335725	LV.F-100-24-AS-SST-M24x98	100	M24	70	141	144	98	43	24	12.5	24	23	24	24	25000	522
335761	LV.F-100-24-AS-SST-M24x158	100	M24	70	201	204	158	43	24	12.5	24	23	24	24	25000	671
335781	LV.F-100-24-AS-SST-M24x198	100	M24	70	241	244	198	43	24	12.5	24	23	24	24	25000	821
336221	LV.F-125-24-AS-SST-M16x58	125	M16	95	125	128	58	67	24	12.5	46	23	24	24	28000	484
336225	LV.F-125-24-AS-SST-M16x98	125	M16	95	165	168	98	67	24	12.5	46	23	24	24	28000	539
336241	LV.F-125-24-AS-SST-M16x138	125	M16	95	205	208	138	67	24	12.5	46	23	24	24	28000	587
336261	LV.F-125-24-AS-SST-M16x158	125	M16	95	225	228	158	67	24	12.5	46	23	24	24	28000	335
336325	LV.F-125-24-AS-SST-M20x98	125	M20	95	165	168	98	67	24	12.5	46	23	24	24	28000	620
336341	LV.F-125-24-AS-SST-M20x138	125	M20	95	205	208	138	67	24	12.5	46	23	24	24	28000	702
336361	LV.F-125-24-AS-SST-M20x158	125	M20	95	225	228	158	67	24	12.5	46	23	24	24	28000	745
336381	LV.F-125-24-AS-SST-M20x198	125	M20	95	265	268	198	67	24	12.5	46	23	24	24	28000	355
336425	LV.F-125-24-AS-SST-M24x98	125	M24	95	165	168	98	67	24	12.5	46	23	24	24	28000	706
336461	LV.F-125-24-AS-SST-M24x158	125	M24	95	225	228	158	67	24	12.5	46	23	24	24	28000	855
336481	LV.F-125-24-AS-SST-M24x198	125	M24	95	265	268	198	67	24	12.5	46	23	24	24	28000	1005
