LV.A+SJF

Adjustable feet

technopolymer base, SUPER-technopolymer joint

Enquire Now

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Ball joint

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour.

Standard executions

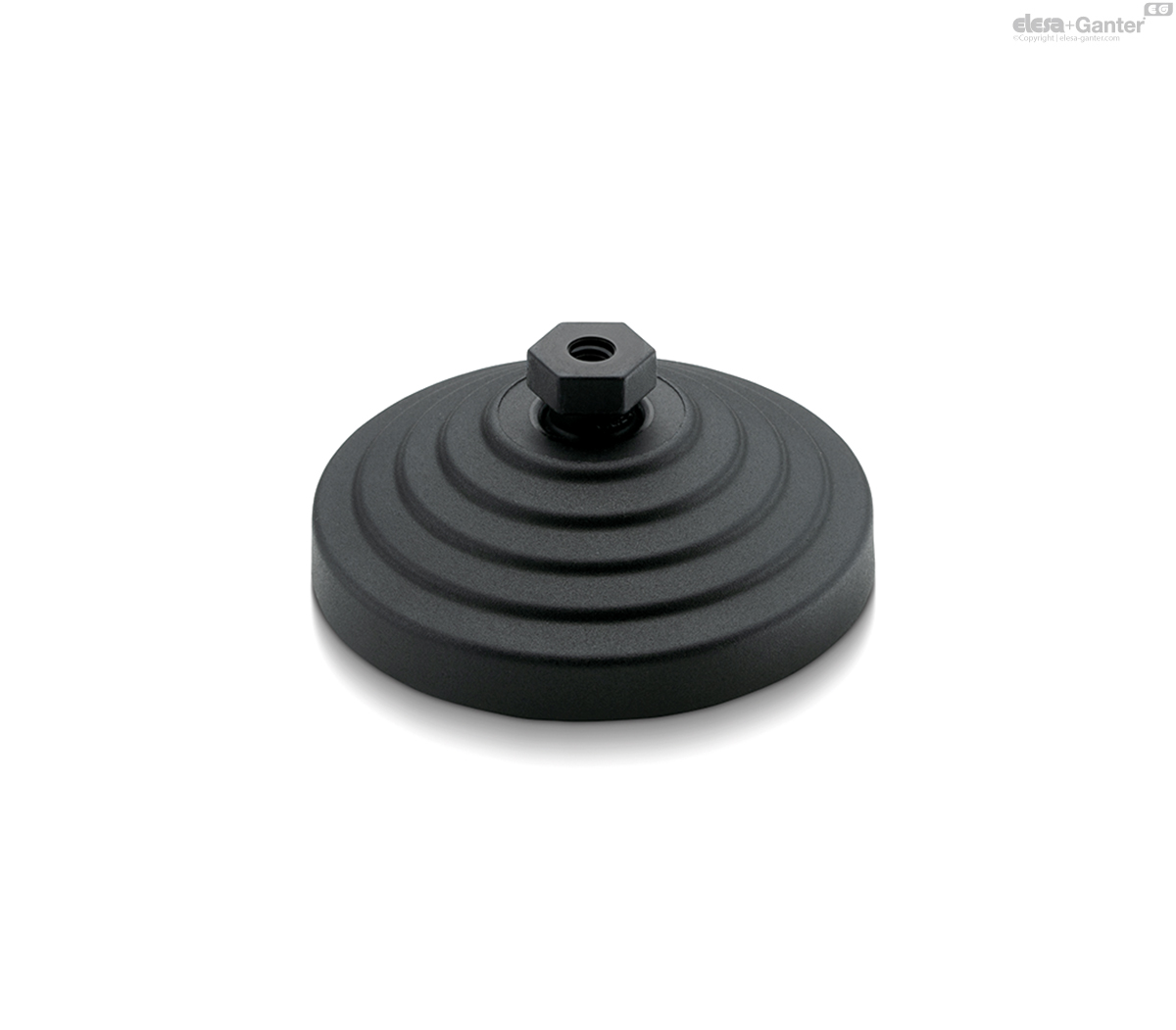

LV.A+SJF: without no-slip disk.

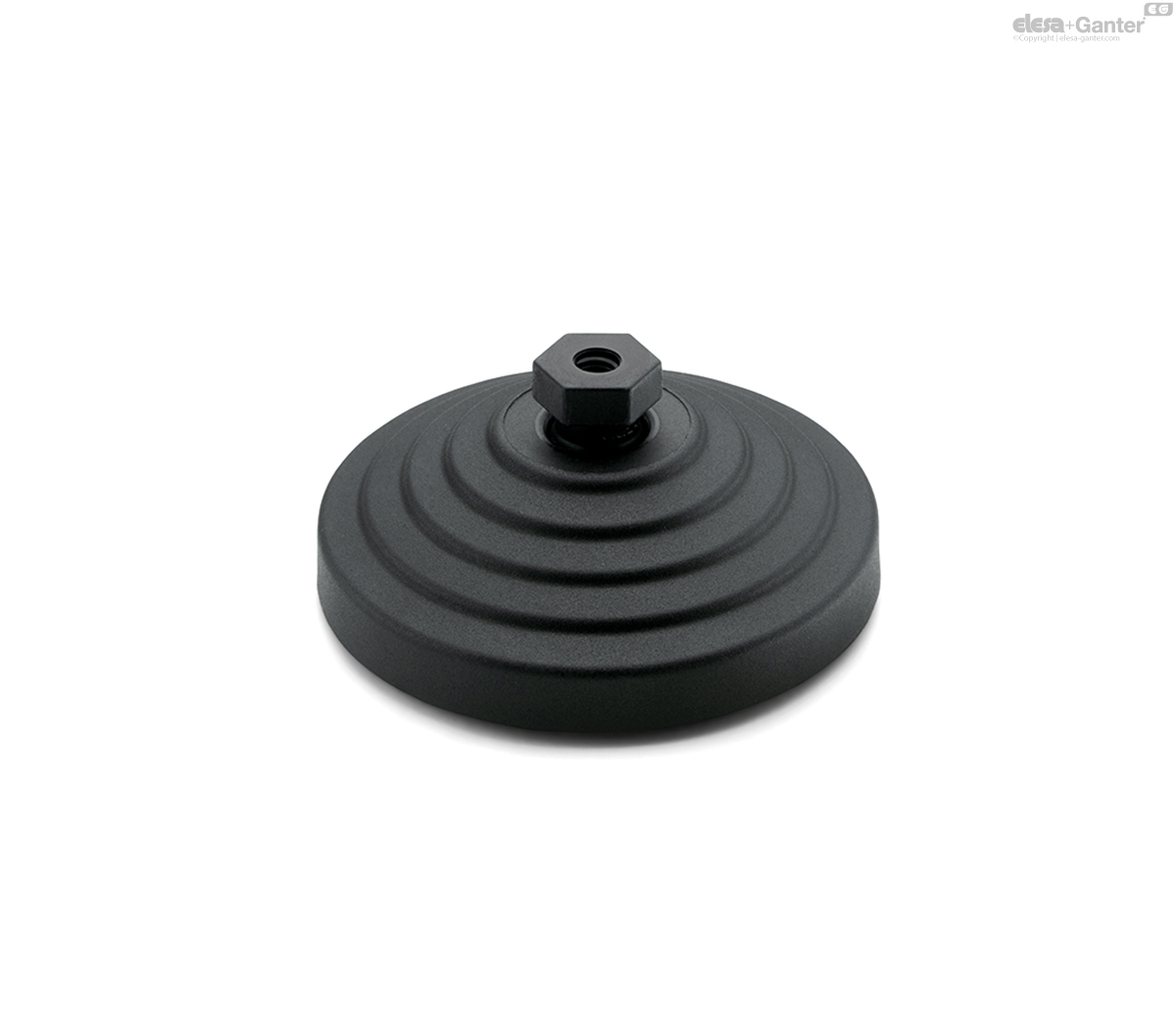

LV.A-AS+SJF: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

General information

Features and applications

The special knurling under the base edge that rests on the ground provides excellent grip and stability on uneven surfaces even without the no-slip disk.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk).

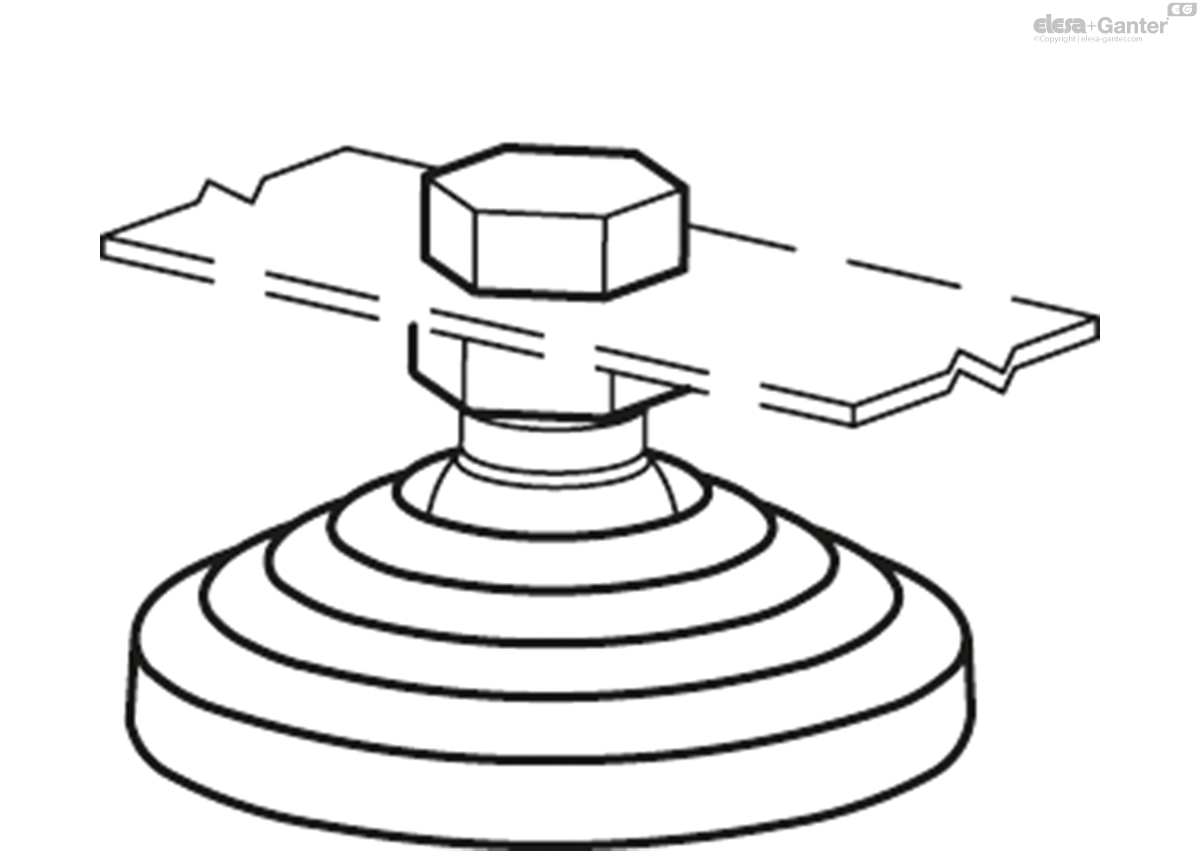

Used for direct fixing using standard screws, without the need for a threaded stem.

Other executions

Another standard execution

SJF: ball joint.

LV.A+SJF

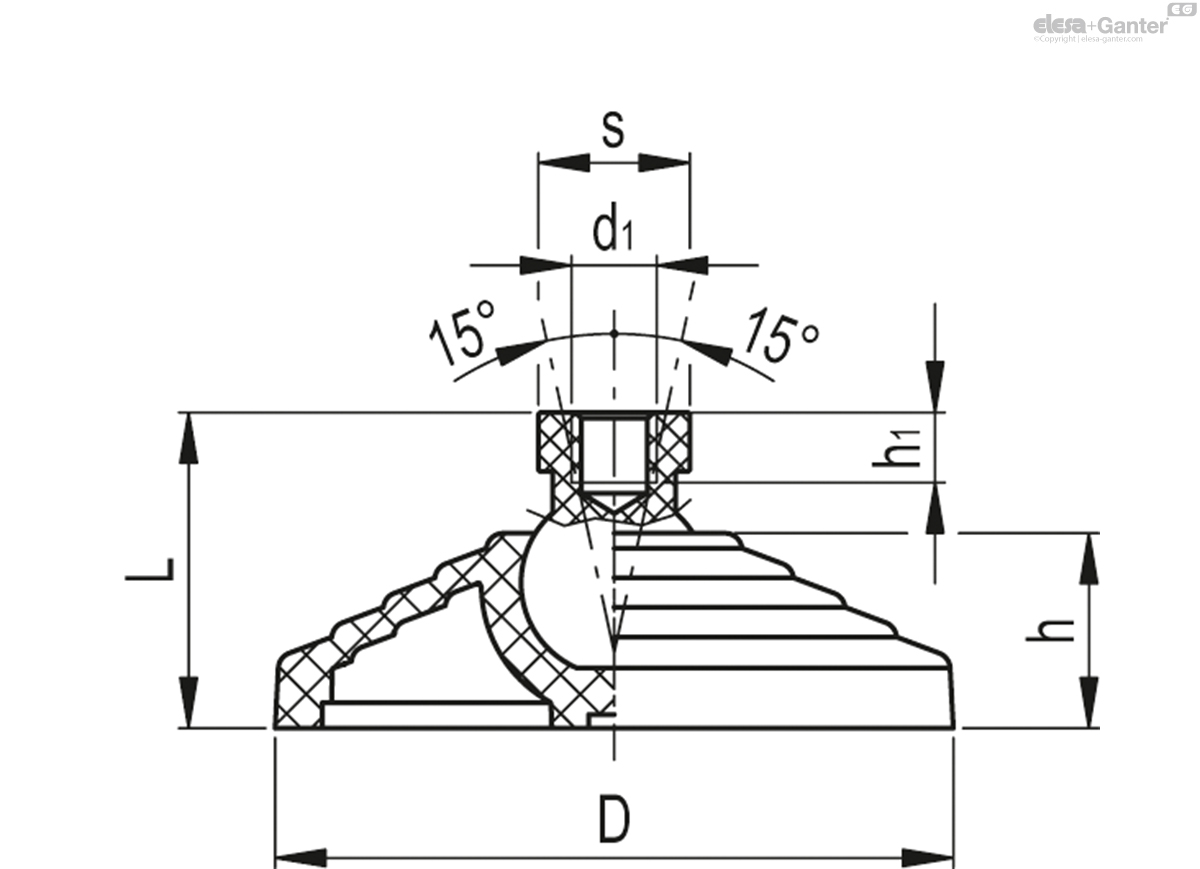

		D	d₁	L	h	h₁	s	Articulation Ø	Maximum tightening torque for the screw [Nm]	Max. limit static load* [N]
Code	Description											Actions
300101	LV.A-60-14+SJF-M6	60	M6	34.6	24	10	16	14	4	5800	40
300102	LV.A-60-14+SJF-M8	60	M8	34.6	24	10	16	14	6	6900	38
300106	LV.A-60-24+SJF-M10	60	M10	43.4	24	16	24	24	10	10500	43
300107	LV.A-60-24+SJF-M12	60	M12	43.4	24	16	24	24	12	10700	43
300111	LV.A-70-14+SJF-M6	70	M6	30.6	19	10	16	14	4	5600	47
300112	LV.A-70-14+SJF-M8	70	M8	30.6	19	10	16	14	6	6700	47
300116	LV.A-80-14+SJF-M6	80	M6	35.4	24	10	16	14	4	7400	63
300117	LV.A-80-14+SJF-M8	80	M8	35.4	24	10	16	14	6	8800	63
300121	LV.A-80-24+SJF-M10	80	M10	44	24	16	24	24	10	9600	63
300122	LV.A-80-24+SJF-M12	80	M12	44	24	16	24	24	12	9600	63
300126	LV.A-100-14+SJF-M6	100	M6	35	24	10	16	14	4	8100	85
300127	LV.A-100-14+SJF-M8	100	M8	35	24	10	16	14	6	9700	85
300131	LV.A-100-24+SJF-M10	100	M10	44	24	16	24	24	10	14000	90
300132	LV.A-100-24+SJF-M12	100	M12	44	24	16	24	24	12	14000	90
300136	LV.A-125-24+SJF-M10	125	M10	66.4	46	16	24	24	10	16900	203
300137	LV.A-125-24+SJF-M12	125	M12	66.4	46	16	24	24	12	16900	203
