LV.A-SST-VD

Adjustable feet

Visually Detectable technopolymer base, stainless steel stem

Enquire Now

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 5005 blue colour, matte finish.

Produced from FDA compliant raw material (FDA CFR.21 and EU 10/2011).

Articulated stem

Threaded AISI 304 stainless steel with regulation hexagon.

Standard executions

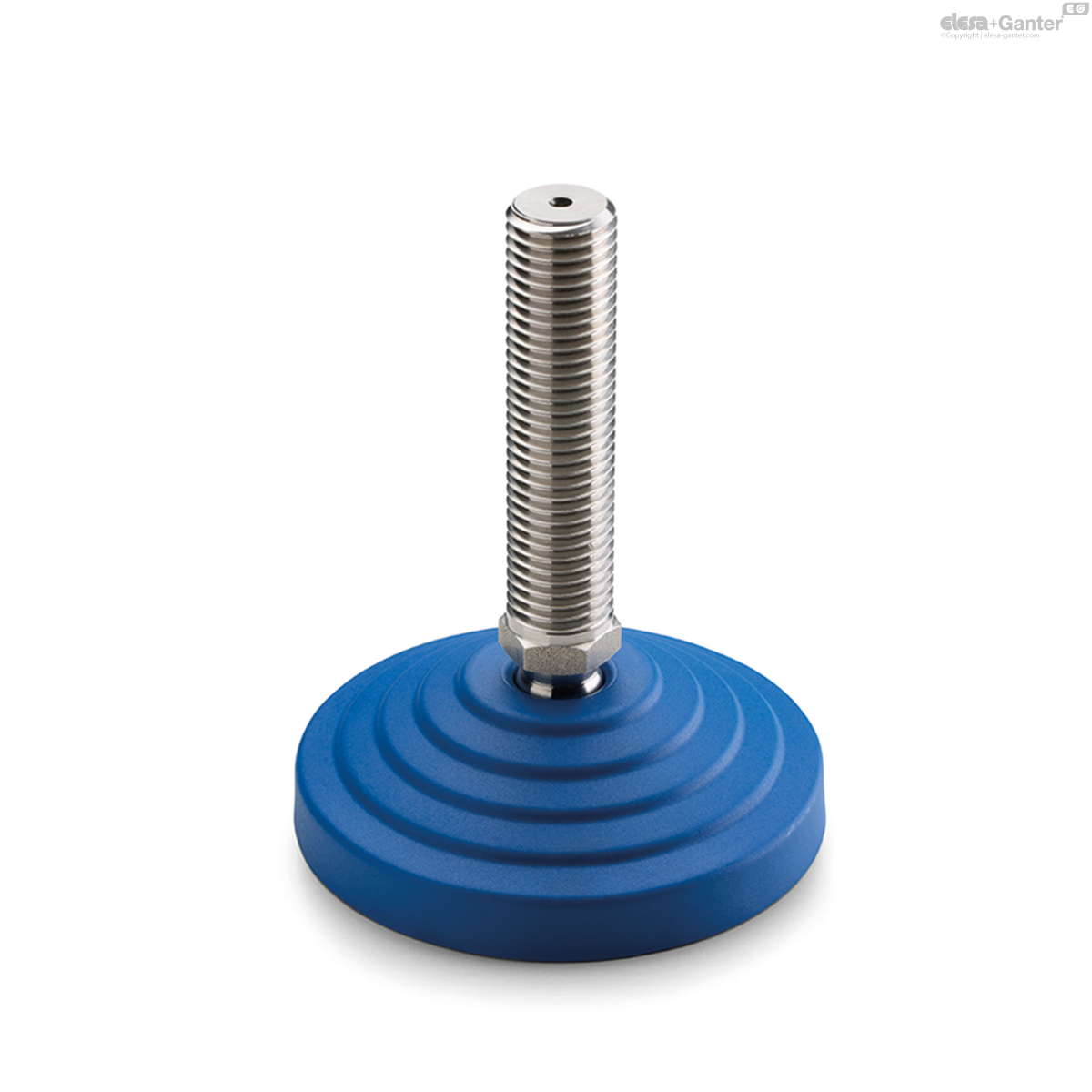

LV.A-SST-VD: without no-slip disk.

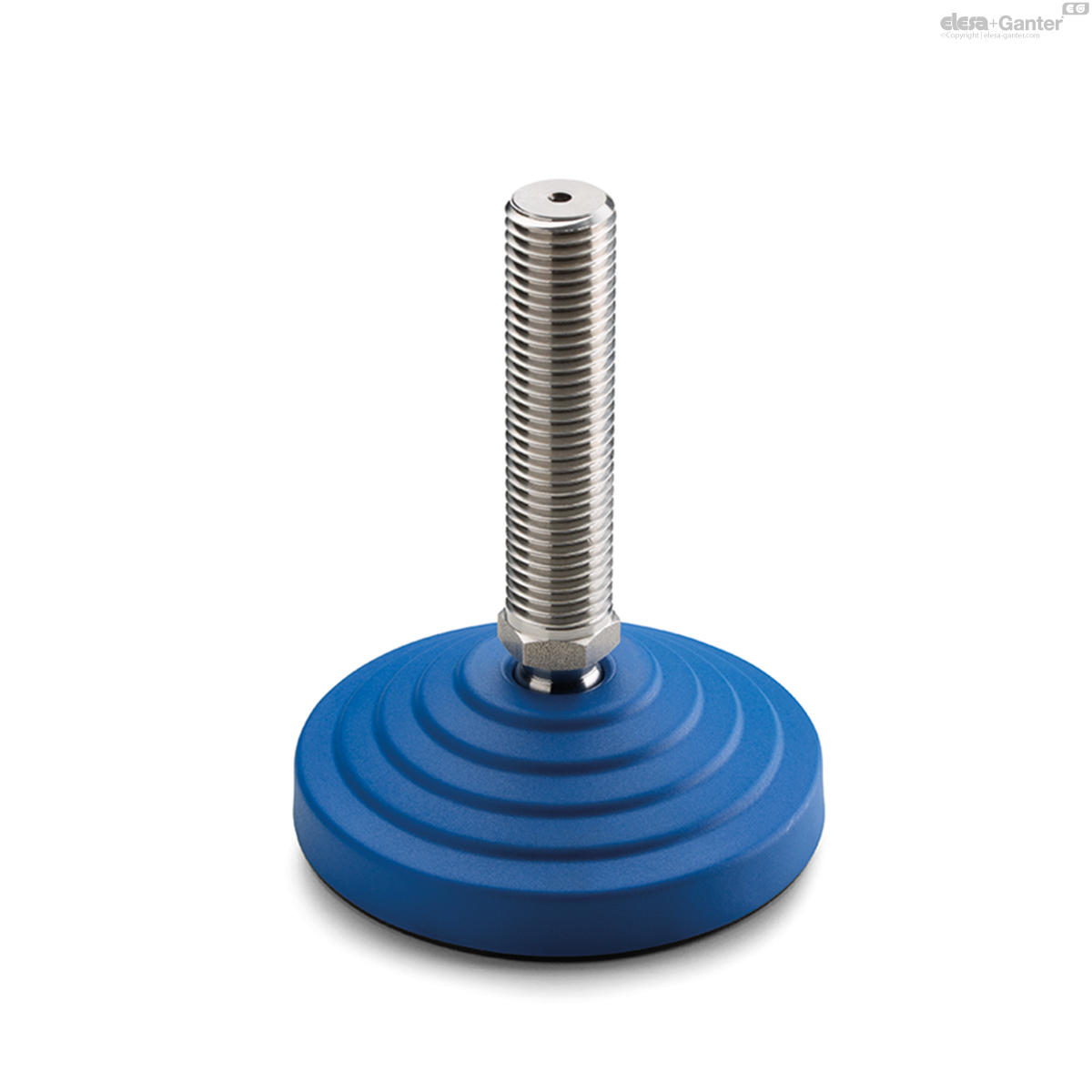

LV.A-AS-SST-VD: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

General information

Features and applications

The RAL 5005 blue colour is easily visible in case of accidental food contamination.

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk).

Order information

The levelling feet are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

the codes of the Bases

the codes of the Stems

Accessories

Accessories on request

AISI 304 stainless steel nut (see Nuts NT.).

LV.A-SST-VD

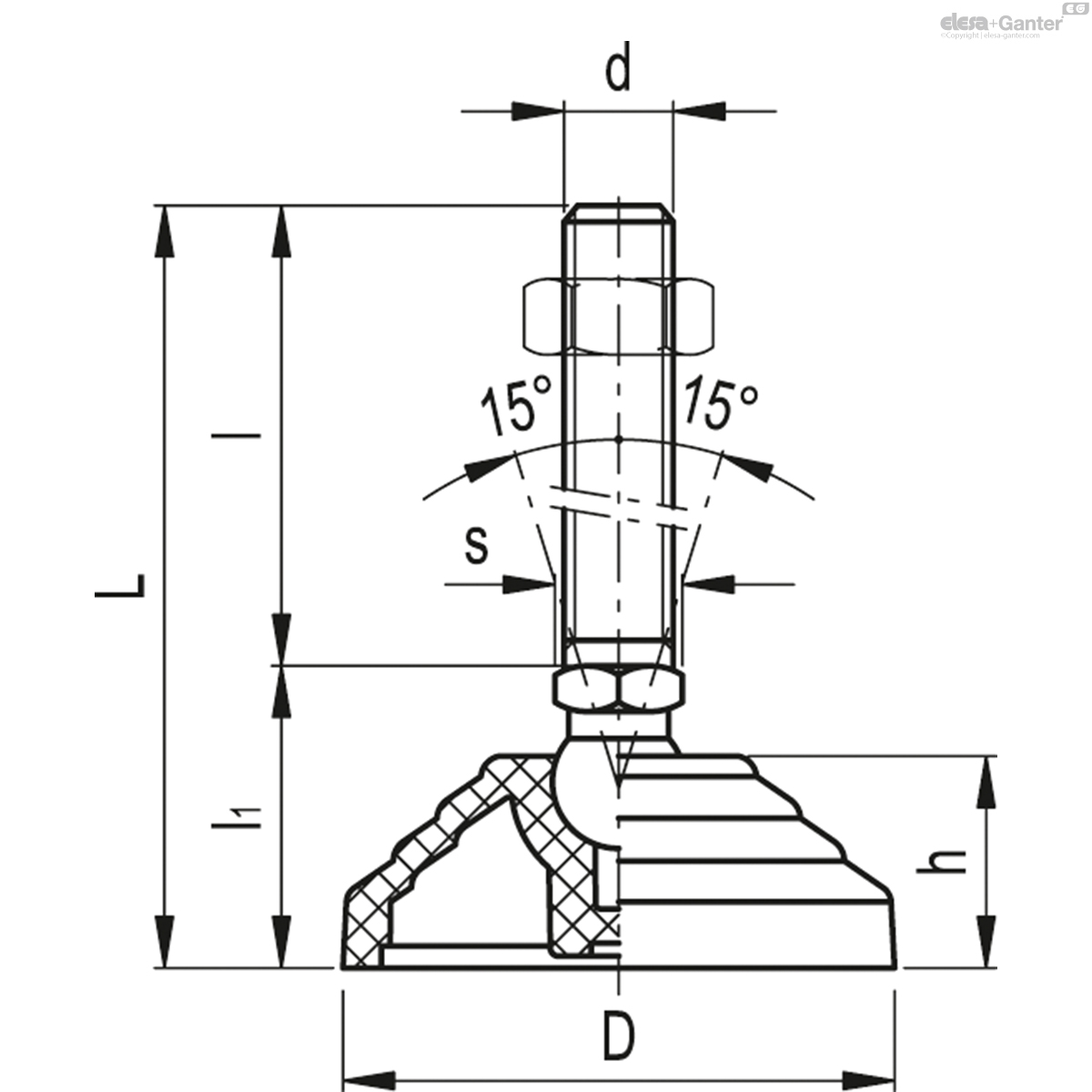

		D	d	L	l	l₁	h	s	Articulation Ø	Max. limit static load* [N]
Code	Description											Actions
183101	LV.A-60-14-SST-M8x43-VD	60	M8	76	43	33	24	14	14	14000	78
183103	LV.A-60-14-SST-M8x68-VD	60	M8	101	68	33	24	14	14	14000	78
183111	LV.A-60-14-SST-M10x43-VD	60	M10	76	43	33	24	14	14	14000	77
183113	LV.A-60-14-SST-M10x68-VD	60	M10	101	68	33	24	14	14	14000	91
183115	LV.A-60-14-SST-M10x98-VD	60	M10	131	98	33	24	14	14	14000	107
183121	LV.A-60-14-SST-M12x43-VD	60	M12	76	43	33	24	14	14	14000	88
183123	LV.A-60-14-SST-M12x68-VD	60	M12	101	68	33	24	14	14	14000	107
183125	LV.A-60-14-SST-M12x98-VD	60	M12	131	98	33	24	14	14	14000	129
183131	LV.A-60-14-SST-M14x68-VD	60	M14	101	68	33	24	14	14	14000	88
183133	LV.A-60-14-SST-M14x98-VD	60	M14	131	98	33	24	14	14	14000	107
183135	LV.A-60-14-SST-M14x148-VD	60	M14	181	148	33	24	14	14	14000	129
183141	LV.A-60-14-SST-M16x68-VD	60	M16	101	68	33	24	16	14	14000	47
183143	LV.A-60-14-SST-M16x108-VD	60	M16	141	108	33	24	16	14	14000	186
183145	LV.A-60-14-SST-M16x148-VD	60	M16	181	148	33	24	16	14	14000	260
183147	LV.A-60-14-SST-M16x168-VD	60	M16	201	168	33	24	16	14	14000	281
183151	LV.A-60-24-SST-M16x58-VD	60	M16	101	58	43	24	24	24	18000	204
183153	LV.A-60-24-SST-M16x98-VD	60	M16	141	98	43	24	24	24	18000	259
183155	LV.A-60-24-SST-M16x138-VD	60	M16	181	138	43	24	24	24	18000	307
183157	LV.A-60-24-SST-M16x158-VD	60	M16	201	158	43	24	24	24	18000	55
183161	LV.A-60-24-SST-M20x98-VD	60	M20	141	98	43	24	24	24	18000	340
183163	LV.A-60-24-SST-M20x138-VD	60	M20	181	138	43	24	24	24	18000	422
183165	LV.A-60-24-SST-M20x158-VD	60	M20	201	158	43	24	24	24	18000	465
183167	LV.A-60-24-SST-M20x198-VD	60	M20	241	198	43	24	24	24	18000	75
183171	LV.A-60-24-SST-M24x98-VD	60	M24	141	98	43	24	24	24	18000	426
183173	LV.A-60-24-SST-M24x158-VD	60	M24	201	158	43	24	24	24	18000	575
183175	LV.A-60-24-SST-M24x198-VD	60	M24	241	198	43	24	24	24	18000	725
183201	LV.A-70-14-SST-M8x43-VD	70	M8	71	43	28	19	14	14	14000	43
183203	LV.A-70-14-SST-M8x68-VD	70	M8	96	68	28	19	14	14	14000	43
183211	LV.A-70-14-SST-M10x43-VD	70	M10	71	43	28	19	14	14	14000	42
183213	LV.A-70-14-SST-M10x68-VD	70	M10	96	68	28	19	14	14	14000	56
183215	LV.A-70-14-SST-M10x98-VD	70	M10	126	98	28	19	14	14	14000	72
183221	LV.A-70-14-SST-M12x43-VD	70	M12	71	43	28	19	14	14	14000	53
183223	LV.A-70-14-SST-M12x68-VD	70	M12	96	68	28	19	14	14	14000	72
183225	LV.A-70-14-SST-M12x98-VD	70	M12	126	98	28	19	14	14	14000	94
183231	LV.A-70-14-SST-M14x68-VD	70	M14	96	68	28	19	14	14	14000	72
183233	LV.A-70-14-SST-M14x98-VD	70	M14	126	98	28	19	14	14	14000	94
183235	LV.A-70-14-SST-M14x148-VD	70	M14	176	148	28	19	14	14	14000	12
183241	LV.A-70-14-SST-M16x68-VD	70	M16	96	68	28	19	16	14	14000	12
183243	LV.A-70-14-SST-M16x108-VD	70	M16	136	108	28	19	16	14	14000	151
183245	LV.A-70-14-SST-M16x148-VD	70	M16	176	148	28	19	16	14	14000	225
183247	LV.A-70-14-SST-M16x168-VD	70	M16	196	168	28	19	16	14	14000	246
183301	LV.A-80-14-SST-M8x43-VD	80	M8	76	43	33	24	14	14	16000	102
183303	LV.A-80-14-SST-M8x68-VD	80	M8	101	68	33	24	14	14	16000	102
183311	LV.A-80-14-SST-M10x43-VD	80	M10	76	43	33	24	14	14	16000	101
183313	LV.A-80-14-SST-M10x68-VD	80	M10	101	68	33	24	14	14	16000	115
183315	LV.A-80-14-SST-M10x98-VD	80	M10	131	98	33	24	14	14	16000	131
183321	LV.A-80-14-SST-M12x43-VD	80	M12	76	43	33	24	14	14	16000	112
183323	LV.A-80-14-SST-M12x68-VD	80	M12	101	68	33	24	14	14	16000	131
183325	LV.A-80-14-SST-M12x98-VD	80	M12	131	98	33	24	14	14	16000	153
183331	LV.A-80-14-SST-M14x68-VD	80	M14	101	68	33	24	14	14	16000	112
183333	LV.A-80-14-SST-M14x98-VD	80	M14	131	98	33	24	14	14	16000	131
183335	LV.A-80-14-SST-M14x148-VD	80	M14	181	148	33	24	14	14	16000	153
183341	LV.A-80-14-SST-M16x68-VD	80	M16	101	68	33	24	16	14	16000	71
183343	LV.A-80-14-SST-M16x108-VD	80	M16	141	108	33	24	16	14	16000	210
183345	LV.A-80-14-SST-M16x148-VD	80	M16	181	148	33	24	16	14	16000	284
183347	LV.A-80-14-SST-M16x168-VD	80	M16	201	168	33	24	16	14	16000	305
183351	LV.A-80-24-SST-M16x58-VD	80	M16	101	58	43	24	24	24	18000	232
183353	LV.A-80-24-SST-M16x98-VD	80	M16	141	98	43	24	24	24	18000	287
183355	LV.A-80-24-SST-M16x138-VD	80	M16	181	138	43	24	24	24	18000	335
183357	LV.A-80-24-SST-M16x158-VD	80	M16	201	158	43	24	24	24	18000	83
183361	LV.A-80-24-SST-M20x98-VD	80	M20	141	98	43	24	24	24	18000	368
183363	LV.A-80-24-SST-M20x138-VD	80	M20	181	138	43	24	24	24	18000	450
183365	LV.A-80-24-SST-M20x158-VD	80	M20	201	158	43	24	24	24	18000	493
183367	LV.A-80-24-SST-M20x198-VD	80	M20	241	198	43	24	24	24	18000	103
183371	LV.A-80-24-SST-M24x98-VD	80	M24	141	98	43	24	24	24	18000	454
183373	LV.A-80-24-SST-M24x158-VD	80	M24	201	158	43	24	24	24	18000	603
183375	LV.A-80-24-SST-M24x198-VD	80	M24	241	198	43	24	24	24	18000	753
183401	LV.A-100-14-SST-M8x43-VD	100	M8	76	43	33	24	14	14	18000	135
183403	LV.A-100-14-SST-M8x68-VD	100	M8	101	68	33	24	14	14	18000	143
183411	LV.A-100-14-SST-M10x43-VD	100	M10	76	43	33	24	14	14	18000	143
183413	LV.A-100-14-SST-M10x68-VD	100	M10	101	68	33	24	14	14	18000	156
183415	LV.A-100-14-SST-M10x98-VD	100	M10	131	98	33	24	14	14	18000	171
183421	LV.A-100-14-SST-M12x43-VD	100	M12	76	43	33	24	14	14	18000	153
183423	LV.A-100-14-SST-M12x68-VD	100	M12	101	68	33	24	14	14	18000	170
183425	LV.A-100-14-SST-M12x98-VD	100	M12	131	98	33	24	14	14	18000	192
183431	LV.A-100-14-SST-M14x68-VD	100	M14	101	68	33	24	14	14	18000	170
183433	LV.A-100-14-SST-M14x98-VD	100	M14	131	98	33	24	14	14	18000	192
183435	LV.A-100-14-SST-M14x148-VD	100	M14	181	148	33	24	14	14	18000	266
183441	LV.A-100-14-SST-M16x68-VD	100	M16	101	68	33	24	16	14	18000	217
183443	LV.A-100-14-SST-M16x108-VD	100	M16	141	108	33	24	16	14	18000	266
183445	LV.A-100-14-SST-M16x148-VD	100	M16	181	148	33	24	16	14	18000	323
183447	LV.A-100-14-SST-M16x168-VD	100	M16	201	168	33	24	16	14	18000	348
183451	LV.A-100-24-SST-M16x58-VD	100	M16	101	58	43	24	24	24	25000	262
183453	LV.A-100-24-SST-M16x98-VD	100	M16	141	98	43	24	24	24	25000	317
183455	LV.A-100-24-SST-M16x138-VD	100	M16	181	138	43	24	24	24	25000	365
183457	LV.A-100-24-SST-M16x158-VD	100	M16	201	158	43	24	24	24	25000	113
183461	LV.A-100-24-SST-M20x98-VD	100	M20	141	98	43	24	24	24	25000	398
183463	LV.A-100-24-SST-M20x138-VD	100	M20	181	138	43	24	24	24	25000	480
183465	LV.A-100-24-SST-M20x158-VD	100	M20	201	158	43	24	24	24	25000	523
183467	LV.A-100-24-SST-M20x198-VD	100	M20	241	198	43	24	24	24	25000	133
183471	LV.A-100-24-SST-M24x98-VD	100	M24	141	98	43	24	24	24	25000	484
183473	LV.A-100-24-SST-M24x158-VD	100	M24	201	158	43	24	24	24	25000	633
183475	LV.A-100-24-SST-M24x198-VD	100	M24	241	198	43	24	24	24	25000	783
183501	LV.A-125-24-SST-M16x58-VD	125	M16	125	58	67	46	24	24	28000	377
183503	LV.A-125-24-SST-M16x98-VD	125	M16	165	98	67	46	24	24	28000	432
183505	LV.A-125-24-SST-M16x138-VD	125	M16	205	138	67	46	24	24	28000	480
183507	LV.A-125-24-SST-M16x158-VD	125	M16	225	158	67	46	24	24	28000	228
183511	LV.A-125-24-SST-M20x98-VD	125	M20	165	98	67	46	24	24	28000	513
183513	LV.A-125-24-SST-M20x138-VD	125	M20	205	138	67	46	24	24	28000	595
183515	LV.A-125-24-SST-M20x158-VD	125	M20	225	158	67	46	24	24	28000	638
183517	LV.A-125-24-SST-M20x198-VD	125	M20	265	198	67	46	24	24	28000	248
183521	LV.A-125-24-SST-M24x98-VD	125	M24	165	98	67	46	24	24	28000	599
183523	LV.A-125-24-SST-M24x158-VD	125	M24	225	158	67	46	24	24	28000	748
183525	LV.A-125-24-SST-M24x198-VD	125	M24	265	198	67	46	24	24	28000	898
