LV.A-SST

Levelling feet

Technopolymer base, stainless steel stem

Enquire Now

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated stem

Threaded AISI 304 stainless steel with regulation hexagon.

Standard executions

LV.A-SST: without no-slip disk.

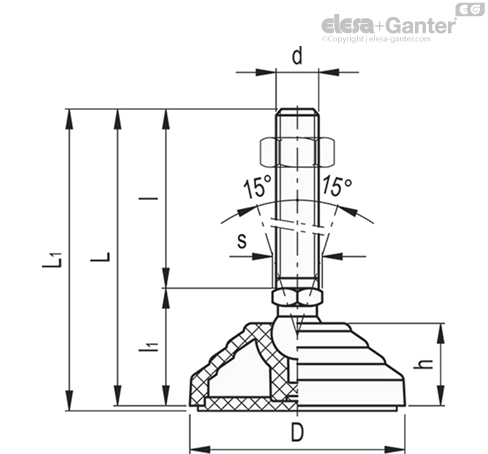

LV.A-AS-SST: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

General information

Features

The special knurling under the lower lip of the base provides excellent stability and grip when using the levelling element without no-slip disk even on surfaces that are not perfectly flat.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk-).

Order information

The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

Accessories on request

AISI 304 stainless steel nut (see Nuts NT.-).

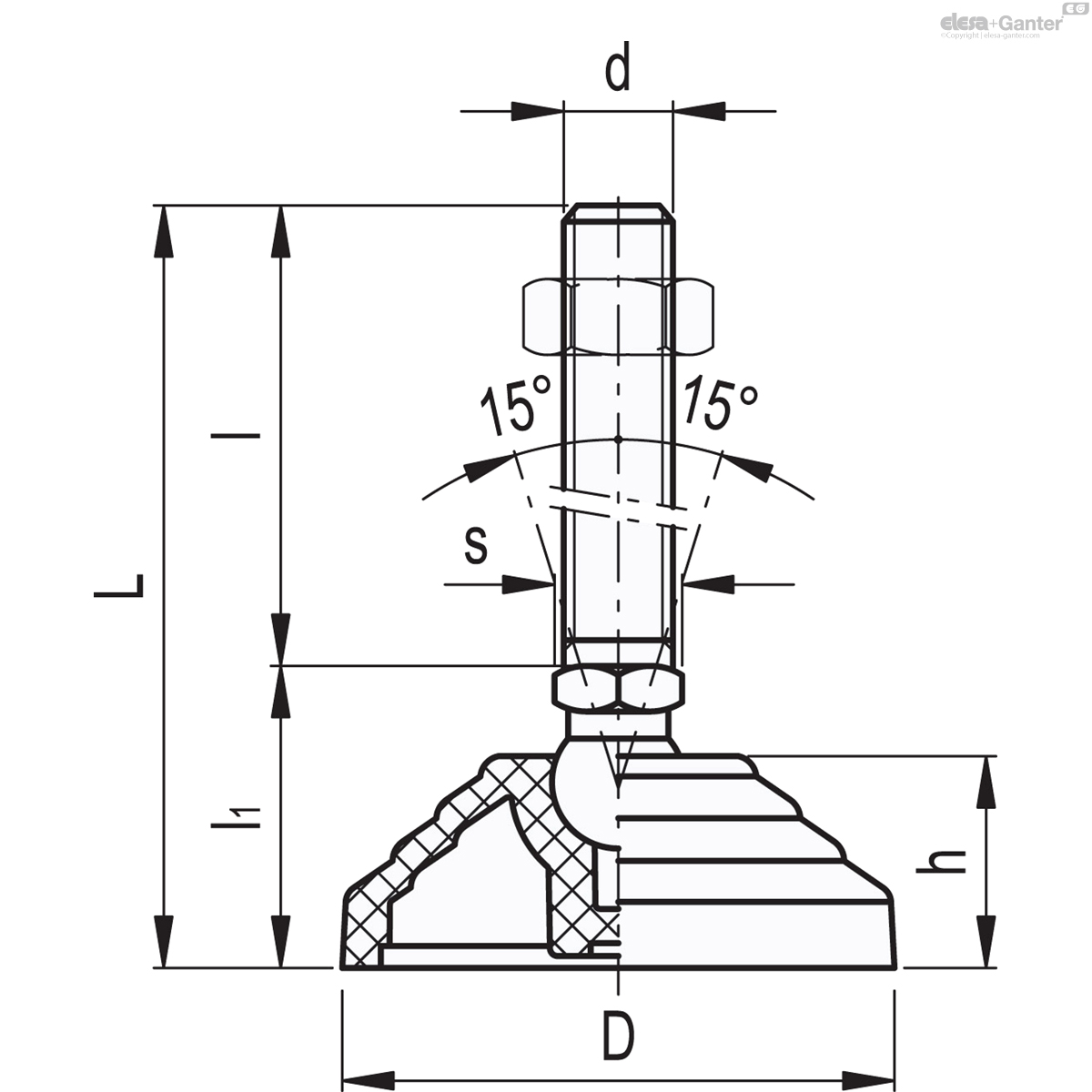

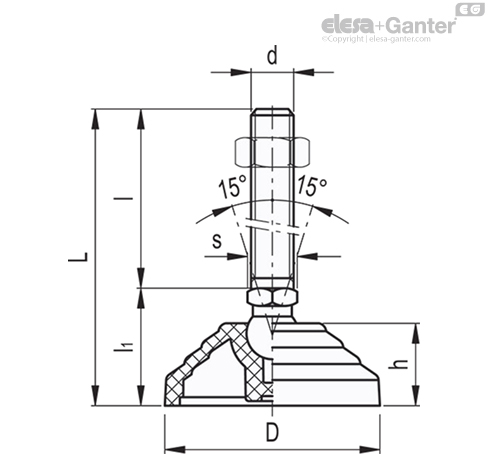

LV.A-SST

		D	d	L	l	l₁	h	s	Articulation Ø	Max. limit static load* [N]
Code	Description											Actions
323121	LV.A-60-14-SST-M8x43	60	M8	76	43	33	24	14	14	14000	78
323125	LV.A-60-14-SST-M8x68	60	M8	101	68	33	24	14	14	14000	78
323221	LV.A-60-14-SST-M10x43	60	M10	76	43	33	24	14	14	14000	77
323225	LV.A-60-14-SST-M10x68	60	M10	101	68	33	24	14	14	14000	91
323231	LV.A-60-14-SST-M10x98	60	M10	131	98	33	24	14	14	14000	107
323321	LV.A-60-14-SST-M12x43	60	M12	76	43	33	24	14	14	14000	88
323325	LV.A-60-14-SST-M12x68	60	M12	101	68	33	24	14	14	14000	107
323331	LV.A-60-14-SST-M12x98	60	M12	131	98	33	24	14	14	14000	129
323421	LV.A-60-14-SST-M14X68	60	M14	101	68	33	24	14	14	14000	88
323431	LV.A-60-14-SST-M14X98	60	M14	131	98	33	24	14	14	14000	107
323441	LV.A-60-14-SST-M14X148	60	M14	181	148	33	24	14	14	14000	129
323521	LV.A-60-14-SST-M16x68	60	M16	101	68	33	24	16	14	14000	47
323525	LV.A-60-14-SST-M16x108	60	M16	141	108	33	24	16	14	14000	186
323541	LV.A-60-14-SST-M16x148	60	M16	181	148	33	24	16	14	14000	260
323561	LV.A-60-14-SST-M16x168	60	M16	201	168	33	24	16	14	14000	281
323621	LV.A-60-24-SST-M16x58	60	M16	101	58	43	24	24	24	18000	204
323625	LV.A-60-24-SST-M16x98	60	M16	141	98	43	24	24	24	18000	259
323641	LV.A-60-24-SST-M16x138	60	M16	181	138	43	24	24	24	18000	307
323661	LV.A-60-24-SST-M16x158	60	M16	201	158	43	24	24	24	18000	55
323725	LV.A-60-24-SST-M20x98	60	M20	141	98	43	24	24	24	18000	340
323741	LV.A-60-24-SST-M20x138	60	M20	181	138	43	24	24	24	18000	422
323761	LV.A-60-24-SST-M20x158	60	M20	201	158	43	24	24	24	18000	465
323781	LV.A-60-24-SST-M20x198	60	M20	241	198	43	24	24	24	18000	75
323825	LV.A-60-24-SST-M24x98	60	M24	141	98	43	24	24	24	18000	426
323861	LV.A-60-24-SST-M24x158	60	M24	201	158	43	24	24	24	18000	575
323881	LV.A-60-24-SST-M24x198	60	M24	241	198	43	24	24	24	18000	725
324005	LV.A-70-14-SST-M8x43	70	M8	71	43	28	19	14	14	14000	43
324011	LV.A-70-14-SST-M8x68	70	M8	96	68	28	19	14	14	14000	43
324021	LV.A-70-14-SST-M10x43	70	M10	71	43	28	19	14	14	14000	42
324025	LV.A-70-14-SST-M10x68	70	M10	96	68	28	19	14	14	14000	56
324031	LV.A-70-14-SST-M10x98	70	M10	126	98	28	19	14	14	14000	72
324061	LV.A-70-14-SST-M12x43	70	M12	71	43	28	19	14	14	14000	53
324065	LV.A-70-14-SST-M12x68	70	M12	96	68	28	19	14	14	14000	72
324071	LV.A-70-14-SST-M12x98	70	M12	126	98	28	19	14	14	14000	94
324075	LV.A-70-14-SST-M14X68	70	M14	96	68	28	19	14	14	14000	72
324081	LV.A-70-14-SST-M14X98	70	M14	126	98	28	19	14	14	14000	94
324085	LV.A-70-14-SST-M14X148	70	M14	176	148	28	19	14	14	14000	12
324101	LV.A-70-14-SST-M16x68	70	M16	96	68	28	19	16	14	14000	12
324105	LV.A-70-14-SST-M16x108	70	M16	136	108	28	19	16	14	14000	151
324111	LV.A-70-14-SST-M16x148	70	M16	176	148	28	19	16	14	14000	225
324115	LV.A-70-14-SST-M16x168	70	M16	196	168	28	19	16	14	14000	246
324121	LV.A-80-14-SST-M8x43	80	M8	76	43	33	24	14	14	16000	102
324125	LV.A-80-14-SST-M8x68	80	M8	101	68	33	24	14	14	16000	102
324221	LV.A-80-14-SST-M10x43	80	M10	76	43	33	24	14	14	16000	101
324225	LV.A-80-14-SST-M10x68	80	M10	101	68	33	24	14	14	16000	115
324231	LV.A-80-14-SST-M10x98	80	M10	131	98	33	24	14	14	16000	131
324321	LV.A-80-14-SST-M12x43	80	M12	76	43	33	24	14	14	16000	112
324325	LV.A-80-14-SST-M12x68	80	M12	101	68	33	24	14	14	16000	131
324331	LV.A-80-14-SST-M12x98	80	M12	131	98	33	24	14	14	16000	153
324421	LV.A-80-14-SST-M14X68	80	M14	101	68	33	24	14	14	16000	112
324431	LV.A-80-14-SST-M14X98	80	M14	131	98	33	24	14	14	16000	131
324441	LV.A-80-14-SST-M14X148	80	M14	181	148	33	24	14	14	16000	153
324521	LV.A-80-14-SST-M16x68	80	M16	101	68	33	24	16	14	16000	71
324525	LV.A-80-14-SST-M16x108	80	M16	141	108	33	24	16	14	16000	210
324541	LV.A-80-14-SST-M16x148	80	M16	181	148	33	24	16	14	16000	284
324561	LV.A-80-14-SST-M16x168	80	M16	201	168	33	24	16	14	16000	305
324621	LV.A-80-24-SST-M16x58	80	M16	101	58	43	24	24	24	18000	232
324625	LV.A-80-24-SST-M16x98	80	M16	141	98	43	24	24	24	18000	287
324641	LV.A-80-24-SST-M16x138	80	M16	181	138	43	24	24	24	18000	335
324661	LV.A-80-24-SST-M16x158	80	M16	201	158	43	24	24	24	18000	83
324725	LV.A-80-24-SST-M20x98	80	M20	141	98	43	24	24	24	18000	368
324741	LV.A-80-24-SST-M20x138	80	M20	181	138	43	24	24	24	18000	450
324761	LV.A-80-24-SST-M20x158	80	M20	201	158	43	24	24	24	18000	493
324781	LV.A-80-24-SST-M20x198	80	M20	241	198	43	24	24	24	18000	103
324825	LV.A-80-24-SST-M24x98	80	M24	141	98	43	24	24	24	18000	454
324861	LV.A-80-24-SST-M24x158	80	M24	201	158	43	24	24	24	18000	603
324881	LV.A-80-24-SST-M24x198	80	M24	241	198	43	24	24	24	18000	753
325451	LV.A-100-14-SST-M8x43	100	M8	76	43	33	24	14	14	18000	135
325453	LV.A-100-14-SST-M8x68	100	M8	101	68	33	24	14	14	18000	143
325461	LV.A-100-14-SST-M10x43	100	M10	76	43	33	24	14	14	18000	143
325463	LV.A-100-14-SST-M10x68	100	M10	101	68	33	24	14	14	18000	156
325465	LV.A-100-14-SST-M10x98	100	M10	131	98	33	24	14	14	18000	171
325471	LV.A-100-14-SST-M12x43	100	M12	76	43	33	24	14	14	18000	153
325473	LV.A-100-14-SST-M12x68	100	M12	101	68	33	24	14	14	18000	170
325475	LV.A-100-14-SST-M12x98	100	M12	131	98	33	24	14	14	18000	192
325477	LV.A-100-14-SST-M14X68	100	M14	101	68	33	24	14	14	18000	170
325479	LV.A-100-14-SST-M14X98	100	M14	131	98	33	24	14	14	18000	192
325480	LV.A-100-14-SST-M14X148	100	M14	181	148	33	24	14	14	18000	266
325481	LV.A-100-14-SST-M16x68	100	M16	101	68	33	24	16	14	18000	217
325483	LV.A-100-14-SST-M16x108	100	M16	141	108	33	24	16	14	18000	266
325485	LV.A-100-14-SST-M16x148	100	M16	181	148	33	24	16	14	18000	323
325487	LV.A-100-14-SST-M16x168	100	M16	201	168	33	24	16	14	18000	348
325521	LV.A-100-24-SST-M16x58	100	M16	101	58	43	24	24	24	25000	262
325525	LV.A-100-24-SST-M16x98	100	M16	141	98	43	24	24	24	25000	317
325541	LV.A-100-24-SST-M16x138	100	M16	181	138	43	24	24	24	25000	365
325561	LV.A-100-24-SST-M16x158	100	M16	201	158	43	24	24	24	25000	113
325625	LV.A-100-24-SST-M20x98	100	M20	141	98	43	24	24	24	25000	398
325641	LV.A-100-24-SST-M20x138	100	M20	181	138	43	24	24	24	25000	480
325661	LV.A-100-24-SST-M20x158	100	M20	201	158	43	24	24	24	25000	523
325681	LV.A-100-24-SST-M20x198	100	M20	241	198	43	24	24	24	25000	133
325725	LV.A-100-24-SST-M24x98	100	M24	141	98	43	24	24	24	25000	484
325761	LV.A-100-24-SST-M24x158	100	M24	201	158	43	24	24	24	25000	633
325781	LV.A-100-24-SST-M24x198	100	M24	241	198	43	24	24	24	25000	783
326521	LV.A-125-24-SST-M16x58	125	M16	125	58	67	46	24	24	28000	377
326525	LV.A-125-24-SST-M16x98	125	M16	165	98	67	46	24	24	28000	432
326541	LV.A-125-24-SST-M16x138	125	M16	205	138	67	46	24	24	28000	480
326561	LV.A-125-24-SST-M16x158	125	M16	225	158	67	46	24	24	28000	228
326625	LV.A-125-24-SST-M20x98	125	M20	165	98	67	46	24	24	28000	513
326641	LV.A-125-24-SST-M20x138	125	M20	205	138	67	46	24	24	28000	595
326661	LV.A-125-24-SST-M20x158	125	M20	225	158	67	46	24	24	28000	638
326681	LV.A-125-24-SST-M20x198	125	M20	265	198	67	46	24	24	28000	248
326725	LV.A-125-24-SST-M24x98	125	M24	165	98	67	46	24	24	28000	599
326761	LV.A-125-24-SST-M24x158	125	M24	225	158	67	46	24	24	28000	748
326781	LV.A-125-24-SST-M24x198	125	M24	265	198	67	46	24	24	28000	898
