LS.A-PP-SST

Levelling feet

Polypropylene base, stainless steel stem

Enquire Now

Description

Main specifications

Base

High-resilience polypropylene based (PP) technopolymer, black colour, matte finish.

Articulated stem

Threaded AISI 304 stainless steel with regulation hexagon.

Standard executions

LS.A-PP-SST: without no-slip disk.
LS.A-PP-AS-SST: with EPDM rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

General information

Features and applications

Polypropylene levelling elements are particularly suitable for those sectors where they can be in contact with chemical agents and/or for frequent washing with acidic or basic detergent solutions, such as in the chemical, process, pharmaceutical, food, textile and paper industry.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disks).

Order information

The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

Accessories

Accessories on request

AISI 304 stainless steel nut (see Nuts NT.).

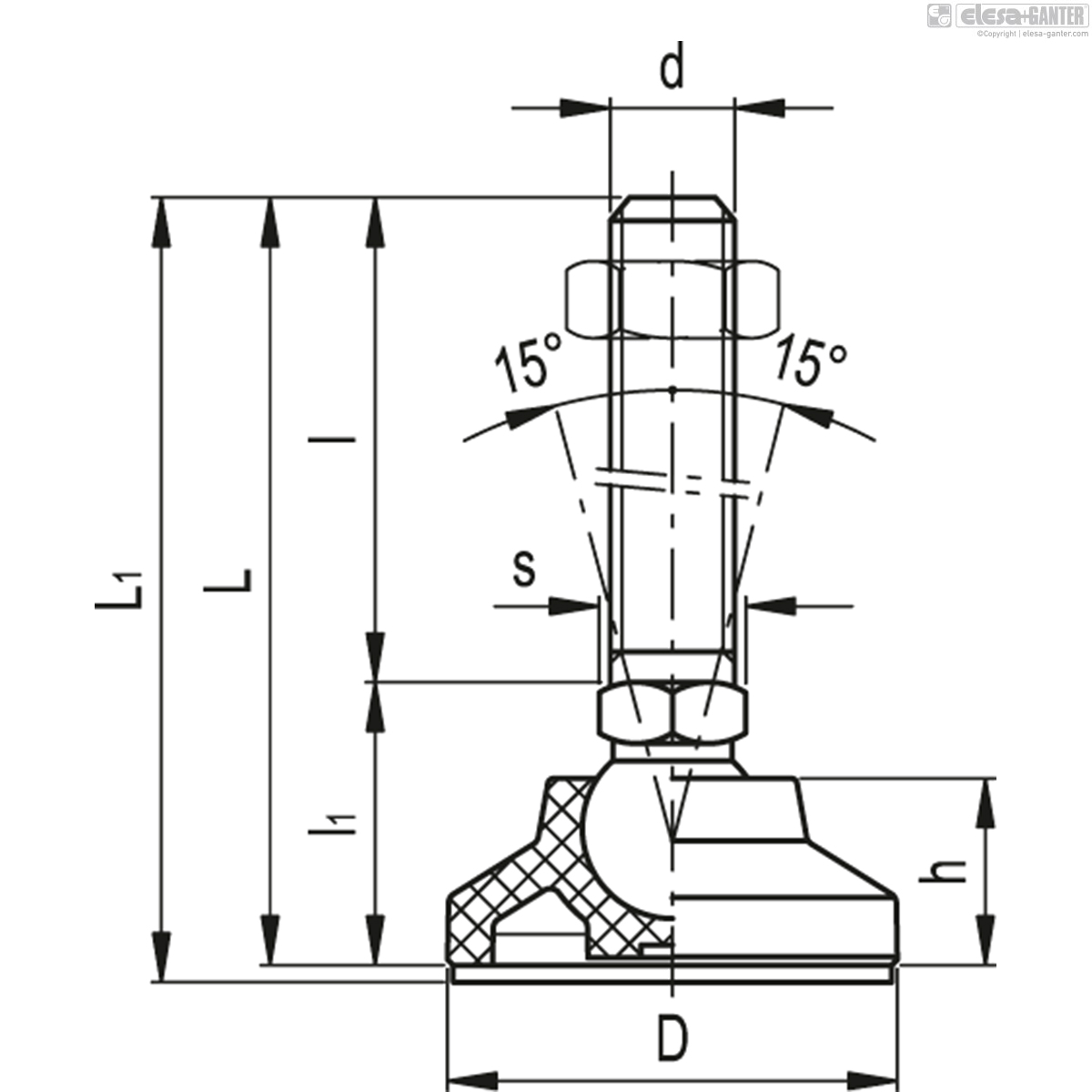

LS.A-PP-AS-SST

		D	d	L	L₁	l	l₁	h	s	Articulation Ø	[N]*	[N]**
Code	Description													Actions
378121	LS.A-40-PP-14-AS-SST-M8x43	40	M8	68	71	43	25	17	14	14	2000	10000	61
378125	LS.A-40-PP-14-AS-SST-M8x68	40	M8	93	96	68	25	17	14	14	2000	10000	61
378221	LS.A-40-PP-14-AS-SST-M10x43	40	M10	68	71	43	25	17	14	14	2000	10000	60
378225	LS.A-40-PP-14-AS-SST-M10x68	40	M10	93	96	68	25	17	14	14	2000	10000	74
378231	LS.A-40-PP-14-AS-SST-M10x98	40	M10	123	126	98	25	17	14	14	2000	10000	90
378321	LS.A-40-PP-14-AS-SST-M12x43	40	M12	68	71	43	25	17	14	14	2000	10000	71
378325	LS.A-40-PP-14-AS-SST-M12x68	40	M12	93	96	68	25	17	14	14	2000	10000	90
378331	LS.A-40-PP-14-AS-SST-M12x98	40	M12	123	126	98	25	17	14	14	2000	10000	112
378421	LS.A-40-PP-14-AS-SST-M14x68	40	M14	93	96	68	25	17	14	14	2000	10000	71
378431	LS.A-40-PP-14-AS-SST-M14x98	40	M14	123	126	98	25	17	14	14	2000	10000	90
378441	LS.A-40-PP-14-AS-SST-M14x148	40	M14	173	176	148	25	17	14	14	2000	10000	112
378521	LS.A-40-PP-14-AS-SST-M16x68	40	M16	93	96	68	25	17	16	14	2000	10000	30
378525	LS.A-40-PP-14-AS-SST-M16x108	40	M16	133	136	108	25	17	16	14	2000	10000	169
378541	LS.A-40-PP-14-AS-SST-M16x148	40	M16	173	176	148	25	17	16	14	2000	10000	243
378561	LS.A-40-PP-14-AS-SST-M16x168	40	M16	193	196	168	25	17	16	14	2000	10000	264
379121	LS.A-50-PP-14-AS-SST-M8x43	50	M8	70	73	43	27	19	14	14	2100	12000	74
379125	LS.A-50-PP-14-AS-SST-M8x68	50	M8	95	98	68	27	19	14	14	2100	12000	74
379221	LS.A-50-PP-14-AS-SST-M10x43	50	M10	70	73	43	27	19	14	14	2100	12000	72
379225	LS.A-50-PP-14-AS-SST-M10x68	50	M10	95	98	68	27	19	14	14	2100	12000	87
379231	LS.A-50-PP-14-AS-SST-M10x98	50	M10	125	128	98	27	19	14	14	2100	12000	102
379321	LS.A-50-PP-14-AS-SST-M12x43	50	M12	70	73	43	27	19	14	14	2100	12000	84
379325	LS.A-50-PP-14-AS-SST-M12x68	50	M12	95	98	68	27	19	14	14	2100	12000	102
379331	LS.A-50-PP-14-AS-SST-M12x98	50	M12	125	128	98	27	19	14	14	2100	12000	125
379421	LS.A-50-PP-14-AS-SST-M14x68	50	M14	95	98	68	27	19	14	14	2100	12000	84
379431	LS.A-50-PP-14-AS-SST-M14x98	50	M14	125	128	98	27	19	14	14	2100	12000	102
379441	LS.A-50-PP-14-AS-SST-M14x148	50	M14	175	178	148	27	19	14	14	2100	12000	125
379521	LS.A-50-PP-14-AS-SST-M16x68	50	M16	95	98	68	27	19	16	14	2100	12000	43
379525	LS.A-50-PP-14-AS-SST-M16x108	50	M16	135	138	108	27	19	16	14	2100	12000	182
379541	LS.A-50-PP-14-AS-SST-M16x148	50	M16	175	178	148	27	19	16	14	2100	12000	255
379561	LS.A-50-PP-14-AS-SST-M16x168	50	M16	195	198	168	27	19	16	14	2100	12000	277
380121	LS.A-60-PP-14-AS-SST-M8x43	60	M8	77	80	43	34	24	14	14	2300	13500	60
380125	LS.A-60-PP-14-AS-SST-M8x68	60	M8	102	105	68	34	24	14	14	2300	13500	60
380221	LS.A-60-PP-14-AS-SST-M10x43	60	M10	77	80	43	34	24	14	14	2300	13500	59
380225	LS.A-60-PP-14-AS-SST-M10x68	60	M10	102	105	68	34	24	14	14	2300	13500	73
380231	LS.A-60-PP-14-AS-SST-M10x98	60	M10	132	135	98	34	24	14	14	2300	13500	89
380321	LS.A-60-PP-14-AS-SST-M12x43	60	M12	77	80	43	34	24	14	14	2300	13500	70
380325	LS.A-60-PP-14-AS-SST-M12x68	60	M12	102	105	68	34	24	14	14	2300	13500	89
380331	LS.A-60-PP-14-AS-SST-M12x98	60	M12	132	135	98	34	24	14	14	2300	13500	111
380421	LS.A-60-PP-14-AS-SST-M14x68	60	M14	102	105	68	34	24	14	14	2300	13500	70
380431	LS.A-60-PP-14-AS-SST-M14x98	60	M14	132	135	98	34	24	14	14	2300	13500	89
380441	LS.A-60-PP-14-AS-SST-M14x148	60	M14	182	185	148	34	24	14	14	2300	13500	111
380521	LS.A-60-PP-14-AS-SST-M16x68	60	M16	102	105	68	34	24	16	14	2300	13500	132
380525	LS.A-60-PP-14-AS-SST-M16x108	60	M16	142	145	108	34	24	16	14	2300	13500	168
380541	LS.A-60-PP-14-AS-SST-M16x148	60	M16	182	185	148	34	24	16	14	2300	13500	242
380561	LS.A-60-PP-14-AS-SST-M16x168	60	M16	202	205	168	34	24	16	14	2300	13500	263
