LS.A-STP

Levelling feet

Technopolymer base, SUPER-technopolymer stem

Enquire Now

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated stem

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, with hexagonal socket and regulation hexagon.

Standard executions

LS.A-STP: without no-slip disk.

LS.A-AS-STP: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

General information

Features

Thanks to the property of the SUPER-technopolymer stem, high rigidity and mechanical resistance are obtained in addition to natural resistance to corrosion.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk).

Order information

The levelling feet are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

the codes of the Bases

the codes of the Stems

Accessories

Accessories on request

NT.: AISI 304 stainless steel or zinc-plated steel nut.

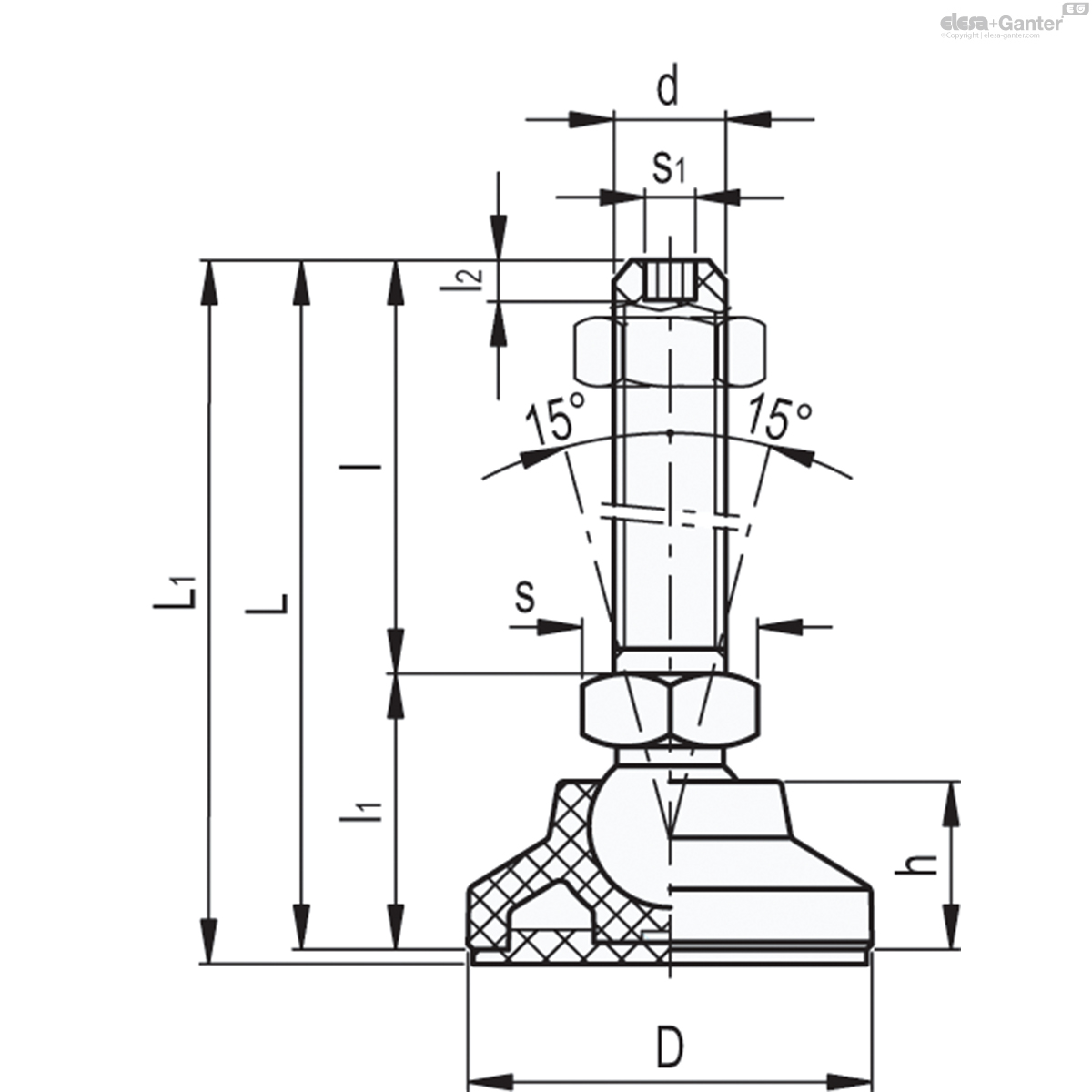

LS.A-AS-STP

		D	d	L	L₁	l	l₁	l₂	h	s	s₁	Articulation Ø	Max. limit static load* [N]
Code	Description														Actions
346123	LS.A-25-14-AS-STP-M8x44	25	M8	69	72	44	25	5	17	16	3	14	2700	14
346127	LS.A-25-14-AS-STP-M8x69	25	M8	94	97	69	25	5	17	16	3	14	2700	16
346223	LS.A-25-14-AS-STP-M10x44	25	M10	69	72	44	25	6	17	16	4	14	4800	16
346227	LS.A-25-14-AS-STP-M10x69	25	M10	94	97	69	25	6	17	16	4	14	5000	18
346233	LS.A-25-14-AS-STP-M10x99	25	M10	124	127	99	25	6	17	16	4	14	5100	22
346323	LS.A-25-14-AS-STP-M12x44	25	M12	69	72	44	25	7	17	16	5	14	6800	18
346327	LS.A-25-14-AS-STP-M12x69	25	M12	94	97	69	25	7	17	16	5	14	7000	21
346333	LS.A-25-14-AS-STP-M12x99	25	M12	124	127	99	25	7	17	16	5	14	7000	26
347123	LS.A-32-14-AS-STP-M8x44	32	M8	70	73	44	26	5	17	16	3	14	2700	20
347127	LS.A-32-14-AS-STP-M8x69	32	M8	95	98	69	26	5	17	16	3	14	2700	22
347223	LS.A-32-14-AS-STP-M10x44	32	M10	70	73	44	26	6	17	16	4	14	4800	22
347227	LS.A-32-14-AS-STP-M10x69	32	M10	95	98	69	26	6	17	16	4	14	5000	24
347233	LS.A-32-14-AS-STP-M10x99	32	M10	125	128	99	26	6	17	16	4	14	5100	28
347323	LS.A-32-14-AS-STP-M12x44	32	M12	70	73	44	26	7	17	16	5	14	6800	24
347327	LS.A-32-14-AS-STP-M12x69	32	M12	95	98	69	26	7	17	16	5	14	7000	27
347333	LS.A-32-14-AS-STP-M12x99	32	M12	125	128	99	26	7	17	16	5	14	7000	32
348123	LS.A-40-14-AS-STP-M8x44	40	M8	69.5	72.5	44	25.5	5	17	16	3	14	2700	28
348127	LS.A-40-14-AS-STP-M8x69	40	M8	94.5	97.5	69	25.5	5	17	16	3	14	2700	30
348223	LS.A-40-14-AS-STP-M10x44	40	M10	69.5	72.5	44	25.5	6	17	16	4	14	4800	30
348227	LS.A-40-14-AS-STP-M10x69	40	M10	94.5	97.5	69	25.5	6	17	16	4	14	5000	32
348233	LS.A-40-14-AS-STP-M10x99	40	M10	124.5	127.5	99	25.5	6	17	16	4	14	5100	36
348323	LS.A-40-14-AS-STP-M12x44	40	M12	69.5	72.5	44	25.5	7	17	16	5	14	6800	32
348327	LS.A-40-14-AS-STP-M12x69	40	M12	94.5	97.5	69	25.5	7	17	16	5	14	7000	35
348333	LS.A-40-14-AS-STP-M12x99	40	M12	124.5	127.5	99	25.5	7	17	16	5	14	7000	40
349123	LS.A-50-14-AS-STP-M8x44	50	M8	72	75	44	28	5	19	16	3	14	2700	39
349127	LS.A-50-14-AS-STP-M8x69	50	M8	97	100	69	28	5	19	16	3	14	2700	41
349223	LS.A-50-14-AS-STP-M10x44	50	M10	72	75	44	28	6	19	16	4	14	4800	41
349227	LS.A-50-14-AS-STP-M10x69	50	M10	97	100	69	28	6	19	16	4	14	5000	43
349233	LS.A-50-14-AS-STP-M10x99	50	M10	127	130	99	28	6	19	16	4	14	5100	47
349323	LS.A-50-14-AS-STP-M12x44	50	M12	72	75	44	28	7	19	16	5	14	6800	43
349327	LS.A-50-14-AS-STP-M12x69	50	M12	97	100	69	28	7	19	16	5	14	7000	46
349333	LS.A-50-14-AS-STP-M12x99	50	M12	127	130	99	28	7	19	16	5	14	7000	51
349613	LS.A-60-14-AS-STP-M8x44	60	M8	79	82	44	35	5	24	16	3	14	2700	58
349617	LS.A-60-14-AS-STP-M8x69	60	M8	104	107	69	35	5	24	16	3	14	2700	60
349623	LS.A-60-14-AS-STP-M10x44	60	M10	79	82	44	35	6	24	16	4	14	4800	60
349627	LS.A-60-14-AS-STP-M10x69	60	M10	104	107	69	35	6	24	16	4	14	5000	62
349633	LS.A-60-14-AS-STP-M10x99	60	M10	134	137	99	35	6	24	16	4	14	5100	66
349723	LS.A-60-14-AS-STP-M12x44	60	M12	79	82	44	35	7	24	16	5	14	6800	62
349727	LS.A-60-14-AS-STP-M12x69	60	M12	104	107	69	35	7	24	16	5	14	7000	65
349733	LS.A-60-14-AS-STP-M12x99	60	M12	134	137	99	35	7	24	16	5	14	7000	70
