LS.A-SST-VD

Adjustable feet

Visually Detectable technopolymer base, stainless steel stem

Enquire Now

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 5005 blue colour, matte finish.

Produced from FDA compliant raw material (FDA CFR.21 and EU 10/2011).

Articulated stem

Threaded AISI 304 stainless steel with regulation hexagon.

Standard executions

LS.A-SST-VD: without no-slip disk.

LS.A-AS-SST-VD: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

General information

Features and applications

The RAL 5005 blue colour is easily visible in case of accidental food contamination.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk).

Order information

The levelling feet are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

the codes of the Bases

the codes of the Stems.

Accessories

Accessories on request

AISI 304 stainless steel nut (see Nuts NT.).

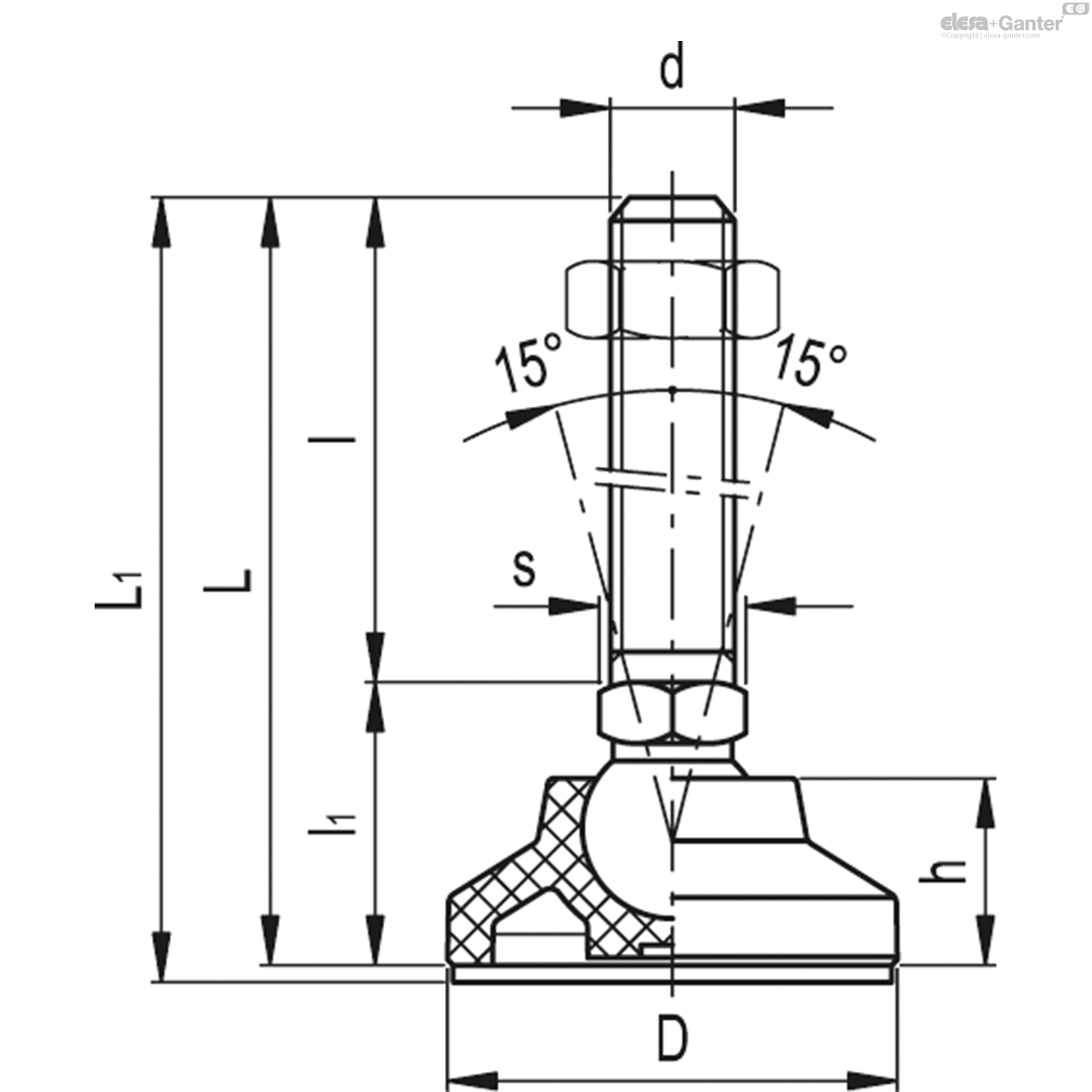

LS.A-AS-SST-VD

		D	d	L	L₁	l	l₁	h	s	Articulation Ø	Max. limit static load* [N]
Code	Description												Actions
188101	LS.A-25-14-AS-SST-M8x43-VD	25	M8	67	70	43	24	12	14	14	7000	48
188103	LS.A-25-14-AS-SST-M8x68-VD	25	M8	92	95	68	24	12	14	14	7000	48
188111	LS.A-25-14-AS-SST-M10x43-VD	25	M10	67	70	43	24	12	14	14	7000	47
188113	LS.A-25-14-AS-SST-M10x68-VD	25	M10	92	95	68	24	12	14	14	7000	61
188115	LS.A-25-14-AS-SST-M10x98-VD	25	M10	122	125	98	24	12	14	14	7000	77
188121	LS.A-25-14-AS-SST-M12x43-VD	25	M12	67	70	43	24	12	14	14	7000	58
188123	LS.A-25-14-AS-SST-M12x68-VD	25	M12	92	95	68	24	12	14	14	7000	77
188125	LS.A-25-14-AS-SST-M12x98-VD	25	M12	122	125	98	24	12	14	14	7000	99
188131	LS.A-25-14-AS-SST-M14x68-VD	25	M14	92	95	68	24	12	14	14	7000	58
188133	LS.A-25-14-AS-SST-M14x98-VD	25	M14	122	125	98	24	12	14	14	7000	77
188135	LS.A-25-14-AS-SST-M14x148-VD	25	M14	172	175	148	24	12	14	14	7000	99
188141	LS.A-25-14-AS-SST-M16x68-VD	25	M16	92	95	68	24	12	16	14	7000	17
188143	LS.A-25-14-AS-SST-M16x108-VD	25	M16	132	135	108	24	12	16	14	7000	156
188145	LS.A-25-14-AS-SST-M16x148-VD	25	M16	172	175	148	24	12	16	14	7000	230
188147	LS.A-25-14-AS-SST-M16x168-VD	25	M16	192	195	168	24	12	16	14	7000	251
188201	LS.A-32-14-AS-SST-M8x43-VD	32	M8	68	71	43	25	15	14	14	9000	55
188203	LS.A-32-14-AS-SST-M8x68-VD	32	M8	93	96	68	25	15	14	14	9000	55
188211	LS.A-32-14-AS-SST-M10x43-VD	32	M10	68	71	43	25	15	14	14	9000	53
188213	LS.A-32-14-AS-SST-M10x68-VD	32	M10	93	96	68	25	15	14	14	9000	68
188215	LS.A-32-14-AS-SST-M10x98-VD	32	M10	123	126	98	25	15	14	14	9000	83
188221	LS.A-32-14-AS-SST-M12x43-VD	32	M12	68	71	43	25	15	14	14	9000	65
188223	LS.A-32-14-AS-SST-M12x68-VD	32	M12	93	96	68	25	15	14	14	9000	83
188225	LS.A-32-14-AS-SST-M12x98-VD	32	M12	123	126	98	25	15	14	14	9000	106
188231	LS.A-32-14-AS-SST-M14x68-VD	32	M14	93	96	68	25	15	14	14	9000	65
188233	LS.A-32-14-AS-SST-M14x98-VD	32	M14	123	126	98	25	15	14	14	9000	83
188235	LS.A-32-14-AS-SST-M14x148-VD	32	M14	173	176	148	25	15	14	14	9000	106
188241	LS.A-32-14-AS-SST-M16x68-VD	32	M16	93	97	68	25	15	16	14	9000	24
188243	LS.A-32-14-AS-SST-M16x108-VD	32	M16	133	137	108	25	15	16	14	9000	163
188245	LS.A-32-14-AS-SST-M16x148-VD	32	M16	173	176	148	25	15	16	14	9000	236
188247	LS.A-32-14-AS-SST-M16x168-VD	32	M16	193	196	168	25	15	16	14	9000	258
188301	LS.A-40-14-AS-SST-M8x43-VD	40	M8	68	71	43	25	17	14	14	13000	61
188303	LS.A-40-14-AS-SST-M8x68-VD	40	M8	93	96	68	25	17	14	14	13000	61
188311	LS.A-40-14-AS-SST-M10x43-VD	40	M10	68	71	43	25	17	14	14	13000	60
188313	LS.A-40-14-AS-SST-M10x68-VD	40	M10	93	96	68	25	17	14	14	13000	74
188315	LS.A-40-14-AS-SST-M10x98-VD	40	M10	123	126	98	25	17	14	14	13000	90
188321	LS.A-40-14-AS-SST-M12x43-VD	40	M12	68	71	43	25	17	14	14	13000	71
188323	LS.A-40-14-AS-SST-M12x68-VD	40	M12	93	96	68	25	17	14	14	13000	90
188325	LS.A-40-14-AS-SST-M12x98-VD	40	M12	123	126	98	25	17	14	14	13000	112
188331	LS.A-40-14-AS-SST-M14x68-VD	40	M14	93	96	68	25	17	14	14	13000	71
188333	LS.A-40-14-AS-SST-M14x98-VD	40	M14	123	126	98	25	17	14	14	13000	90
188335	LS.A-40-14-AS-SST-M14x148-VD	40	M14	173	176	148	25	17	14	14	13000	112
188341	LS.A-40-14-AS-SST-M16x68-VD	40	M16	93	96	68	25	17	16	14	13000	30
188343	LS.A-40-14-AS-SST-M16x108-VD	40	M16	133	136	108	25	17	16	14	13000	169
188345	LS.A-40-14-AS-SST-M16x148-VD	40	M16	173	176	148	25	17	16	14	13000	243
188347	LS.A-40-14-AS-SST-M16x168-VD	40	M16	193	196	168	25	17	16	14	13000	264
188401	LS.A-50-14-AS-SST-M8x43-VD	50	M8	70	73	43	27	19	14	14	13000	74
188403	LS.A-50-14-AS-SST-M8x68-VD	50	M8	95	98	68	27	19	14	14	13000	74
188411	LS.A-50-14-AS-SST-M10x43-VD	50	M10	70	73	43	27	19	14	14	13000	72
188413	LS.A-50-14-AS-SST-M10x68-VD	50	M10	95	98	68	27	19	14	14	13000	87
188415	LS.A-50-14-AS-SST-M10x98-VD	50	M10	125	128	98	27	19	14	14	13000	102
188421	LS.A-50-14-AS-SST-M12x43-VD	50	M12	70	73	43	27	19	14	14	13000	84
188423	LS.A-50-14-AS-SST-M12x68-VD	50	M12	95	98	68	27	19	14	14	13000	102
188425	LS.A-50-14-AS-SST-M12x98-VD	50	M12	125	128	98	27	19	14	14	13000	125
188431	LS.A-50-14-AS-SST-M14x68-VD	50	M14	95	98	68	27	19	14	14	13000	84
188433	LS.A-50-14-AS-SST-M14x98-VD	50	M14	125	128	98	27	19	14	14	13000	102
188435	LS.A-50-14-AS-SST-M14x148-VD	50	M14	175	178	148	27	19	14	14	13000	125
188441	LS.A-50-14-AS-SST-M16x68-VD	50	M16	95	98	68	27	19	16	14	13000	43
188443	LS.A-50-14-AS-SST-M16x108-VD	50	M16	135	138	108	27	19	16	14	13000	182
188445	LS.A-50-14-AS-SST-M16x148-VD	50	M16	175	178	148	27	19	16	14	13000	255
188447	LS.A-50-14-AS-SST-M16x168-VD	50	M16	195	198	168	27	19	16	14	13000	277
188501	LS.A-60-14-AS-SST-M8x43-VD	60	M8	76	79	43	33	24	14	14	14000	55
188503	LS.A-60-14-AS-SST-M8x68-VD	60	M8	101	104	68	33	24	14	14	14000	62
188511	LS.A-60-14-AS-SST-M10x43-VD	60	M10	76	79	43	33	24	14	14	14000	62
188513	LS.A-60-14-AS-SST-M10x68-VD	60	M10	101	104	68	33	24	14	14	14000	74
188515	LS.A-60-14-AS-SST-M10x98-VD	60	M10	131	134	98	33	24	14	14	14000	89
188521	LS.A-60-14-AS-SST-M12x43-VD	60	M12	76	79	43	33	24	14	14	14000	70
188523	LS.A-60-14-AS-SST-M12x68-VD	60	M12	101	104	68	33	24	14	14	14000	88
188525	LS.A-60-14-AS-SST-M12x98-VD	60	M12	131	134	98	33	24	14	14	14000	110
188531	LS.A-60-14-AS-SST-M14x68-VD	60	M14	101	104	68	33	24	14	14	14000	107
188533	LS.A-60-14-AS-SST-M14x98-VD	60	M14	131	134	98	33	24	14	14	14000	136
188535	LS.A-60-14-AS-SST-M14x148-VD	60	M14	181	184	148	33	24	14	14	14000	185
188541	LS.A-60-14-AS-SST-M16x68-VD	60	M16	101	104	68	33	24	16	14	14000	134
188543	LS.A-60-14-AS-SST-M16x108-VD	60	M16	141	144	108	33	24	16	14	14000	185
188545	LS.A-60-14-AS-SST-M16x148-VD	60	M16	181	184	148	33	24	16	14	14000	237
188547	LS.A-60-14-AS-SST-M16x168-VD	60	M16	201	204	168	33	24	16	14	14000	264
188551	LS.A-60-24-AS-SST-M16x58-VD	60	M16	101	104	58	43	24	24	24	18000	203
188553	LS.A-60-24-AS-SST-M16x98-VD	60	M16	141	144	98	43	24	24	24	18000	255
188555	LS.A-60-24-AS-SST-M16x138-VD	60	M16	181	184	138	43	24	24	24	18000	312
188557	LS.A-60-24-AS-SST-M16x158-VD	60	M16	201	204	158	43	24	24	24	18000	337
188561	LS.A-60-24-AS-SST-M20x98-VD	60	M20	141	144	98	43	24	24	24	18000	329
188563	LS.A-60-24-AS-SST-M20x138-VD	60	M20	181	184	138	43	24	24	24	18000	416
188565	LS.A-60-24-AS-SST-M20x158-VD	60	M20	201	204	158	43	24	24	24	18000	456
188567	LS.A-60-24-AS-SST-M20x198-VD	60	M20	241	244	198	43	24	24	24	18000	544
188571	LS.A-60-24-AS-SST-M24x98-VD	60	M24	141	144	98	43	24	24	24	18000	418
188573	LS.A-60-24-AS-SST-M24x158-VD	60	M24	201	204	158	43	24	24	24	18000	597
188575	LS.A-60-24-AS-SST-M24x198-VD	60	M24	241	244	198	43	24	24	24	18000	722
