LS.A

Levelling feet

Technopolymer base, steel stem

Enquire Now

Description

Main specifications

Base

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Articulated stem

Threaded zinc-plated steel with regulation hexagon.

Standard executions

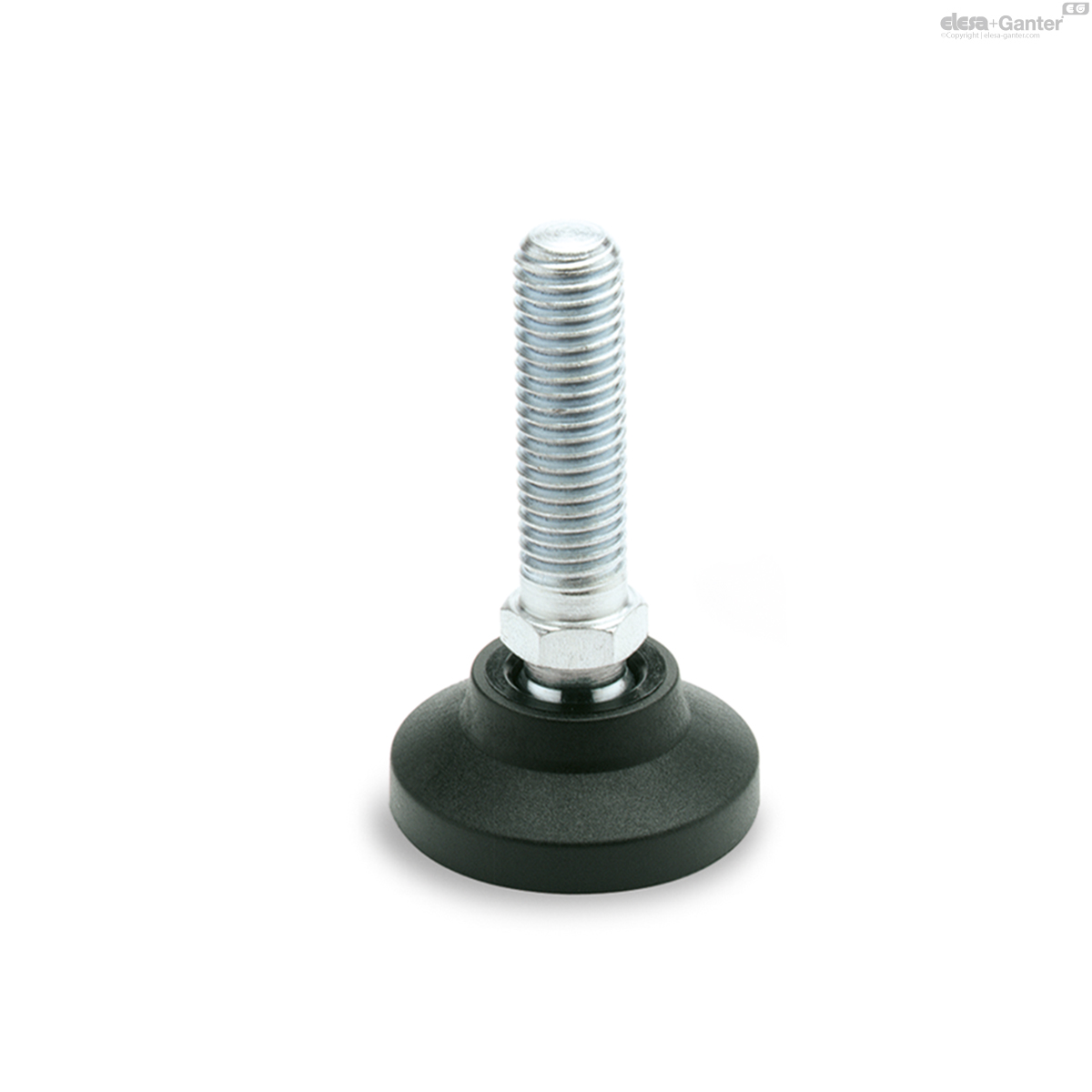

LS.A: without no-slip disk.

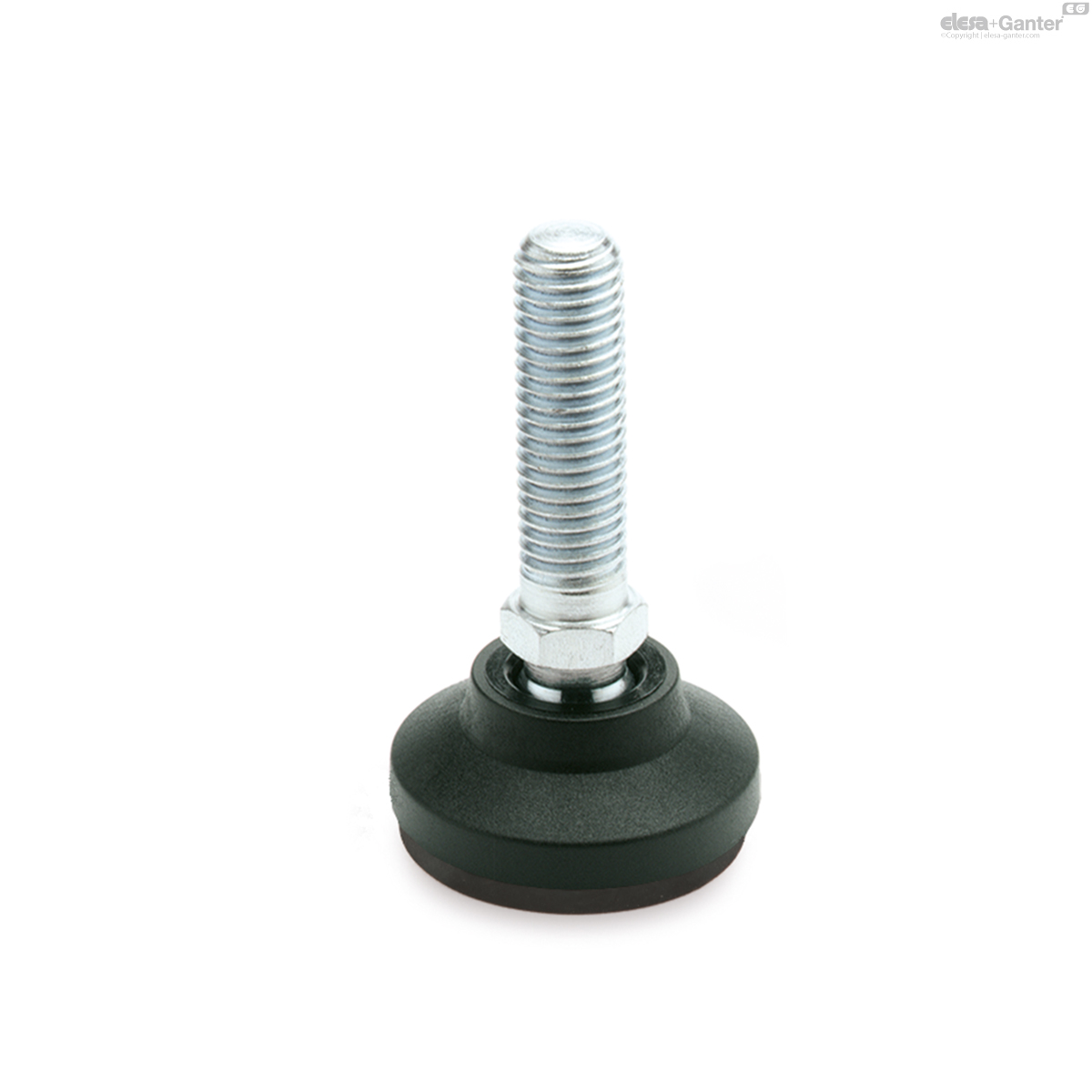

LS.A-AS: with NBR rubber no-slip disk, hardness 70 Shore A, supplied assembled to the base.

General information

Features

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disk ).

Order information

The levelling elements are supplied unassembled to make carriage and storage easier. The components (base and stem) are supplied in separate packing: less volume taken and better protection from scratches and dirt.

To order bases and stems separately, see:

table of possible combinations Bases/Stems

codes of the Bases

codes of the Stems

Accessories on request

Zinc-plated steel nut (see Nuts NT.).

LS.A

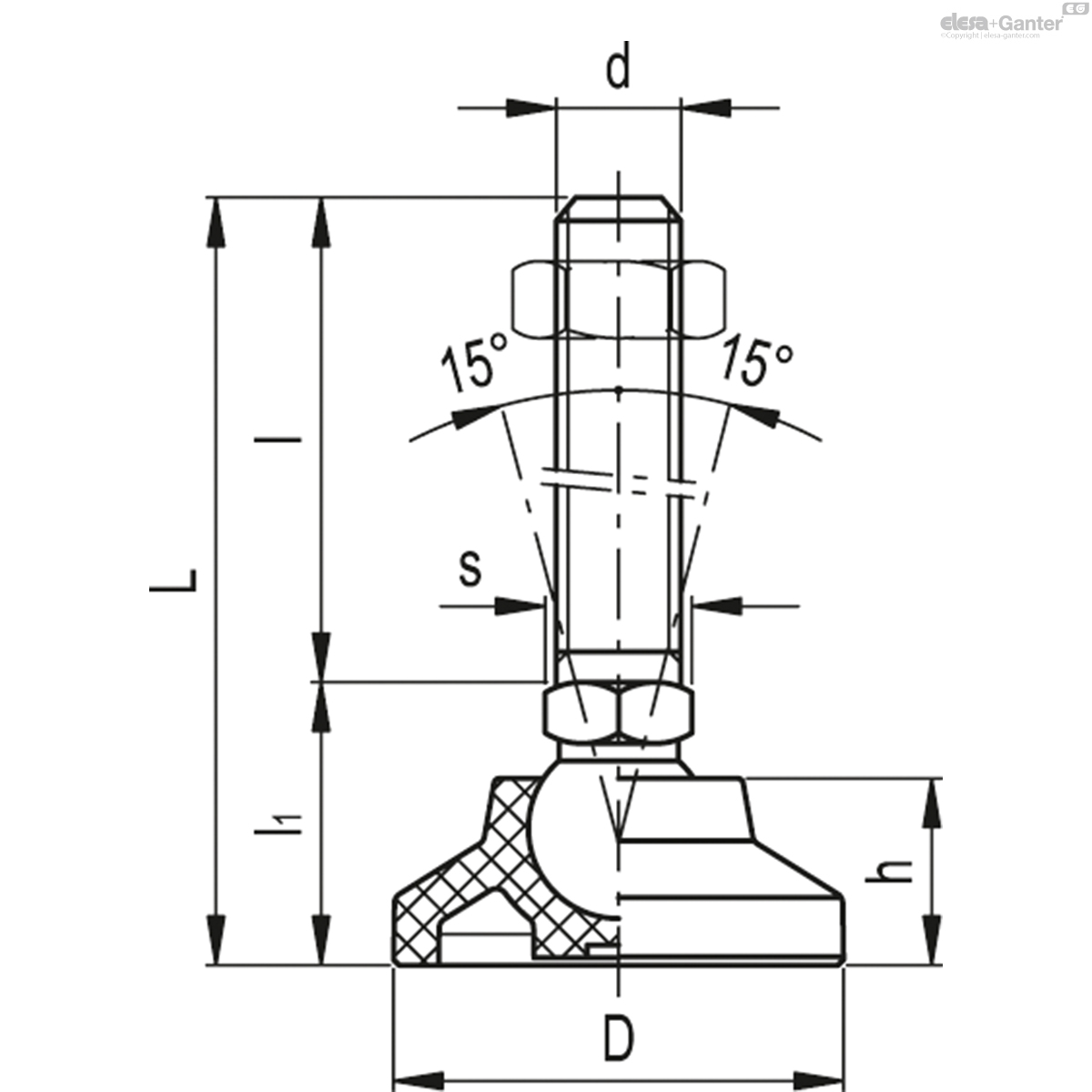

		D	d	L	l	Articulation Ø	l₁	h	s	Max. limit static load* [N]
Code	Description											Actions
340521	LS.A-25-8.5-M8x43	25	M8	61	43	8.5	18	12	10	5000	40
340525	LS.A-25-8.5-M8x68	25	M8	86	68	8.5	18	12	10	5000	47
340621	LS.A-25-8.5-M10x43	25	M10	61	43	8.5	18	12	10	5000	47
340625	LS.A-25-8.5-M10x68	25	M10	86	68	8.5	18	12	10	5000	59
340631	LS.A-25-8.5-M10x98	25	M10	116	98	8.5	18	12	10	5000	73
340721	LS.A-25-8.5-M12x43	25	M12	61	43	8.5	18	12	12	5000	56
340725	LS.A-25-8.5-M12x68	25	M12	86	68	8.5	18	12	12	5000	73
340731	LS.A-25-8.5-M12x98	25	M12	116	98	8.5	18	12	12	5000	94
341121	LS.A-25-14-M8x43	25	M8	67	43	14	24	12	14	7000	40
341125	LS.A-25-14-M8x68	25	M8	92	68	14	24	12	14	7000	47
341221	LS.A-25-14-M10x43	25	M10	67	43	14	24	12	14	7000	47
341225	LS.A-25-14-M10x68	25	M10	92	68	14	24	12	14	7000	59
341231	LS.A-25-14-M10x98	25	M10	122	98	14	24	12	14	7000	73
341321	LS.A-25-14-M12x43	25	M12	67	43	14	24	12	14	7000	56
341325	LS.A-25-14-M12x68	25	M12	92	68	14	24	12	14	7000	73
341331	LS.A-25-14-M12x98	25	M12	122	98	14	24	12	14	7000	94
341421	LS.A-25-14-M14X68	25	M14	92	68	14	24	12	14	7000	56
341431	LS.A-25-14-M14X98	25	M14	122	98	14	24	12	14	7000	73
341441	LS.A-25-14-M14X148	25	M14	172	148	14	24	12	14	7000	94
341521	LS.A-25-14-M16x68	25	M16	92	68	14	24	12	16	7000	116
341525	LS.A-25-14-M16x108	25	M16	132	108	14	24	12	16	7000	166
341541	LS.A-25-14-M16x148	25	M16	172	148	14	24	12	16	7000	219
341561	LS.A-25-14-M16x168	25	M16	192	168	14	24	12	16	7000	243
341611	LS.A-32-8.5-M8x43	32	M8	64.5	43	8.5	21.5	15	10	6000	42
341615	LS.A-32-8.5-M8x68	32	M8	89.5	68	8.5	21.5	15	10	6000	49
341621	LS.A-32-8.5-M10x43	32	M10	64.5	43	8.5	21.5	15	10	6000	49
341625	LS.A-32-8.5-M10x68	32	M10	89.5	68	8.5	21.5	15	10	6000	61
341631	LS.A-32-8.5-M10x98	32	M10	119.5	98	8.5	21.5	15	10	6000	75
341721	LS.A-32-8.5-M12x43	32	M12	64.5	43	8.5	21.5	15	12	6000	58
341725	LS.A-32-8.5-M12x68	32	M12	89.5	68	8.5	21.5	15	12	6000	75
341731	LS.A-32-8.5-M12x98	32	M12	119.5	98	8.5	21.5	15	12	6000	96
342121	LS.A-32-14-M8x43	32	M8	68	43	14	25	15	14	9000	42
342125	LS.A-32-14-M8x68	32	M8	93	68	14	25	15	14	9000	49
342221	LS.A-32-14-M10x43	32	M10	68	43	14	25	15	14	9000	49
342225	LS.A-32-14-M10x68	32	M10	93	68	14	25	15	14	9000	61
342231	LS.A-32-14-M10x98	32	M10	123	98	14	25	15	14	9000	75
342321	LS.A-32-14-M12x43	32	M12	68	43	14	25	15	14	9000	58
342325	LS.A-32-14-M12x68	32	M12	93	68	14	25	15	14	9000	75
342331	LS.A-32-14-M12x98	32	M12	123	98	14	25	15	14	9000	96
342421	LS.A-32-14-M14X68	32	M14	93	68	14	25	15	14	9000	58
342431	LS.A-32-14-M14X98	32	M14	123	98	14	25	15	14	9000	75
342441	LS.A-32-14-M14X148	32	M14	173	148	14	25	15	14	9000	96
342521	LS.A-32-14-M16x68	32	M16	93	68	14	25	15	16	9000	118
342525	LS.A-32-14-M16x108	32	M16	133	108	14	25	15	16	9000	168
342541	LS.A-32-14-M16x148	32	M16	173	148	14	25	15	16	9000	221
342561	LS.A-32-14-M16x168	32	M16	193	168	14	25	15	16	9000	245
342611	LS.A-40-8.5-M8x43	40	M8	66	43	8.5	23	17	10	7000	44
342615	LS.A-40-8.5-M8x68	40	M8	91	68	8.5	23	17	10	7000	55
342621	LS.A-40-8.5-M10x43	40	M10	66	43	8.5	23	17	10	7000	55
342625	LS.A-40-8.5-M10x68	40	M10	91	68	8.5	23	17	10	7000	67
342631	LS.A-40-8.5-M10x98	40	M10	121	98	8.5	23	17	10	7000	81
342721	LS.A-40-8.5-M12x43	40	M12	66	43	8.5	23	17	12	7000	64
342725	LS.A-40-8.5-M12x68	40	M12	91	68	8.5	23	17	12	7000	81
342731	LS.A-40-8.5-M12x98	40	M12	121	98	8.5	23	17	12	7000	102
343121	LS.A-40-14-M8x43	40	M8	68	43	14	25	17	14	13000	44
343125	LS.A-40-14-M8x68	40	M8	93	68	14	25	17	14	13000	55
343221	LS.A-40-14-M10x43	40	M10	68	43	14	25	17	14	13000	55
343225	LS.A-40-14-M10x68	40	M10	93	68	14	25	17	14	13000	67
343231	LS.A-40-14-M10x98	40	M10	123	98	14	25	17	14	13000	81
343321	LS.A-40-14-M12x43	40	M12	68	43	14	25	17	14	13000	64
343325	LS.A-40-14-M12x68	40	M12	93	68	14	25	17	14	13000	81
343331	LS.A-40-14-M12x98	40	M12	123	98	14	25	17	14	13000	102
343421	LS.A-40-14-M14X68	40	M14	93	68	14	25	17	14	13000	64
343431	LS.A-40-14-M14X98	40	M14	123	98	14	25	17	14	13000	81
343441	LS.A-40-14-M14X148	40	M14	173	148	14	25	17	14	13000	102
343521	LS.A-40-14-M16x68	40	M16	93	68	14	25	17	16	13000	124
343525	LS.A-40-14-M16x108	40	M16	133	108	14	25	17	16	13000	174
343541	LS.A-40-14-M16x148	40	M16	173	148	14	25	17	16	13000	227
343561	LS.A-40-14-M16x168	40	M16	193	168	14	25	17	16	13000	251
343611	LS.A-50-8.5-M8x43	50	M8	68	43	8.5	25	19	10	8000	53
343615	LS.A-50-8.5-M8x68	50	M8	93	68	8.5	25	19	10	8000	60
343621	LS.A-50-8.5-M10x43	50	M10	68	43	8.5	25	19	10	8000	60
343625	LS.A-50-8.5-M10x68	50	M10	93	68	8.5	25	19	10	8000	72
343631	LS.A-50-8.5-M10x98	50	M10	123	98	8.5	25	19	10	8000	86
343721	LS.A-50-8.5-M12x43	50	M12	68	43	8.5	25	19	12	8000	69
343725	LS.A-50-8.5-M12x68	50	M12	93	68	8.5	25	19	12	8000	86
343731	LS.A-50-8.5-M12x98	50	M12	123	98	8.5	25	19	12	8000	107
344121	LS.A-50-14-M8x43	50	M8	70	43	14	27	19	14	13000	53
344125	LS.A-50-14-M8x68	50	M8	95	68	14	27	19	14	13000	60
344221	LS.A-50-14-M10x43	50	M10	70	43	14	27	19	14	13000	60
344225	LS.A-50-14-M10x68	50	M10	95	68	14	27	19	14	13000	72
344231	LS.A-50-14-M10x98	50	M10	125	98	14	27	19	14	13000	86
344321	LS.A-50-14-M12x43	50	M12	70	43	14	27	19	14	13000	69
344325	LS.A-50-14-M12x68	50	M12	95	68	14	27	19	14	13000	86
344331	LS.A-50-14-M12x98	50	M12	125	98	14	27	19	14	13000	107
344421	LS.A-50-14-M14X68	50	M14	95	68	14	27	19	14	13000	69
344431	LS.A-50-14-M14X98	50	M14	125	98	14	27	19	14	13000	86
344441	LS.A-50-14-M14X148	50	M14	175	148	14	27	19	14	13000	107
344521	LS.A-50-14-M16x68	50	M16	95	68	14	27	19	16	13000	129
344525	LS.A-50-14-M16x108	50	M16	135	108	14	27	19	16	13000	179
344541	LS.A-50-14-M16x148	50	M16	175	148	14	27	19	16	13000	232
344561	LS.A-50-14-M16x168	50	M16	195	168	14	27	19	16	13000	256
344611	LS.A-60-14-M8X43	60	M8	76	43	14	33	24	14	14000	54
344615	LS.A-60-14-M8X68	60	M8	101	68	14	33	24	14	14000	61
344621	LS.A-60-14-M10X43	60	M10	76	43	14	33	24	14	14000	61
344625	LS.A-60-14-M10X68	60	M10	101	68	14	33	24	14	14000	72
344631	LS.A-60-14-M10X98	60	M10	131	98	14	33	24	14	14000	87
344721	LS.A-60-14-M12X43	60	M12	76	43	14	33	24	14	14000	70
344725	LS.A-60-14-M12X68	60	M12	101	68	14	33	24	14	14000	87
344731	LS.A-60-14-M12X98	60	M12	131	98	14	33	24	14	14000	107
345121	LS.A-60-14-M14X68	60	M14	101	68	14	33	24	14	14000	103
345125	LS.A-60-14-M14X98	60	M14	131	98	14	33	24	14	14000	131
345221	LS.A-60-14-M14X148	60	M14	181	148	14	33	24	14	14000	179
345225	LS.A-60-14-M16X68	60	M16	101	68	14	33	24	16	14000	127
345231	LS.A-60-14-M16X108	60	M16	141	108	14	33	24	16	14000	178
345235	LS.A-60-14-M16X148	60	M16	181	148	14	33	24	16	14000	229
345241	LS.A-60-14-M16X168	60	M16	201	168	14	33	24	16	14000	254
345245	LS.A-60-24-M16X58	60	M16	101	58	24	43	24	24	18000	197
345251	LS.A-60-24-M16X98	60	M16	141	98	24	43	24	24	18000	248
345255	LS.A-60-24-M16X138	60	M16	181	138	24	43	24	24	18000	300
345261	LS.A-60-24-M16X158	60	M16	201	158	24	43	24	24	18000	326
345265	LS.A-60-24-M20X98	60	M20	141	98	24	43	24	24	18000	316
345271	LS.A-60-24-M20X138	60	M20	181	138	24	43	24	24	18000	393
345275	LS.A-60-24-M20X158	60	M20	201	158	24	43	24	24	18000	436
345281	LS.A-60-24-M20X198	60	M20	241	198	24	43	24	24	18000	515
345285	LS.A-60-24-M24X98	60	M24	141	98	24	43	24	24	18000	398
345291	LS.A-60-24-M24X158	60	M24	201	158	24	43	24	24	18000	569
345295	LS.A-60-24-M24X198	60	M24	241	198	24	43	24	24	18000	682
