LBR.

Control levers

arranged for clicking operation, technopolymer

__logo__RoHS__

__logo__ELE_OD__

__logo__PA__

__logo__IF79__

__logo__PF__

__logo__g11020__

Enquire Now

product image

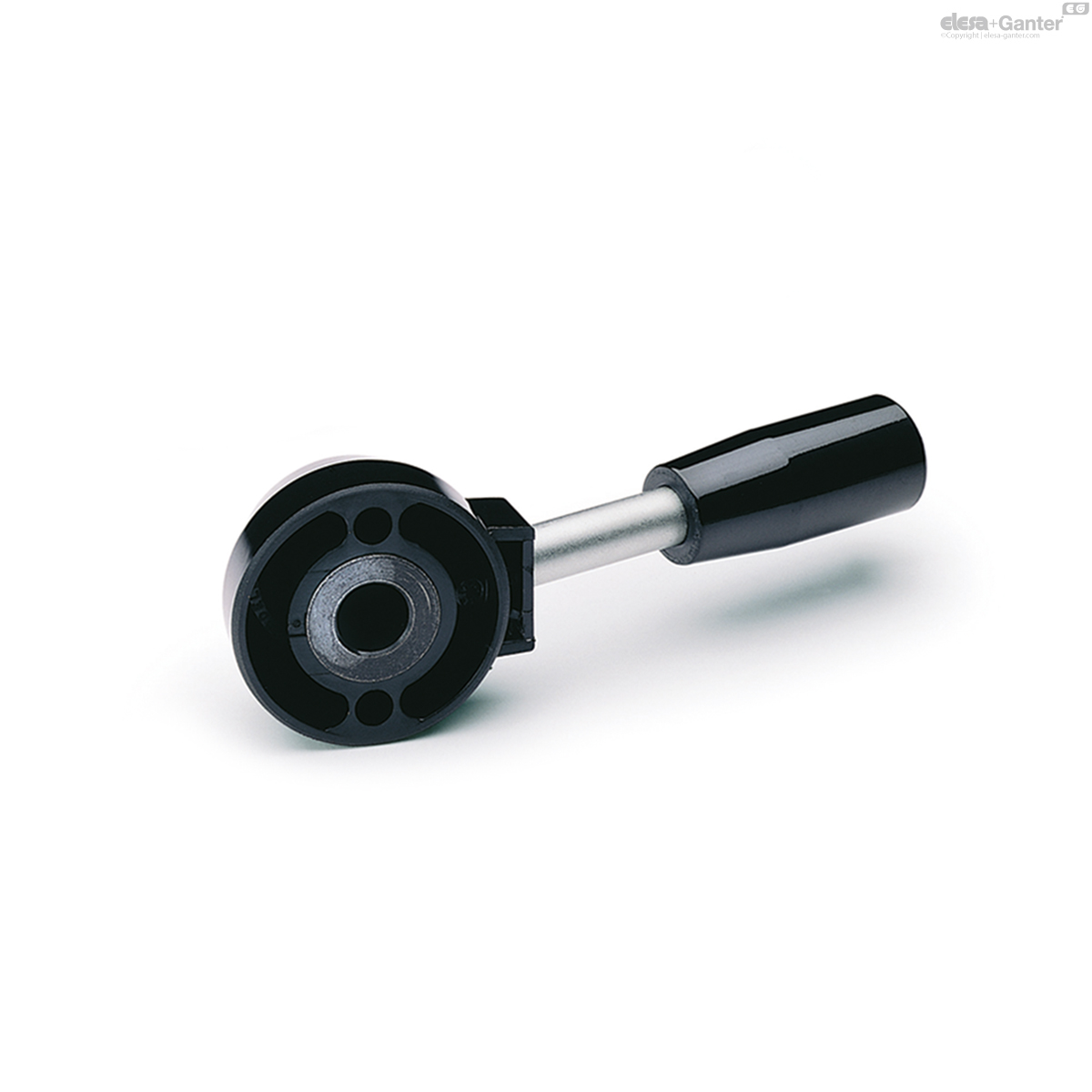

With black-oxide steel boss, plain hole

product image

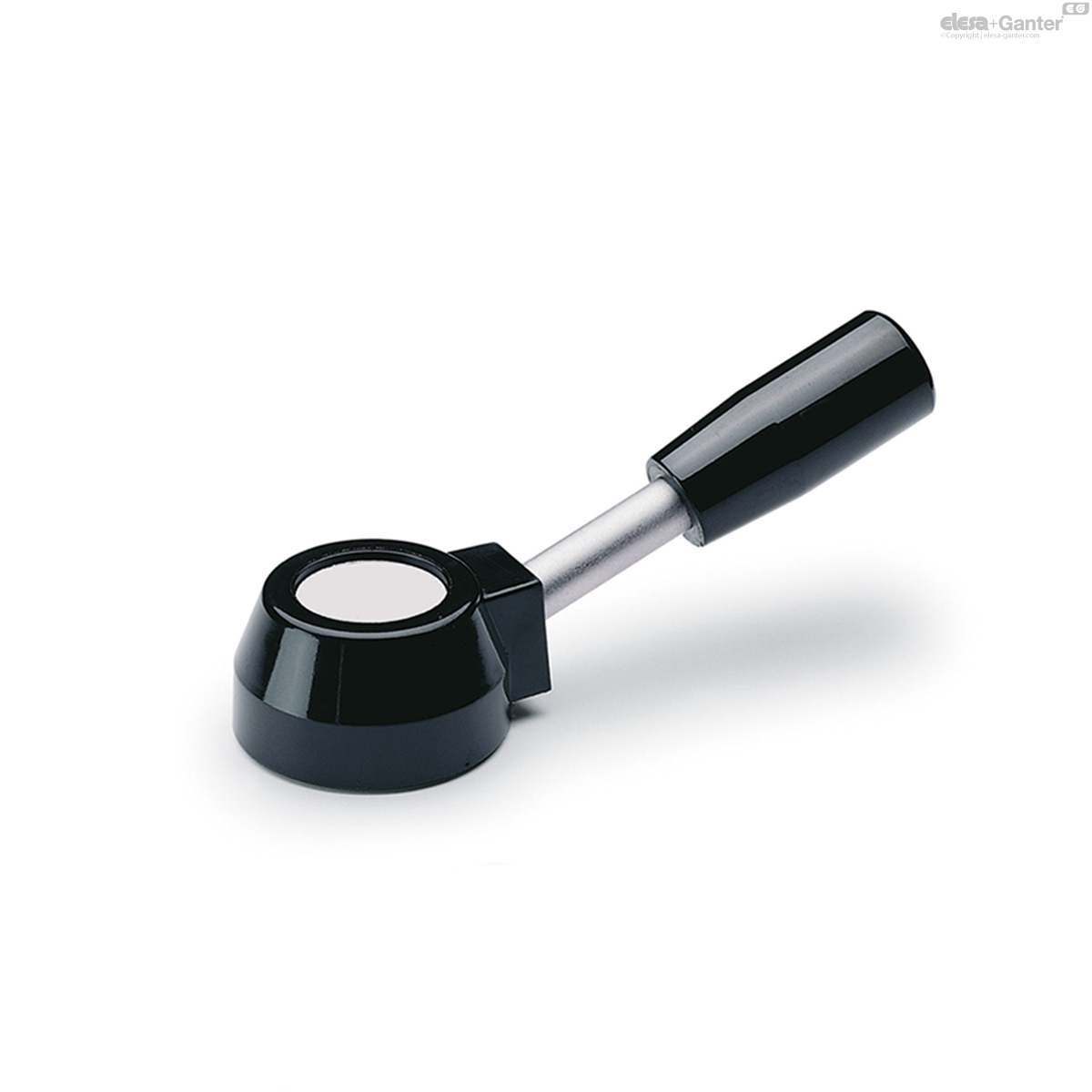

Without boss, with plain hole and flat face

Description

Main specifications

Lever body

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, glossy finish.

Lever arm

Matte chrome-plated steel with cylindrical handle I.280- in Duroplast.

Self-adhesive front plate

Matte anodised aluminium to be fitted after the assembly of the lever.

Standard executions

LBR-A: black-oxide steel boss, H7 reamed hole.
LBR-N: without boss, with plain hole and flat face.

LBR.45 N and LBR.54 N: flat face opposite to the arm.

LBR.75 N: flat face in correspondance of the arm.

General information

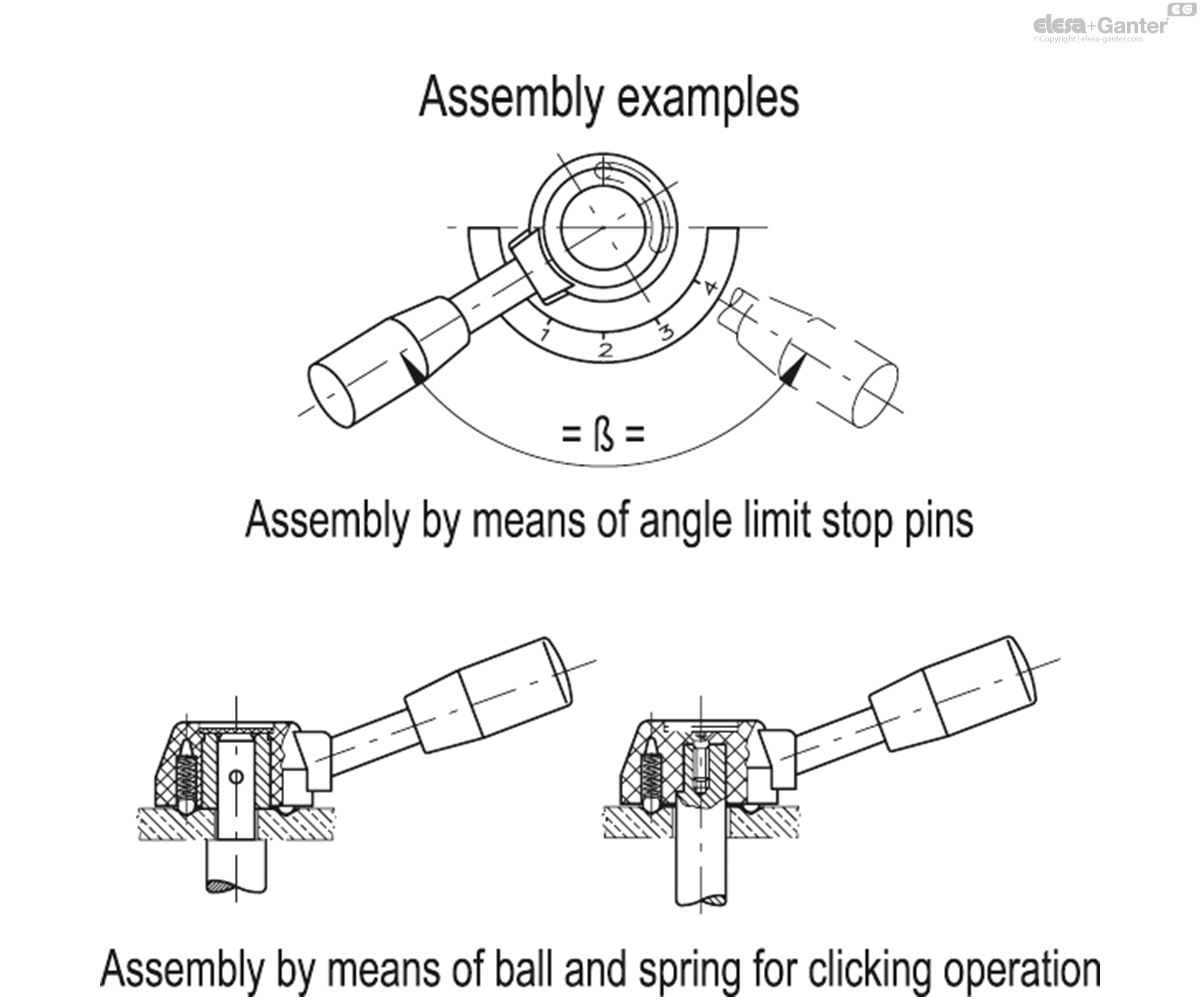

Manoeuvre angle limitation

A limited manoeuvre angle is possible by fitting stop pins in the rear guide slot.

Accessories on request

Accessories on request

Axial retaining washer GN 184.
Ball and spring for clicking operation to be fitted into the two holes d3 drilled at 180° (see ball and spring MS.).

Special executions on request

Special executions on request

Different arm lengths and handle shapes.
Front plate with words, marks, symbols, graphics.

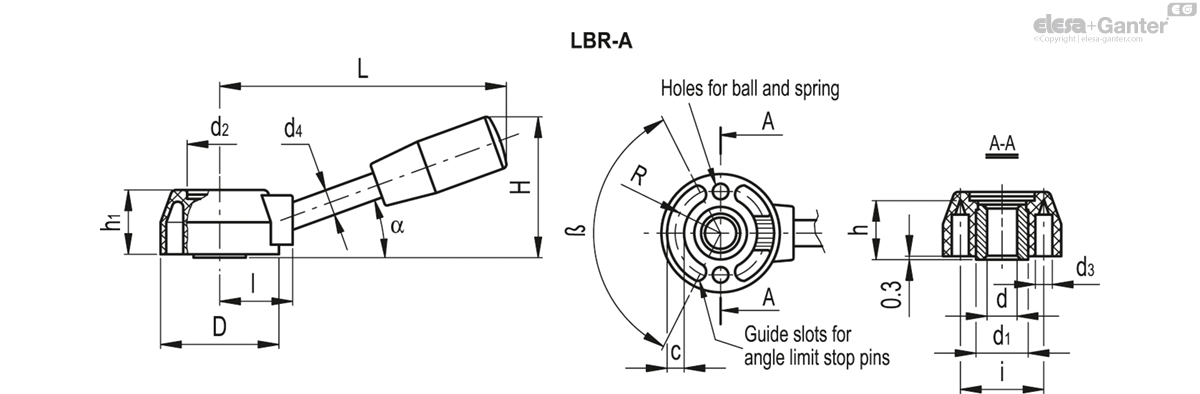

LBR-A

		D	d_H7	L	H	h	h₁	d₁	d₂	d₃	d₃*	d₄	i	l	R	c	α	β
Code	Description																			Actions
33101	LBR.37/85 A-8	37	8	81	46	17	20	18	21	5	5	10	26	22	13.8	4.3	25°	125±1°	77
33102	LBR.37/85 A-10	37	10	81	46	17	20	18	21	5	5	10	26	22	13.8	4.3	25°	125±1°	74
33103	LBR.37/85 A-12	37	12	81	46	17	20	18	21	5	5	10	26	22	13.8	4.3	25°	125±1°	69
33201	LBR.45/110 A-8	45	8	108	52	22	25	22	25	6	6	10	32	28	17.5	7	20°	125±1°	133
33202	LBR.45/110 A-12	45	12	108	52	22	25	22	25	6	6	10	32	28	17.5	7	20°	125±1°	120
33203	LBR.45/110 A-15	45	15	108	52	22	25	22	25	6	6	10	32	28	17.5	7	20°	125±1°	112
33301	LBR.54/130 A-10	54	10	127	61	27	30	26	31	8	8	12	39	34	20.2	7.3	20°	125±1°	219
33302	LBR.54/130 A-14	54	14	127	61	27	30	26	31	8	8	12	39	34	20.2	7.3	20°	125±1°	202
33303	LBR.54/130 A-18	54	18	127	61	27	30	26	31	8	8	12	39	34	20.2	7.3	20°	125±1°	180
33401	LBR.75/170 A-18	75	18	170	80	34	38	30	42	10	10	14	55	45	26	15	20°	105±1°	362
