Home Fixed and Revolving Handles Fixed handles L.652-S

L.652-S

Safety T-Handles

Technopolymer, push action

Enquire Now

Description

Main specifications

Material

Glass-fibre reinforced polyamide based (PA), black colour, matte finish, technopolymer with 'PUSH' tampoprinted in grey colour. Avoid contact with solvents, alcohol or detergents containing alcohol to prevent deterioration of the tampoprinted inscription.

Centre cap

Technopolymer, black colour. On request and for sufficient quantities, it can be supplied in yellow RAL 1021 (safety) or in other colours, with customised graphic symbols, marks or writing.

Standard executions

Glass-fibre reinforced technopolymer clamping element with toothing and retaining pin, black colour, with knurling on the protruding part to make initial tightening easier. AISI 302 stainless steel return spring.

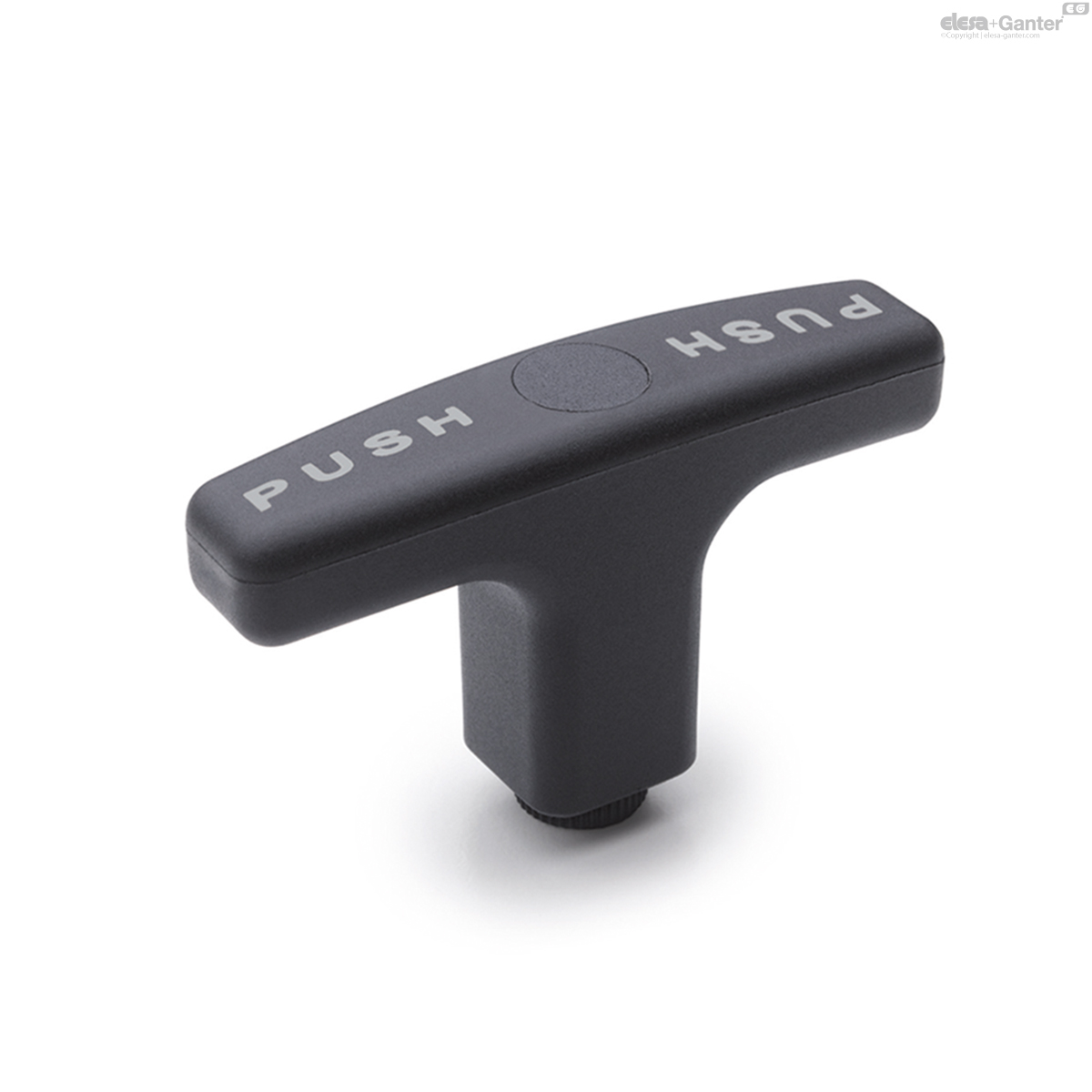

L.652-S-B: brass boss, threaded blind hole.

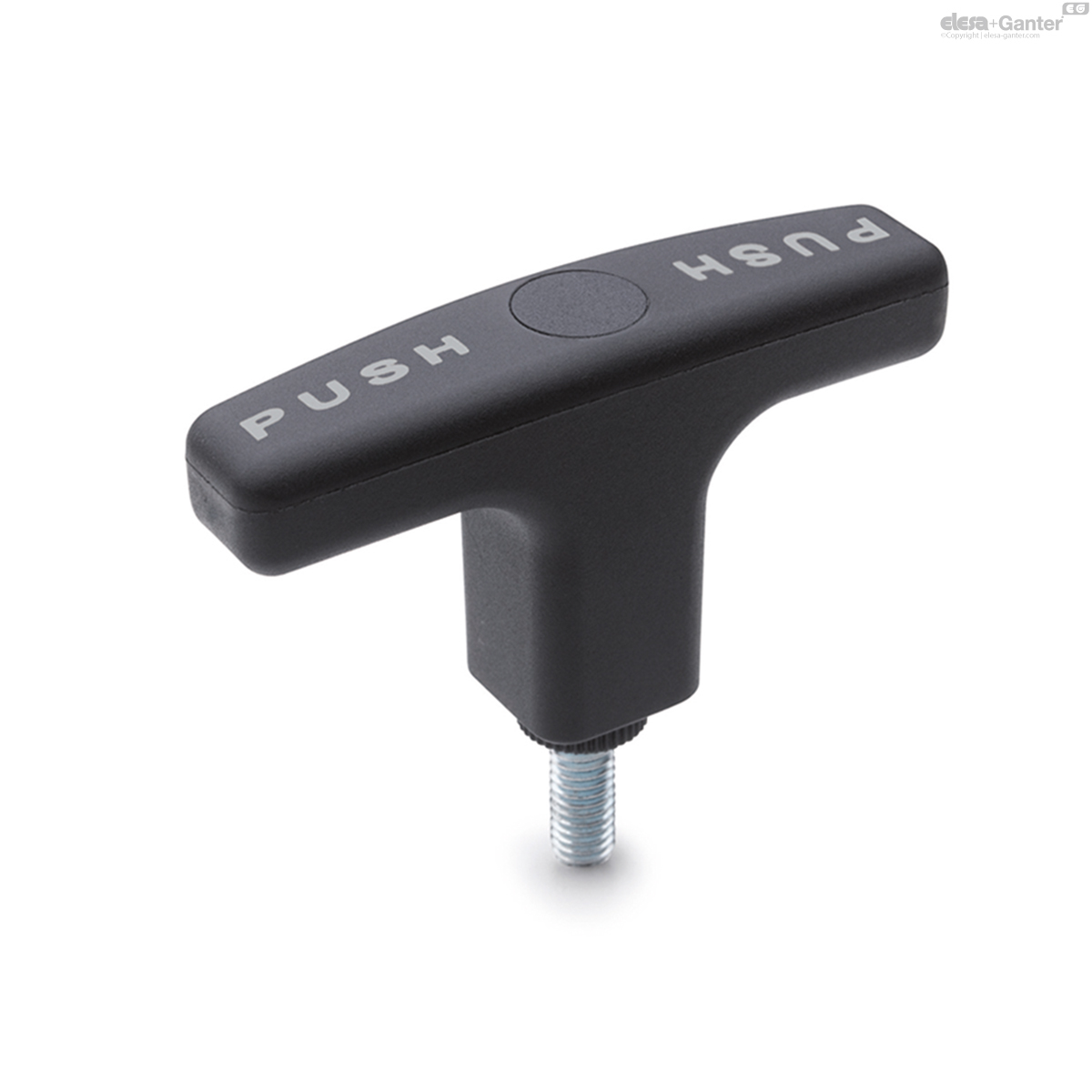

L.652-S-p: zinc-plated steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data).

General information

Features and applications

Particularly suitable where the handle needs to turn freely to avoid that clamping may be accidentally affected.

Instructions of use

Press the handle to engage the toothing and turn it. By releasing the handle the spring releases the toothing, thus the handle returns to the rest position.

Special executions on request

Different lengths of threaded stud.

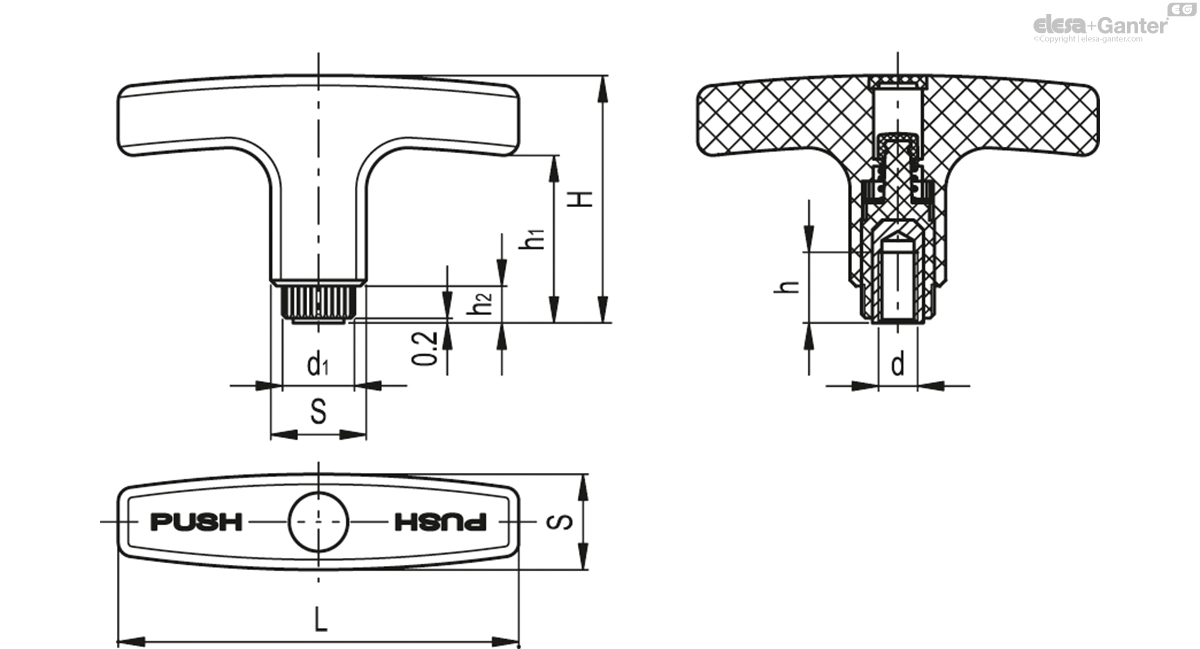

L.652-S-B

		L	d_6H	S	H	d₁	h	h₁	h₂	Teeth no.
Code	Description											Actions
32531	L.652-S/67 B-M5	67	M5	16	41	12	10	29	4	18	25
32533	L.652-S/67 B-M6	67	M6	16	41	12	10	29	4	18	29
32563	L.652-S/80 B-M6	80	M6	20	47	15	16	31.5	5.5	20	46
32565	L.652-S/80 B-M8	80	M8	20	47	15	13	31.5	5.5	20	44
