L.652
T-Handles
Technopolymer
Description
Main specifications
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, matte finish.
Standard executions

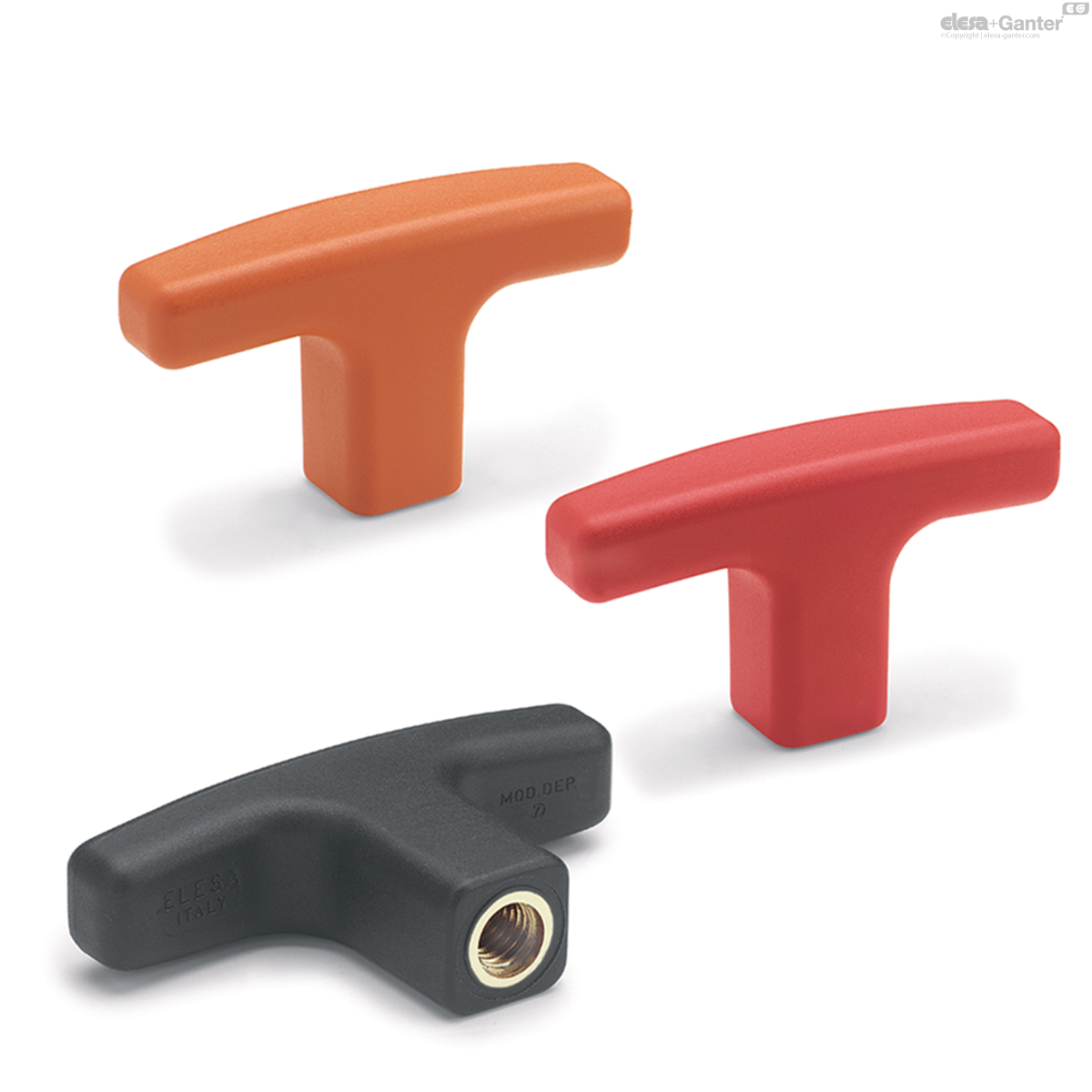

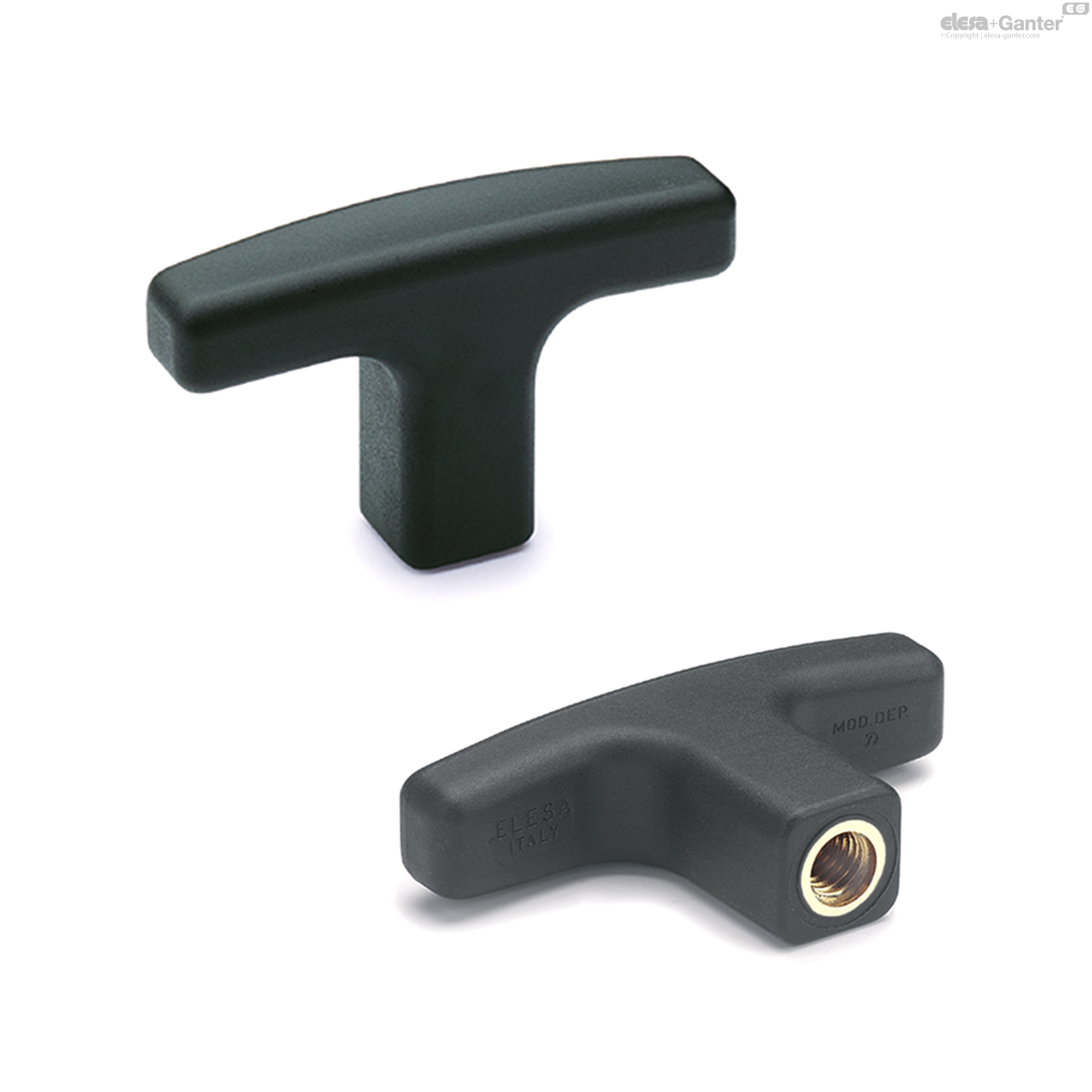

- L.652-B: brass boss, plain or threaded blind hole.

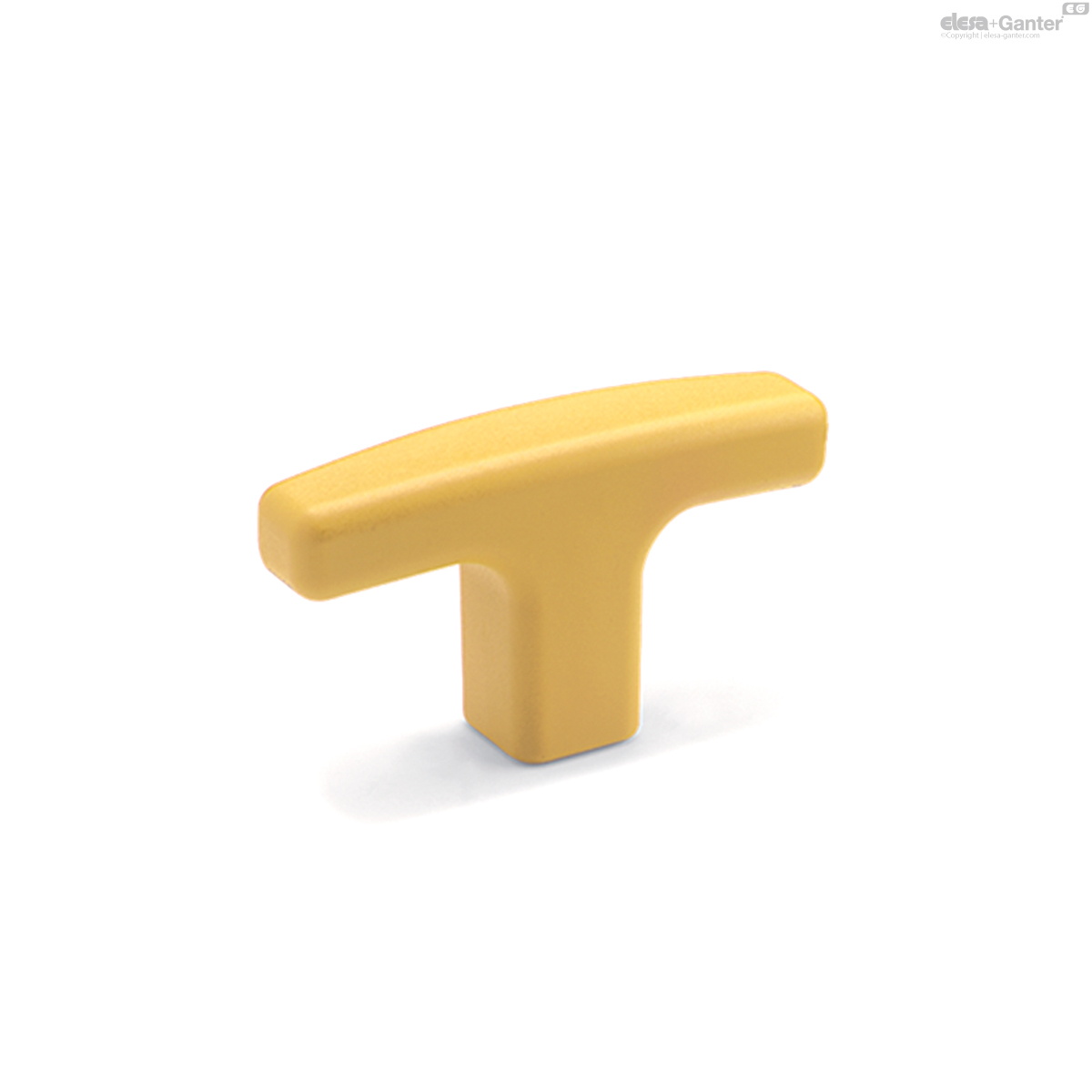

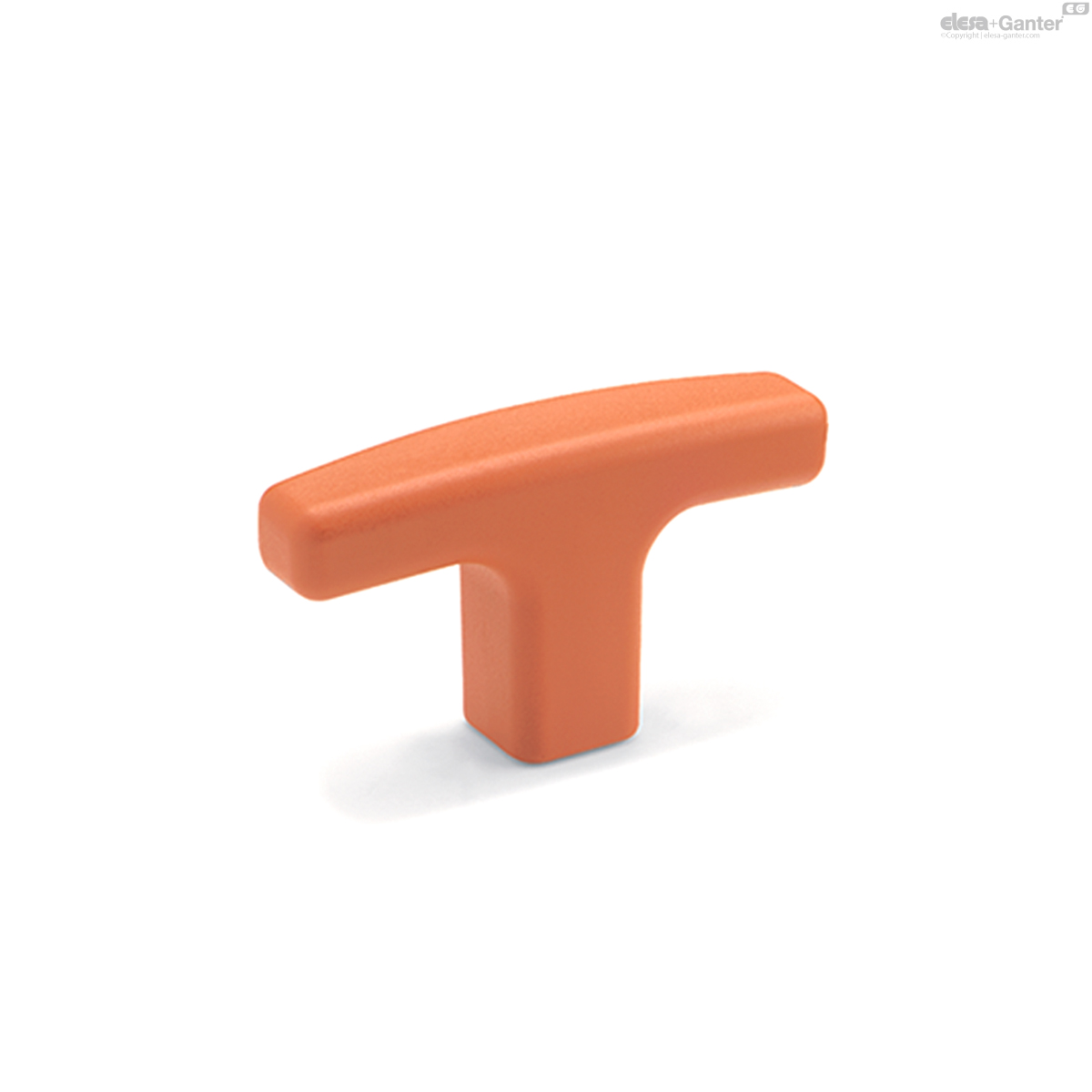

Black, orange, yellow, red and green colours, matte finish.

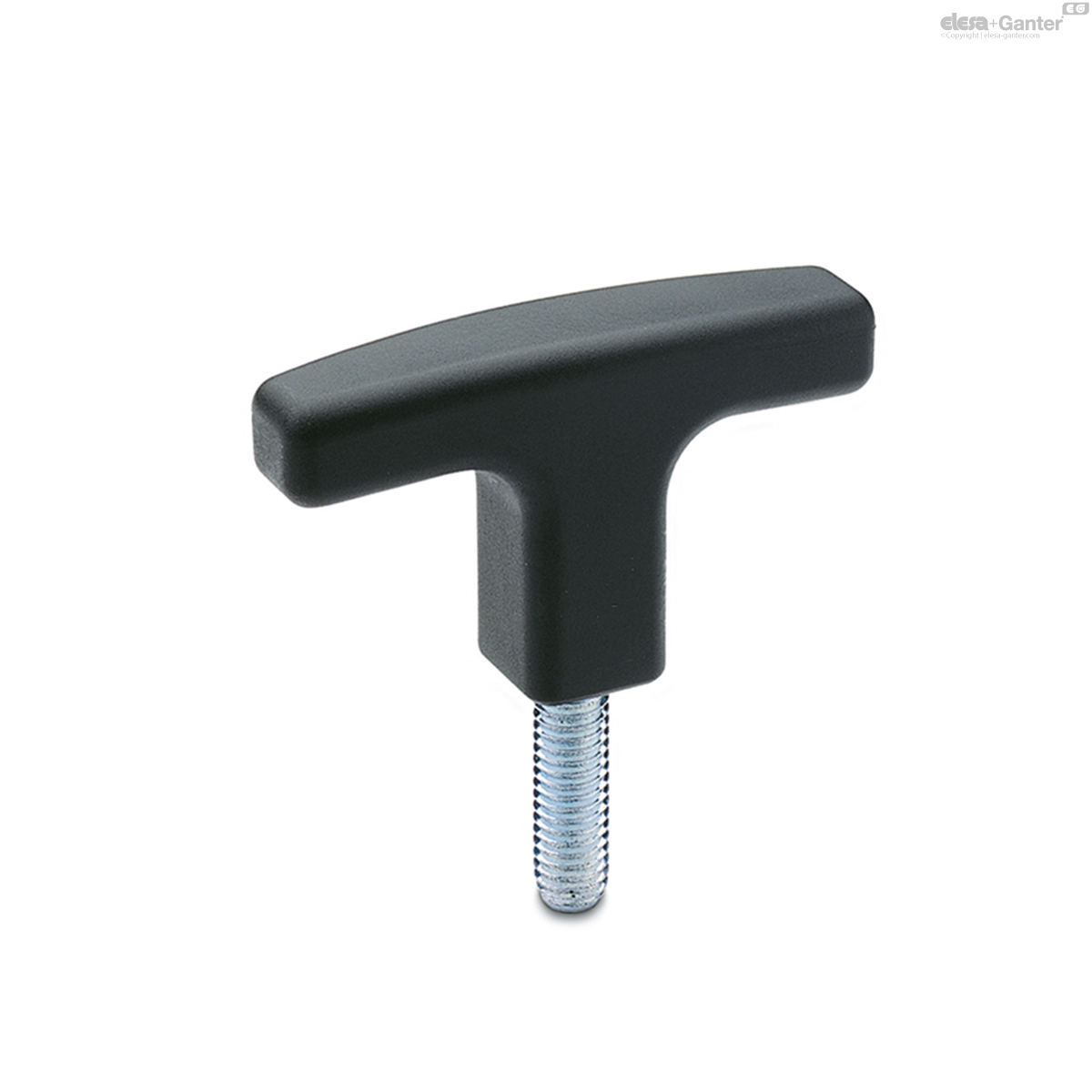

- L.652-p: zinc-plated steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data).
General information
Technical data
Tensile stress: F values reported in the table are the result of breaking tests carried out with the appropriate dynamometric equipment under the test conditions shown in the figure with ambient temperature.
L.652-B

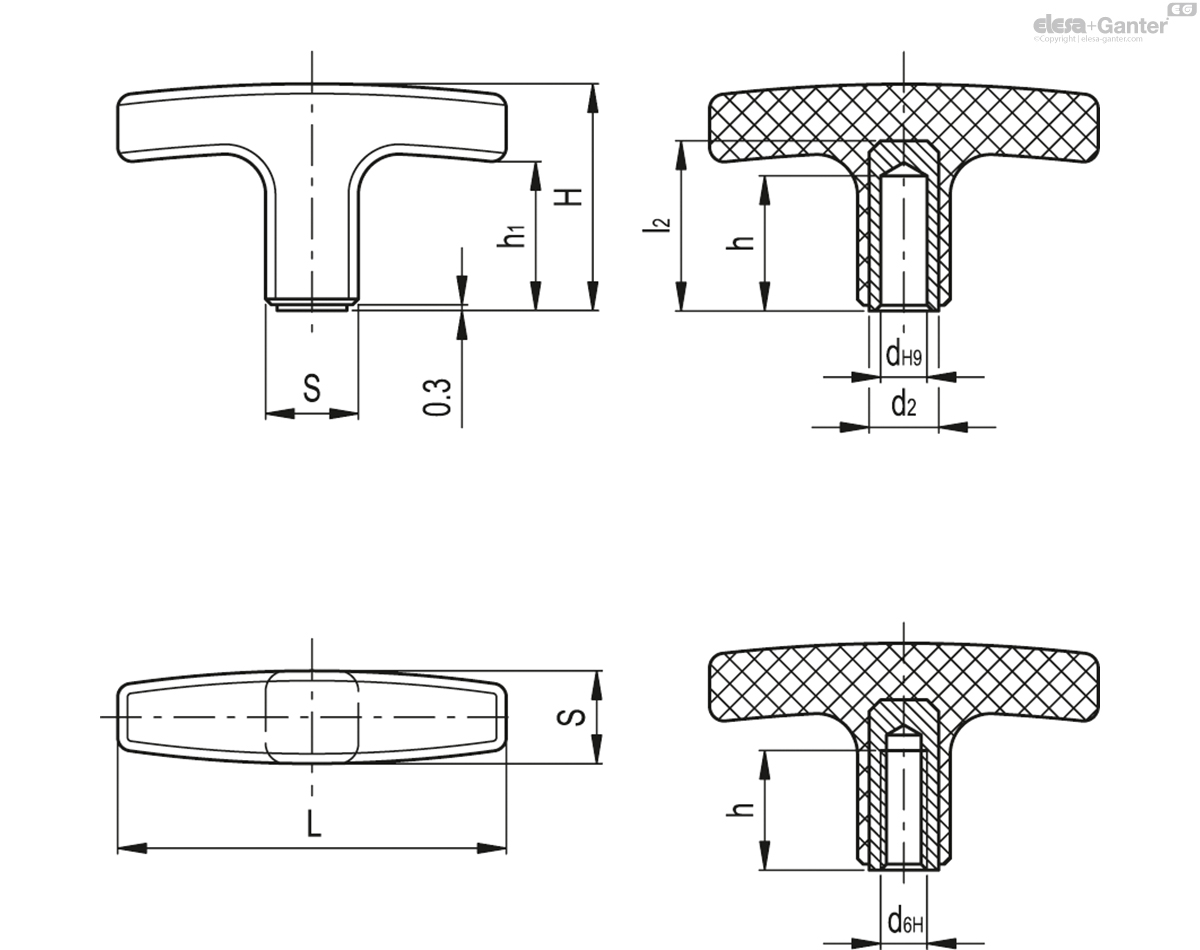

| Color | L | dH9 | d6H | S | H | d2 | h | h1 | l2 | F [N] |
 |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | ||||||||||||
| 32420 | L.652/40 B-M5-C9 | C9 - RAL 9005 | 41 | - | M5 | 13 | 28 | - | 16 | 18.5 | - | 2400 | 16 |
|
| 32420-C6 | L.652/40 B-M5-C6 | C6 - RAL 3000 | 41 | - | M5 | 13 | 28 | - | 16 | 18.5 | - | 2400 | 17 |
|
| 32421 | L.652/40 B-6-C9 | C9 - RAL 9005 | 41 | 6 | - | 13 | 28 | 9 | 18 | 18.5 | 23 | 2500 | 18 |
|
| 32426 | L.652/40 B-M6-C9 | C9 - RAL 9005 | 41 | - | M6 | 13 | 28 | - | 16 | 18.5 | - | 2500 | 20 |
|
| 32426-C2 | L.652/40 B-M6-C2 | C2 - RAL 2004 | 41 | - | M6 | 13 | 28 | - | 16 | 18.5 | - | 2500 | 19 |
|
| 32426-C4 | L.652/40 B-M6-C4 | C4 - RAL 1021 | 41 | - | M6 | 13 | 28 | - | 16 | 18.5 | - | 2500 | 19 |
|
| 32426-C6 | L.652/40 B-M6-C6 | C6 - RAL 3000 | 41 | - | M6 | 13 | 28 | - | 16 | 18.5 | - | 2500 | 20 |
|
| 32426-C17 | L.652/40 B-M6-C17 | C17 - RAL 6017 | 41 | - | M6 | 13 | 28 | - | 16 | 18.5 | - | 2500 | 19 |
|
| 32430 | L.652/55 B-M5-C9 | C9 - RAL 9005 | 56.5 | - | M5 | 15 | 33 | - | 15 | 21.5 | - | 2400 | 31 |
|
| 32431 | L.652/55 B-6-C9 | C9 - RAL 9005 | 56.5 | 6 | - | 15 | 33 | 10 | 18 | 21.5 | 27 | 3300 | 29 |
|
| 32432 | L.652/55 B-M8-C9 | C9 - RAL 9005 | 56.5 | - | M8 | 15 | 33 | - | 20 | 21.5 | - | 3300 | 31 |
|
| 32432-C6 | L.652/55 B-M8-C6 | C6 - RAL 3000 | 56.5 | - | M8 | 15 | 33 | - | 20 | 21.5 | - | 3300 | 29 |
|
| 32436 | L.652/55 B-M6-C9 | C9 - RAL 9005 | 56.5 | - | M6 | 15 | 33 | - | 18 | 21.5 | - | 3300 | 32 |
|
| 32436-C2 | L.652/55 B-M6-C2 | C2 - RAL 2004 | 56.5 | - | M6 | 15 | 33 | - | 18 | 21.5 | - | 3300 | 29 |
|
| 32436-C4 | L.652/55 B-M6-C4 | C4 - RAL 1021 | 56.5 | - | M6 | 15 | 33 | - | 18 | 21.5 | - | 3300 | 29 |
|
| 32436-C6 | L.652/55 B-M6-C6 | C6 - RAL 3000 | 56.5 | - | M6 | 15 | 33 | - | 18 | 21.5 | - | 3300 | 29 |
|
| 32436-C17 | L.652/55 B-M6-C17 | C17 - RAL 6017 | 56.5 | - | M6 | 15 | 33 | - | 18 | 21.5 | - | 3300 | 29 |
|
| 32441 | L.652/67 B-6-C9 | C9 - RAL 9005 | 68.5 | 6 | - | 16.5 | 37 | 11 | 20 | 24.5 | 30 | 4500 | 43 |
|
| 32443 | L.652/67 B-8-C9 | C9 - RAL 9005 | 68.5 | 8 | - | 16.5 | 37 | 11 | 20 | 24.5 | 30 | 4500 | 39 |
|
| 32446 | L.652/67 B-M8-C9 | C9 - RAL 9005 | 68.5 | - | M8 | 16.5 | 37 | - | 20 | 24.5 | - | 4500 | 41 |
|
| 32446-C2 | L.652/67 B-M8-C2 | C2 - RAL 2004 | 68.5 | - | M8 | 16.5 | 37 | - | 20 | 24.5 | - | 4500 | 39 |
|
| 32446-C4 | L.652/67 B-M8-C4 | C4 - RAL 1021 | 68.5 | - | M8 | 16.5 | 37 | - | 20 | 24.5 | - | 4500 | 39 |
|
| 32446-C6 | L.652/67 B-M8-C6 | C6 - RAL 3000 | 68.5 | - | M8 | 16.5 | 37 | - | 20 | 24.5 | - | 4500 | 39 |
|
| 32446-C17 | L.652/67 B-M8-C17 | C17 - RAL 6017 | 68.5 | - | M8 | 16.5 | 37 | - | 20 | 24.5 | - | 4500 | 39 |
|
| 32451 | L.652/80 B-6-C9 | C9 - RAL 9005 | 82 | 6 | - | 20 | 41.5 | 13 | 25 | 25 | 33 | 7000 | 68 |
|
| 32452 | L.652/67 B-M10-C9 | C9 - RAL 9005 | 68.5 | - | M10 | 16.5 | 37 | - | 20 | 24.5 | - | 5000 | 40 |
|
| 32452-C6 | L.652/67 B-M10-C6 | C6 - RAL 3000 | 68.5 | - | M10 | 16.5 | 37 | - | 20 | 24.5 | - | 5000 | 37 |
|
| 32453 | L.652/80 B-8-C9 | C9 - RAL 9005 | 82 | 8 | - | 20 | 41.5 | 13 | 25 | 25 | 33 | 7000 | 63 |
|
| 32456 | L.652/80 B-M8-C9 | C9 - RAL 9005 | 82 | - | M8 | 20 | 41.5 | - | 25 | 25 | - | 7000 | 60 |
|
| 32456-C6 | L.652/80 B-M8-C6 | C6 - RAL 3000 | 82 | - | M8 | 20 | 41.5 | - | 25 | 25 | - | 7000 | 63 |
|
| 32458 | L.652/80 B-M10-C9 | C9 - RAL 9005 | 82 | - | M10 | 20 | 41.5 | - | 25 | 25 | - | 7000 | 54 |
|
| 32458-C2 | L.652/80 B-M10-C2 | C2 - RAL 2004 | 82 | - | M10 | 20 | 41.5 | - | 25 | 25 | - | 7000 | 58 |
|
| 32458-C4 | L.652/80 B-M10-C4 | C4 - RAL 1021 | 82 | - | M10 | 20 | 41.5 | - | 25 | 25 | - | 7000 | 58 |
|
| 32458-C6 | L.652/80 B-M10-C6 | C6 - RAL 3000 | 82 | - | M10 | 20 | 41.5 | - | 25 | 25 | - | 7000 | 58 |
|
| 32458-C17 | L.652/80 B-M10-C17 | C17 - RAL 6017 | 82 | - | M10 | 20 | 41.5 | - | 25 | 25 | - | 7000 | 58 |
|
| 32460 | L.652/80 B-M12-C9 | C9 - RAL 9005 | 82 | - | M12 | 20 | 41.5 | - | 18 | 25 | - | 7000 | 62 |
|
| 32460-C6 | L.652/80 B-M12-C6 | C6 - RAL 3000 | 82 | - | M12 | 20 | 41.5 | - | 18 | 25 | - | 7000 | 57 |
|
| 32471 | L.652/95 B-6-C9 | C9 - RAL 9005 | 94 | 6 | - | 21 | 46 | 13 | 25 | 28.5 | 33 | 8000 | 78 |
|
| 32476 | L.652/95 B-M8-C9 | C9 - RAL 9005 | 94 | - | M8 | 21 | 46 | 13 | 25 | 28.5 | 33 | 8000 | 69 |
|
| 32478 | L.652/95 B-M10-C9 | C9 - RAL 9005 | 94 | - | M10 | 21 | 46 | - | 25 | 28.5 | - | 8000 | 65 |
|
| 32480 | L.652/95 B-M12-C9 | C9 - RAL 9005 | 94 | - | M12 | 21 | 46 | - | 18 | 28.5 | - | 8000 | 71 |
|
