J-Profile Part 1028
Extruded profiles
Description
Description
Movex® provides a new generation of high-performance profiles developed and produced with the most up to date technology.
Experienced engineers work around the clock on more than 50 extrusion machines, perfecting almost 2.000 high-quality products of different types and sizes.
Movex ® profiles are produced from top-quality UHMW-PE, with the possibility of enhanced performance with the use of our super-performing materials BluLub ®, Titanium White ® and AS.
Standard 3 m (10 ft) or 6 m (20 ft) profiles are typically shipped by common carrier. Selected items can be coiled into cartons for more convenient shipping.
Products stored in coils will have the tendency to retain a certain deformation when uncoiled, therefore consistency in the profile cross section over the full length of the coil cannot be guaranteed.
Basic features
| Series: | J-Profile |
|---|---|
| Material: | Plastic profile |
| Unit of measure: | Meter |
| Box: | - |

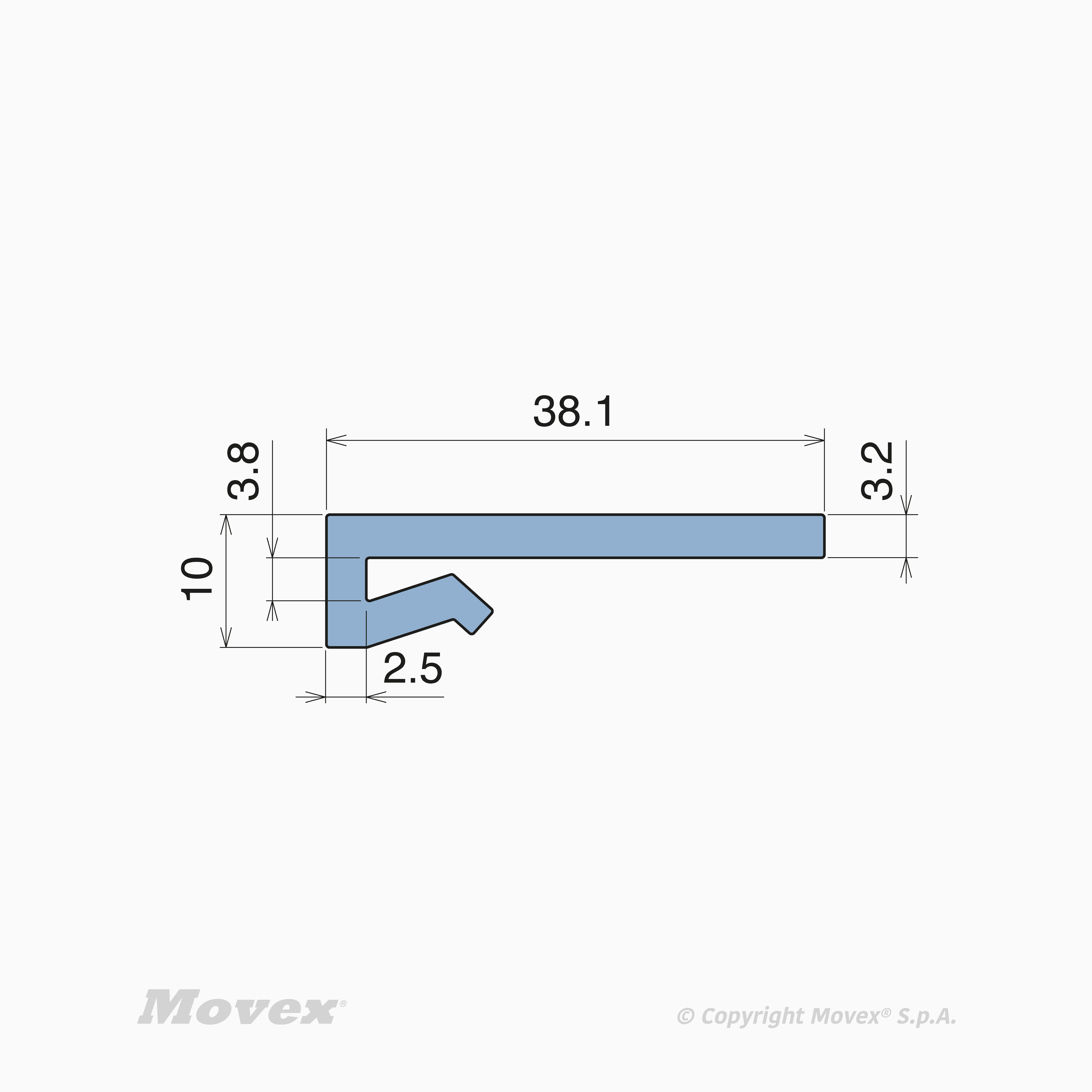

J-Profile Part 1028
| Part | Material & color | Supply length | Operating Temperature °C | ||
|---|---|---|---|---|---|
| Code | Actions | ||||
| P102800B | P1028 | BluLub | 6 m / 20 ft bars | -40÷80 °C |
|
| P102800B-30 | P1028 | BluLub | 30 m / 100 ft coils | -40÷80 °C |
|
| P102800BC | P1028 | BluLub | 3 m / 10 ft bars | -40÷80 °C |
|
| P102803 | P1028 | Ti-White | 6 m / 20 ft bars | -40÷80 °C |
|
| P102803-30 | P1028 | Ti-White | 30 m / 100 ft coils | -40÷80 °C |
|
| P102803C | P1028 | Ti-White | 3 m / 10 ft bars | -40÷80 °C |
|
| P102805 | P1028 | UHMW-PE Blue | 6 m / 20 ft bars | -40÷80 °C |
|
| P102805-30 | P1028 | UHMW-PE Blue | 30 m / 100 ft coils | -40÷80 °C |
|
| P102805C | P1028 | UHMW-PE Blue | 3 m / 10 ft bars | -40÷80 °C |
|
