IZN-XX

Knurled grip knobs for position indicators

Technopolymer

Enquire Now

Description

Main specifications

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, glossy finish.

Black-oxide steel boss, H7 reamed hole, fitting to shaft by means of a supplied grub screw with hexagon socket and cup end UNI 5929-85.

General information

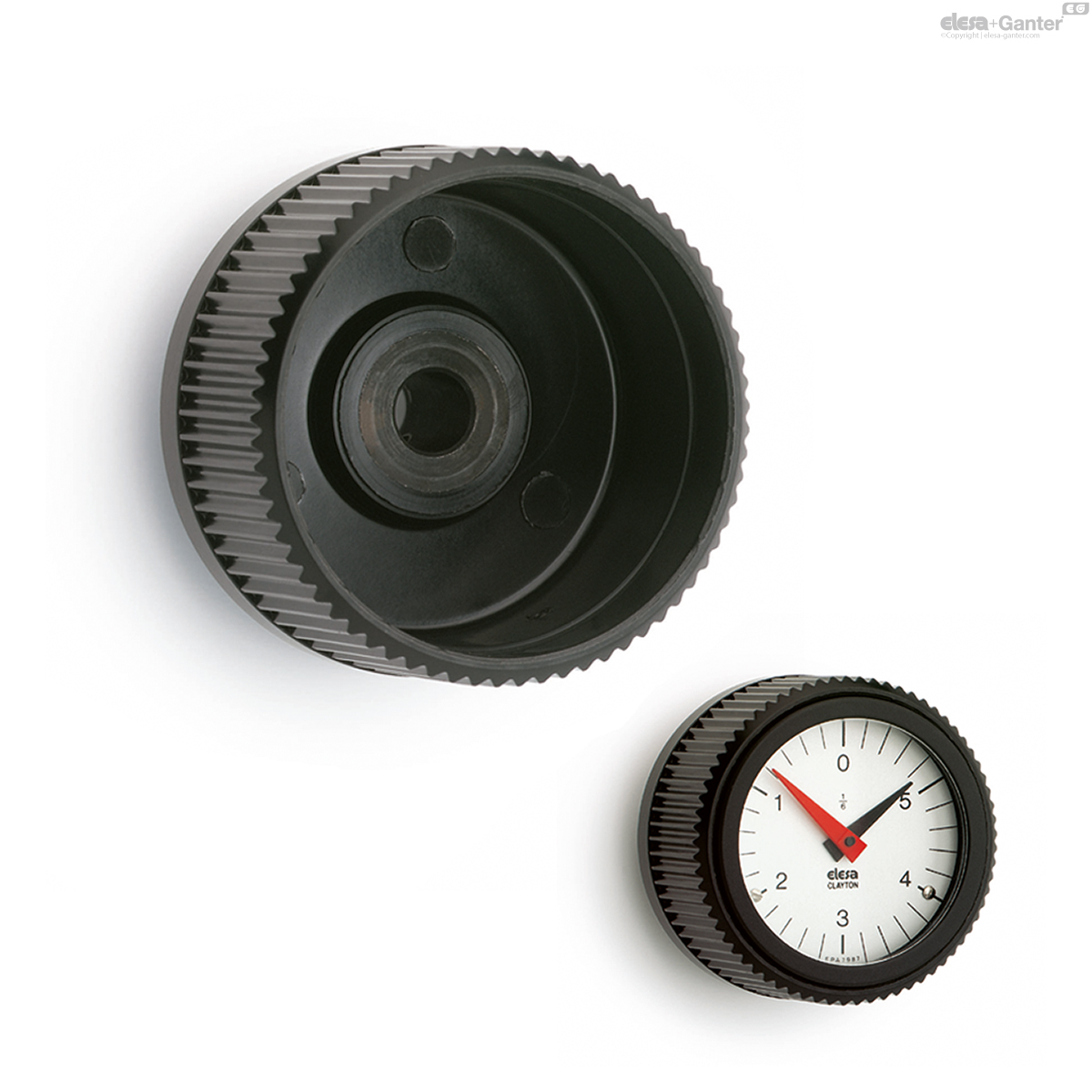

IZN-XX knurled grip knobs can be used with analogue and digital-analogue gravity indicators.

To choose the indicator see the table below for possible assembly with indicators.

See also 'Assembly instructions'-for gravity indicators type G.

Accessories on request

Cover CP-XX- for fitting instead of the indicator.

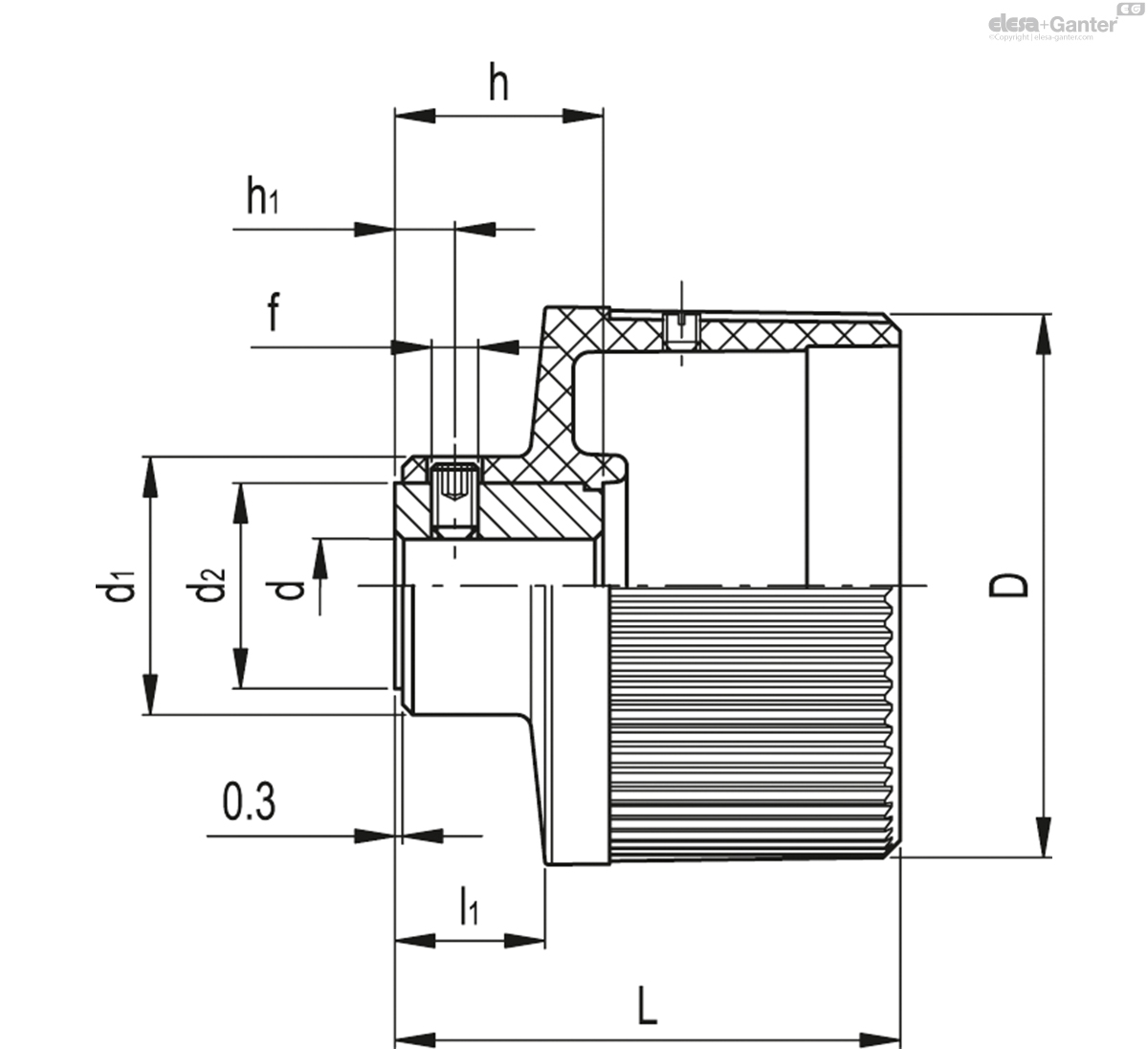

		D	L	d_H7	h	d₁	d₂	f	h₁	l₁		Handwheel indicator combinations
Code	Description												Actions
CE.30101	IZN.60-GXX1 A-10	59	53	10	22	27	22	M5	6	15	111	GA01-GA11
CE.30201	IZN.80-GXX2 A-12	79	57	12	24	33	26	M5	6	17	191	GA02-GA12-GW12
