IRS.802

Safety fold-away handles

Technopolymer

Enquire Now

IRS.802

Safety fold-away handles

Black-oxide steel pin

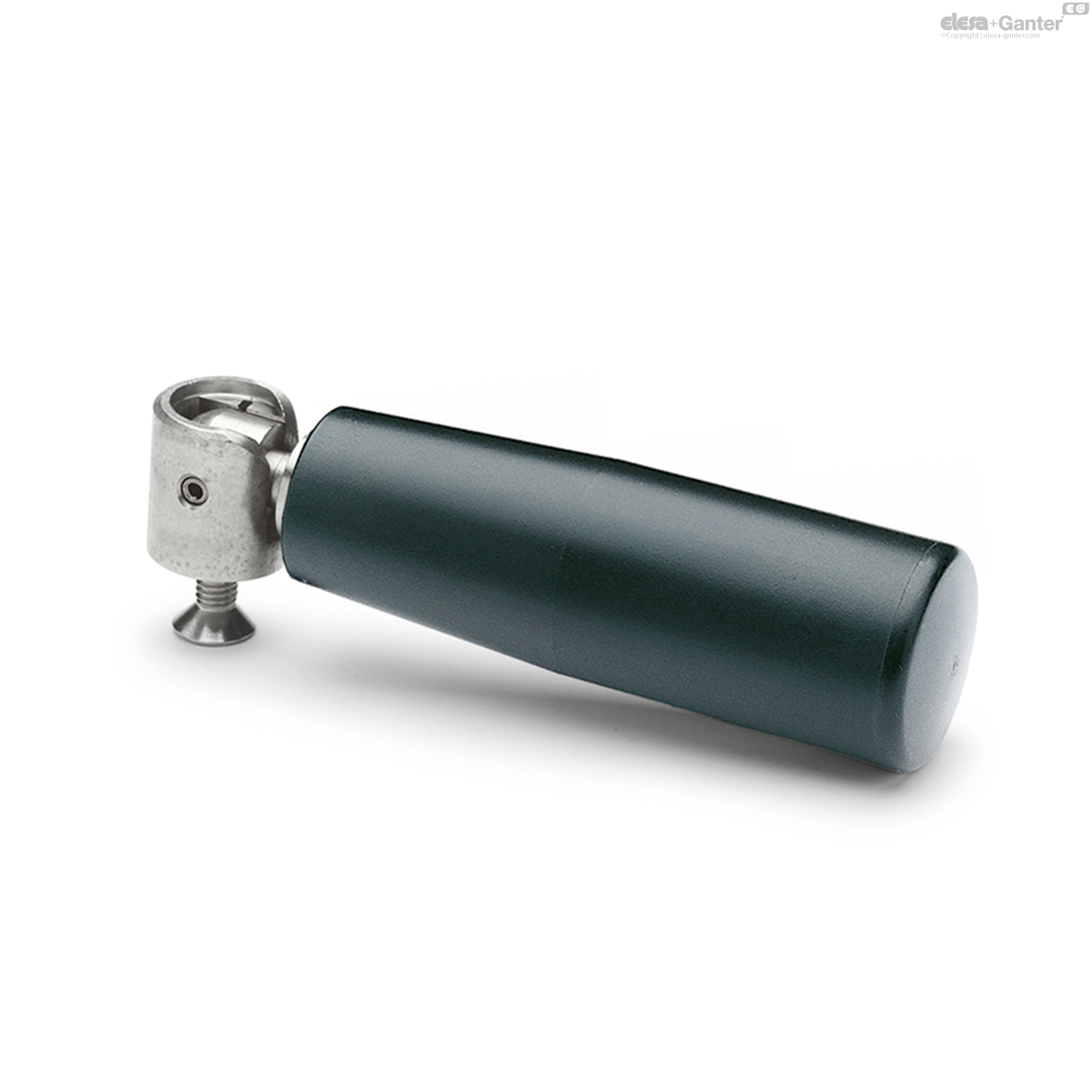

IRS.802-SST

Safety fold-away handles

Stainless steel pin

Description

Main specifications

Material

High-resilience polypropylene based (PP) technopolymer handle, black colour, matte finish.

Standard executions

IRS.802: black-oxide steel double guide stud, sintered and oxidised steel flat base for embedded mounting, black-oxide steel screw.
IRS.802-SST: AISI 303 stainless steel double guide stud, sintered AISI 303 stainless steel flat base for embedded mounting, AISI 303 stainless steel screw.

General information

Features and applications

Handle pivots freely during operation: a system of coaxial bushings compensates return spring load.

The safety fold-away handle (ELESA patent) is provided with a special return mechanism 'Fold-O-matic'^® which automatically folds the handle into the retracted position when the operation has been completed. A light pressure on the handle in the direction of the handwheel axes is enough to bring it in the operation position allowing the operator to turn the handwheel freely.

IRS.802

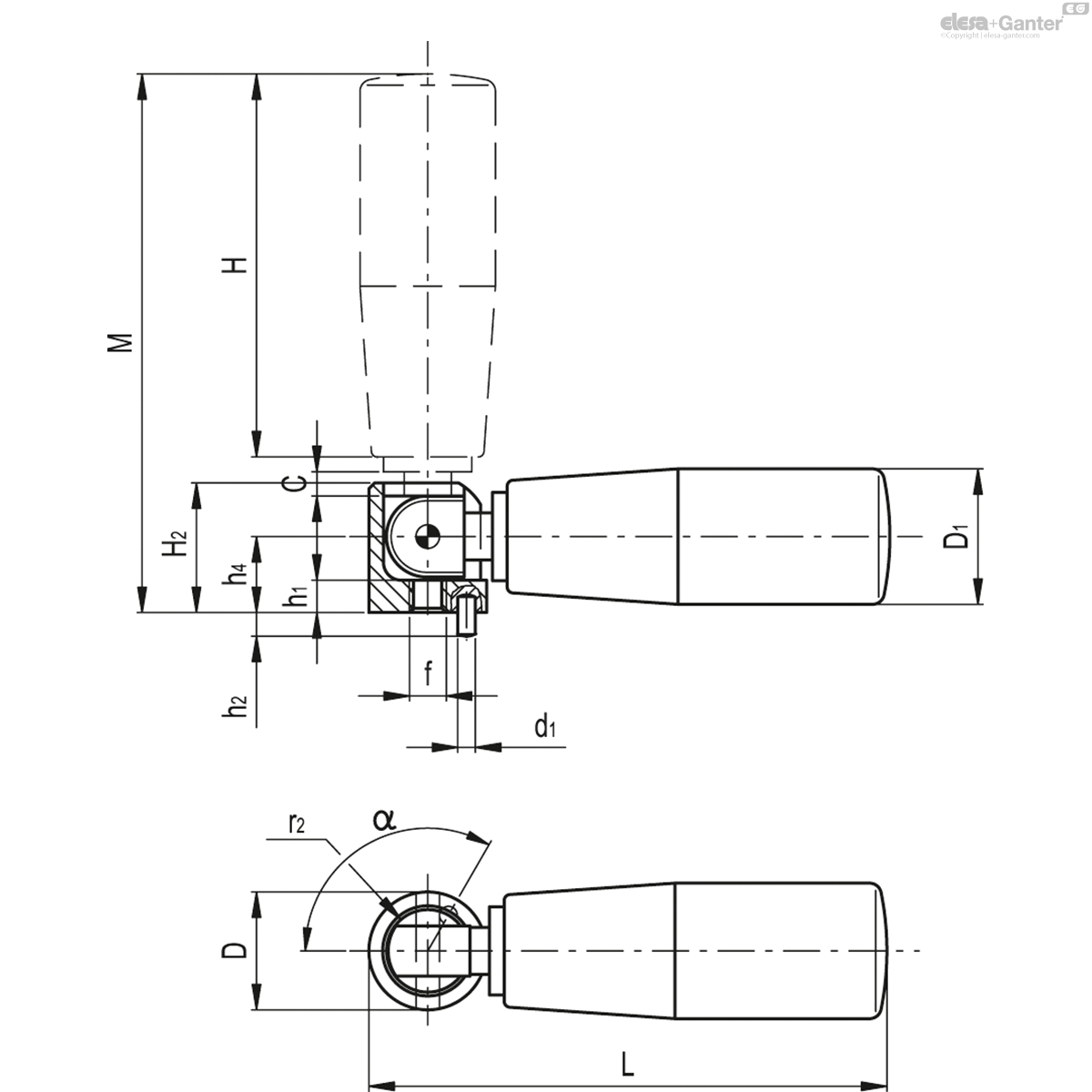

		H	D	L	M	D₁	H₂	C	f	h₁	h₄	d₁	h_{2 -0.2}	r₂	α
Code	Description																Actions
28471	IRS.802/65 FOLD-O-MATIC	65	20	88	91	23	22	4	M6	5.5	13	3	3	7	120°	106
28475	IRS.802/80 FOLD-O-MATIC	80	20	104	107	26	22	4	M6	5.5	13	3	3	7	120°	124
28481	IRS.802/90 FOLD-O-MATIC	90	20	114	117	28	22	4	M6	5.5	13	3	3	7	120°	134
