IR.620
Fold-away handles
Technopolymer
Description
Main specifications
Material
Polyamide based (PA) technopolymer handle, black colour, matte finish.

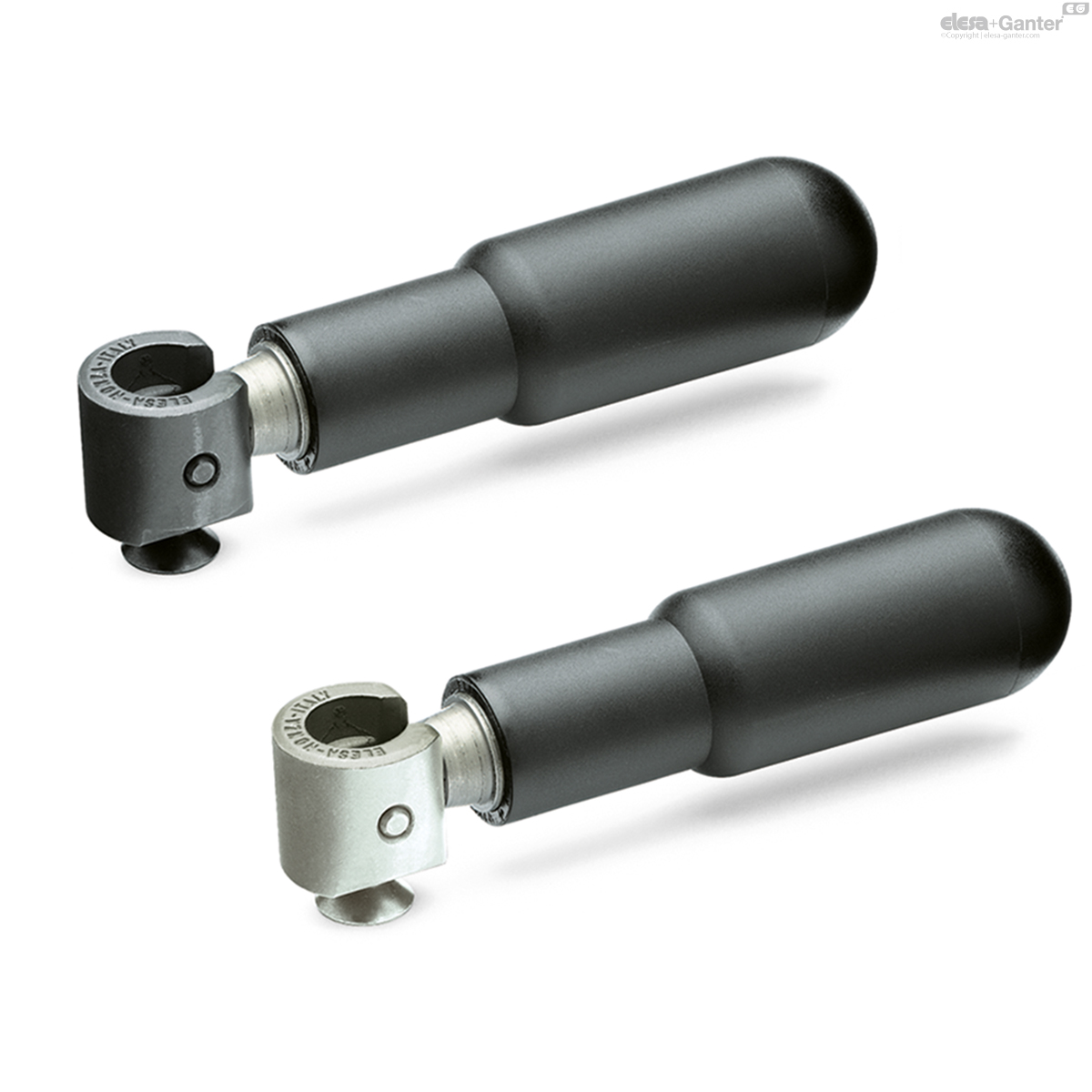

Standard executions
- IR.620: black-oxide steel stud, sintered and oxidised steel flat base for embedded mounting, black-oxide steel screw.
- IR.620-SST: AISI 303 stainless steel stud, sintered AISI 303 stainless steel flat base for embedded mounting, AISI 303 stainless steel screw.
General information
Features and applications
Handle pivots freely during operation: a system of coaxial bushings compensates return spring load.
This series of fold-away handles has been designed for all those applications for which, owing to lack of space or for safety reasons, the handle must be folded-away once the operation has been completed.
IR.620

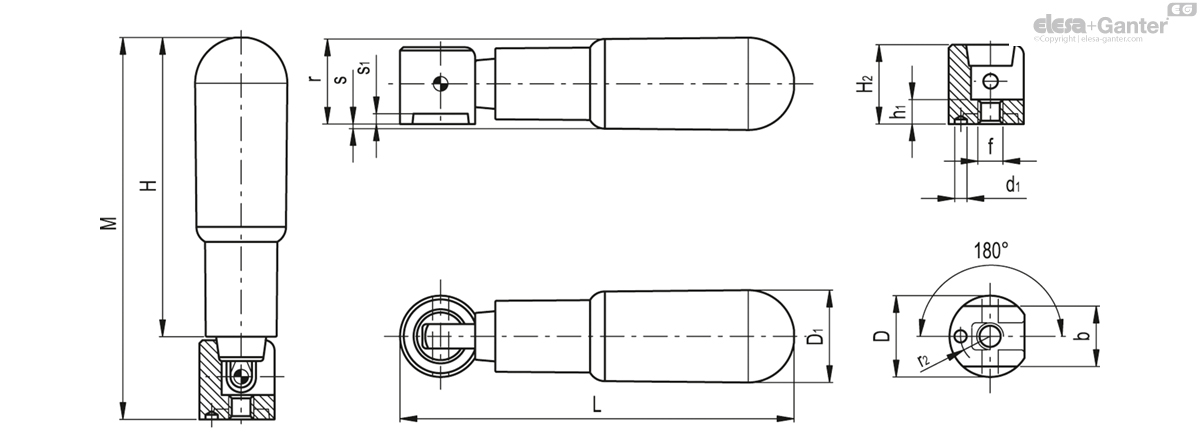

| H | D | L | M | D1 | H2 | r | s | s1 | b | f | h1 | d1 | r2 |  |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||||||||
| 128442 | IR.620/45 S.D.16 | 45 | 16 | 63 | 60 | 15.5 | 14 | 15 | 0.5 | 1.7 | 10 | M4 | 4 | 3 | 5.5 | 36 |
|
| 128444 | IR.620/60 S.D.16 | 60 | 16 | 78 | 74 | 18 | 14 | 16.5 | 1.5 | 1.7 | 10 | M4 | 4 | 3 | 5.5 | 43 |
|
| 128445 | IR.620/65 S.D.16 | 65 | 16 | 89.5 | 80.5 | 22 | 14 | 20.5 | 1.5 | 1.7 | 10 | M4 | 4 | 3 | 5.5 | 88 |
|
| 128446 | IR.620/65 S.D.20 | 65 | 20 | 91.5 | 85 | 22 | 18.5 | 20.5 | 1.5 | 2.3 | 14 | M6 | 5 | 3 | 7 | 86 |
|
| 128447 | IR.620/73 S.D.20 | 73 | 20 | 99 | 93 | 23 | 18.5 | 21 | 2 | 2.3 | 14 | M6 | 5 | 3 | 7 | 94 |
|
| 128448 | IR.620/80 S.D.20 | 80 | 20 | 106 | 100 | 24 | 18.5 | 21.5 | 2.5 | 2.3 | 14 | M6 | 5 | 3 | 7 | 94 |
|
| 128449 | IR.620/90 S.D.20 | 90 | 20 | 115.5 | 110 | 25 | 18.5 | 24.5 | 0.5 | 2.3 | 14 | M6 | 5 | 3 | 7 | 123 |
|
| 128450 | IR.620/90 S.D.26 | 90 | 26 | 119 | 114 | 25 | 23 | 24.5 | 0.5 | 2.3 | 18 | M6 | 7 | 3 | 9 | 157 |
|
IR.620-SST
| H | D | L | M | D1 | H2 | r | s | s1 | b | f | h1 | d1 | r2 | |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Code | Description | Actions | |||||||||||||||
| 128462 | IR.620/45-SST-S.D.16 | 45 | 16 | 63 | 60 | 15.5 | 14 | 15 | 0.5 | 1.7 | 10 | M5 | 4 | 3 | 5.5 | 36 |
|
| 128464 | IR.620/60-SST-S.D.16 | 60 | 16 | 78 | 74 | 18 | 14 | 16.5 | 1.5 | 1.7 | 10 | M4 | 4 | 3 | 5.5 | 43 |
|
| 128465 | IR.620/65-SST-S.D.16 | 65 | 16 | 89.5 | 80.5 | 22 | 14 | 20.5 | 1.5 | 1.7 | 10 | M4 | 4 | 3 | 5.5 | 88 |
|
| 128466 | IR.620/65-SST-S.D.20 | 65 | 20 | 91.5 | 85 | 22 | 18.5 | 20.5 | 1.5 | 2.3 | 14 | M6 | 5 | 3 | 7 | 88 |
|
| 128467 | IR.620/73-SST-S.D.20 | 73 | 20 | 99 | 93 | 23 | 18.5 | 21 | 2 | 2.3 | 14 | M6 | 5 | 3 | 7 | 94 |
|
| 128468 | IR.620/80-SST-S.D.20 | 80 | 20 | 106 | 100 | 24 | 18.5 | 21.5 | 2.5 | 2.3 | 14 | M6 | 5 | 3 | 7 | 94 |
|
| 128469 | IR.620/90-SST-S.D.20 | 90 | 20 | 115.5 | 110 | 25 | 18.5 | 24.5 | 0.5 | 2.3 | 14 | M6 | 5 | 3 | 7 | 124 |
|
| 128470 | IR.620/90-SST-S.D.26 | 90 | 26 | 119 | 114 | 25 | 23 | 24.5 | 0.5 | 2.3 | 18 | M6 | 7 | 3 | 9 | 158 |
|
